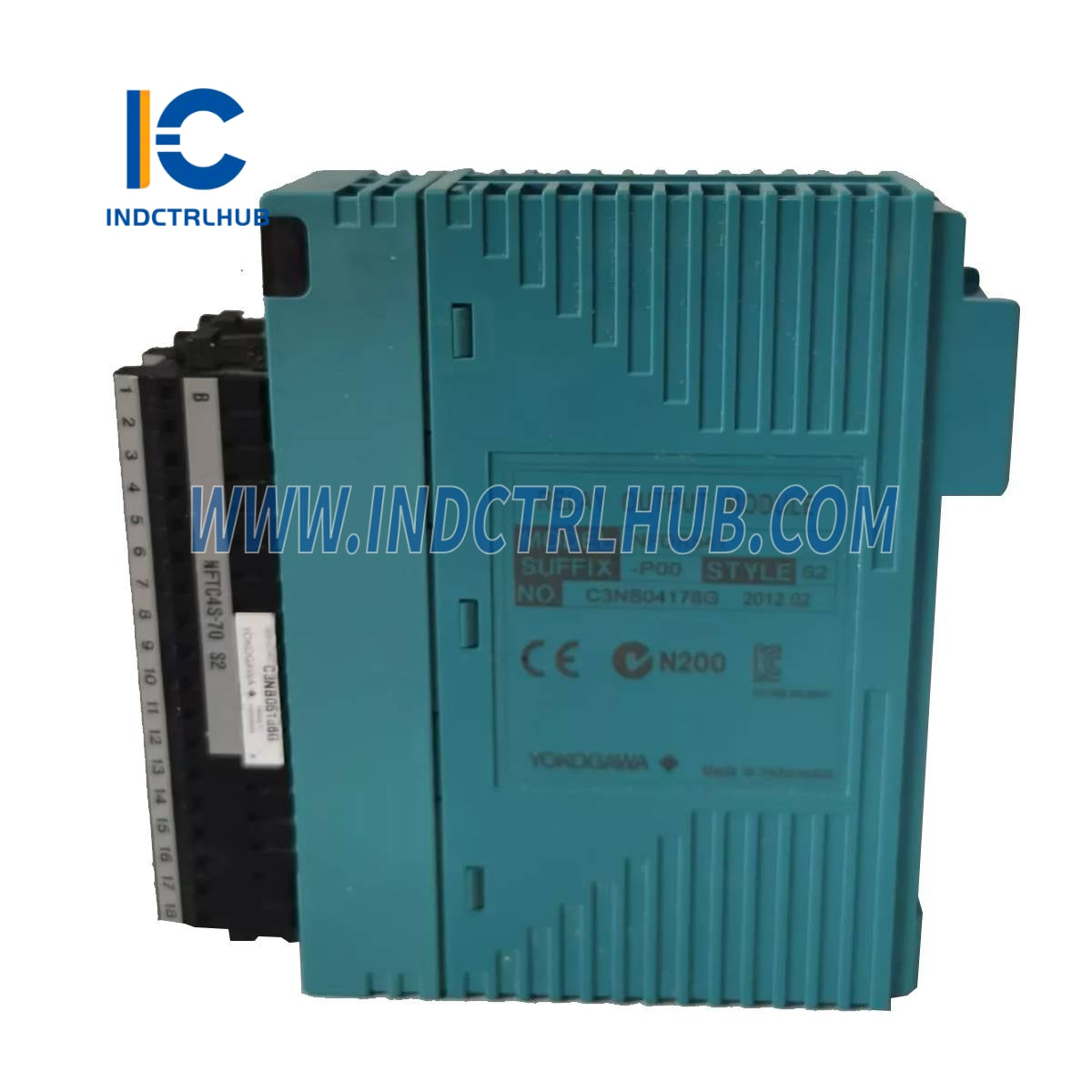

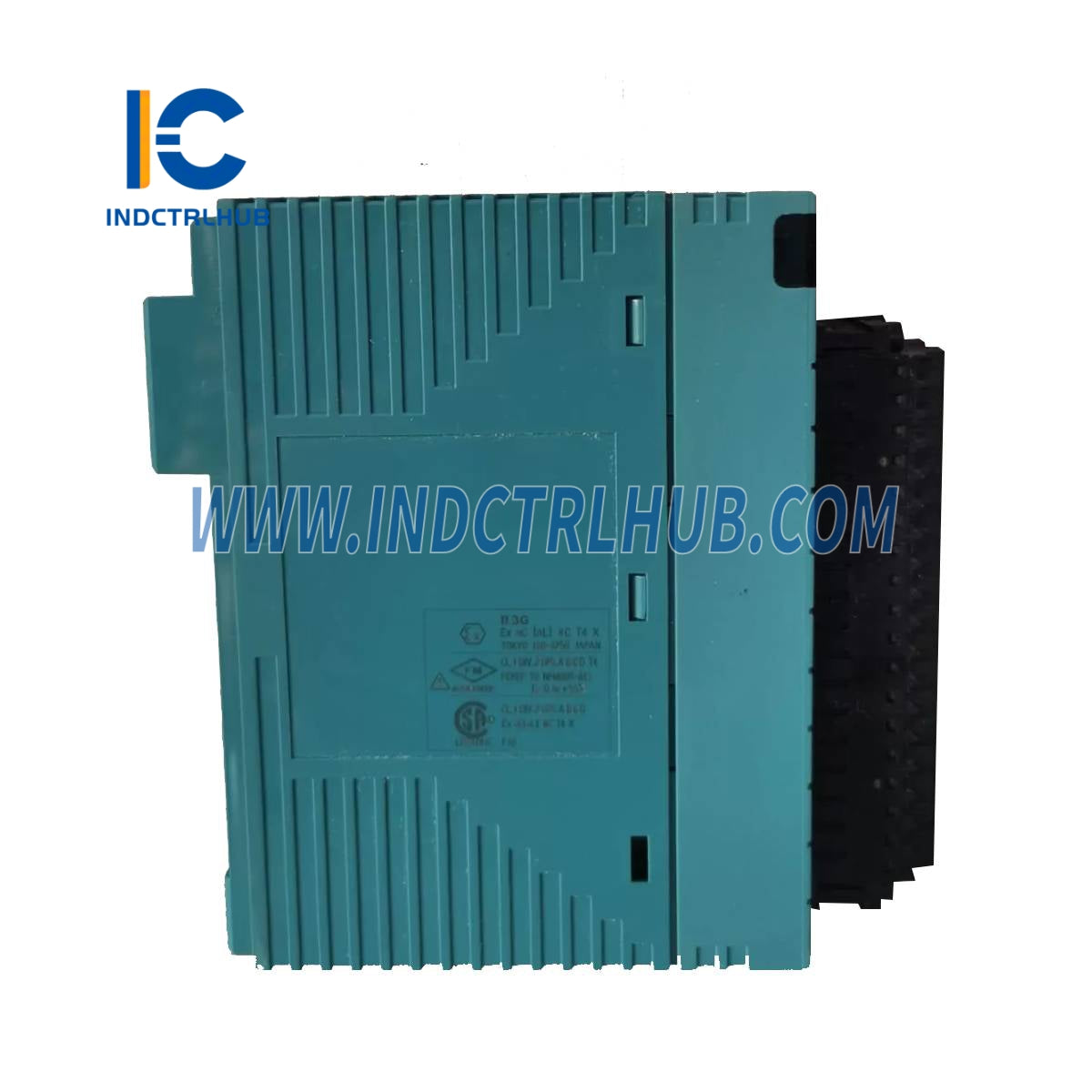

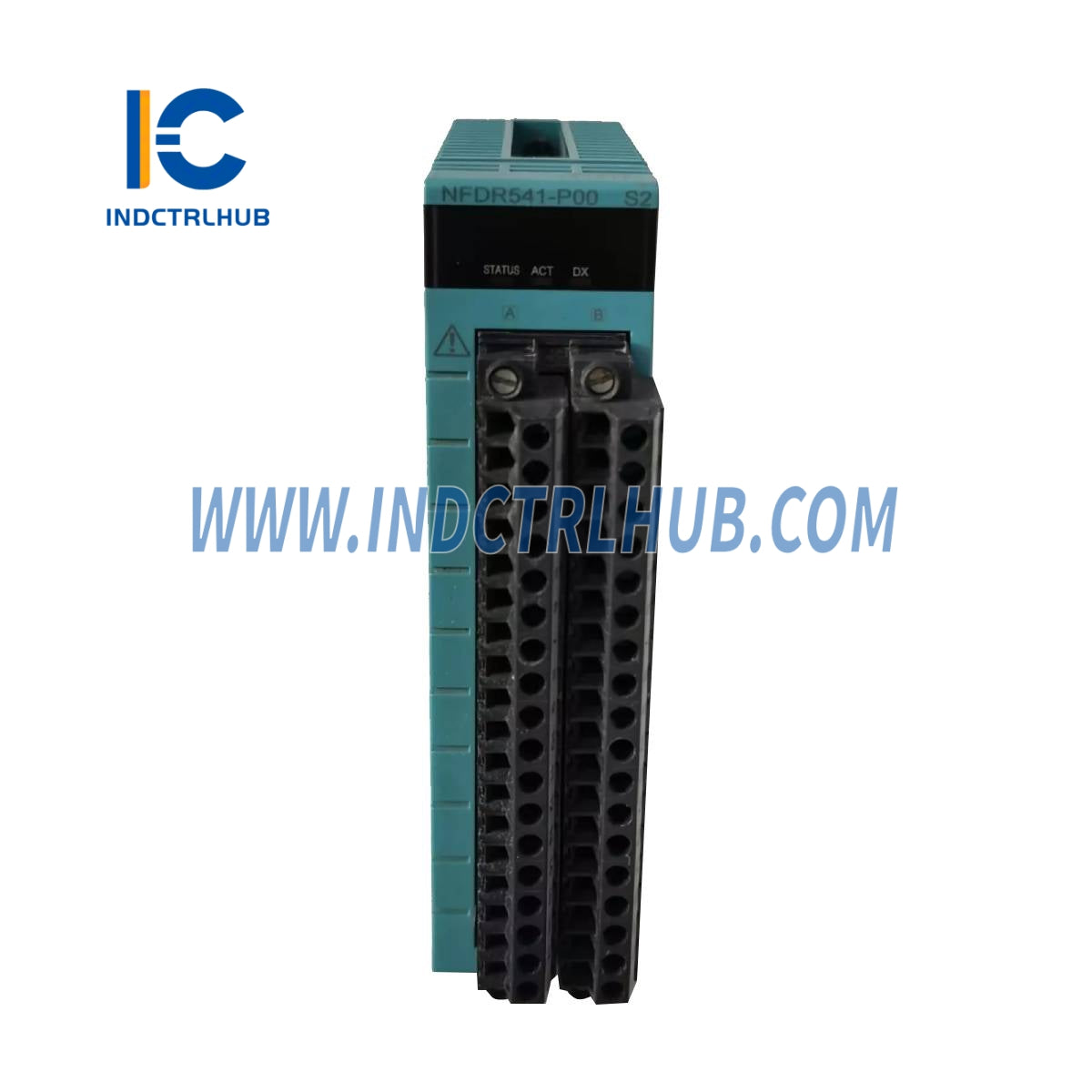

Yokogawa NFDR541 Relay Output Module (16-channel, Isolated)
Yokogawa NFDR541 Relay Output Module (16-channel, Isolated)
Manufacturer: Yokogawa
Product No.: NFDR541
Condition:1000 in stock
Product Type: Relay Output Module (16-channel, Isolated)
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
NFDR541 |
|
Description |
Relay Output Module (16-channel, Isolated) |
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Number of Output Channels |
16 |
|
Rated Applied Voltage |
24 to 125 V DC, 100 to 240 V AC (50/60 Hz) |
|
Maximum Load Current (Resistive) |
2.0 A @ 24 V DC, 1.0 A @ 48 V DC, 0.3 A @ 110/125 V DC |
|
2.0 A @ 100 V AC, 2.0 A @ 220 V AC |
|
|
Maximum Load Current (Inductive) |
0.6 A @ 24 V DC, 0.3 A @ 48 V DC, 0.1 A @ 110 V DC |
|
2.0 A @ 100 V AC, 1.0 A @ 220 V AC |
|
|
Withstanding Voltage |
Output _ System: 2000 V AC for 1 minBetween commons: 1350 V AC for 1 min (common every 8 channels) |
|
Functions |
ON/OFF status output function |
|
Output Fallback |
HOLD / OFF / NO |
|
Output Response Time |
12 ms or less (status output) |
|
Max. Current Consumption |
780 mA (5 V DC) |
|
Weight |
0.3 kg |
|
External Connection |
Pressure clamp terminal |
_
_
__ Model and Suffix Code Interpretation
|
Model |
Description |
|---|---|
|
NFDR541 |
Relay Output Module (16-channel, Isolated) |
|
Suffix |
Meaning |
|---|---|
|
-T |
Standard type (24_125 V DC / 100_240 V AC) |
|
5 |
General-purpose type with no explosion protection |
|
E |
General-purpose type with explosion protection |
|
0 |
Basic type |
|
1 |
With ISA Standard G3 option |
|
Option Code |
Description |
|---|---|
|
/C4S70 |
With Pressure Clamp Terminal Block for Digital Input [Model: NFTC4S-70] |
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | EC402-51 ESB Bus Coupler Module for Network Integration | 1214_2214 | 680 | EC402-51 ESB Bus Coupler Module |
| YOKOGAWA | NFSB100-S50/SBT01 SB Bus Repeat Module for FCN | 1500_2500 | 330 | NFSB100-S50/SBT01 SB Bus Repeat Module |
| YOKOGAWA | CP471-00 Processor Module for CENTUM VP Systems | 4500_5500 | 780 | CP471-00 Processor Module |
| YOKOGAWA | AAV542-S50 Voltage Output Module for DCS | 571_1571 | 460 | AAV542-S50 Voltage Output Module |
| YOKOGAWA | SAI143-H03 Analog Input Module for Current Signals | 1781_2781 | 620 | SAI143-H03 Analog Input Module |
| YOKOGAWA | F3CU04-1S Temperature Control and PID Module for FA-M3 | 500_1000 | 390 | F3CU04-1S PID Module |
| YOKOGAWA | VI702 VNET/IP Interface Card for Network Communication | 358_1358 | 740 | VI702 VNET/IP Interface Card |
