Product Description
š¹ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAV542-S50 |
|
Description |
Voltage Output Module (-10 to +10 V DC, 16-Channel, Non-Isolated) |
Ā
Ā
š¹ Description

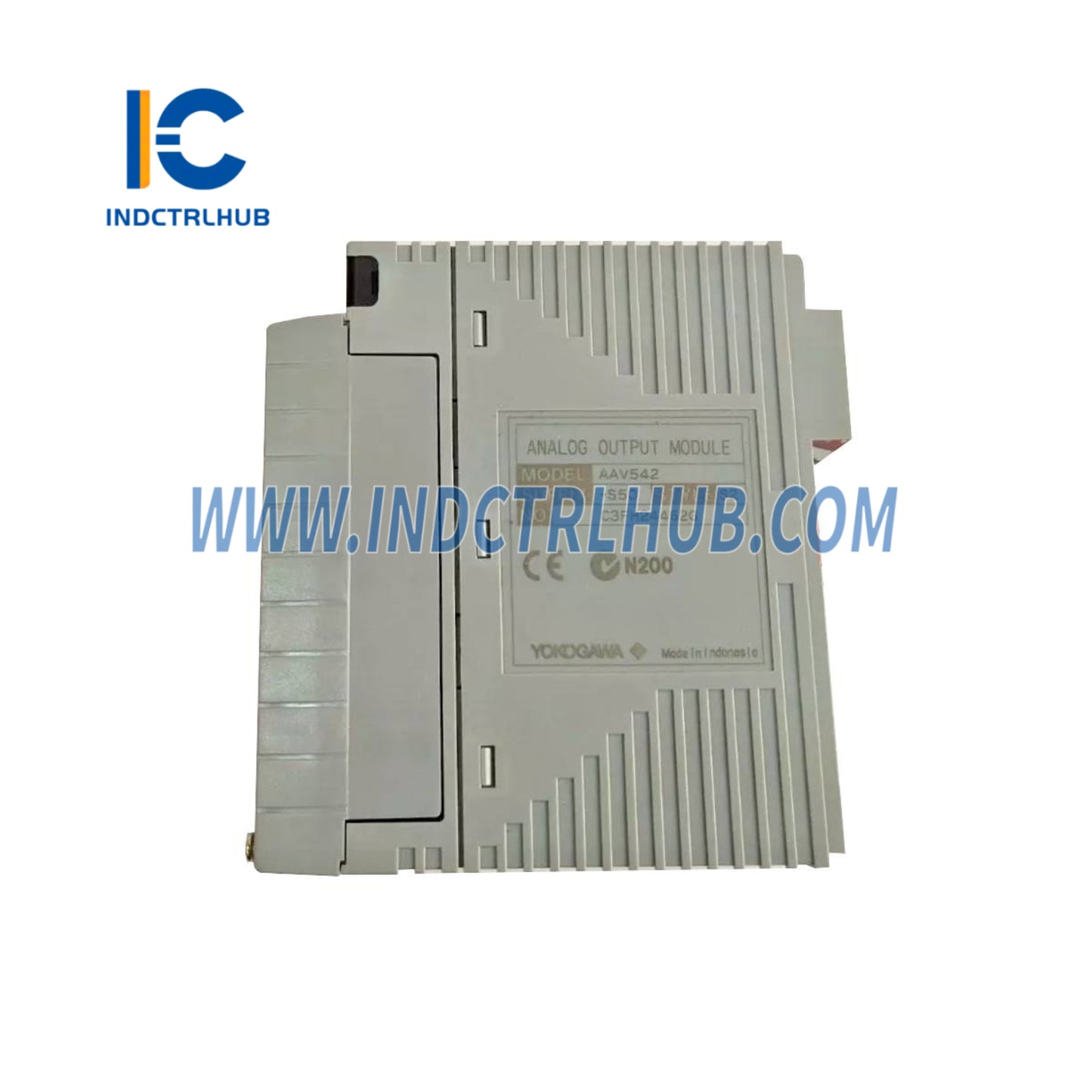

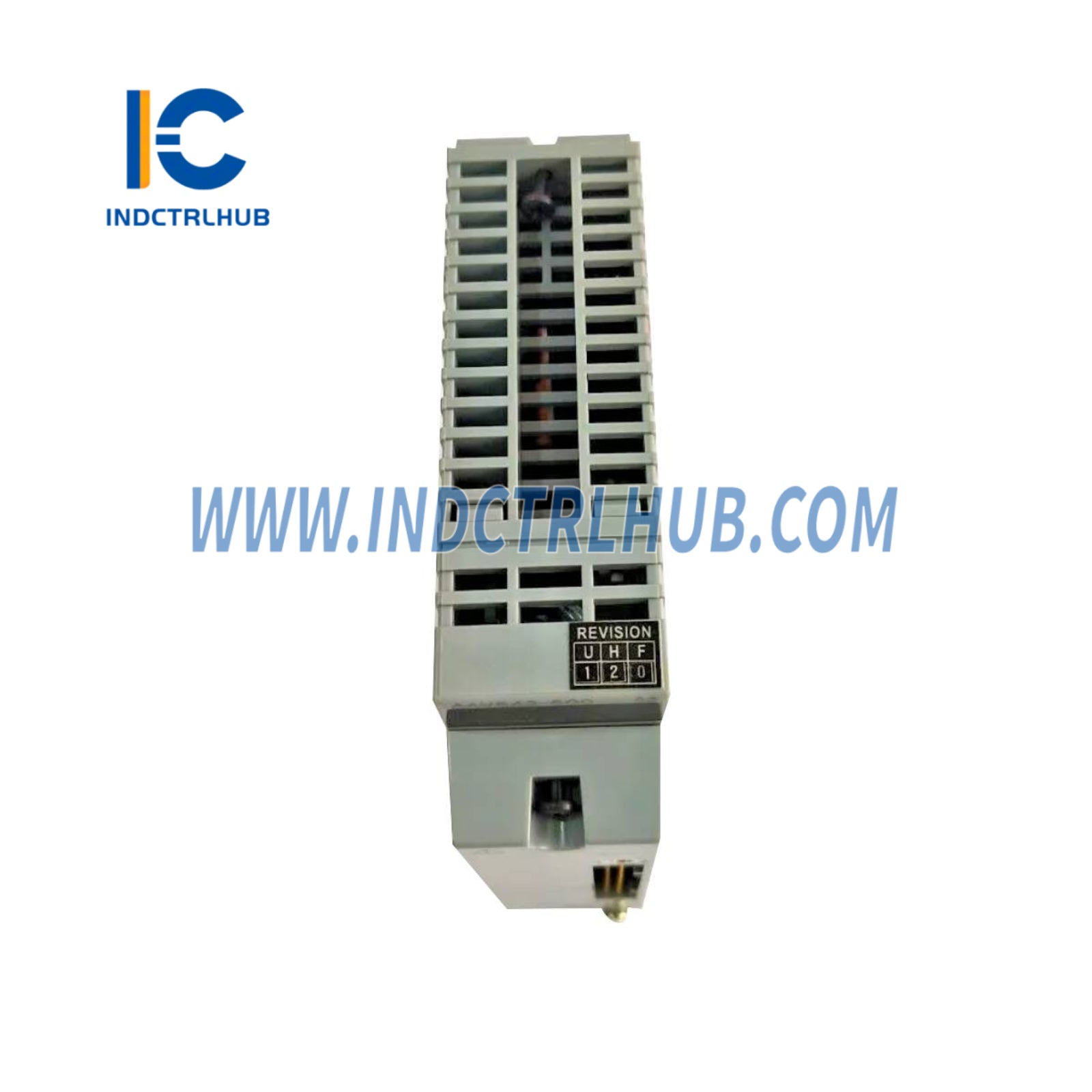

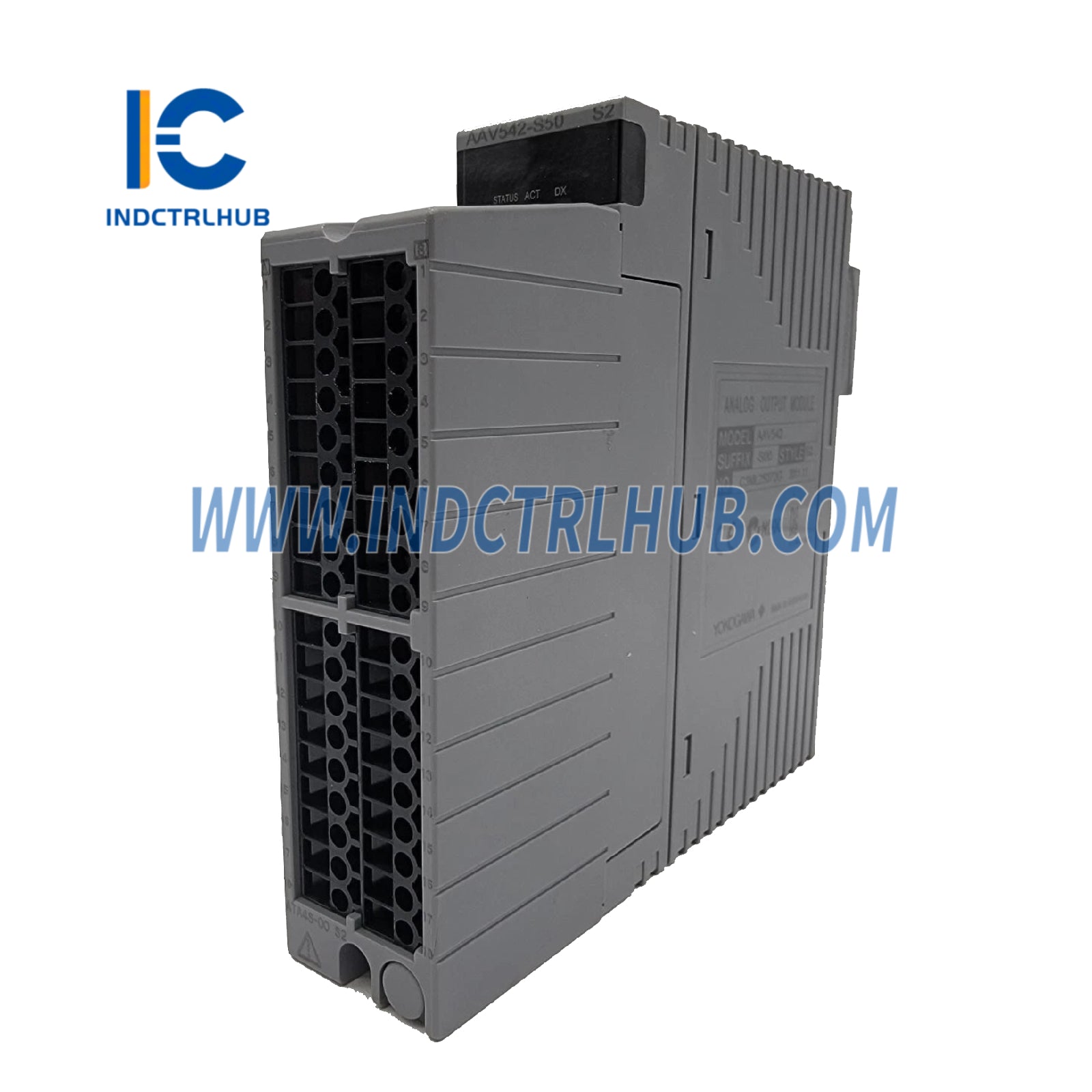

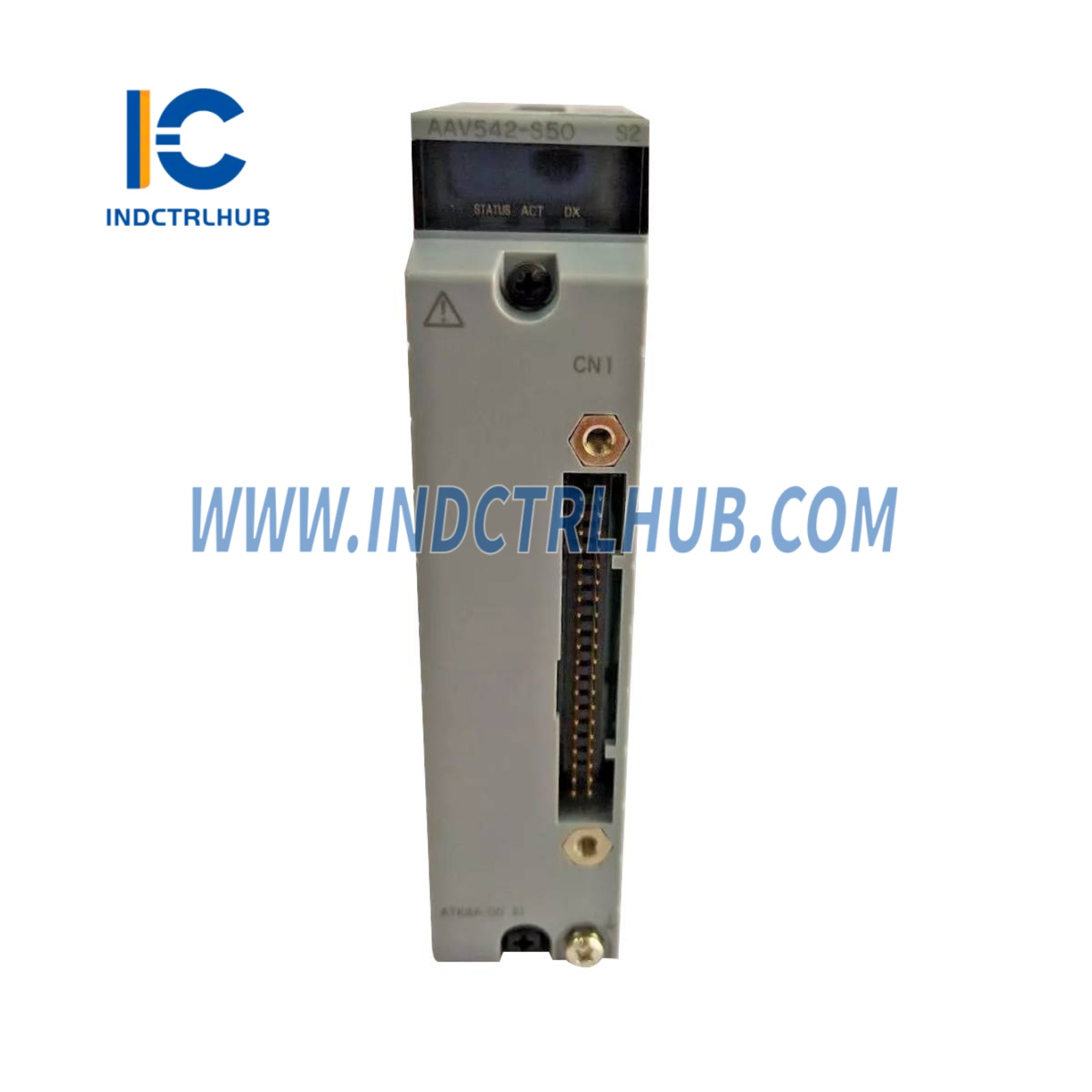

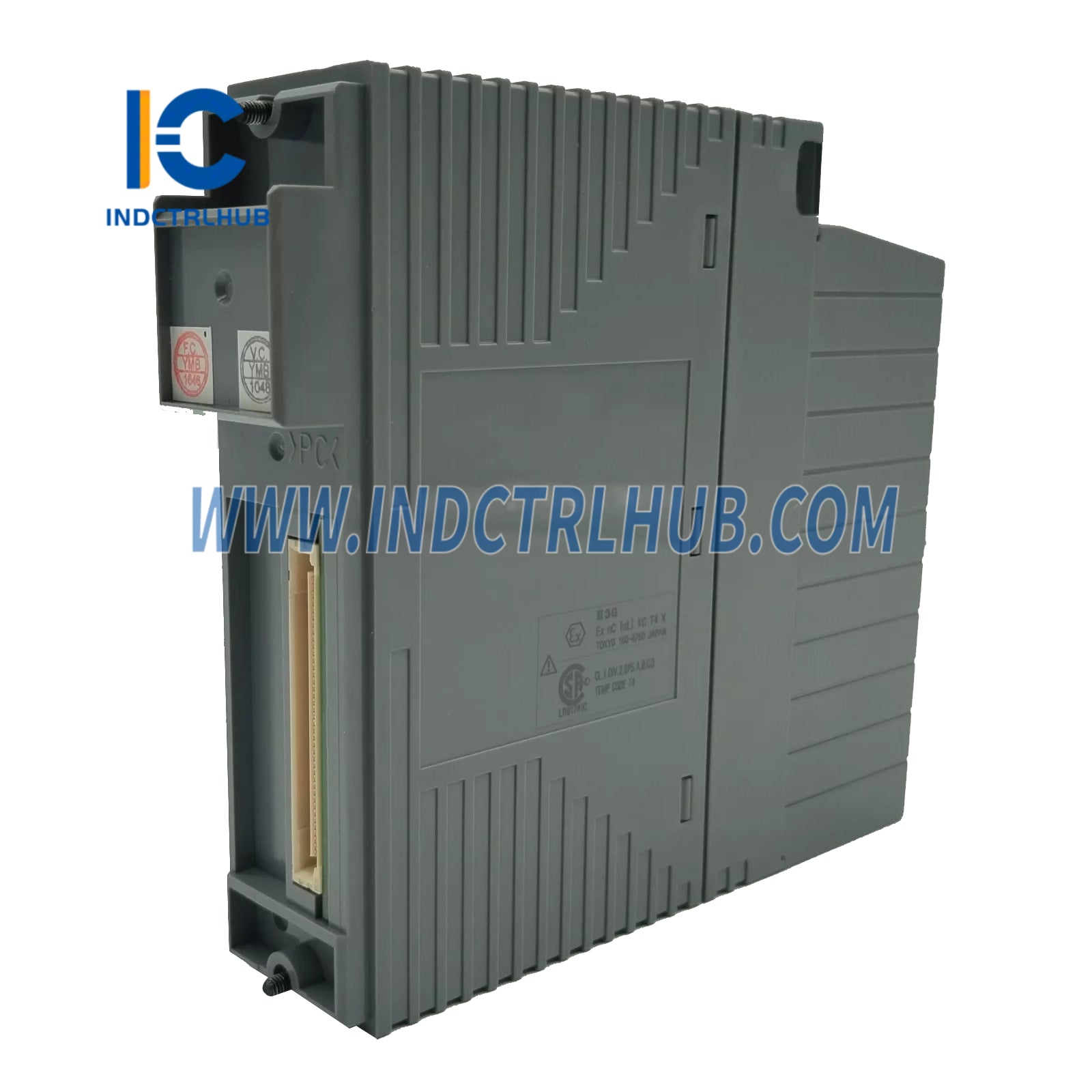

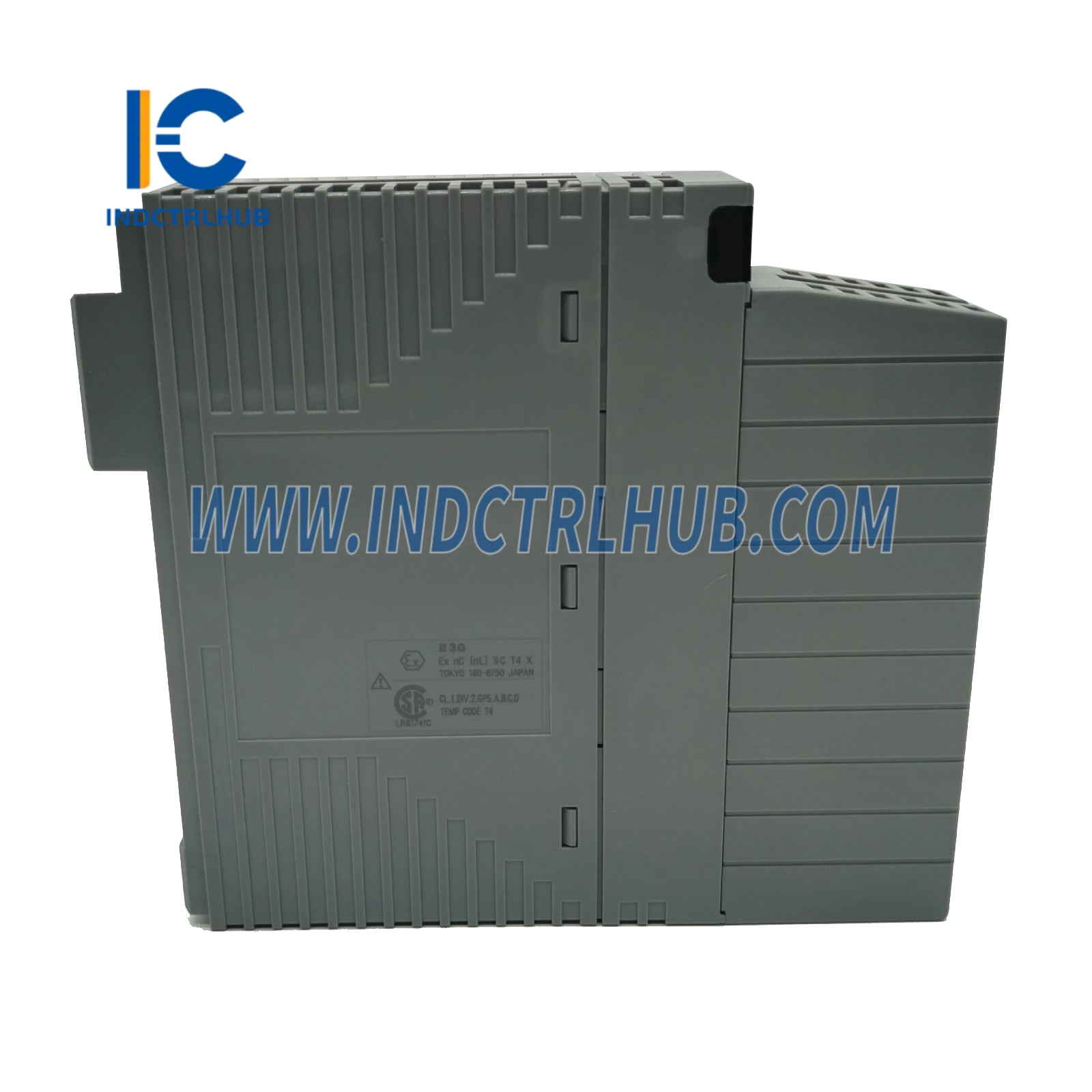

TheĀ AAV542-S50Ā is a 16-channelĀ non-isolated voltage output moduleĀ that outputs signals in the range ofĀ -10 V to +10 V DC. It supportsĀ dual-redundant configurations, making it suitable for critical control applications. This module is aĀ standard typeĀ withĀ no explosion protectionĀ and aĀ basic operating temperature range.
Ā
Ā
š¹ Technical Specifications
|
Specification |
Details |
|---|---|
|
Model Base |
AAV542 |
|
Output Channels |
16, non-isolated |
|
Output Signal |
-10 to +10 V DC |
|
Withstanding Voltage |
Not specified (non-isolated design) |
|
Allowable Load Resistance |
10 kā¦ or larger |
|
Accuracy |
Larger of Ā±0.3 %/FS and Ā±12 mV |
|
Data Update Period |
10 ms |
|
Output Step Response Time |
40 ms |
|
Temperature Drift |
Larger of Ā±0.1 %/10 Ā°C and Ā±10 mV/10 Ā°C |
|
Max Current Consumption |
450 mA (5 V DC) |
|
Weight |
0.2 kg |
|
External Connection |
Pressure clamp terminal, KS cable, MIL connector cable |
Ā
Ā
š¹ Model & Option Code Breakdown
|
Code |
Meaning |
|---|---|
|
-S |
Standard type (no HART protocol) |
|
5 |
No explosion protection |
|
0 |
Basic type |
Ā
Ā
š¹ Optional Accessories
|
Option Code |
Description |
|---|---|
|
/K4A00 |
With KS Cable Interface Adapter [Model: ATK4A-00] |
|
/A4S00 |
With Pressure Clamp Terminal Block for Analog [Model: ATA4S-00] |
|
/A4S10 |
With Pressure Clamp Terminal Block (with surge absorber) [Model: ATA4S-10] |
|
/A4D00 |
With Dual Pressure Clamp Terminal Block for Analog [Model: ATA4D-00] |
|
/A4D10 |
With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10] |
|
/CCC01 |
With Connector Cover for MIL Cable [Model: ACCC01] |
