Product Description
Product Details
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
F3CU04-1S |
|
Description |

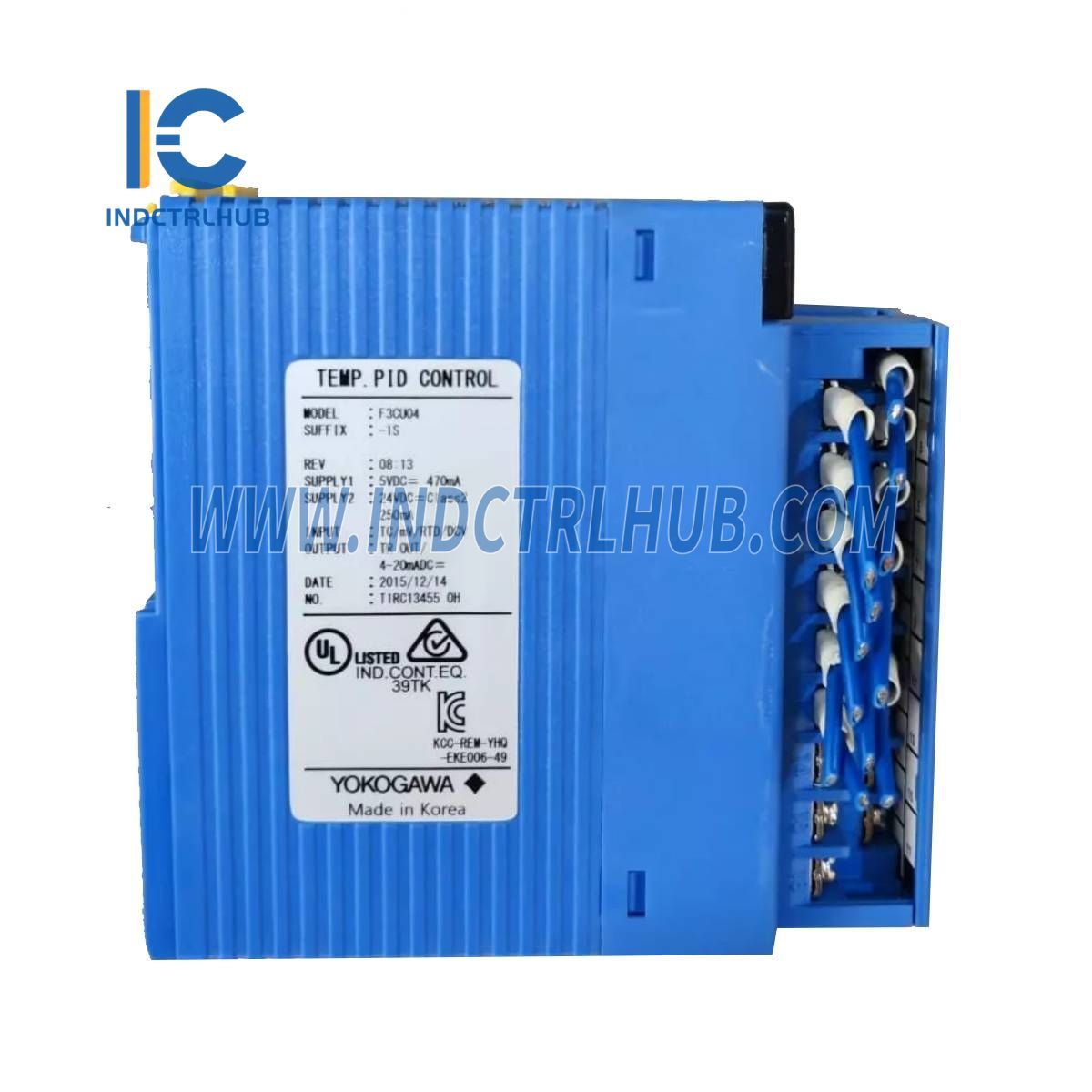

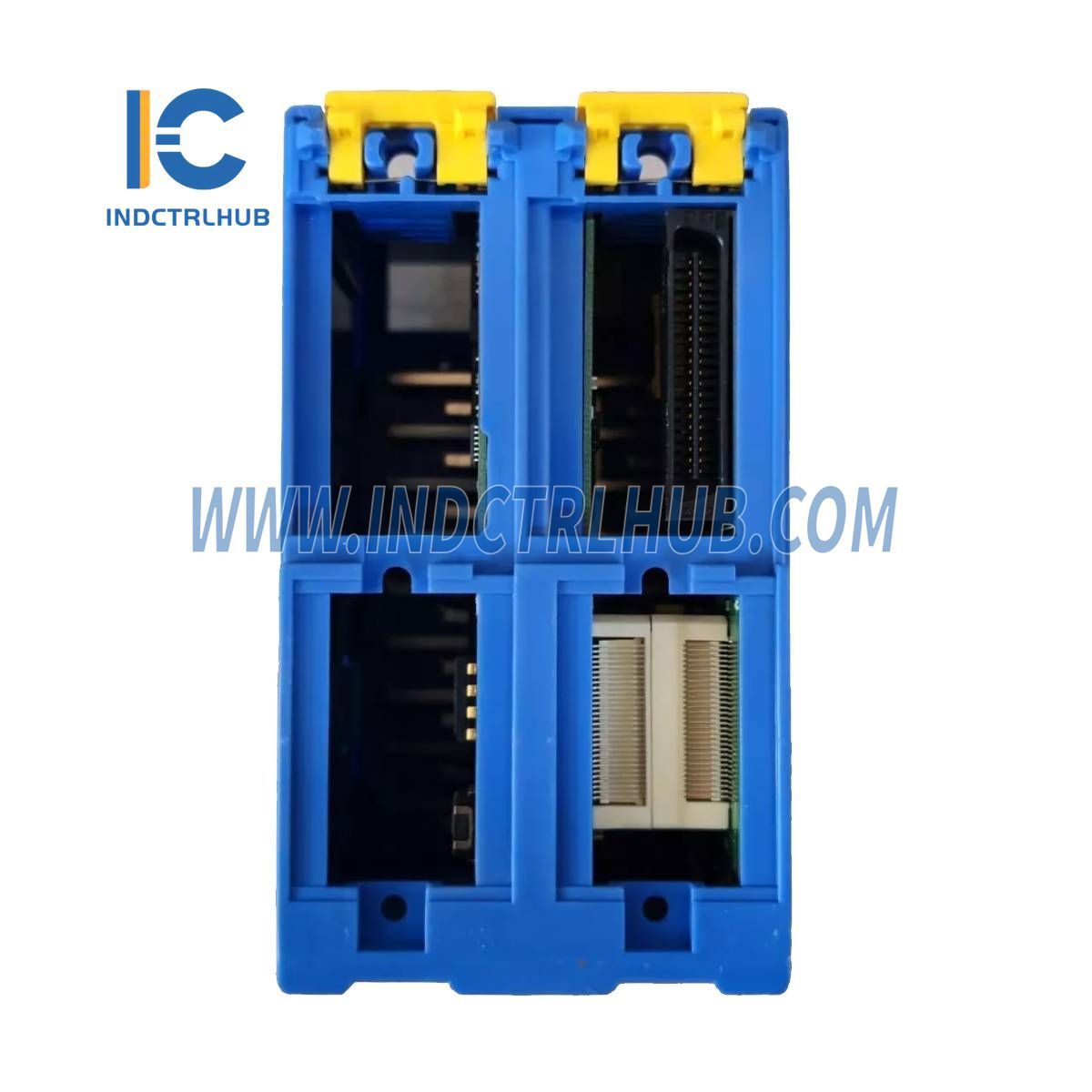

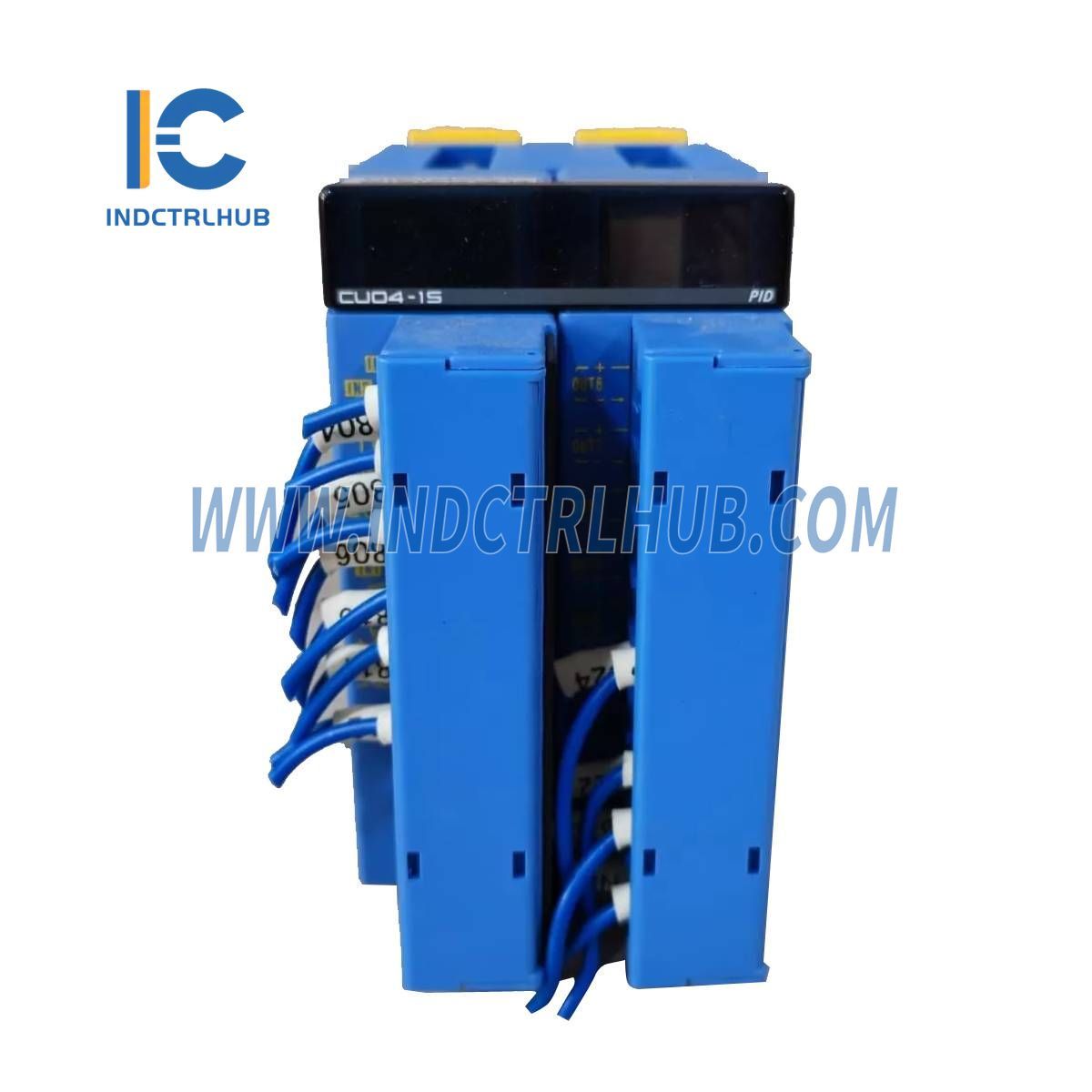

Temperature Control and PID Module |
General Specifications
|
Item |
F3CU04-1S |
|---|---|
|
Number of Loops |
4 |
|
Isolation |
- Between input terminals and internal circuit: Isolated by photocouplers and transformers (withstands 1500 V AC for 1 minute) - Between input terminals, output terminals, and internal circuit: Not isolated |
|
Alarm Types |
12 types: Upper input limit, lower input limit, upper deviation limit, lower deviation limit, upper/lower deviation limit, deviation range (all with or without waiting) |
|
Number of Alarm Outputs (Input Relays) |
4 points per loop (only alarms 1 and 2 have input relays) |
|
Alarm Delay Timer |
Yes |
|
Warm-up Time |
30 minutes min. |
|
Max. Allowable Ambient Temperature Change Rate |
10°C/h max. |
|
Mounting Position |
Horizontal or inverted orientation not allowed |
|
External Connection |
Two 18-point terminal blocks with M3.5 screws |
|
External Dimensions |
58 (W) × 100 (H) × 106.1 (D) mm |
|
Current Consumption |
470 mA at 5 V DC |
|
Weight |
350 g |
