Product Description
Product Details
| Manufacturer | YOKOGAWA |
|---|---|
| Model/Part Number | CP471-00 |
| Model Type | Processor Module |
General Overview

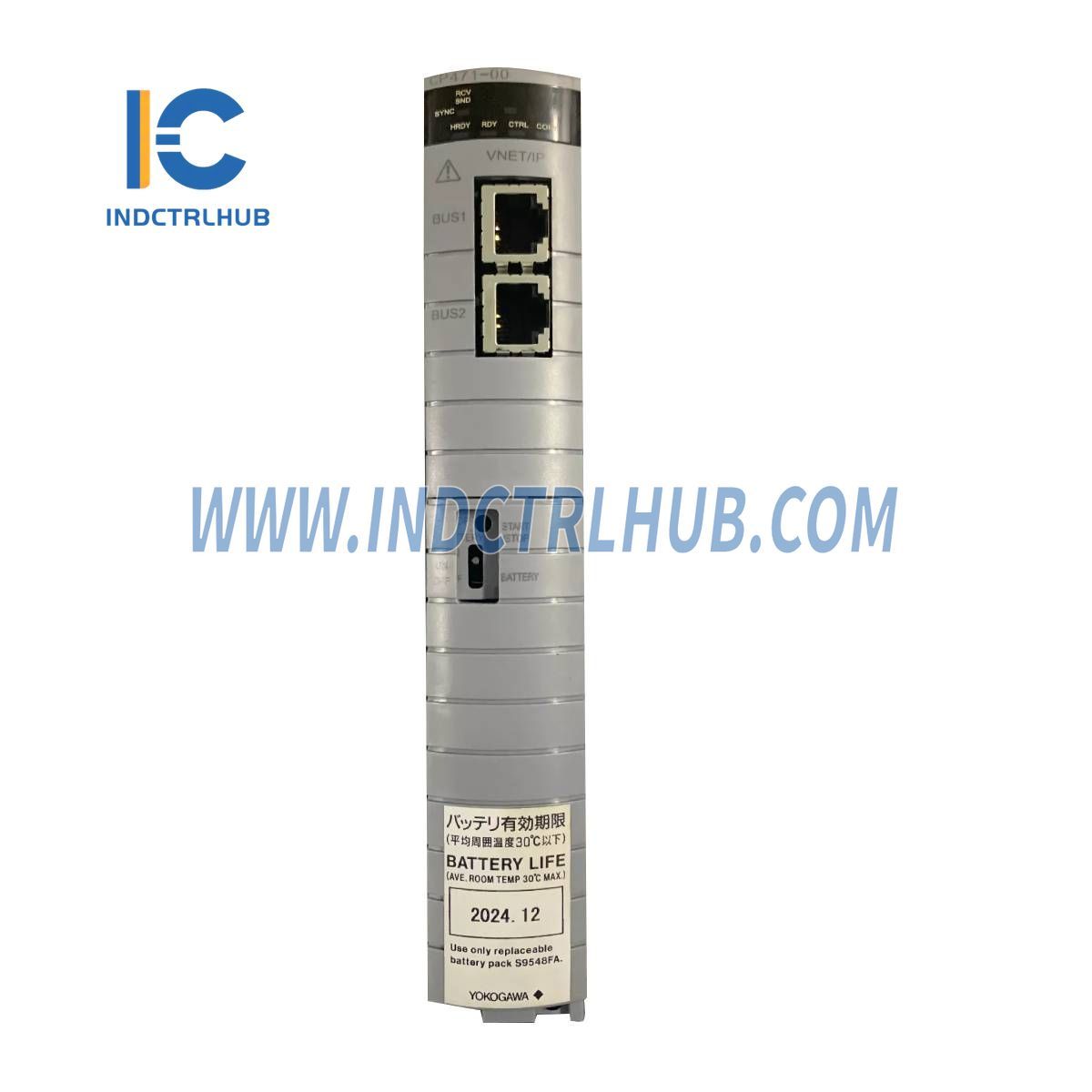

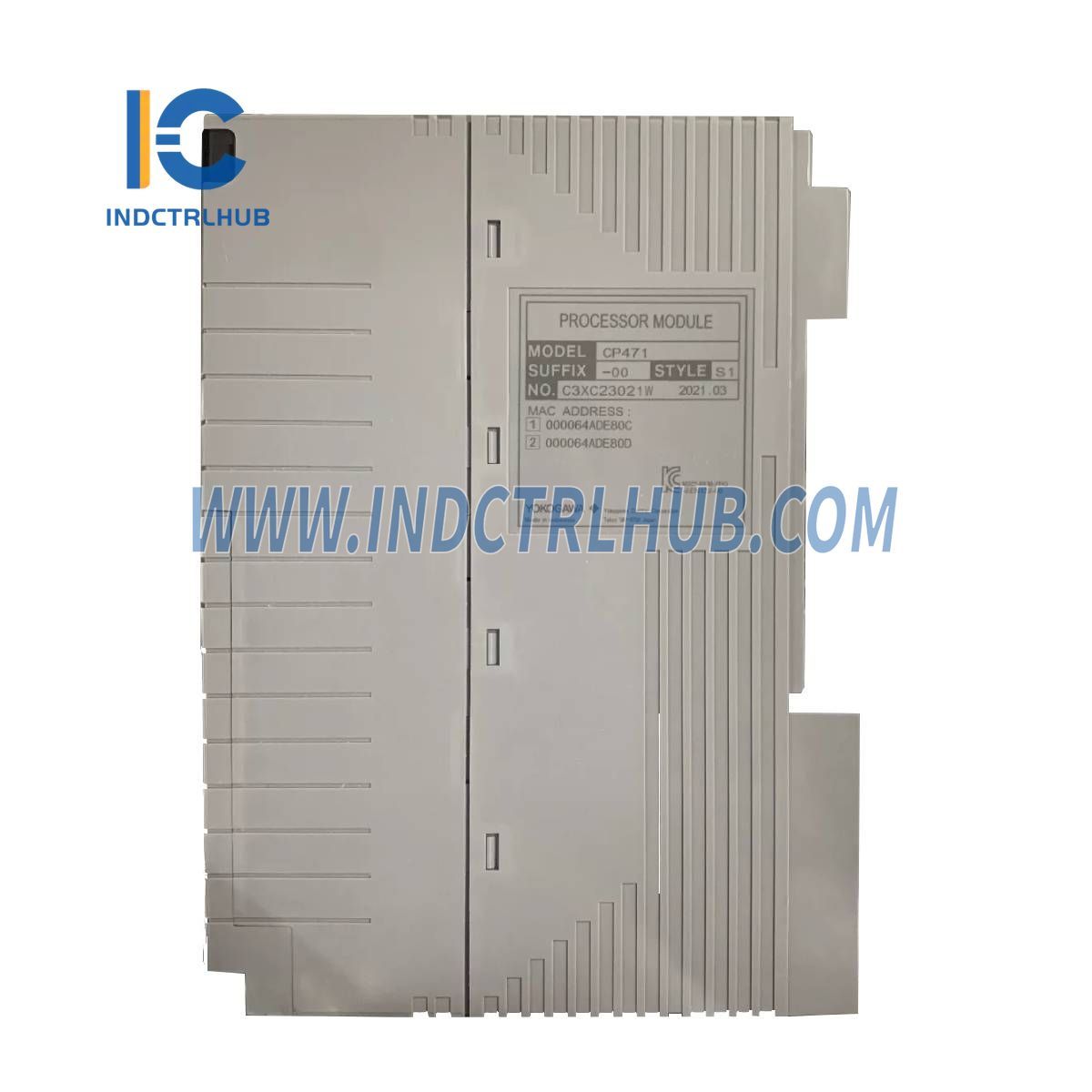

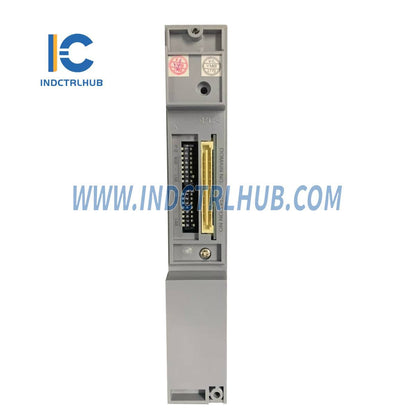

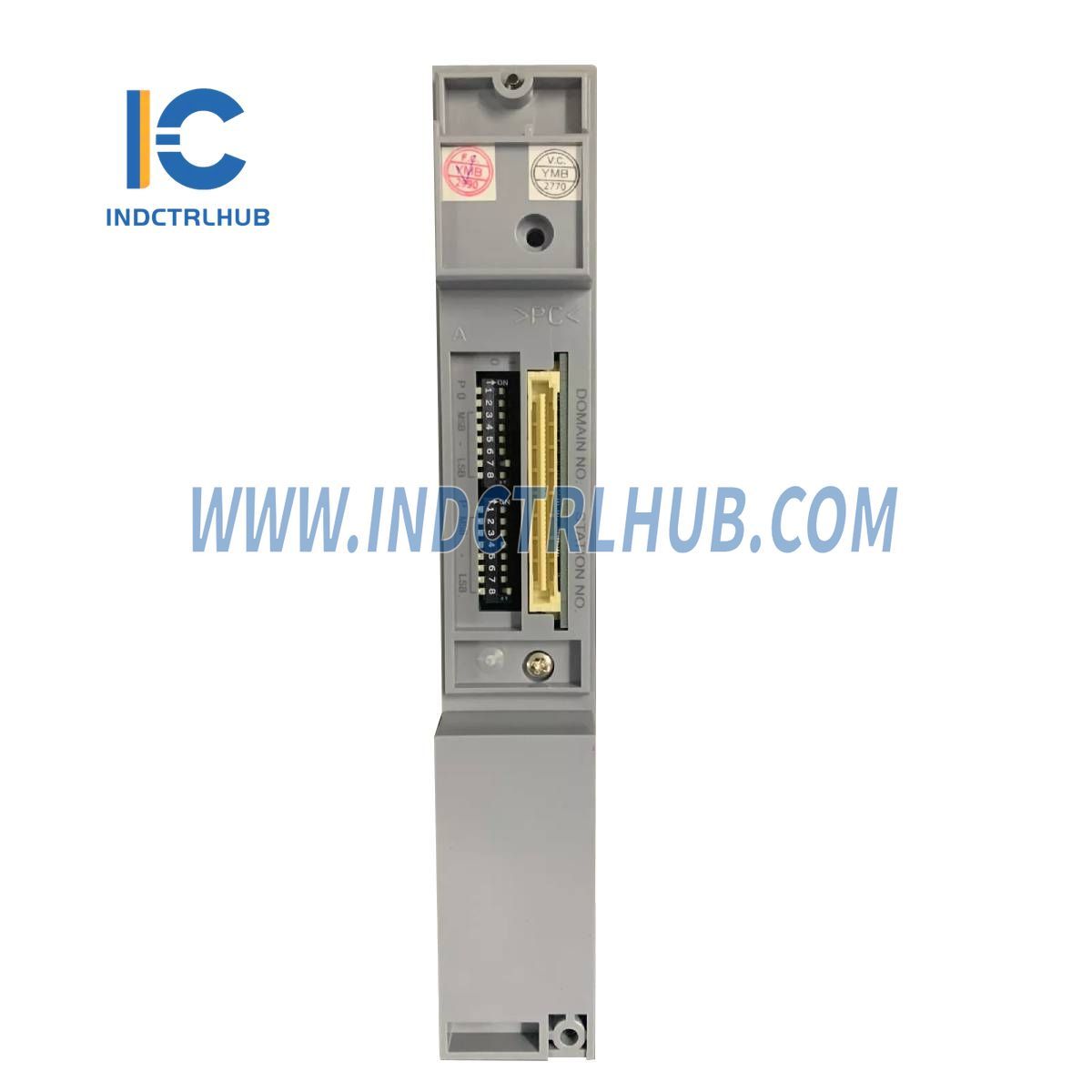

The CP471 Processor Module is a key component used in CENTUM field control units. This module can be used in dual-redundant configurations in duplexed field control units, providing reliable processing power for field control systems.
Model and Suffix Codes
| Description | Suffix Codes |
|---|---|
| Explosion Protection | - 0: No explosion protection, 1: With explosion protection |
| Processor Type | - 0: Basic type, 1: With ISA Standard G3 option |
| Enhanced RFI Option | /ERFI: Enhanced RFI (Tokuchu) option |
Operating Conditions
- CP471 runs with CENTUM VP R6.05 or later versions of the Control Function for Field Control Station.
- It is compatible with the following Field Control Units:
- AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S, A2FV50D, A2FV70S, A2FV70D.
Hardware Specifications
- Weight: Approx. 700 g.
- CP471 is used in duplexed field control units and can be mounted only on specific CENTUM field control units as outlined in the model compatibility section.
- Explosion Protection: Available for specific models (CP471-00 for non-explosion protection and CP471-01 for explosion protection standards in certain regions).
- Compatibility with ESB Bus Coupler Modules: CP471 can be combined with style S3 or later of the ESB bus coupler module EC401.
Notes on Model Compatibility
- CP471 can be used in dual-redundant configurations, especially in AFV30S, AFV30D, AFV40S, AFV40D, and others.
- In CE Marking applicable countries, CP471-00 is used with AFV30-S0, and CP471-01 is used with AFV30-S1. For explosion protection purposes, specific models such as CP471-10 and CP471-11 can be used for FM NI explosion protection standards.
