Product Description
Product Details
- Manufacturer: Yokogawa
- Model/Part Number: EC402-51

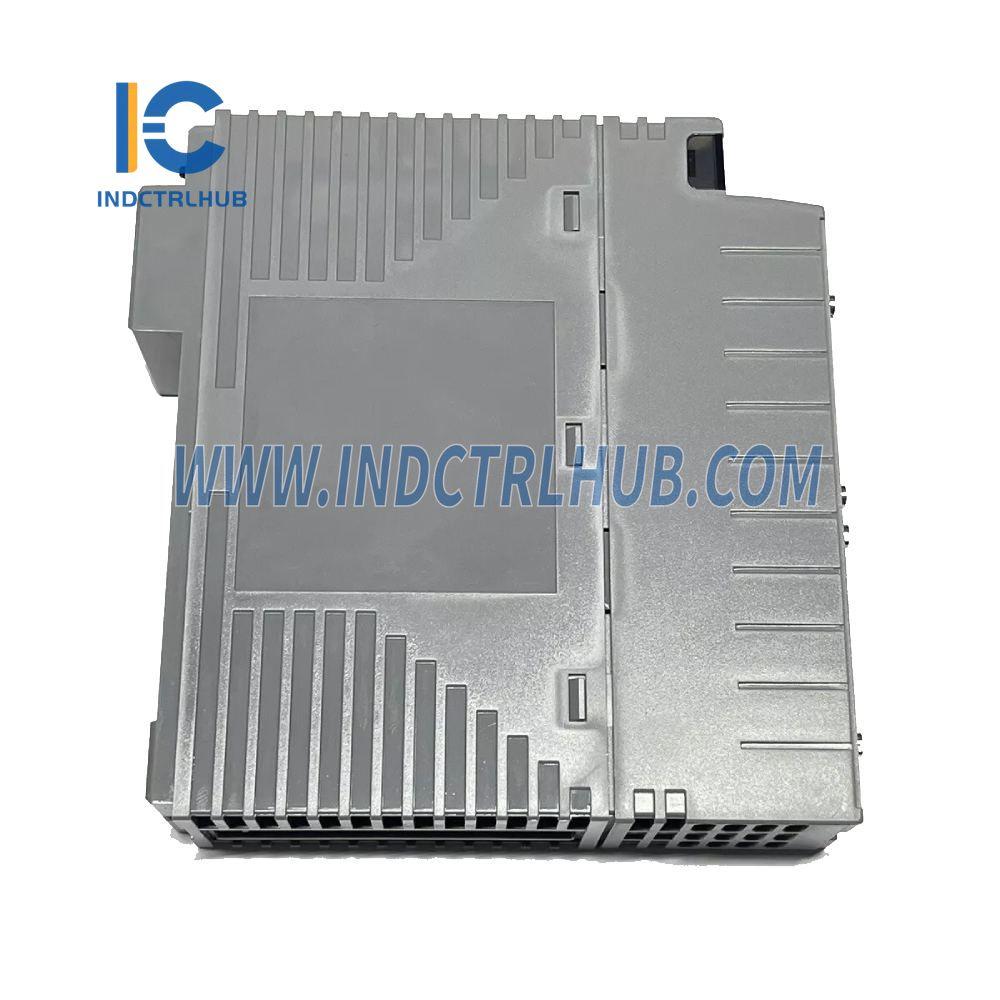

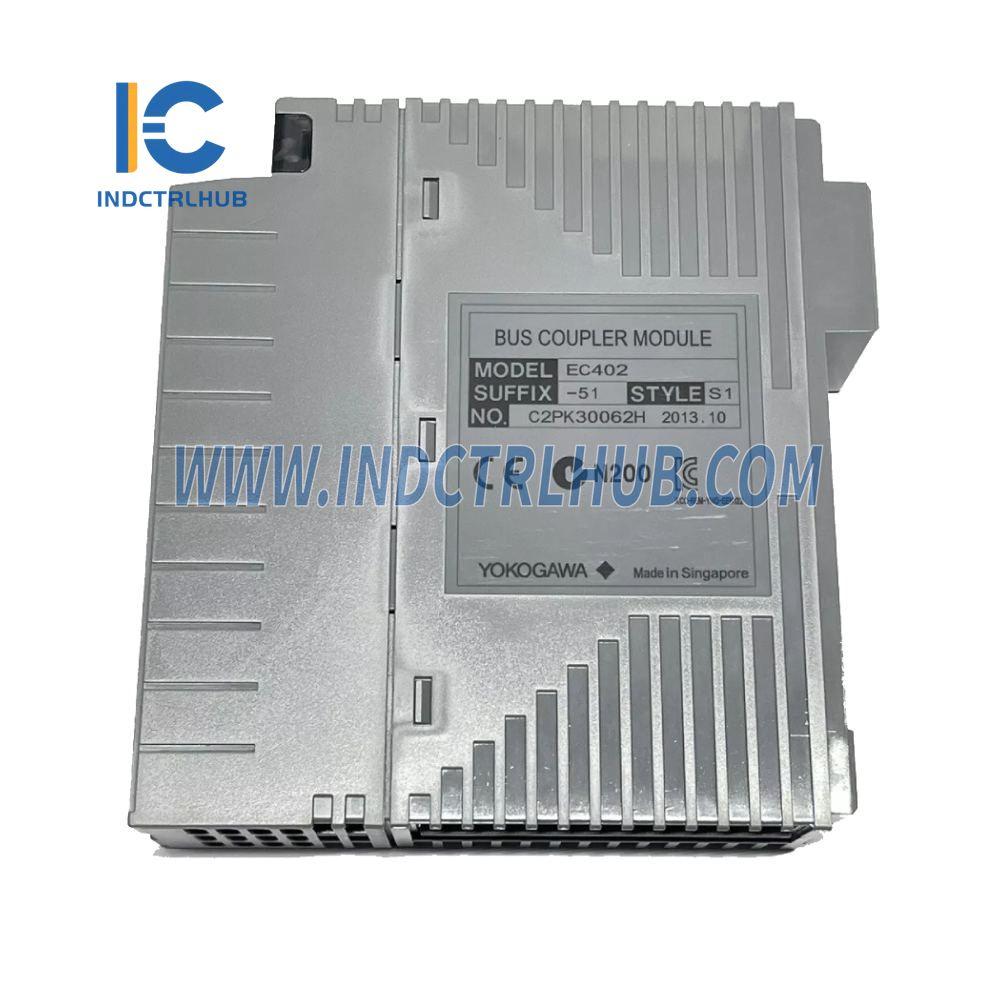

- Description: ESB Bus Coupler Module
General Information
The ESB Bus Coupler Module is a communication module designed to connect the Field Control Unit and the Node Unit for ESB Bus via the ESB bus. This module is compatible with the Field Control Unit for FIO (AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S, A2FV50D, A2FV70S, A2FV70D).

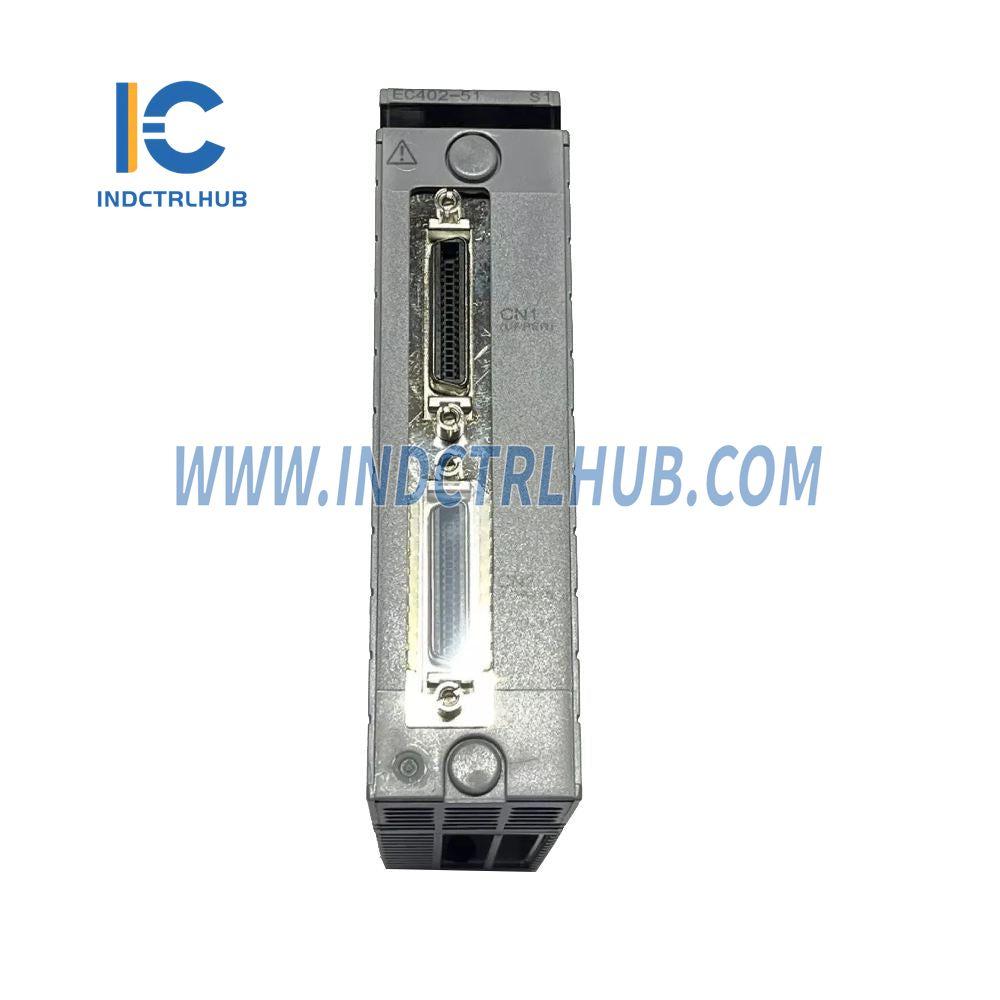

By installing two modules in the Field Control Unit for FIO, a dual-redundant ESB bus can be configured. The EC402 features two ESB bus connector ports on the front and accommodates more connected nodes than the EC401, offering a longer transmission distance.
Standard Specifications
| Attribute | Specification |
|---|---|
| Function | ESB bus master interface function |
| Number of Connectable Nodes | Upper side: Max. 9 units, Lower side: Max 9 units, Total: Max. 13 units |
| Transmission Speed | 128 Mbps (I/O module data transmission) |
| Transmission Distance | Upper side: Max. 10 m, Lower side: Max. 10 m, Total: Max. 20 m |
| Current Consumption | 0.5 A |
| Weight | Approx. 0.24 kg |
Note: The number of connectable nodes (*1) varies depending on the FCS database.
Model and Suffix Codes
| Description | Model EC402 |
|---|---|
| ESB Bus Coupler Module | For N-IO/FIO, 2-Port |
| Suffix Codes | Description |
|---|---|
| -5 | Standard type with no explosion protection |
| -E | Standard type with explosion protection |
| 0 | Basic type |
| 1 | With ISA Standard G3 option |
Ordering Information
- Specify model and suffix codes when ordering.
- For selecting the correct products for explosion protection, refer to TI 33Q01J30-01E without fail.
