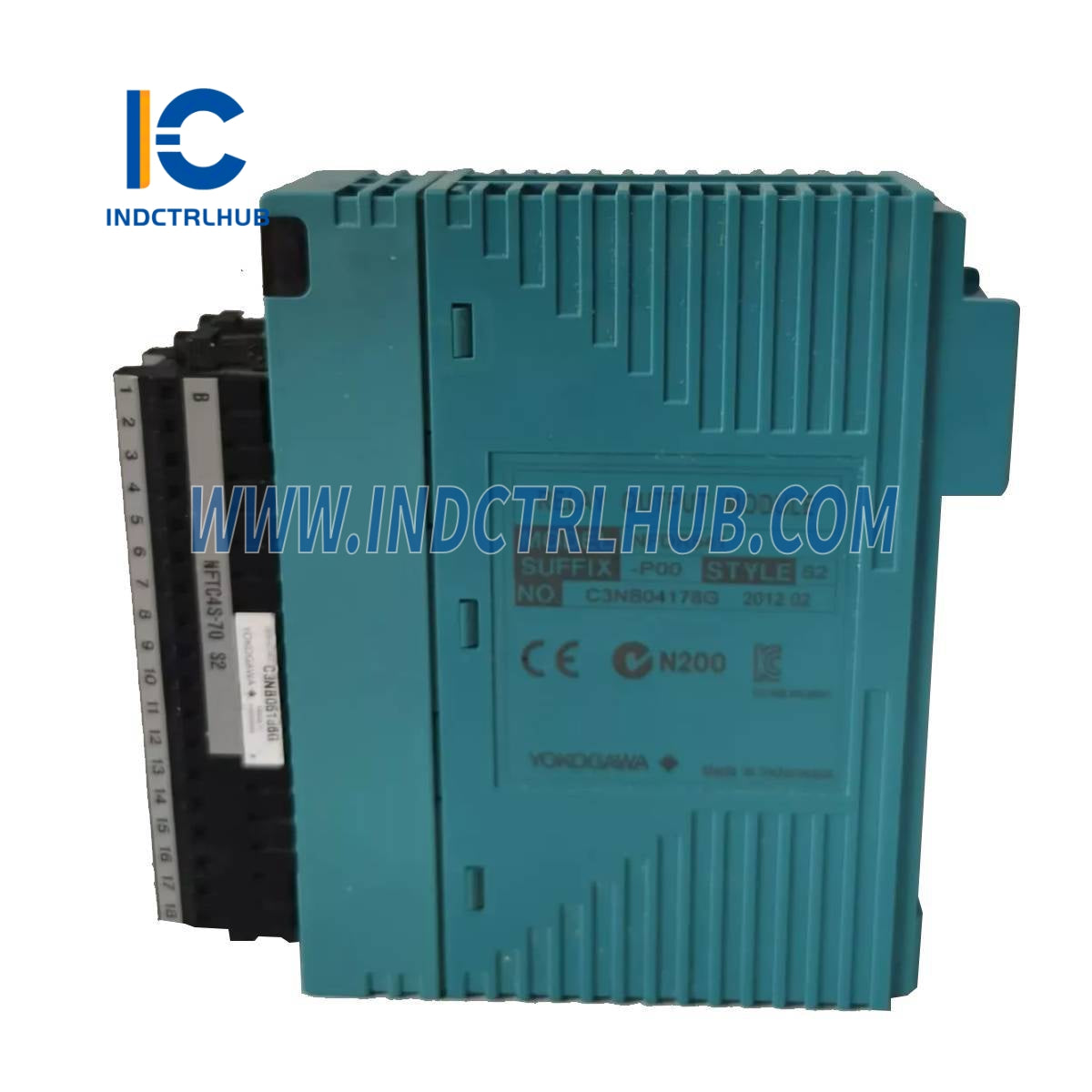

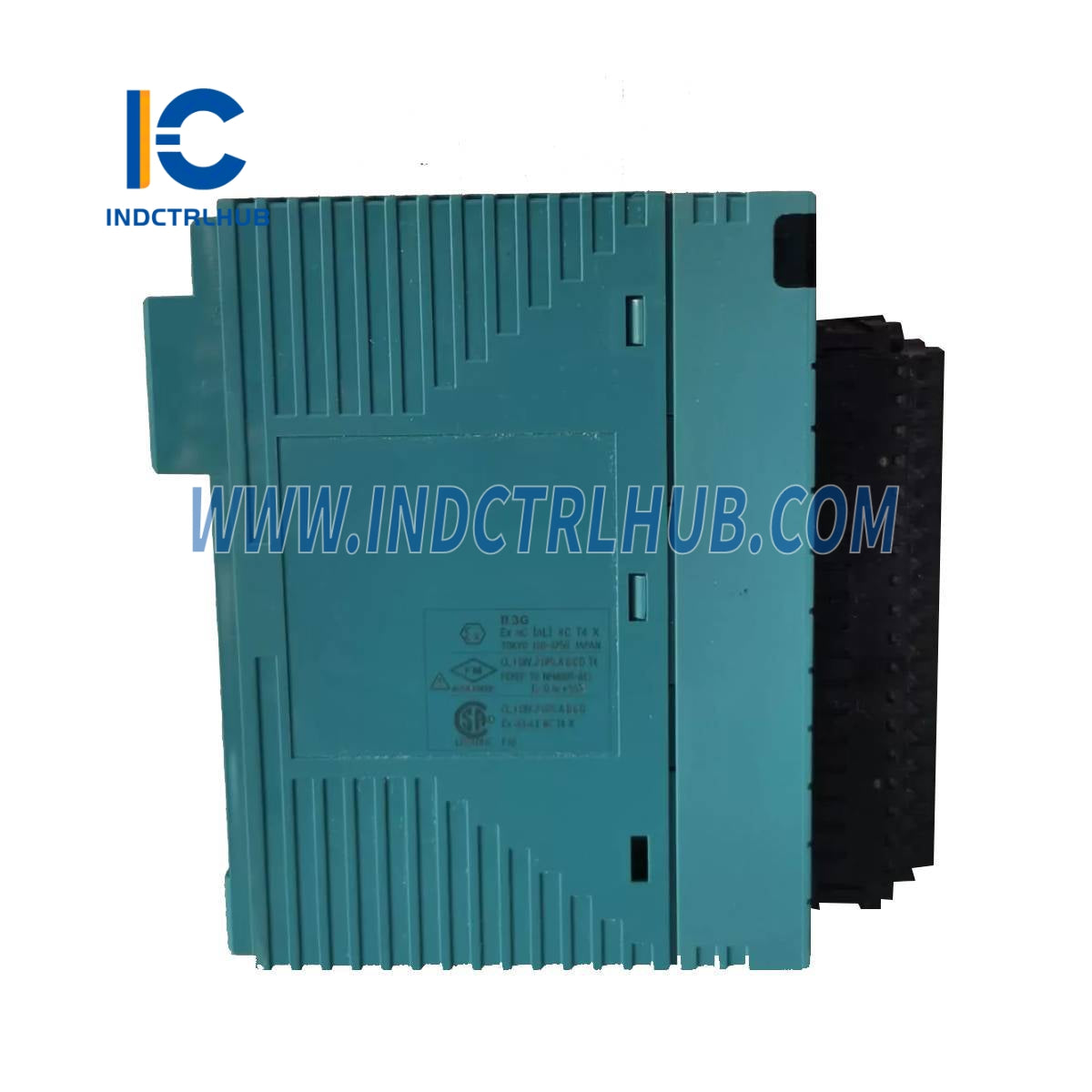

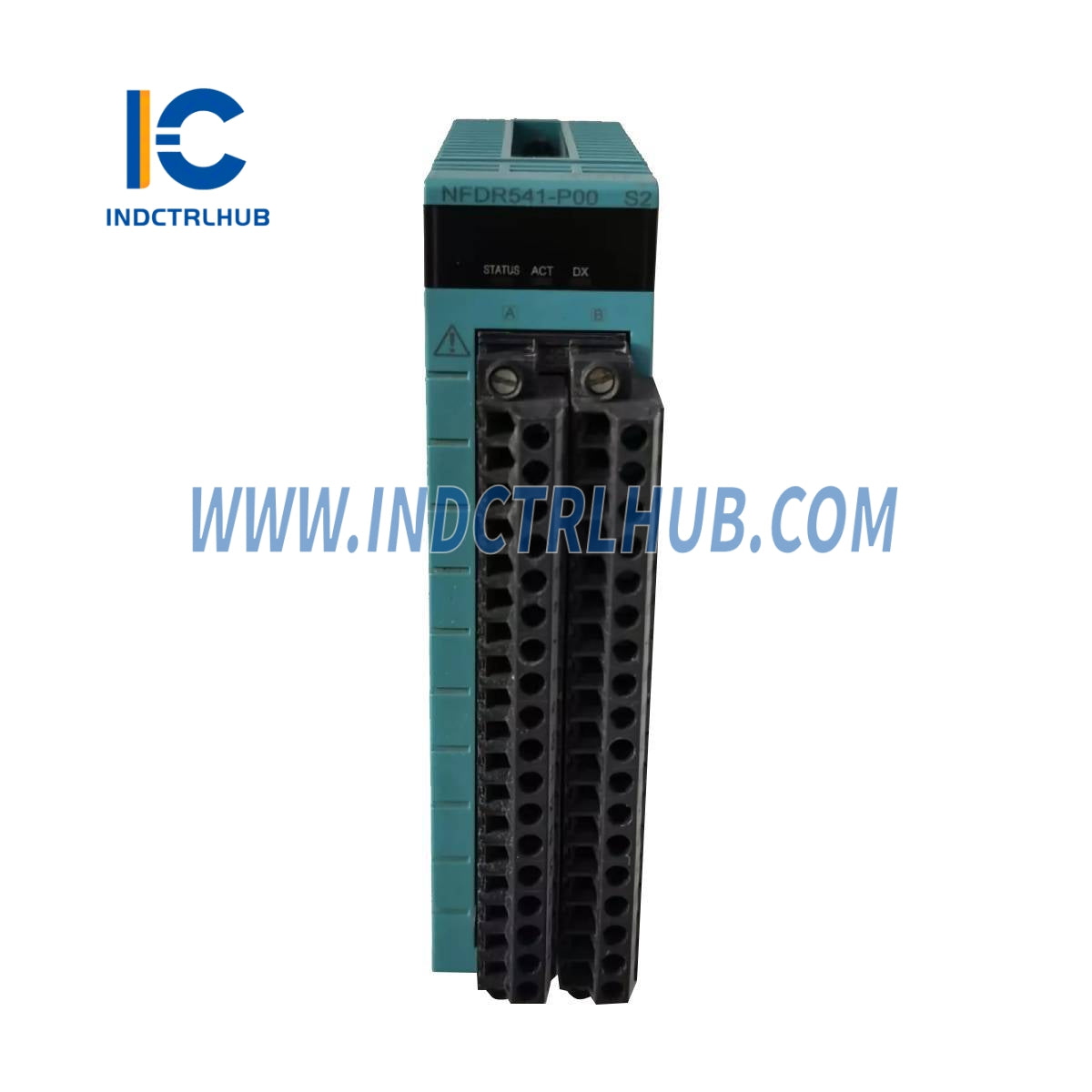

Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
NFDR541-P00 |
|
Description |
Relay Output Module (16-channel, Isolated, Non-RoHS Compliant) |
🔹 Technical Specifications
|
Item |
Specification |
|---|---|
|
Number of Output Channels |
16 |
|
Rated Applied Voltage |
24 to 125 V DC, 100 to 240 V AC (50/60 Hz) |
|
Maximum Load Current |
Resistive Load:• 2.0 A @ 24 V DC• 1.0 A @ 48 V DC• 0.3 A @ 110/125 V DC• 2.0 A @ 100 V AC• 2.0 A @ 220 V ACInductive Load:• 0.6 A @ 24 V DC• 0.3 A @ 48 V DC• 0.1 A @ 110 V DC• 2.0 A @ 100 V AC• 1.0 A @ 220 V AC |
|
Withstanding Voltage |
Output ↔ System: 2000 V AC for 1 minBetween commons: 1350 V AC for 1 min (common per 8 channels) |
|
Functions |
ON/OFF status output |
|
Output Fallback Options |
HOLD / OFF / NO |
|
Output Response Time |
≤ 12 ms (status output) |
|
Max. Current Consumption |
780 mA (5 V DC) |
|
Weight |
0.3 kg |
|
External Connection |
Pressure clamp terminal |
|
Compliance |
Not RoHS Compliant (NFDR541-P version) |
🔹 Model and Suffix Code Breakdown
|
Model |
Description |
|---|---|
|
NFDR541 |
Relay Output Module (16-channel, Isolated) |
|
Suffix |
Meaning |
|---|---|
|
-P |
Non-RoHS compliant version |
|
0 |
Basic type |
|
0 |
No ISA G3 option |
