Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
Not specified |
|
Model/Part Number |

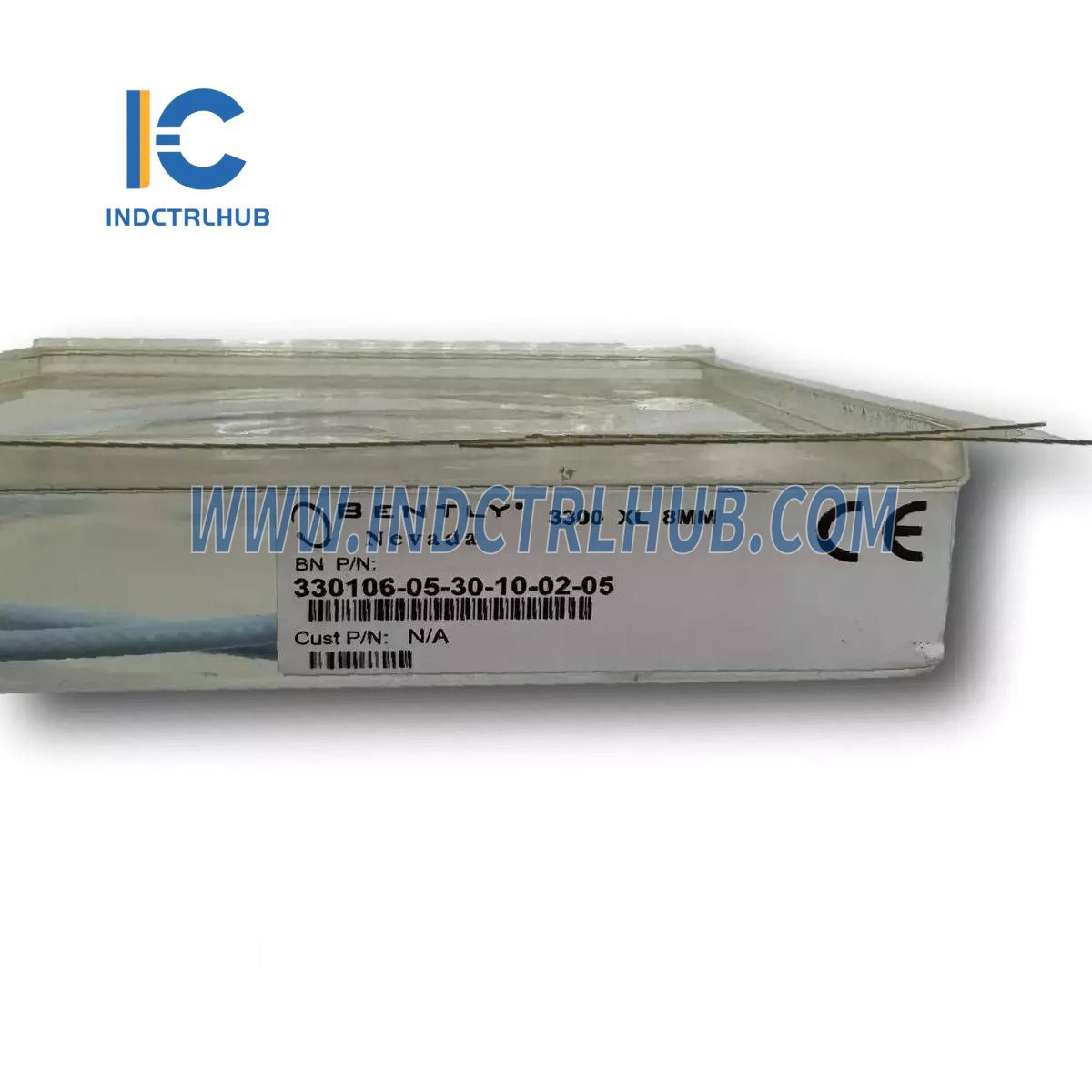

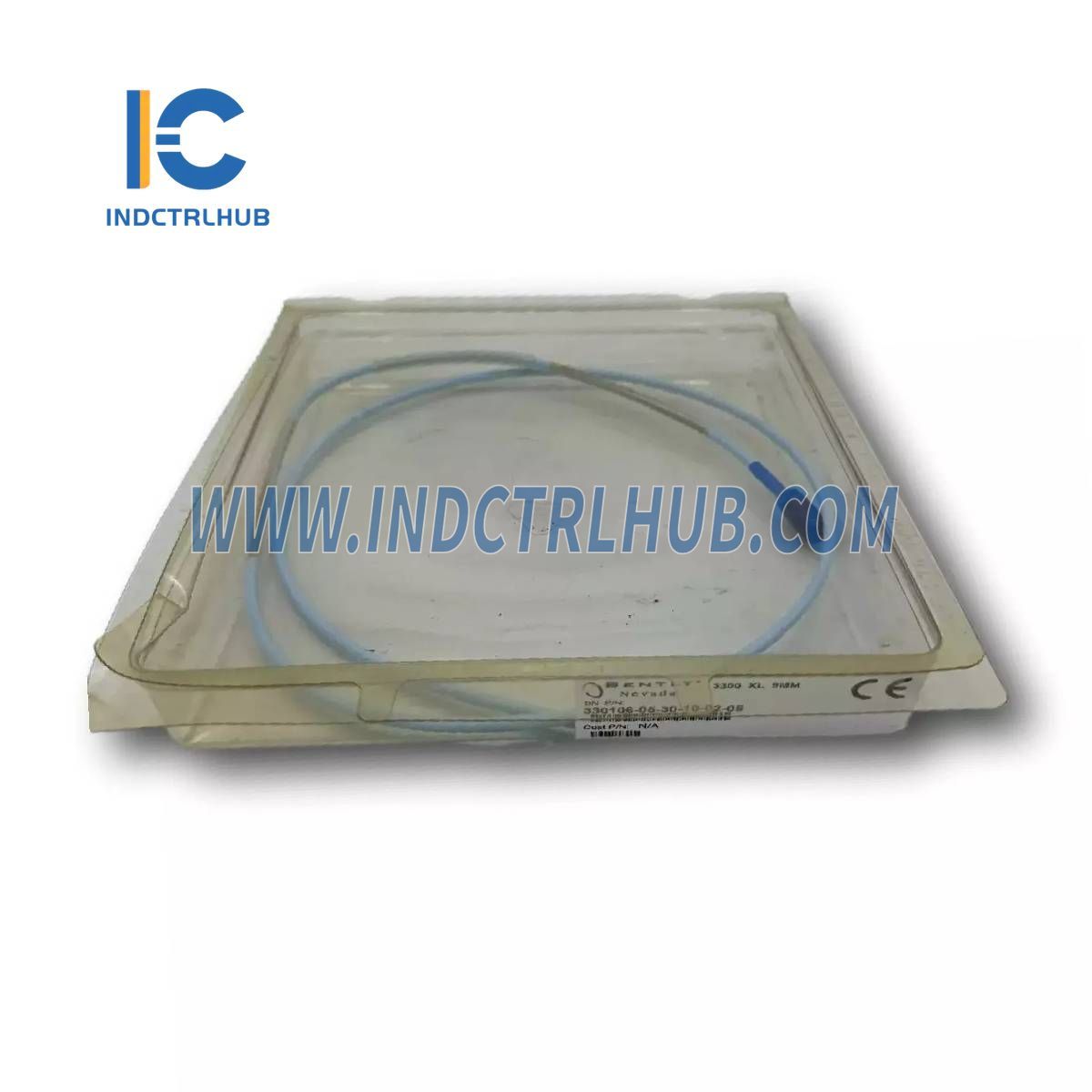

330106-05-30-10-02-05 |
|
Model Type |

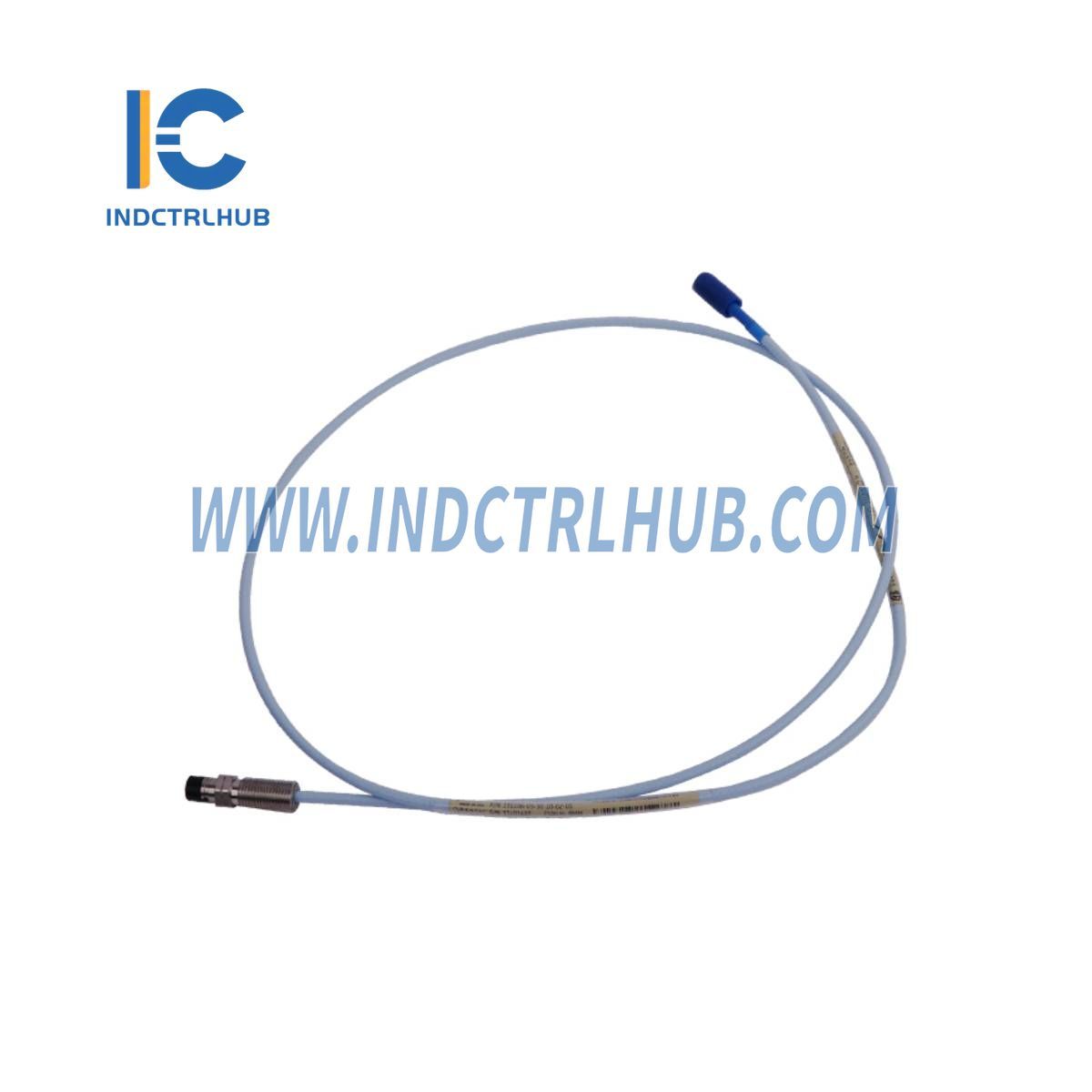

3300 XL 8 mm Reverse Mount Probes |
Mechanical Specifications
|
Specification |
Details |
|---|---|
|
Standard Forward Mount Probes |
First three threads: 22.6 N•m (200 in•lbf), 7.5 N•m |
|
Reverse Mount Probes |
22.6 N•m (200 in•lbf), 7.5 N•m (66 in•lbf) |
Weight and Dimensions
|
Component |
Weight |
|---|---|
|
Total System Weight |
0.7 kg (1.5 lbm) |
|
Probe |
323 g/m (11.4 oz) |
|
Extension Cable |
34 g/m (0.4 oz/ft) |
|
Armored Extension Cable |
103 g/m (1.5 oz/ft) |
|
Proximitor Sensor |
246 g (8.67 oz) |
Environmental Limits
|
Specification |
Range |
|---|---|
|
Standard Probe Temperature Range |
-52°C to +177°C (-62°F to +350°F) |
|
Extended Temperature Range Probe |
-52°C to +218°C (-62°F to +425°F) (probe tip) |
|
Extended Temperature Range (Cable & Connector) |
-51°C to +260°C (-60°F to +500°F) |
Ordering Information for 3300 XL 8 mm Reverse Mount Probes
|
Model Number |
Description |
|---|---|
|
330105-02-12-CC-DD-EE |
3/8-24 UNF threads |
|
330106-05-30-CC-DD-EE |
M10 x 1 threads |
Options
|
Option Code |
Description |
|---|---|
|
C: Total Length Option |
05 (0.5m), 10 (1.0m), 15 (1.5m), 20 (2.0m), 50 (5.0m), 90 (9.0m) |
|
D: Connector & Cable Type Option |
02 (Miniature ClickLoc coaxial connector), 12 (Miniature ClickLoc coaxial connector, FluidLoc cable) |
|
E: Agency Approval Option |
00 (Not required), 05 (CSA, ATEX, IECEx Approvals) |
