Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/92-02-01-01 |
|
Series |
– |
|
Description |

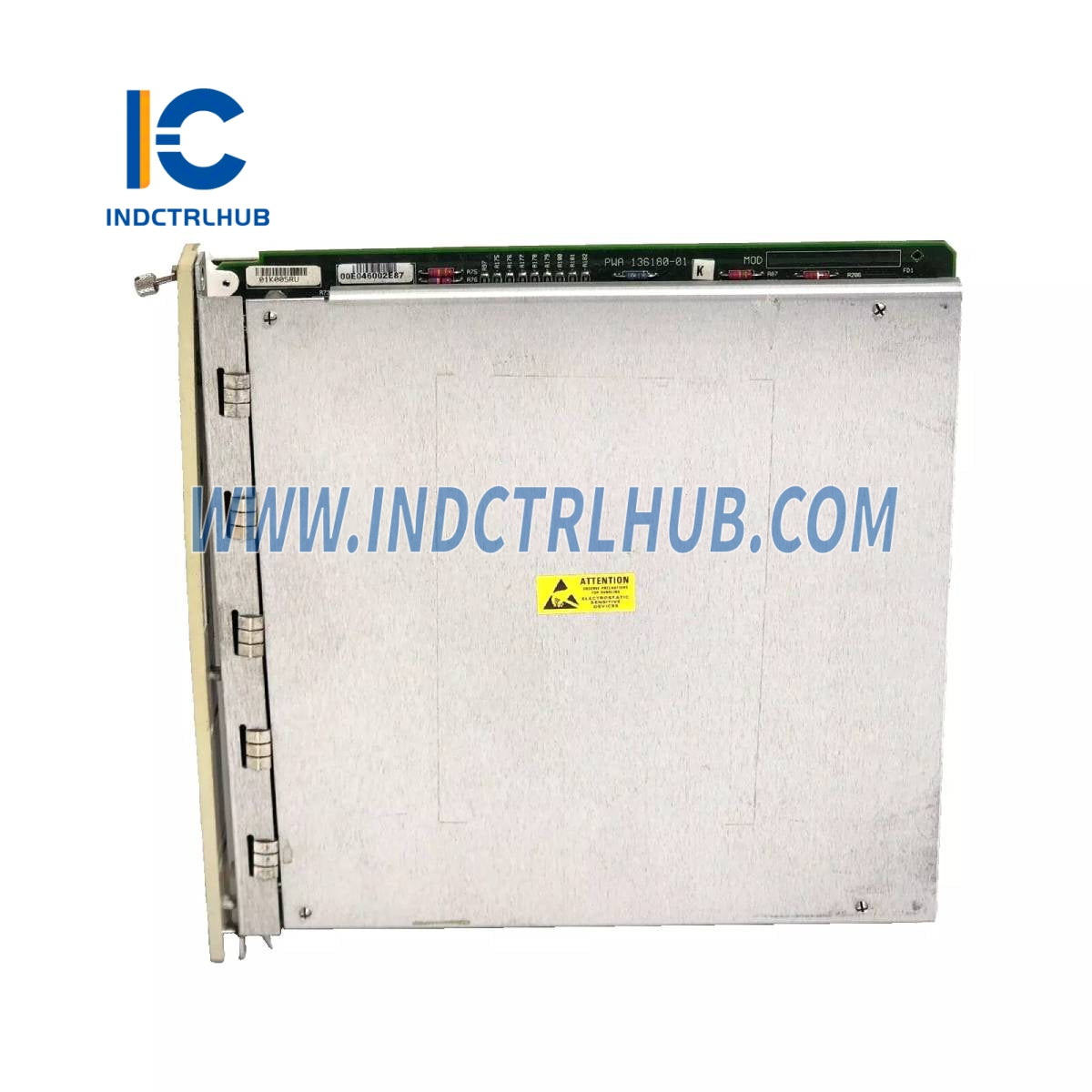

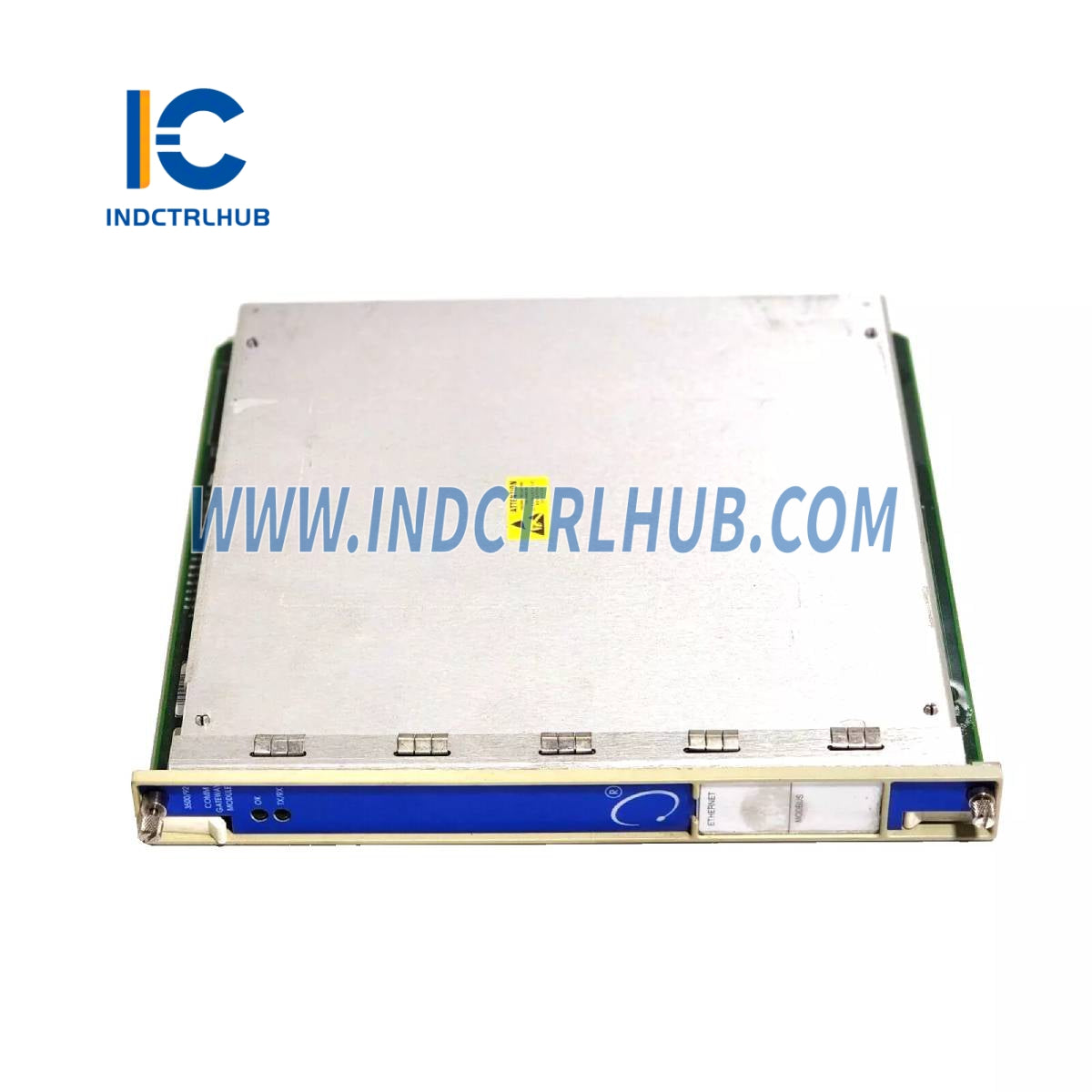

3500/92 Communication Gateway Module |
🔹 Description
The Bently Nevada 3500/92 Communication Gateway provides robust communication capabilities to share all monitored values and statuses from the 3500 system.
-
It enables integration with DCS, PLC, and SCADA systems through both Ethernet TCP/IP and serial interfaces (RS232/RS422/RS485).
-
Also supports rack configuration and data acquisition via Ethernet, interfacing with 3500 Rack Configuration Software and System 1 Software.
🔹 Environmental Limits
|
Parameter |
Value |
|---|---|
|
Operating Temperature |
-30°C to +65°C (-22°F to +149°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity |
95%, non-condensing |
🔹 Physical Specifications
Main Board
|
Parameter |
Value |
|---|---|
|
Dimensions |
241 mm x 24.4 mm x 242 mm (9.50 in x 0.96 in x 9.52 in) |
|
Weight |
0.82 kg (1.8 lb) |
I/O Module
|
Parameter |
Value |
|---|---|
|
Dimensions |
241 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
|
Weight |
0.44 kg (0.96 lb) |
🔹 Spares
|
Part Number |
Description |
|---|---|
|
136180-01 |
3500/92 Communication Gateway Module |
|
133323-01 |
Modbus RS485 I/O Module |
