Product Description
__ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/33-01-01 |
|
Series |
_ |
|
Description |
3500/33 16-Channel Relay Module |
_
_
__ Description

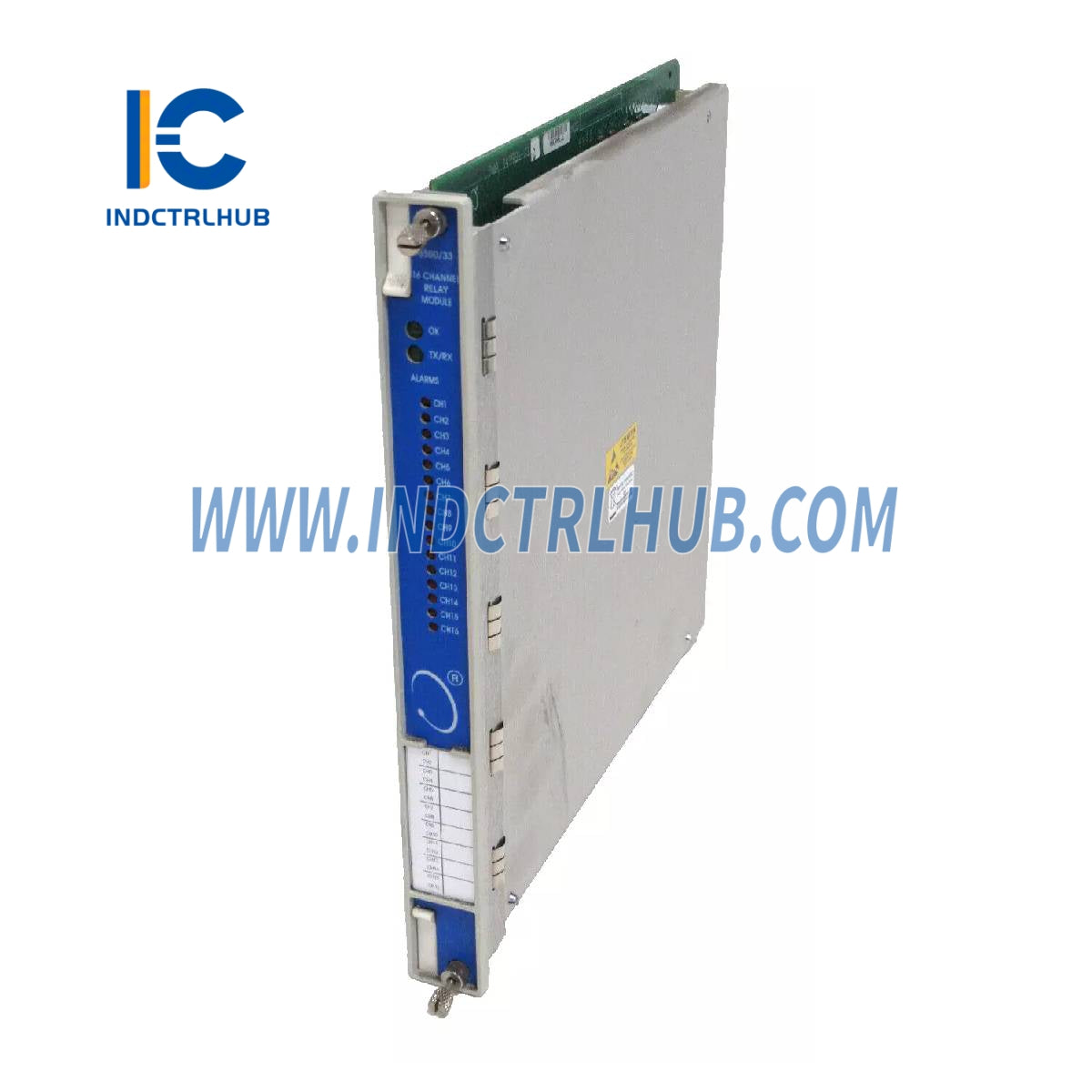

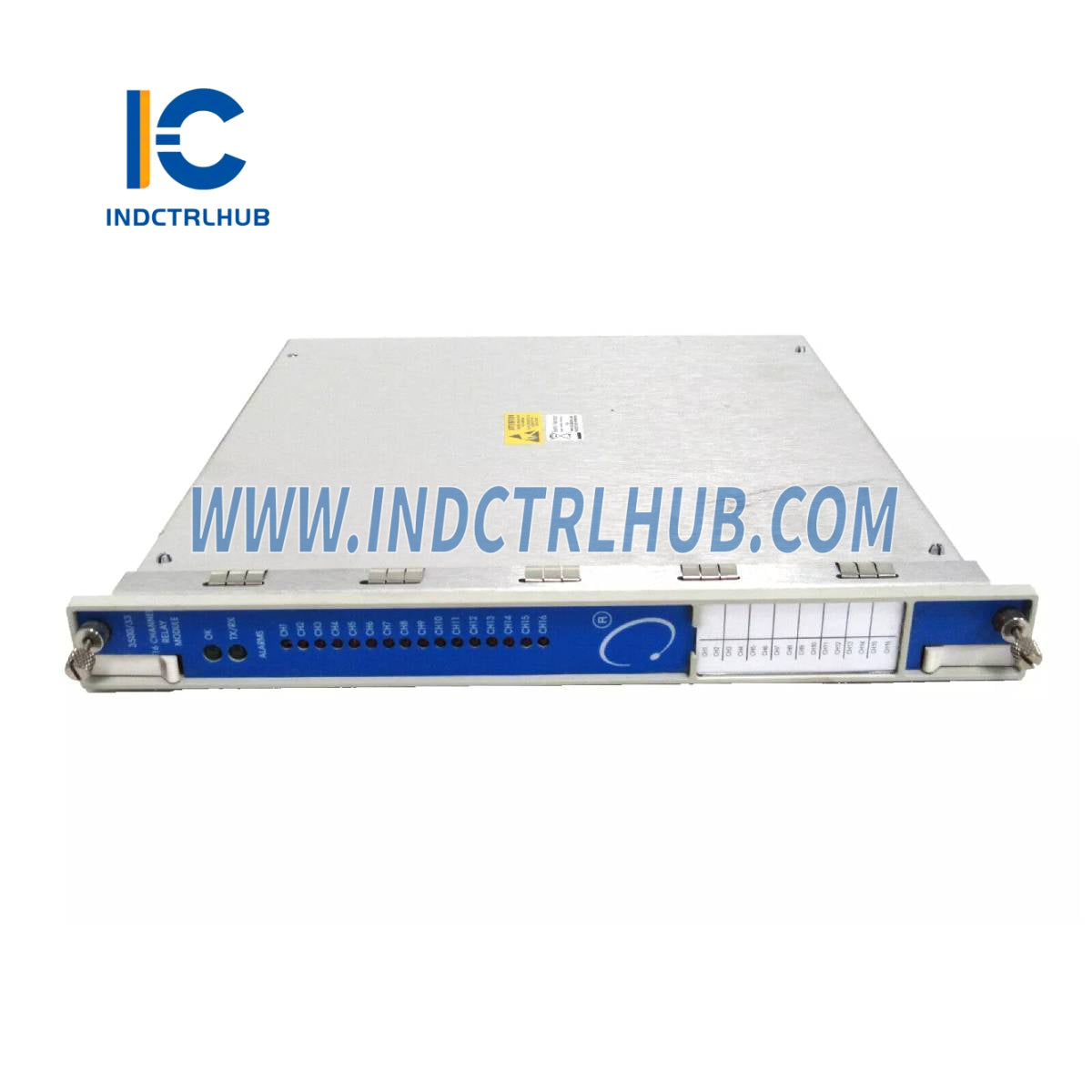

The_Bently Nevada 3500/33_is a_16-Channel Relay Module_used in the 3500 monitoring system.
_
-
It is a_full-height module_that provides_16 relay outputs_for use in machinery protection applications.
-
It can be placed in_any slot to the right of the TDI module, and multiple relay modules can be installed in a single rack.
-
The module enables flexible configuration of alarms and trip conditions to trigger external devices or systems.
_
_
__ Specifications
_
Inputs
|
Parameter |
Value |
|---|---|
|
Power Consumption |
5.8 watts typical |
_
_
__ Physical Specifications
_
Main Module
|
Parameter |
Value |
|---|---|
|
Dimensions |
241 mm x 24.4 mm x 242 mm__(9.50 in x 0.96 in x 9.52 in) |
|
Weight |
0.7 kg (1.6 lb) |
_
I/O Module
|
Parameter |
Value |
|---|---|
|
Dimensions |
241 mm x 24.4 mm x 99.1 mm__(9.50 in x 0.96 in x 3.90 in) |
|
Weight |
0.4 kg (1.0 lb) |
_
_
__ Ordering Information Breakdown
|
Part Number |
Meaning |
|---|---|
|
3500/33-01-01 |
-_01: 16-Channel Relay Output Module-_01: cNRTLus (Class 1, Division 2) Hazardous Area Approval |
_
_
__ Spares
|
Part Number |
Description |
|---|---|
|
149986-01 |
Spare 16-Channel Relay Output Module |
|
149992-01 |
Spare 16-Channel Relay Output Module |
