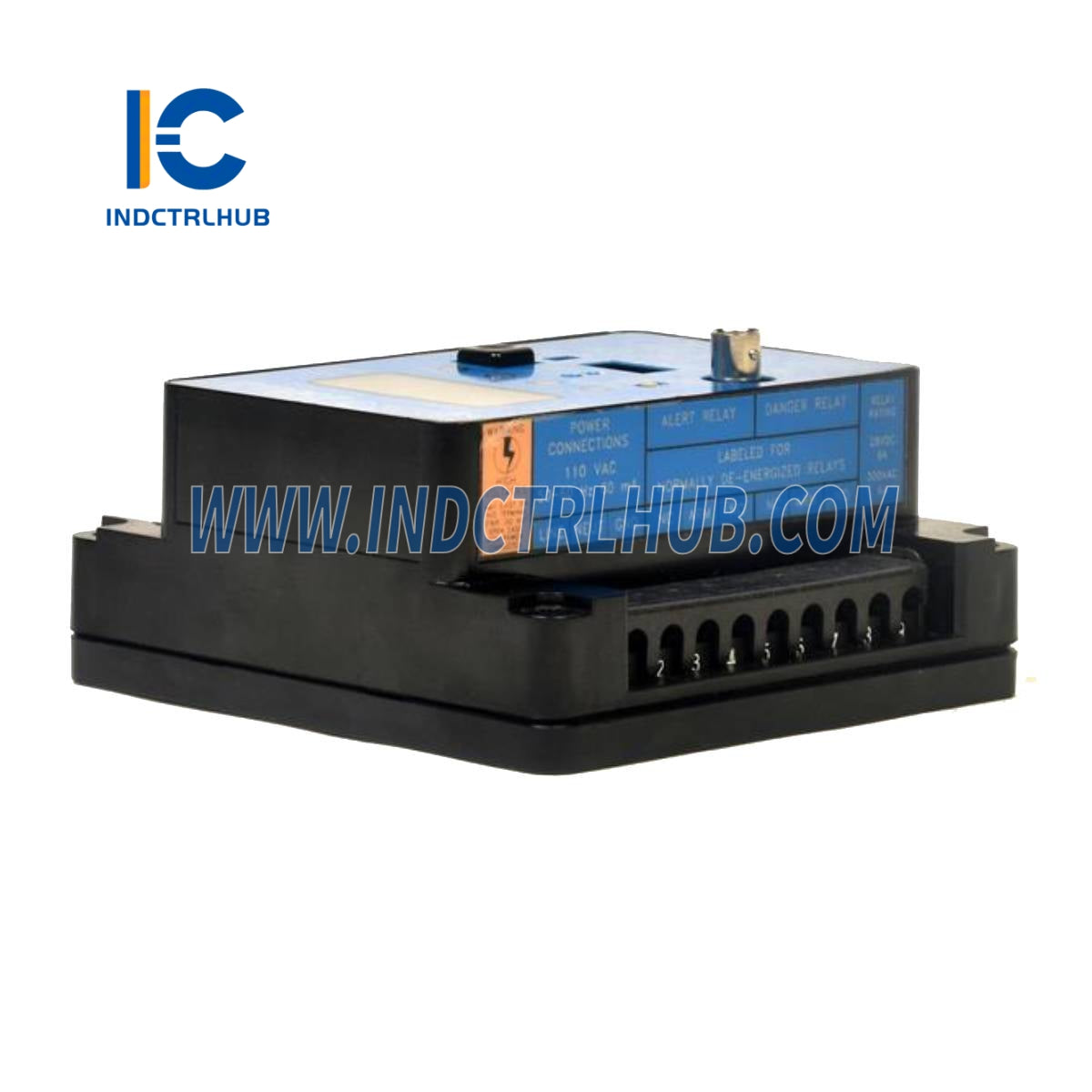

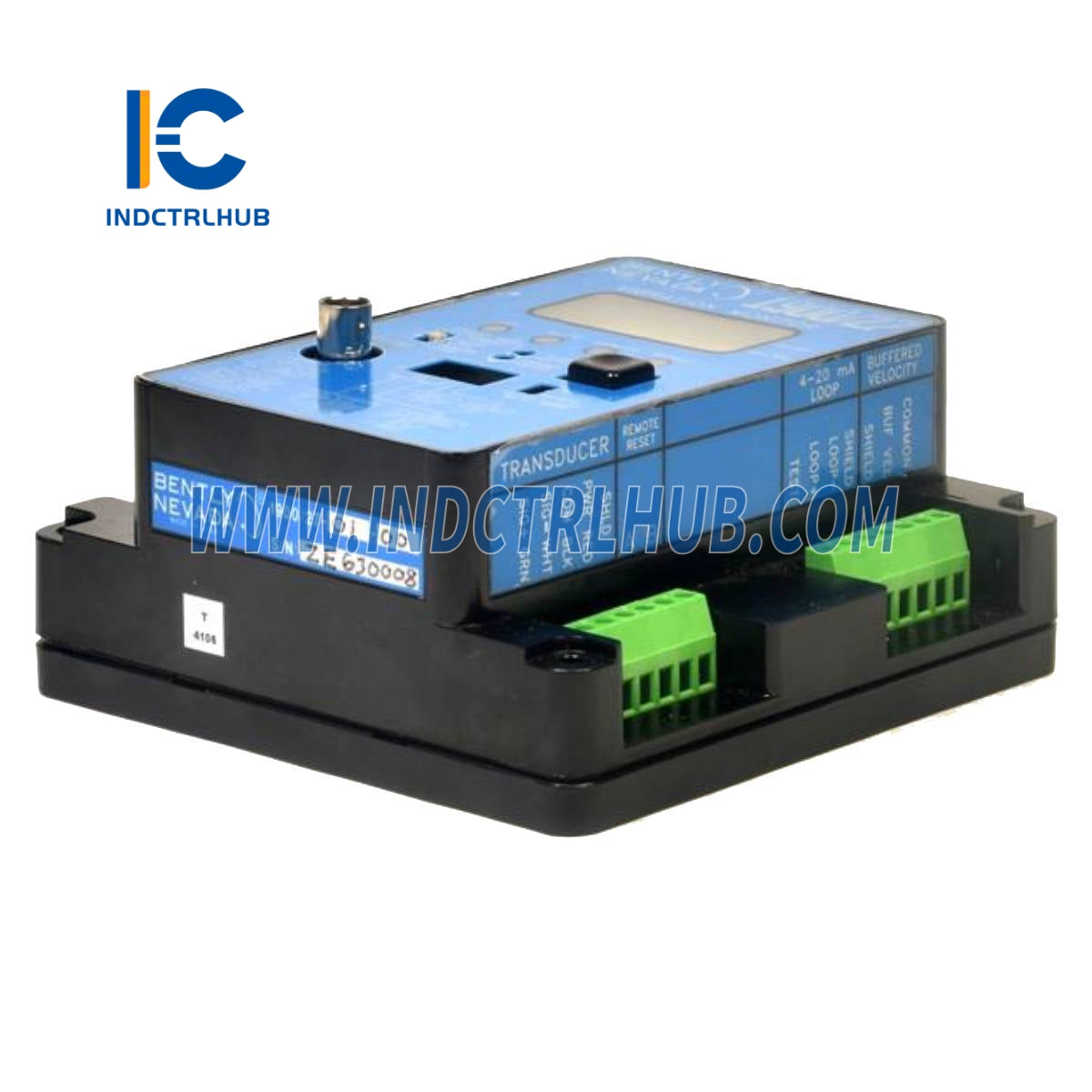

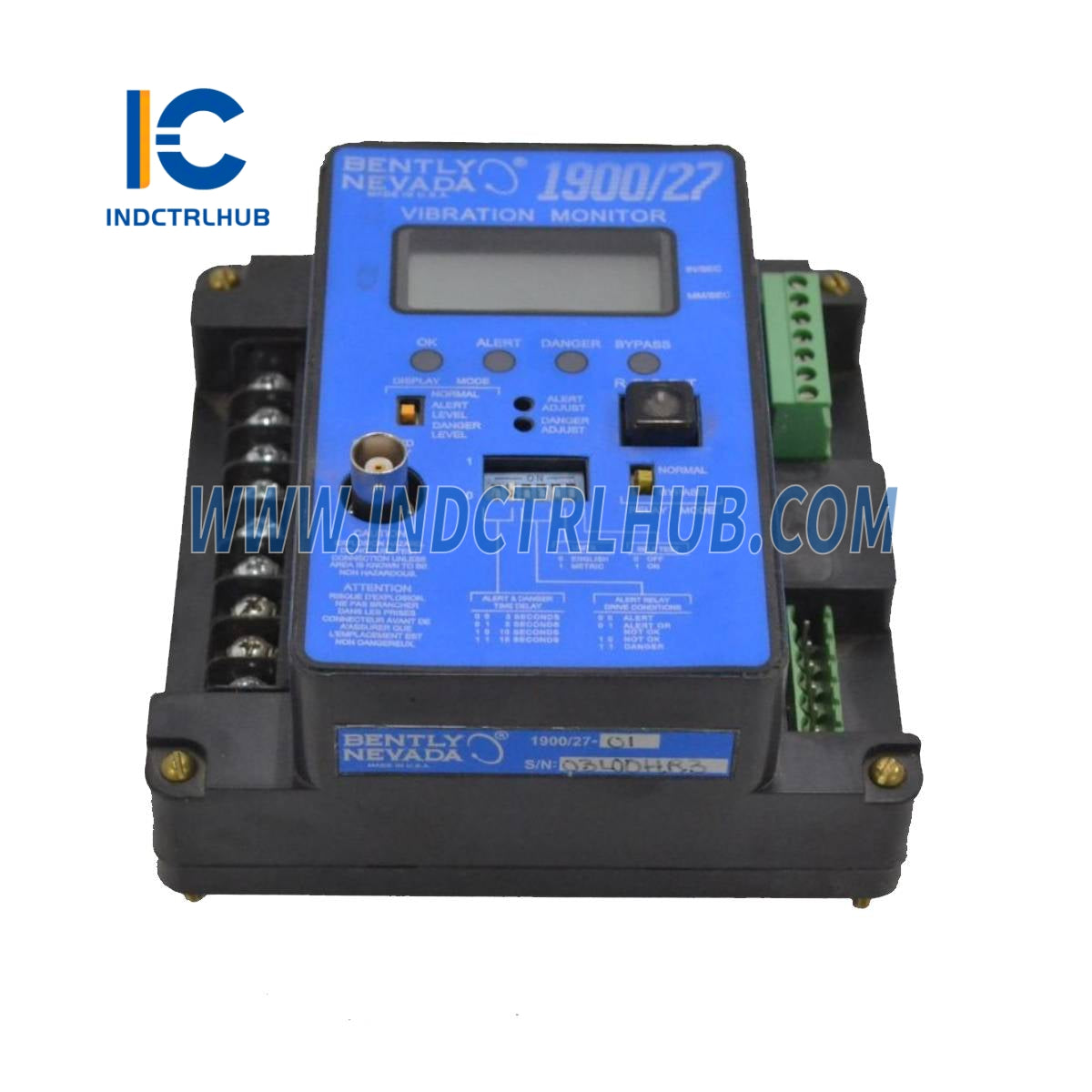

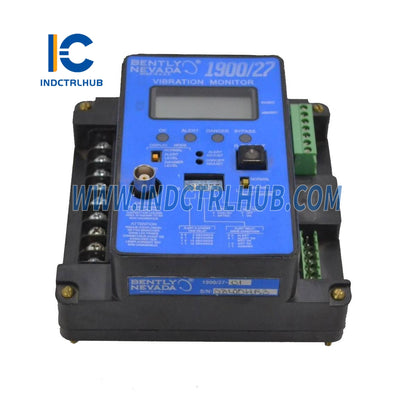

Bently Nevada 1900/27-01 Vibration Monitor
Bently Nevada 1900/27-01 Vibration Monitor
Manufacturer: Bently Nevada
Product No.: 1900/27-01
Condition:1000 in stock
Product Type: Vibration Monitor
Product Origin: USA
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
1900/27-01 |
|
Series |
_ |
|
Description |
Vibration Monitor |
_
_
__ Description
The_Bently Nevada 1900/27_is a_single-channel,_stand-alone vibration monitor_designed for general-purpose machinery protection.
It accepts input from compatible_Trendmaster® 2000 accelerometers_(e.g., models 200150 and 190520), and processes the signal into_peak velocity units.
Key features include:
_
-
Built-in_4_20 mA interface_for trending into plant control systems
-
Local display_and_status indication
-
Relay alarm outputs_for external annunciators
-
Compact, locally mounted design
_
_
__ Specifications
_
Inputs
|
Parameter |
Specification |
|---|---|
|
Compatible Transducers |
Bently Nevada 200150 and 190520 Accelerometers |
|
Input Sensitivity |
100 mV/g |
|
Max Acceleration |
20 g peak |
|
Max Differential Input Voltage |
4 V peak-to-peak |
_
Power
|
Power Type |
Specification |
|---|---|
|
AC/HDC Version |
Voltage: 85_264 Vac / 110_370 VdcCurrent: 60 mA typ, 120 mA maxFrequency: 47_440 Hz or DCInrush: 20A @ 100 Vac, 40A @ 200 Vac |
|
+24 Vdc Version |
Voltage: 18_36 VdcCurrent: 300 mA max |
_
Physical
|
Parameter |
Value |
|---|---|
|
Dimensions (H _ W _ D) |
132 _ 132 _ 71.1 mm (5.20 _ 5.20 _ 2.80 in) |
|
Weight |
400 g (0.85 lb) |
_
_
__ Ordering Information
|
Model/Part Number |
Power Supply Option |
|---|---|
|
1900/27-01 |
85_264 Vac / 110_370 Vdc (Option 01) |
