Product Description
🔹 General Information
|
Manufacturer |
Bently Nevada |
|---|---|
|
Model/Part Number |
3500/15-05-05-01 (106M1079-01 + 106M1081-01) |
|
Series |
– |
|
Description |
3500/15 AC and DC Power Supplies |
🔹 Description

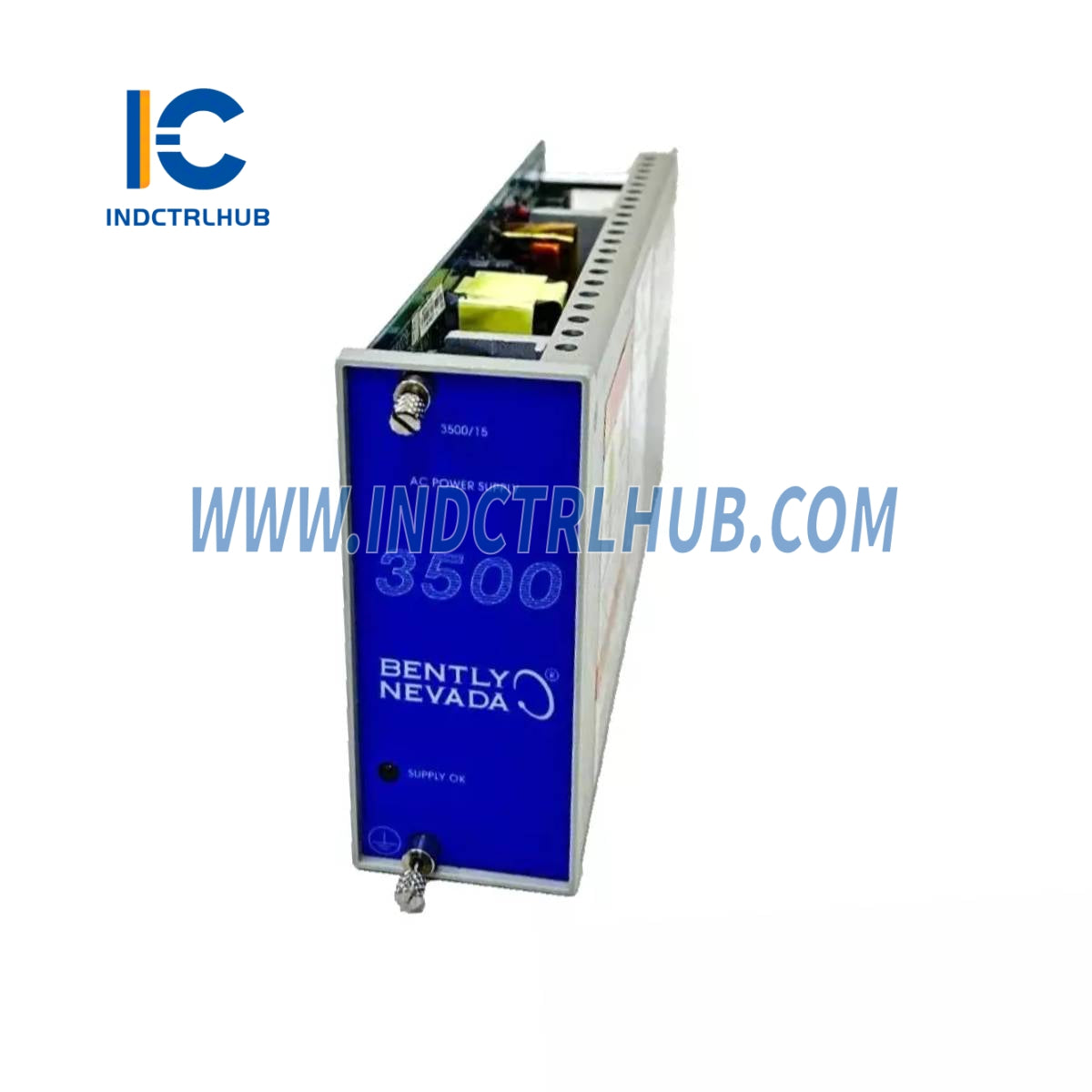

The 3500/15 Power Supply modules provide the necessary power to operate the Bently Nevada 3500 Series Monitoring System.
These modules are half-height, designed to fit on the left side of the 3500 rack, and the system can accommodate one or two power supplies in any AC/DC combination.
-
Either module can independently power a full rack.
-
This specific configuration (05-05-01) indicates two Universal AC Voltage power supplies with CSA/NRTL/C approval.
🔹 Physical Specifications
Power Supply Module
|
Parameter |
Value |
|---|---|
|
Dimensions |
120.7 mm x 50.8 mm x 251.5 mm(4.75 in x 2.0 in x 9.9 in) |
|
Weight |
1.39 kg (3.06 lb) |
Power Input Module (106M1081-01)
|
Parameter |
Value |
|---|---|
|
Dimensions |
120.7 mm x 25.4 mm x 114.3 mm(4.75 in x 1.0 in x 4.5 in) |
|
Weight |
0.34 kg (0.75 lb) |
🔹 Environmental Limits
|
Parameter |
Value |
|---|---|
|
Operating Temperature |
-30 °C to +65 °C (-22 °F to +150 °F) |
|
Storage Temperature |
-40 °C to +85 °C (-40 °F to +185 °F) |
|
Humidity |
95%, non-condensing |
🔹 Ordering Configuration Breakdown
|
Part Number |
Meaning |
|---|---|
|
3500/15-05-05-01 |
- 05: Universal AC Voltage (85 to 264 Vac RMS) — Top Slot - 05: Universal AC Voltage — Bottom Slot - 01: CSA / NRTL / C (Class 1, Division 2) Agency Approval |
🔹 Spares
|
Part Number |
Description |
|---|---|
|

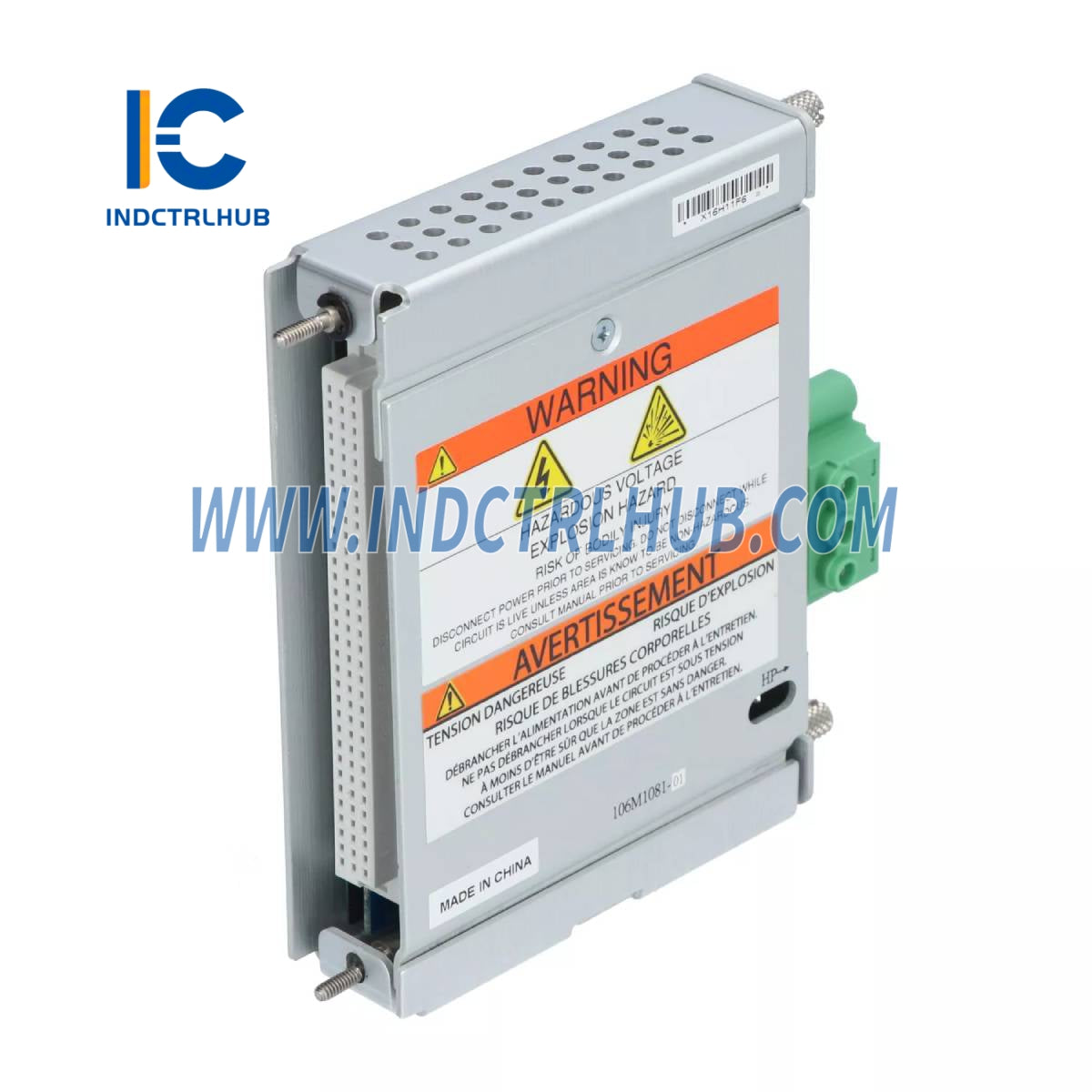

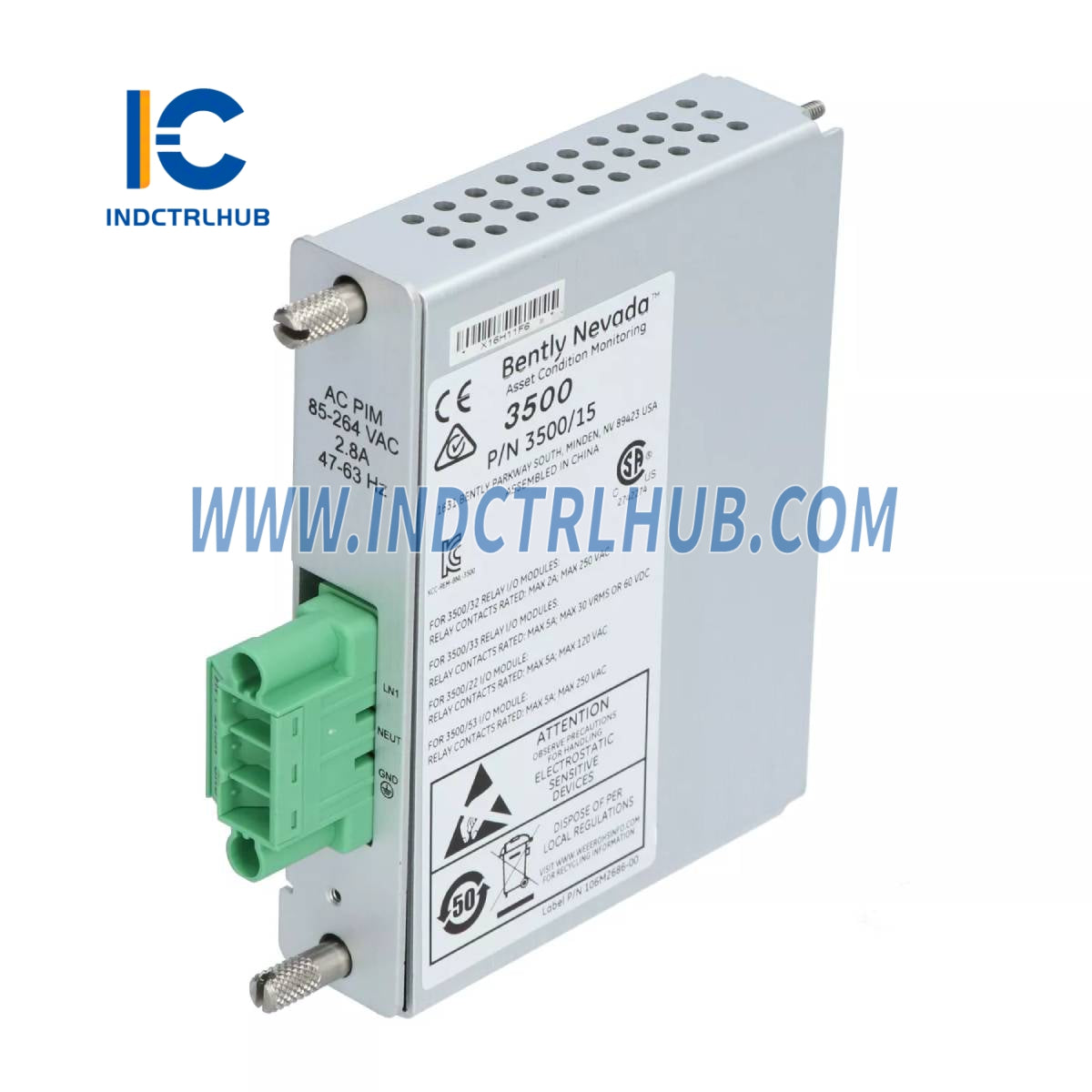

106M1081-01 |
Universal AC Power Input Module |

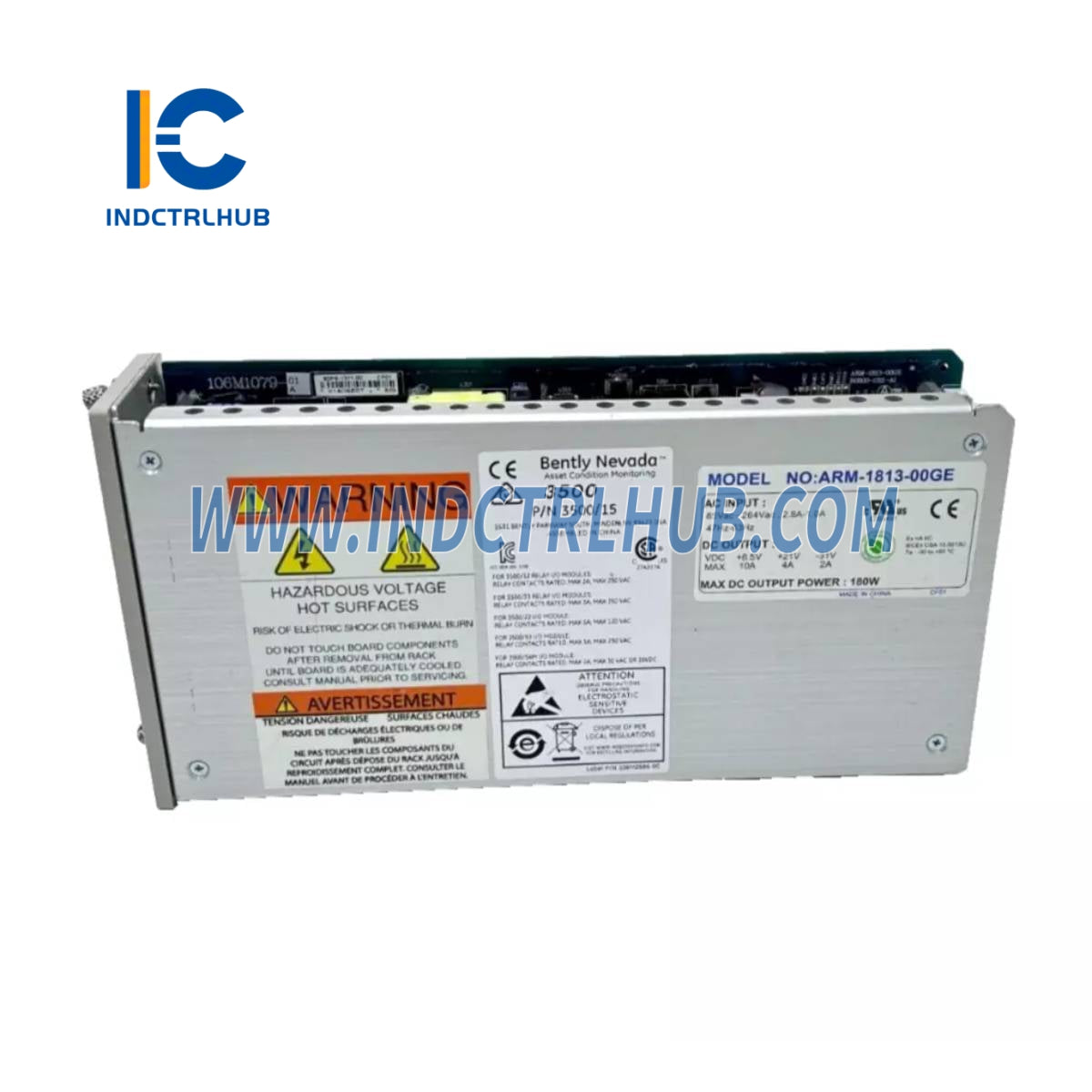

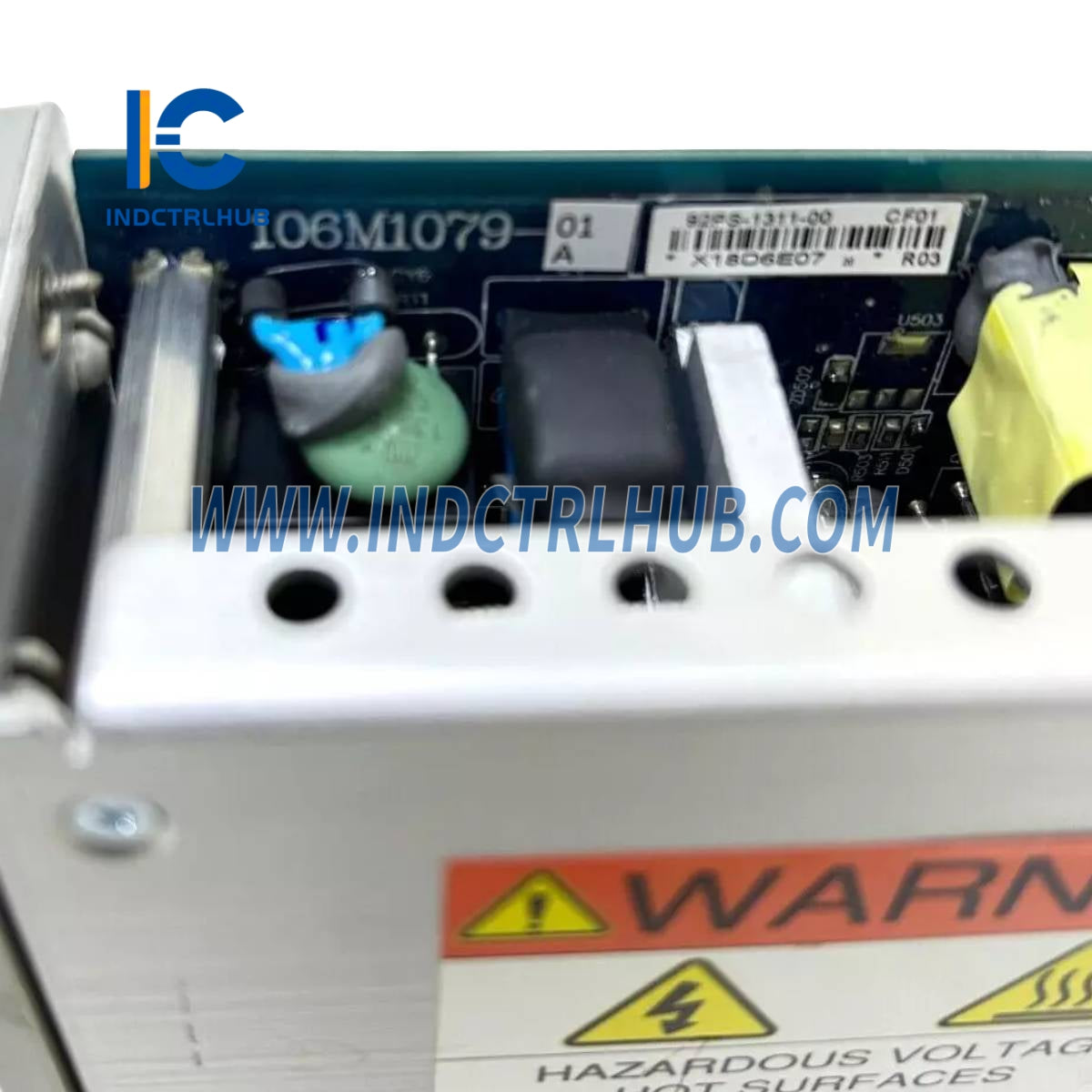

106M1079- 01 Universal AC Power Supply Module
