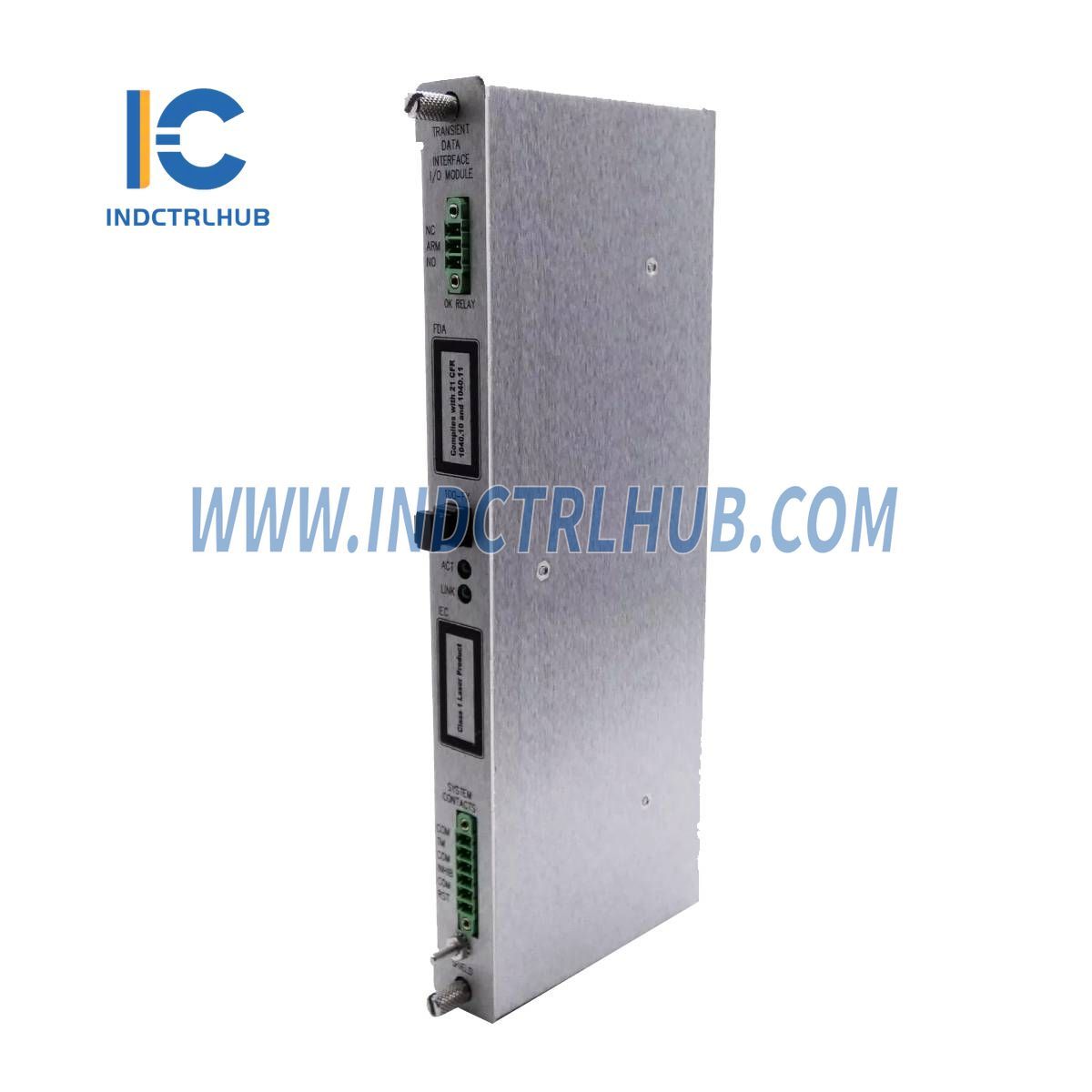

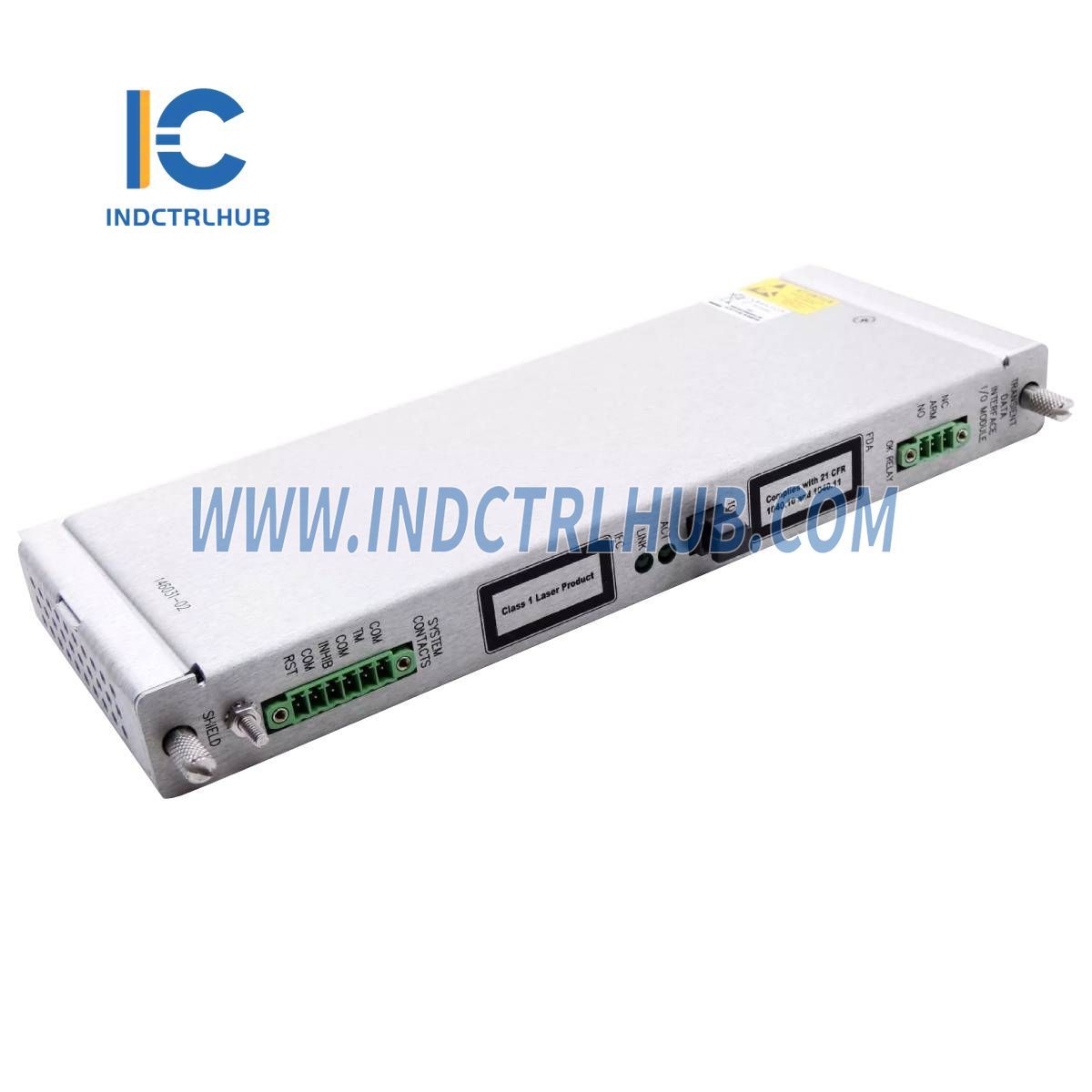

Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Bently Nevada |
|
Series |
3500/22M |
|
Model/Part Number |

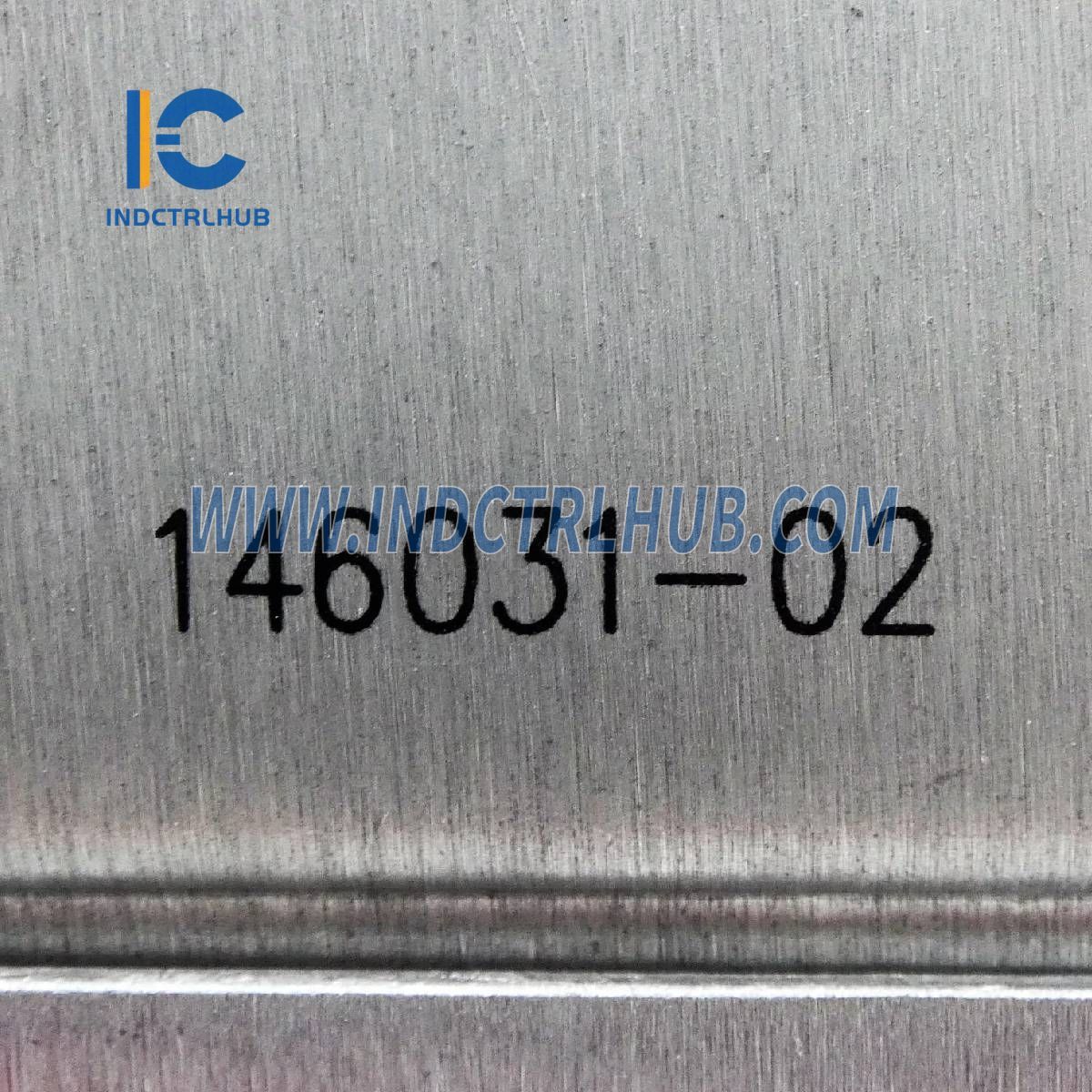

146031-02 |
|
Model Type |
I/O Module |
Specifications
Inputs
|
Attribute |
Details |
|---|---|
|
Power Consumption |
10.5 Watts |
|
Front Panel Data |
USB-B |
|
10Base-T/100Base-TX I/O |
Ethernet, autosensing |
|
100Base-FX I/O |
100Base-FX Fiber-Optic Ethernet |
10Base-T / 100Base-TX Ethernet I/O
|
Attribute |
Details |
|---|---|
|
Communications |
Ethernet, 10Base-T, and 100Base-TX (IEEE802.3) |
|
Protocol Supported |
BN Host Protocol and BN TDI Protocol using Ethernet TCP/IP |
|
Connection |
RJ-45 (telephone jack style) |
|
Cable Length |
100 meters (328 feet) max |
Environmental Limits
|
Component |
Operating Temperature |
Storage Temperature |
Humidity |
|---|---|---|---|
|
TDI Module, 10Base-T/100Base-TX I/O, and 100Base-FX I/O |
-30°C to +65°C (-22°F to +149°F) |
-40°C to +85°C (-40°F to +185°F) |
95%, non-condensing |
Battery Life
|
Component |
Battery Life @ 50°C (122°F) |
|---|---|
|
Powered TDI |
38 years |
|
Unpowered TDI |
12 years |
Physical Characteristics
|
Component |
Dimensions (H x W x D) |
Weight |
|---|---|---|
|
TDI Module |
241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
0.91 kg (2.0 lbs) |
|
I/O Modules |
241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in) |
0.20 kg (0.44 lbs) |
Rack Space Requirements
|
Component |
Slot Requirement |
|---|---|
|
TDI Module |
1 full-height front slot |
|
I/O Modules |
1 full-height rear slot |
Spares
|
Part Number |
Description |
|---|---|
|
146031-02 |
100Base-FX (Fiber Optic) I/O Module |
