Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |

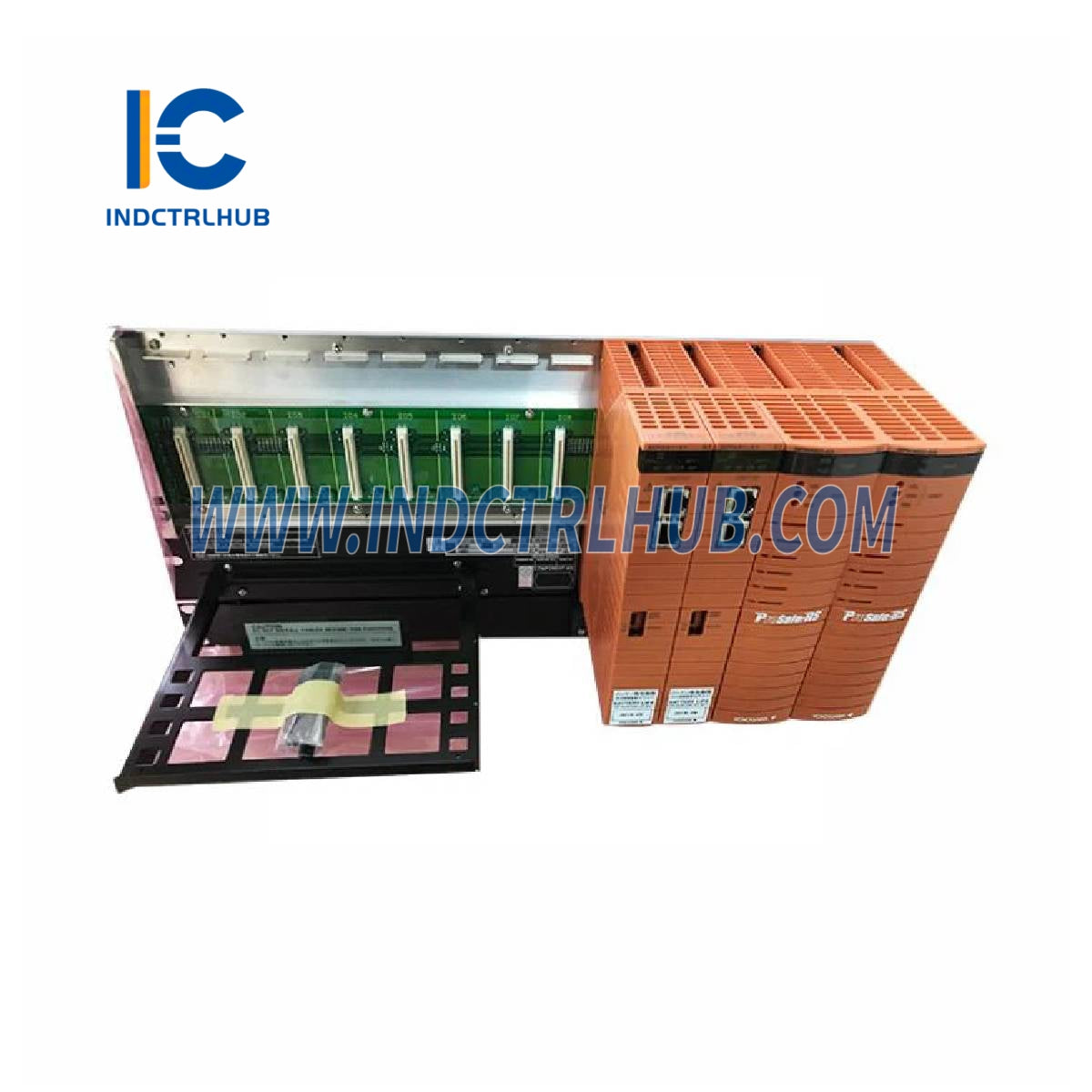

SSC60D-F2542 |
|
Model Type |
Safety Control Unit |
|
Series |
– |
|
Description |
Dual-redundant Safety Control Unit with support for high-temperature operation and expanded I/O capacity |
🔹 Hardware Specifications
|
Component |
Details |
|---|---|
|
Power Supply Modules |
SPW481, SPW482, or SPW484 × 2 |
|
Processor Modules |
S2CP471 or SCP461 × 2 (for dual-redundancy) |
|
Memory Protection |
Flash memory for programs; NVRAM for operation data |
|
Temperature Adaptability |
Fan unit required if ambient temp > 40°C |
|
Vnet/IP Interface |
Dual-redundant; 100 Mbps full duplex, 100Base-TX, UTP CAT5e+, RJ45 |
|
ESB Bus Interface |
Dual-redundant |
|
Max Vnet/IP Distance |
100 meters (between SSC60D and Layer 2 switch) |
🔹 I/O and Expansion
|
Function |
Capacity/Configuration |
|---|---|
|
I/O Modules Mounted |
Up to 8 per SSC60D |
|
Max I/O per SCS (with SEC402 + CFS1350) |
Up to 110 modules |
|
Max I/O per SCS (with SEC401) |
Up to 78 modules |
|
Safety Node Units with SEC402 |
Up to 13 |
|
Safety Node Units with SEC401 |
Up to 9 |
|
Slot Requirement for ESB Couplers |
7th and 8th slots |
|
ESB Bus Extension |
Optical ESB bus repeater modules |
🔹 Power Requirements
|
Voltage Options |
100–120 V AC, 220–240 V AC (50/60 Hz), 24 V DC |
|---|---|
|
Power Consumption |
SSC60D-F: – 100–120 V AC: 240 VA– 220–240 V AC: 290 VA– 24 V DC: 7.0 A |
🔹 Battery Information
|
Processor Module |
Part Number |
Recommended Replacement |
|---|---|---|
|
S2CP471 |
S9450FE |
Every 3 years (at ≤30°C ambient) |
|
SCP461 |
S9185FA |
Every 3 years (at ≤30°C ambient) |
🔹 Physical Specifications
|
Model |
Weight |
|---|---|
|
SSC60D-F |
Approx. 13 kg |
