Product Description
Product Overview

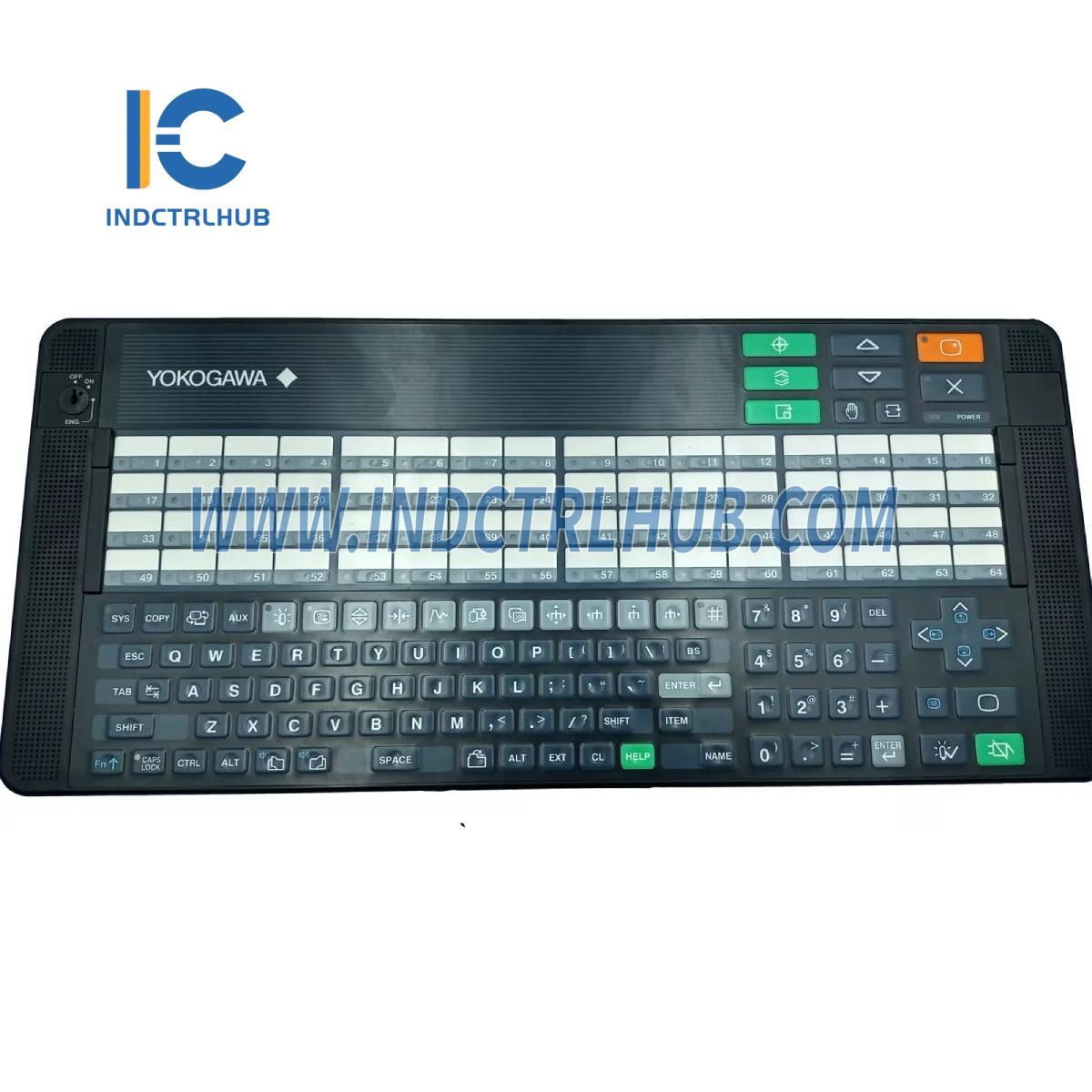

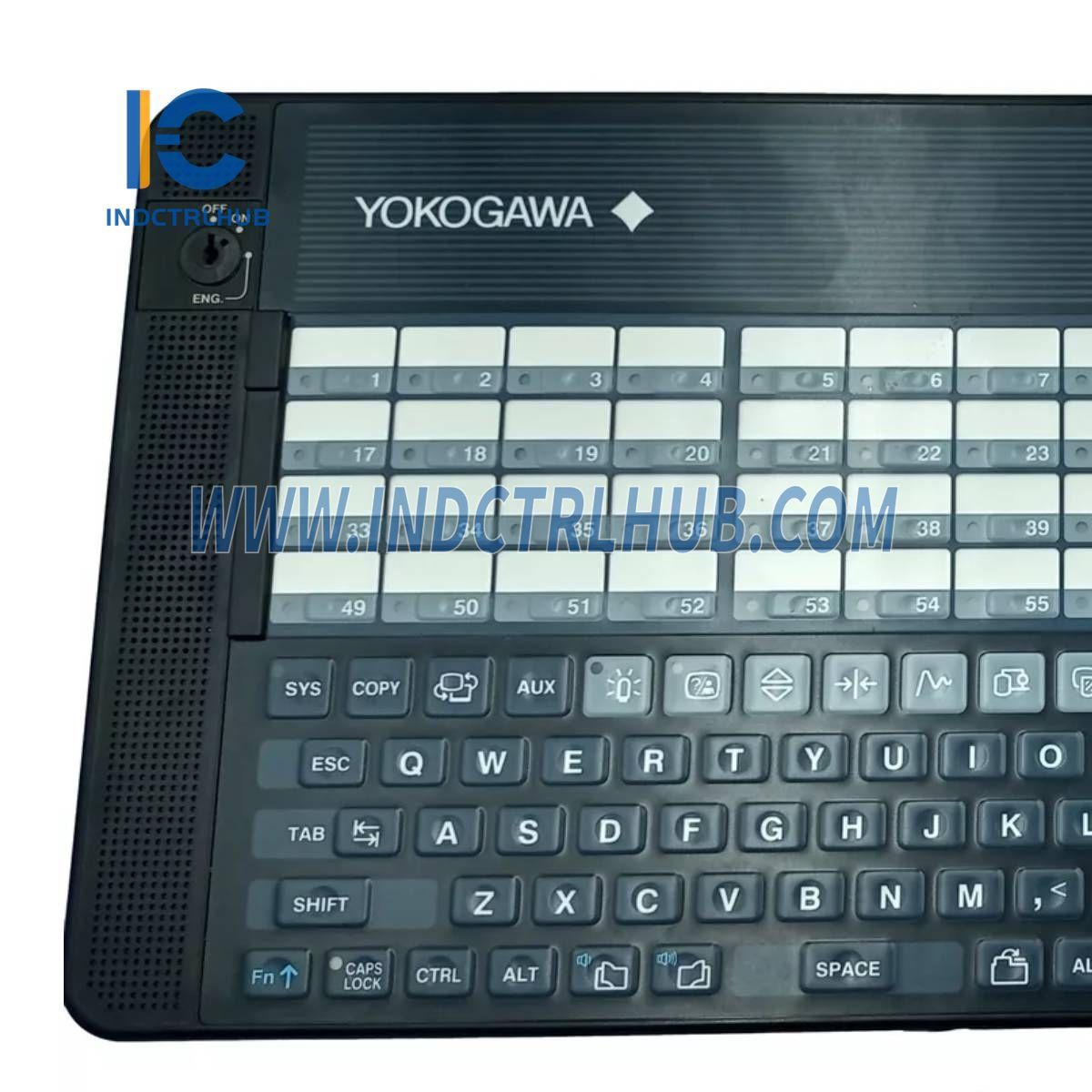

The Yokogawa AIP830 S2 is an Operation Keyboard designed for single-loop operation, specifically tailored for Desktop Type Human Interface Stations (HIS). This flat keyboard integrates a USB speaker for sound functionality and connects to a PC via USB, offering a user-friendly interface for industrial control applications. It is built to meet standard environmental and installation requirements as outlined in Yokogawa’s system documentation.
Technical Information
| Item | Specifications |
|---|---|
| Type | Flat keyboard (Sound Function: USB Speaker) |
| PC Interface | Interface Connector: USB A type x 2 (*1) Conformable USB standard: - Operation Keyboard Function: USB 2.0 (Full-speed, Bus-powered) - Sound Function: USB 1.1 (Full-speed, Bus-powered) |
| Input Voltage | 5 V ±5% (Supplied from USB Port of PC) |
| Maximum Consumption Current | 1 A |
| Weight | Approx. 2.0 kg (Without VESA Bracket) Approx. 2.5 kg (With VESA Bracket) (*2) |
| Chassis Color | Black (Equivalent to Munsell No. N1.5) |
| IEC Classification | Belongs to IEC 61010-1 installation category Class I (A device not directly connected with the main power supply) |
| Operating Environment | Ambient Temperature: - 5 to 40 °C (for normal operation) - -20 to 60 °C (in storage and transportation) Ambient Humidity: - 20 to 80 %RH (Non-condensing) |
Model and Suffix Codes
- Model: AIP830 Operation Keyboard for Single-loop Operation
- Suffix Codes:
- -0: Without Mode selection switch
- -1: With Mode selection switch
- 0: Operation confirmation key Type A
- 1: Operation confirmation key Type B
- 1: Always 1
- Option Codes:
- /VESA: With VESA Bracket
- /EIM: With English Instruction Manual
- /JIM: With Japanese Instruction Manual
Specific Configuration
- Model/Part Number: AIP830 S2
- Configuration Details:
- S2: Likely a shorthand or variant designation; not explicitly detailed in suffix codes but may imply a specific combination (e.g., "-0" or "-1" with options). Based on context, it could align with a standard configuration without additional suffixes beyond "1" (Always 1).
Additional Notes
- For installation specifications and environmental conditions common to the systems, refer to “System Overview” (GS 33J01A10-01EN).
- (*1) Indicates the use of two USB A-type connectors, specifics not elaborated in the provided text.
- (*2) Weight varies depending on the inclusion of the VESA Bracket.
- The "S2" in the part number is not fully defined in the suffix codes; it’s interpreted as a possible variant or typo, with "1" (Always 1) assumed as part of the base configuration.
