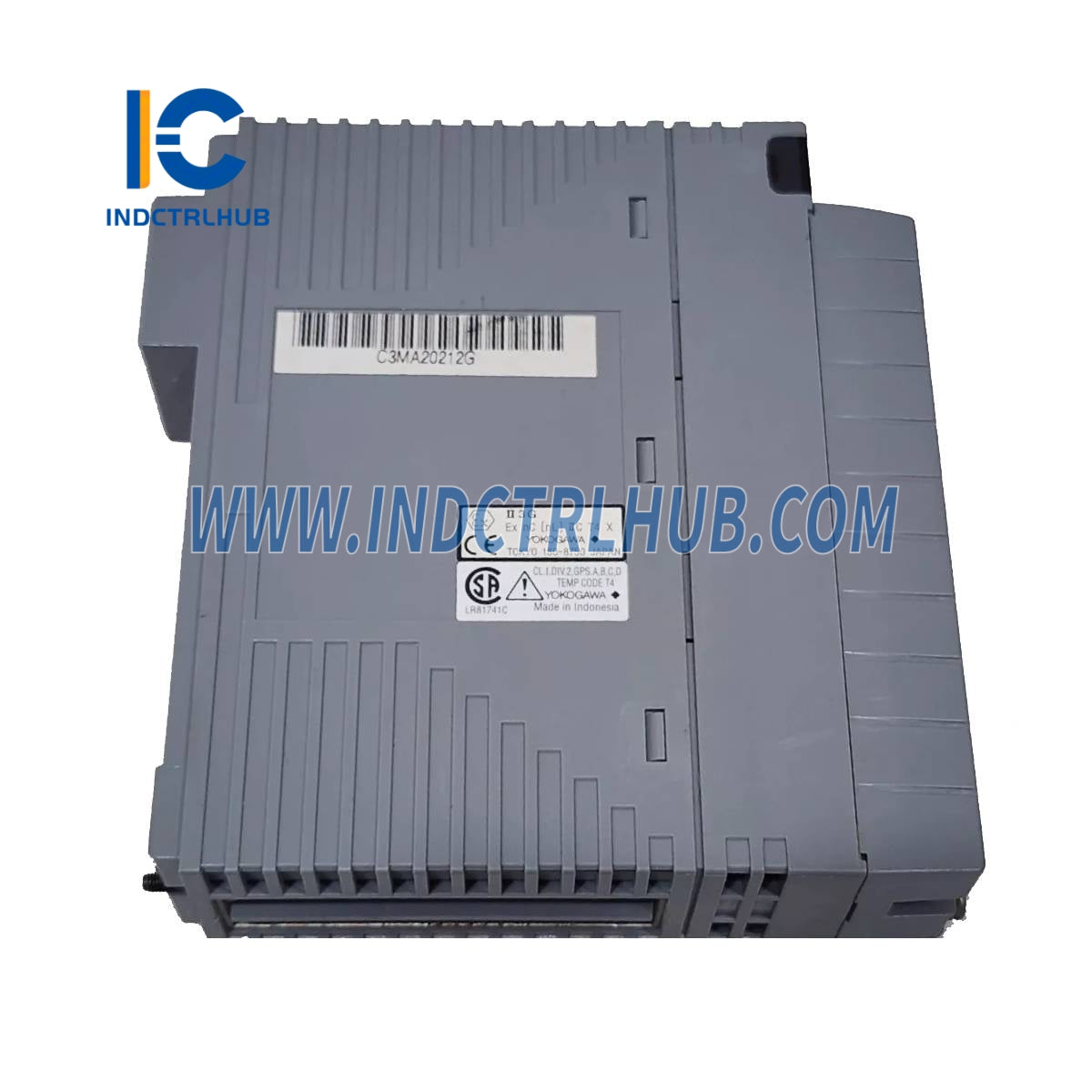

Yokogawa AAI841-H00/K4A00 Analog I/O Module
Yokogawa AAI841-H00/K4A00 Analog I/O Module
Manufacturer: Yokogawa
Product No.: AAI841-H00/K4A00
Condition:1000 in stock
Product Type: Analog I/O Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AAI841-H00/K4A00 |
|
Description |
Analog I/O Module (8-channel input/8-channel output, Non-Isolated, with KS Cable Adapter) |
_
_
__ Description
The_AAI841-H00/K4A00_is an_8-channel input/8-channel output_analog I/O module designed for handling_current (4_20 mA)_signals. It supports_non-isolated_configuration and_dual-redundant_operations, making it suitable for critical applications in industrial automation systems. This version includes a_KS Cable Interface Adapter_for flexible system wiring.
It also supports_HART communication protocol, enabling enhanced diagnostics and digital signal communication over the analog wiring.
_
_
__ Technical Specifications
|
Specification |
Details |
|---|---|
|
Number of Channels |
8 inputs / 8 outputs |
|
Isolation |
Non-isolated |
|
Signal Type (Input) |
4 to 20 mA |
|
Signal Type (Output) |
4 to 20 mA |
|
Allowable Input Current |
25 mA |
|
Allowable Input Voltage |
±7.5 V (for voltage input models) |
|
Input Resistance (Power ON) |
400 _ (at 20 mA) to 1000 _ (at 4 mA) |
|
Input Resistance (Power OFF) |
_500 k_ |
|
Allowable Load Resistance |
0 to 750 _ |
|
Circuit-Open Detection |
Less than 0.65 mA |
|
Accuracy |
Input: ±16 µA, Output: ±48 µA |
|
Data Update Period |
10 ms |
|
Input Step Response Time |
100 ms |
|
Output Step Response Time |
40 ms |
|
Transmitter Power Supply |
_14.8 V at 20 mA, _26.4 V at 0 mA |
|
Temperature Drift |
±0.1% / 10 °C |
|
Maximum Current Consumption |
310 mA (5 V DC), 500 mA (24 V DC) |
|
Weight |
0.3 kg |
|
External Connection |
KS Cable Interface (via ATK4A-00 adapter) |
|
HART Communication |
Supported (at current input/output) |
|
2-wire/4-wire Transmitter Setting |
Selectable per channel (via pin setting) |
_
_
__ Suffix and Option Codes Breakdown
|
Code |
Description |
|---|---|
|
-H00 |
With digital communication (HART protocol), basic type |
|
/K4A00 |
With KS Cable Interface Adapter [Model: ATK4A-00] |
