Product Description

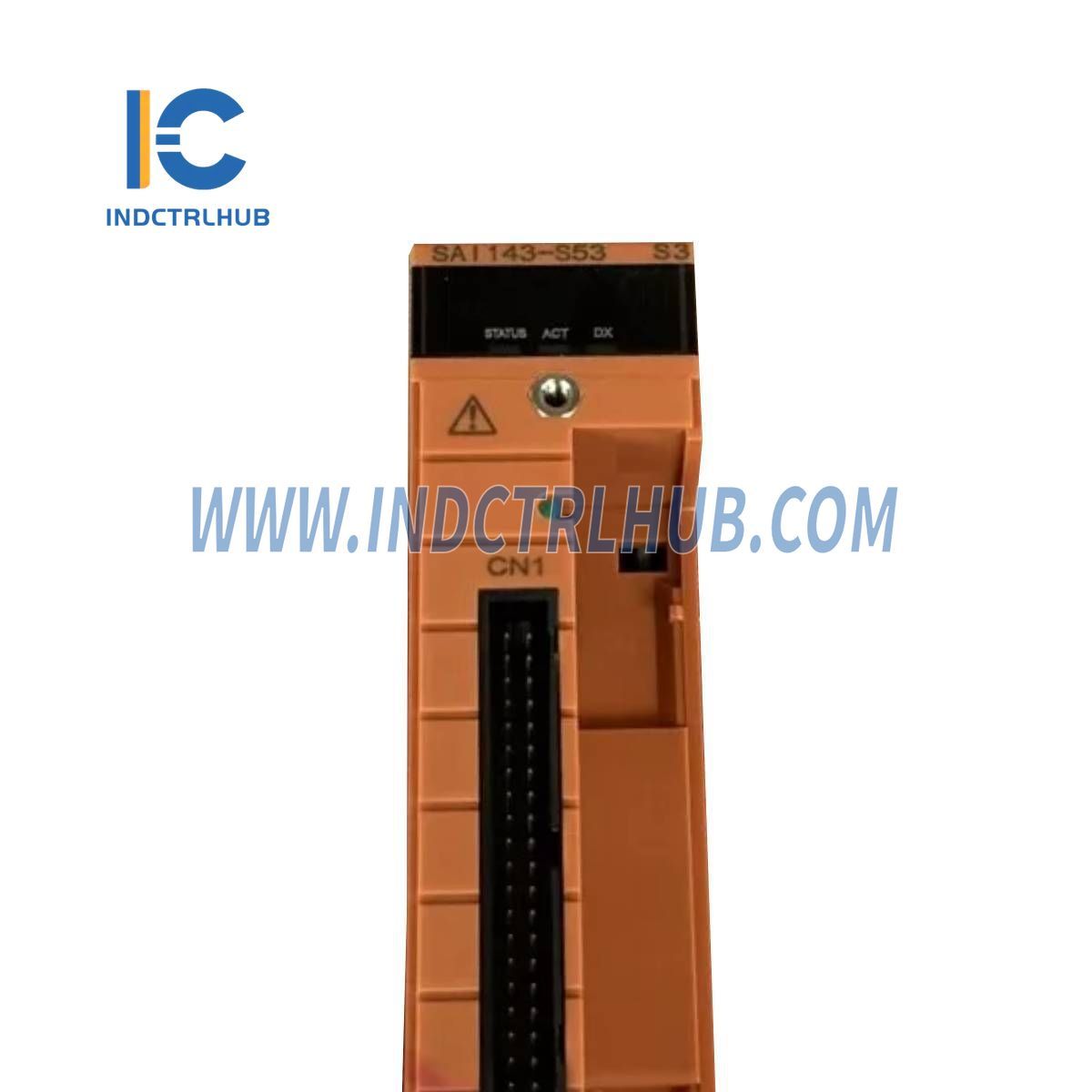

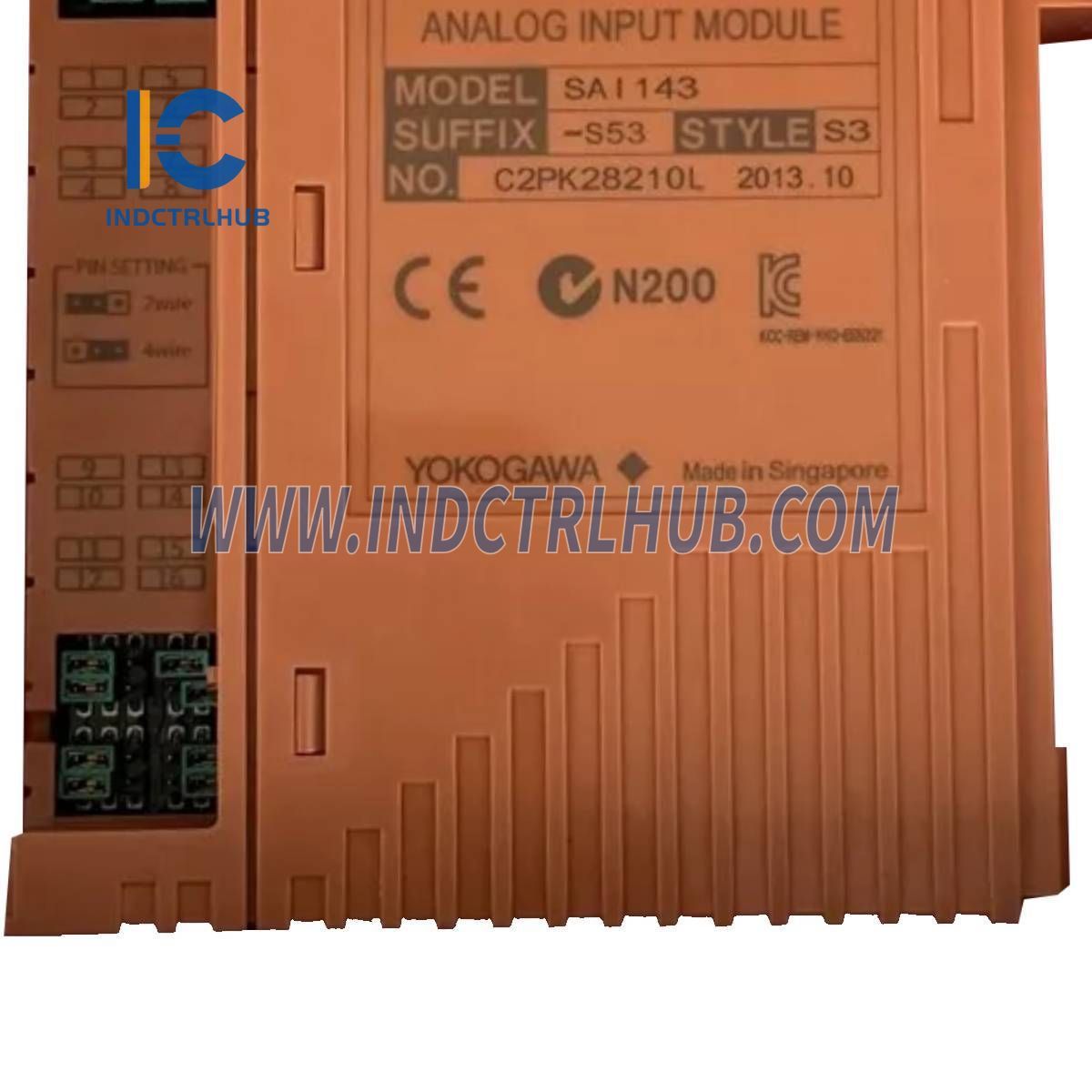

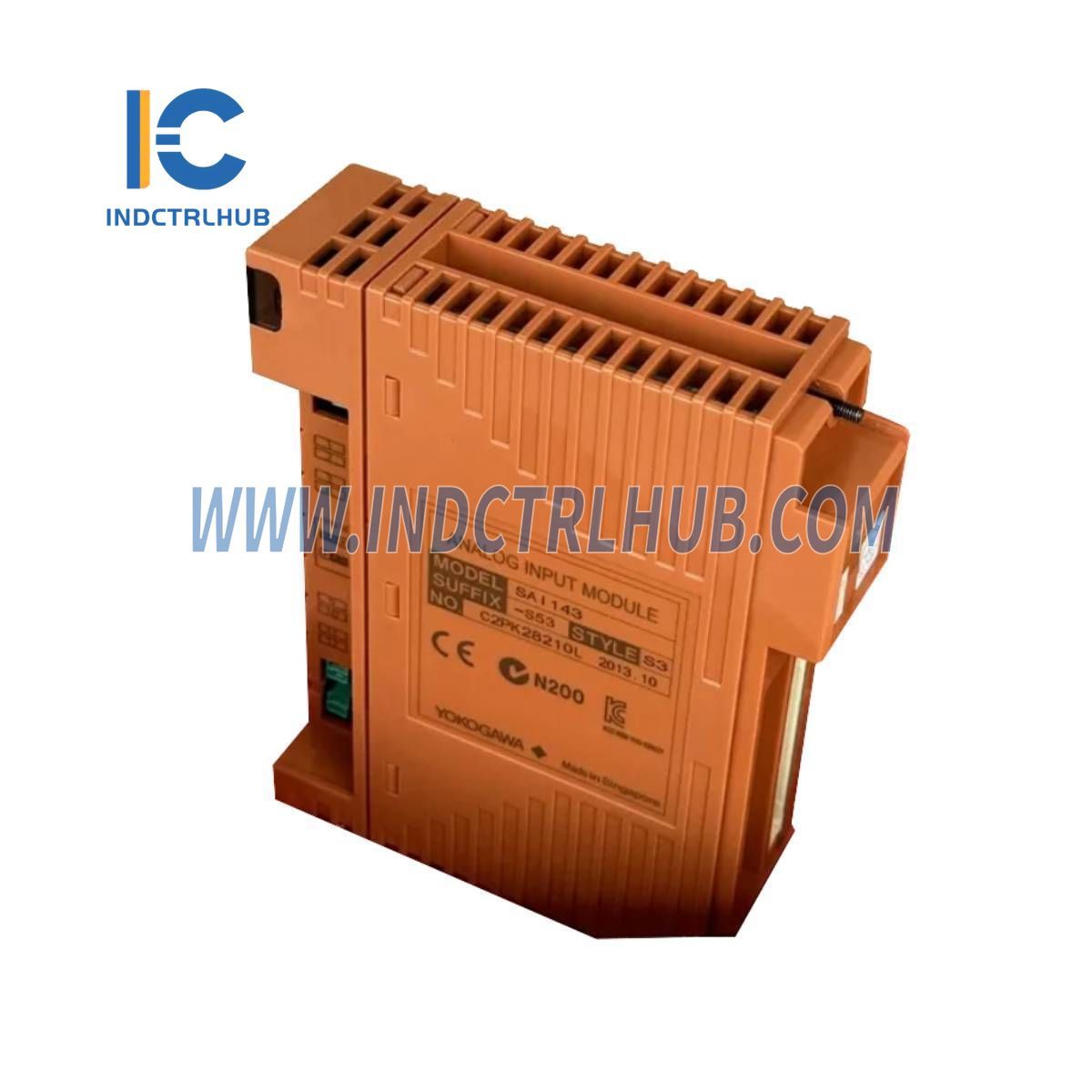

Product Information: Yokogawa Analog Input Module (SAI143-S53/A4S10)
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | SAI143-S53/A4S10 |
| Description | Analog Input Module |
Specifications
| Specification | Details |
|---|---|
| Number of Input Channels | 16 channels (isolated) |
| Input Signal | 4 to 20 mA |
| Allowable Input Current | 24 mA |
| Withstanding Voltage | 1500 V AC for 1 minute (between input and system) |
| Input Resistance (Power-ON) | 270 Ω (20 mA) to 350 Ω (4 mA) |
| Input Resistance (Power-OFF) | 500 kΩ or larger |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA) |
| 2-wire or 4-wire Transmitter Setting | Individually set by pin for each channel |
| Temperature Drift | ±16 µA/10 °C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| Weight | 0.3 kg |
| External Communication | Pressure clamp terminal, MIL connector cable, dedicated cable (KS1) |
| HART Communication | Available |
Model and Suffix Codes
| Suffix Code | Description |
|---|---|
| -S | Standard type |
| -H | With HART communication |
| 5 | No explosion protection (pressure clamp terminal block or MIL cable) |
| E | With explosion protection (pressure clamp terminal block or MIL cable) |
| 0 | Basic type |
| 3 | With ISA Standard G3 option and temperature (-20 to 70 °C) |
Option Codes
| Option Code | Description |
|---|---|
| /K4A00 | With KS Cable Interface Adapter (for connecting AEA4D Terminal Board) |
| /A4S00 | With Pressure Clamp Terminal Block [Model: ATA4S-00] |
| /A4S10 | With Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10] |
| /A4D00 | With Dual Pressure Clamp Terminal Block [Model: ATA4D-00] |
| /A4D10 | With Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10] |
| /CCC01 | With Connector Cover for MIL Cable [Model: ACCC01] |
