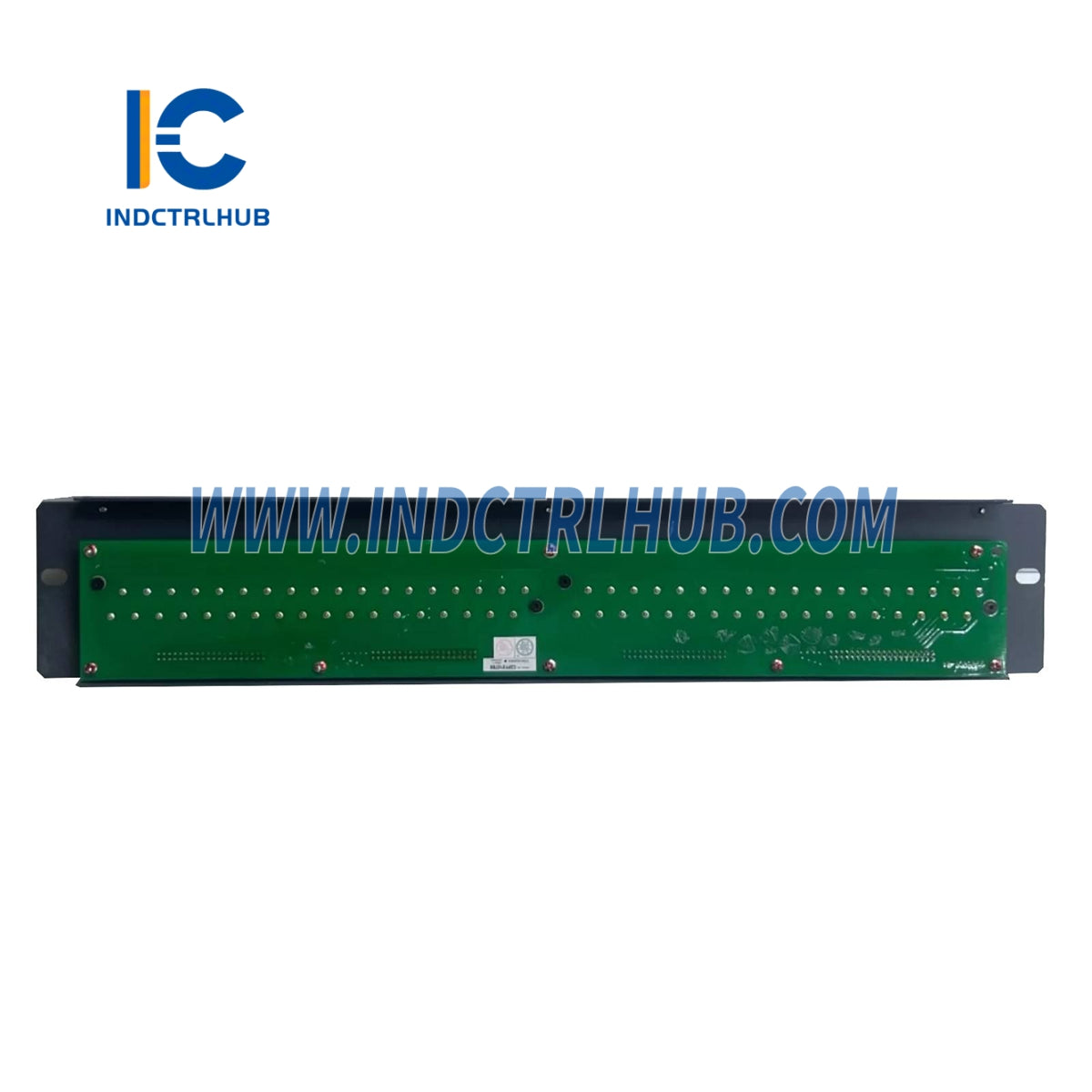

Yokogawa AEA4D-01 Terminal Board for Analog Signals
Yokogawa AEA4D-01 Terminal Board for Analog Signals
Manufacturer: Yokogawa
Product No.: AEA4D-01
Condition:1000 in stock
Product Type: Terminal Board for Analog Signals
Product Origin: Japan
Payment: T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
AEA4D-01 |
|
Description |
Terminal Board for Analog Signals (16-channel, for single or dual redundant modules) |
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
AEA4D |
|
Function |
Terminal board for analog signals (single/dual redundant) |
|
Points |
16 points |
|
Terminal Type |
2 _ M4 screws per point |
|
Compatible I/O Modules |
AAI141, AAV141, AAV142, AAV144, AAB841, AAI841, AAV542, AAV544, AAI143, AAI543 |
|
Connected System |
KS1 |
|
Connection Cable |
KS1 type cable |
|
Weight |
Approx. 1.5 kg |
|
Insulation Resistance |
100 M_ or greater at 500 V DC |
|
Withstanding Voltage |
500 V AC for 1 minute |
_
_
__ Model & Suffix Code Configuration
|
Model |
Description |
|---|---|
|
AEA4D |
Terminal Board for Analog (16-channel) |
_
Suffix Codes
|
Code |
Description |
|---|---|
|
-0 |
Without surge absorber |
|
5 |
Basic type with no explosion protection |
|
6 |
With ISA Standard G3 option, no explosion protection |
|
E |
Basic type with explosion protection |
|
F |
ISA Standard G3 option with explosion protection |
_
Option Code
|
Code |
Description |
|---|---|
|
/NTRY |

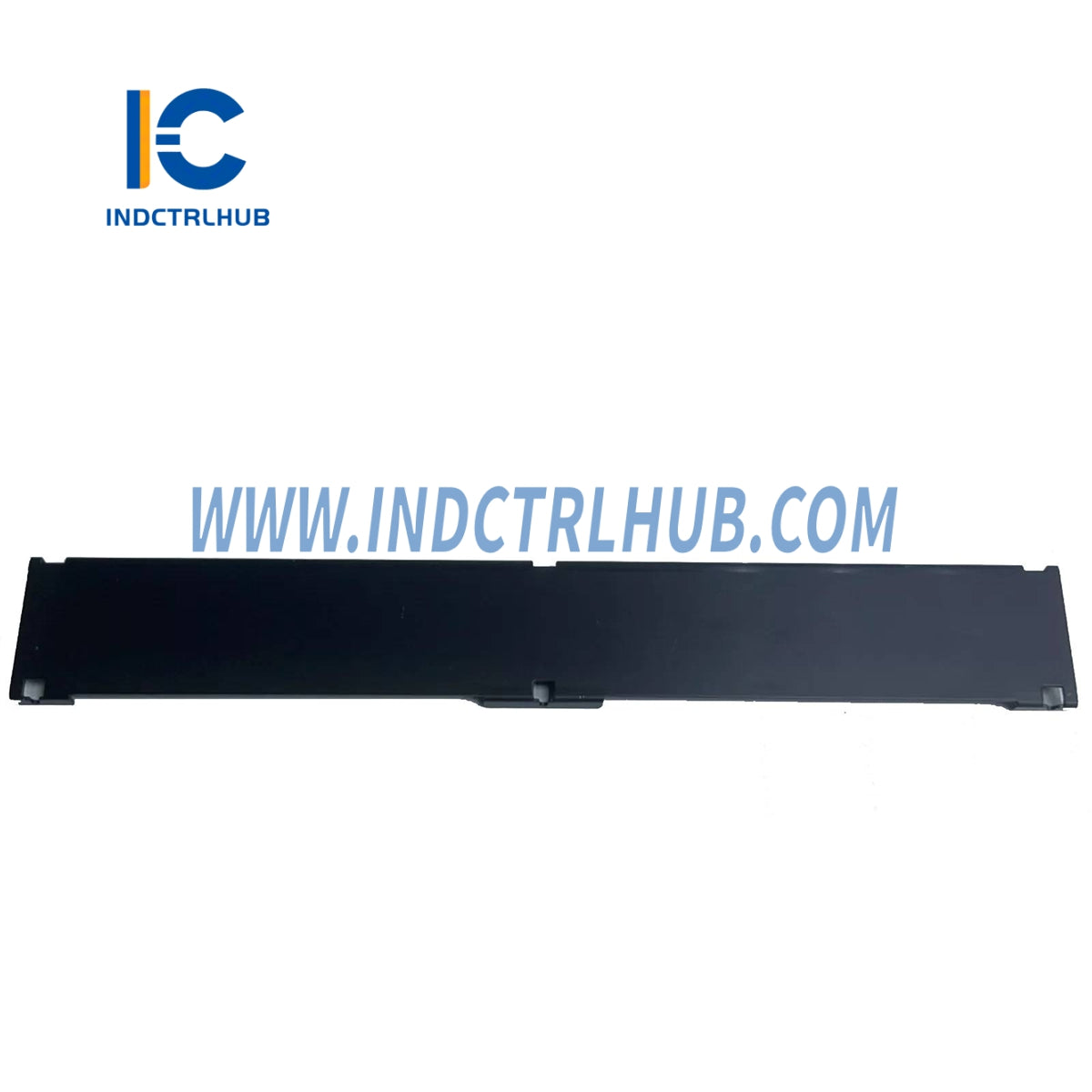

Without cable tray |
_
_
