Product Description

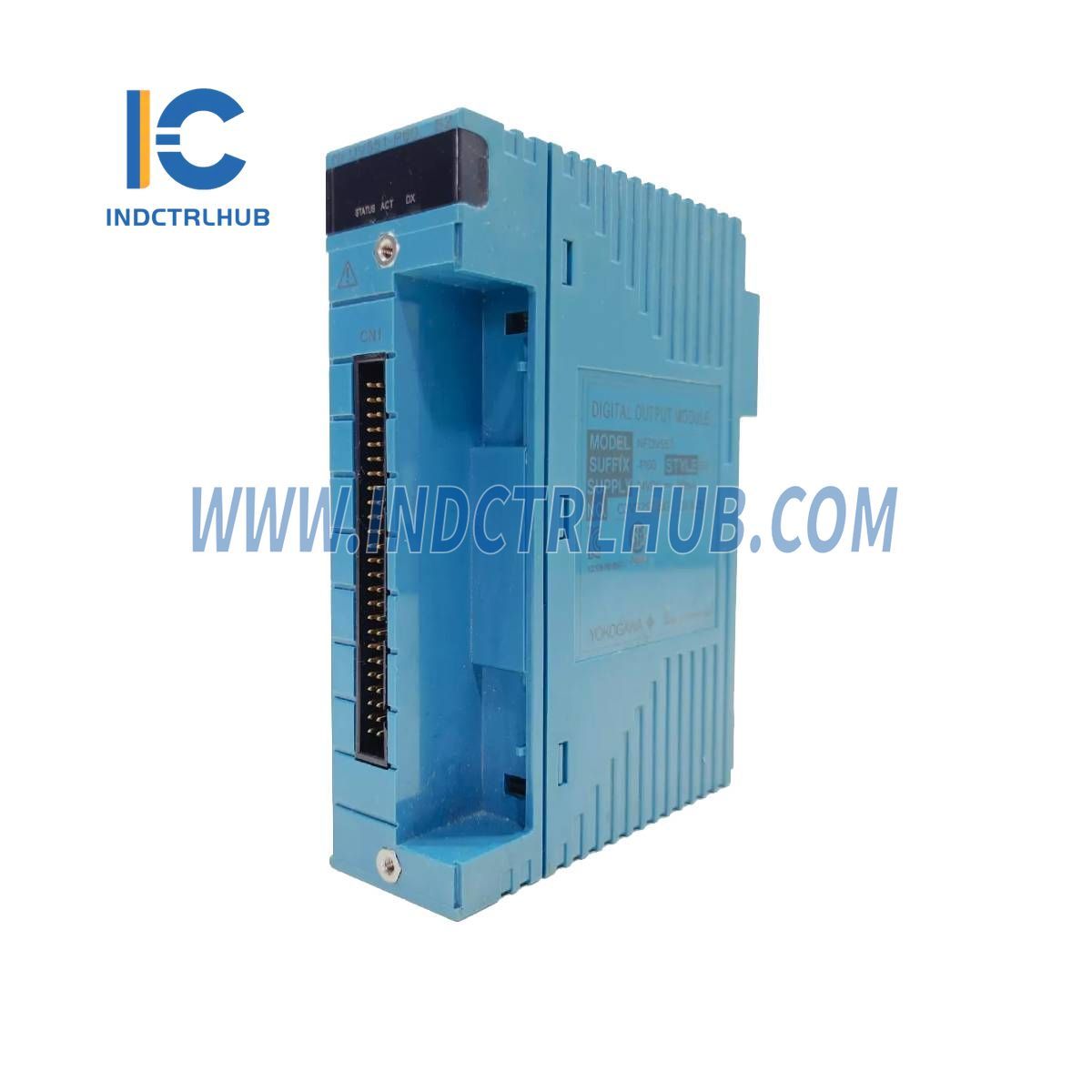

Product Information: Yokogawa Digital Output Module (NFDV551-P60)
| Manufacturer | Yokogawa |
|---|---|
| Model/Part Number | NFDV551-P60 |
| Description | Digital Output Module |
Item Specifications
| Specification | NFDV551 | NFDV561 |
|---|---|---|
| Number of Output Channels | 32 | 64 |
| Rated Applied Voltage | 24 V DC | 24 V DC |
| Load Voltage | 24 V DC, 50 mA | 24 V DC, 100 mA |
| Field Power Supply Voltage Range | 20.4 to 26.4 V | 20.4 to 26.4 V |
| Output ON Voltage Maximum Value | 2 V DC | 2 V DC |
| Leak Current Maximum (Output OFF) | 0.1 mA | 0.1 mA |
| Output Format | Current Sink | Current Sink |
| Maximum Load Current | 100 mA/channel, 26.4 V | 100 mA/channel, 26.4 V |
| Withstanding Voltage | 2000 V AC (1 minute, between output and system) | 2000 V AC (1 minute, between output and system) |
| Common Voltage Withstanding | 500 V AC (1 minute) | 500 V AC (1 minute) |
| Functions | ON/OFF status output, fallback options | ON/OFF status output, fallback options |
| Output Response Time | 3 ms or less (for status output) | 3 ms or less (for status output) |
| Maximum Current Consumption | 700 mA (5 V DC) | 780 mA (5 V DC) |
| Field Power Supply Consumption | 60 mA (24 V DC) | 120 mA (24 V DC) |
| Weight | 0.2 kg | 0.3 kg |
| External Connection | Pressure clamp terminal, MIL connector cable | MIL connector cable |
Models and Suffix Codes
| Description | Model NFDV551 Digital Output Module |
|---|---|
| Suffix Codes | -P: Standard type |
| 6: With status display, no explosion protection | |
| F: With status display, explosion protection | |
| 0: Basic type | |
| 1: With ISA Standard G3 option | |
| Option Codes | /D5S00: With pressure clamp terminal block for digital output (Model: NFTD5S-00) |
| /D5S10: With pressure clamp terminal block (surge absorber) (Model: NFTD5S-10) | |
| /CCC01: With connector cover for MIL cable (Model: NFCCC01) |
Key Features
- High Load Capacity: Supports up to 100 mA/channel at 26.4 V for both NFDV551 and NFDV561.
- Quick Response: Output response time is 3 ms or less.
- Robust Design: Withstands up to 2000 V AC for 1 minute between output signal and system.
- Status Monitoring: Offers ON/OFF status output and fallback options (HOLD, OFF, or NO).
- Wide Voltage Range: Accepts 24 V DC field power supply ranging from 20.4 V to 26.4 V.
