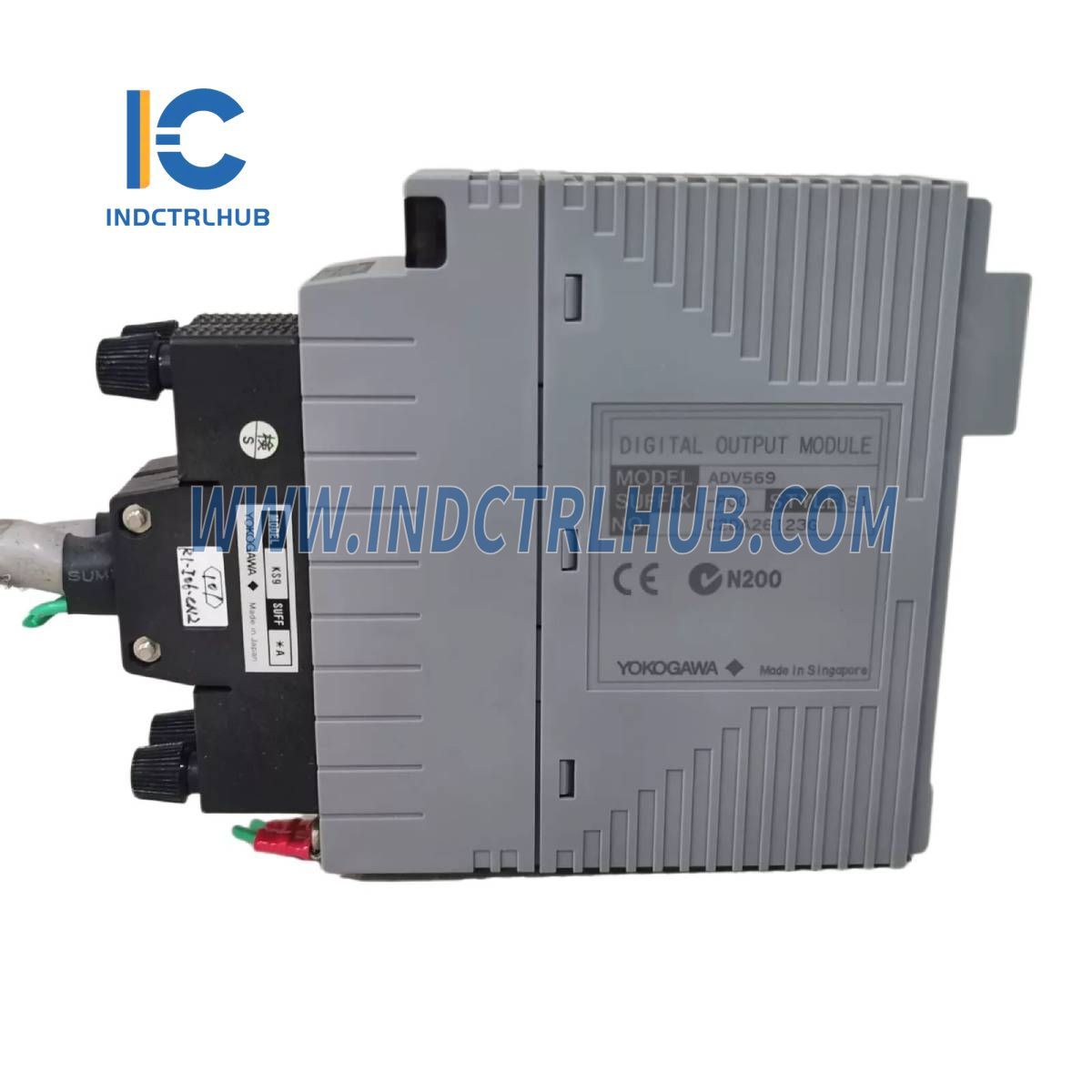

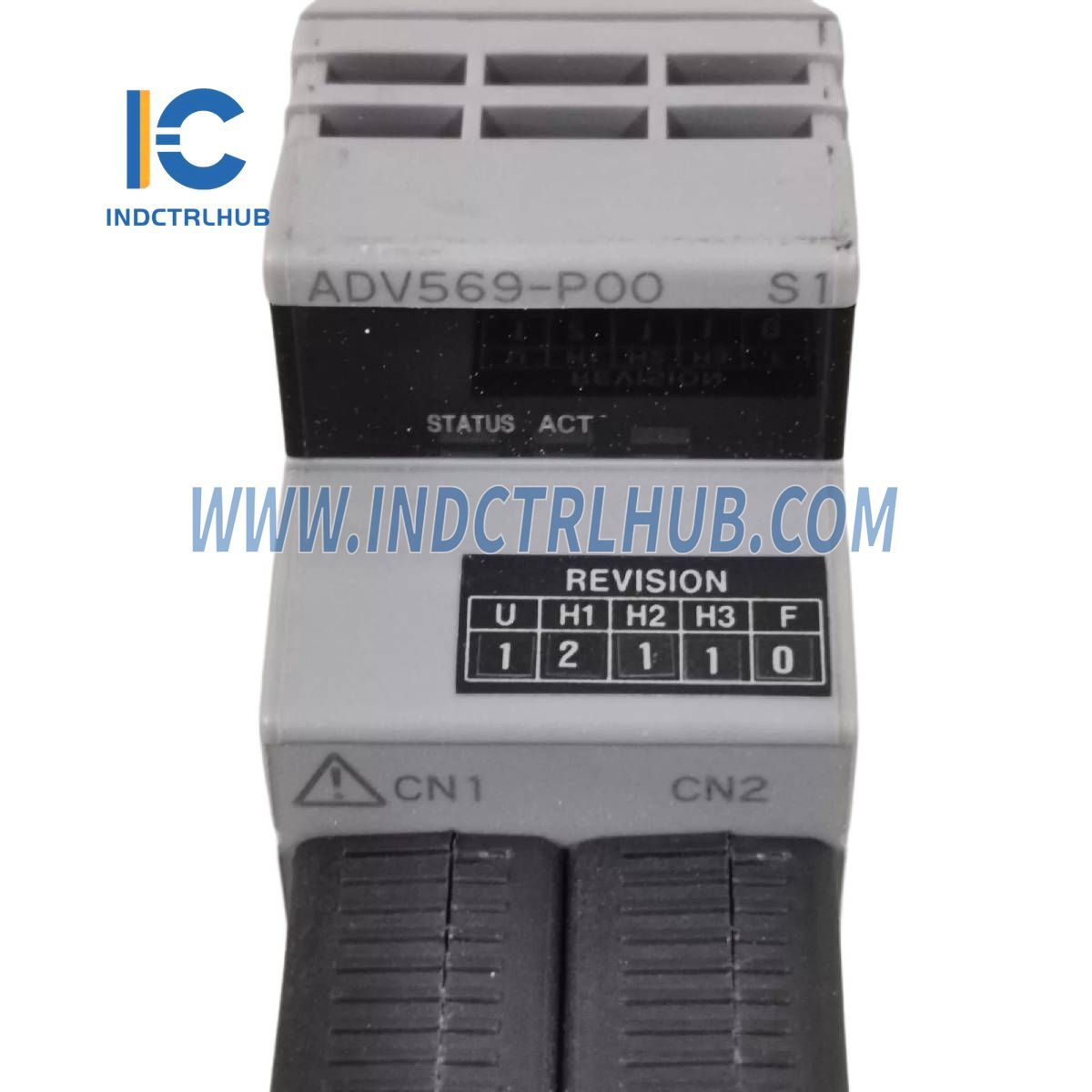

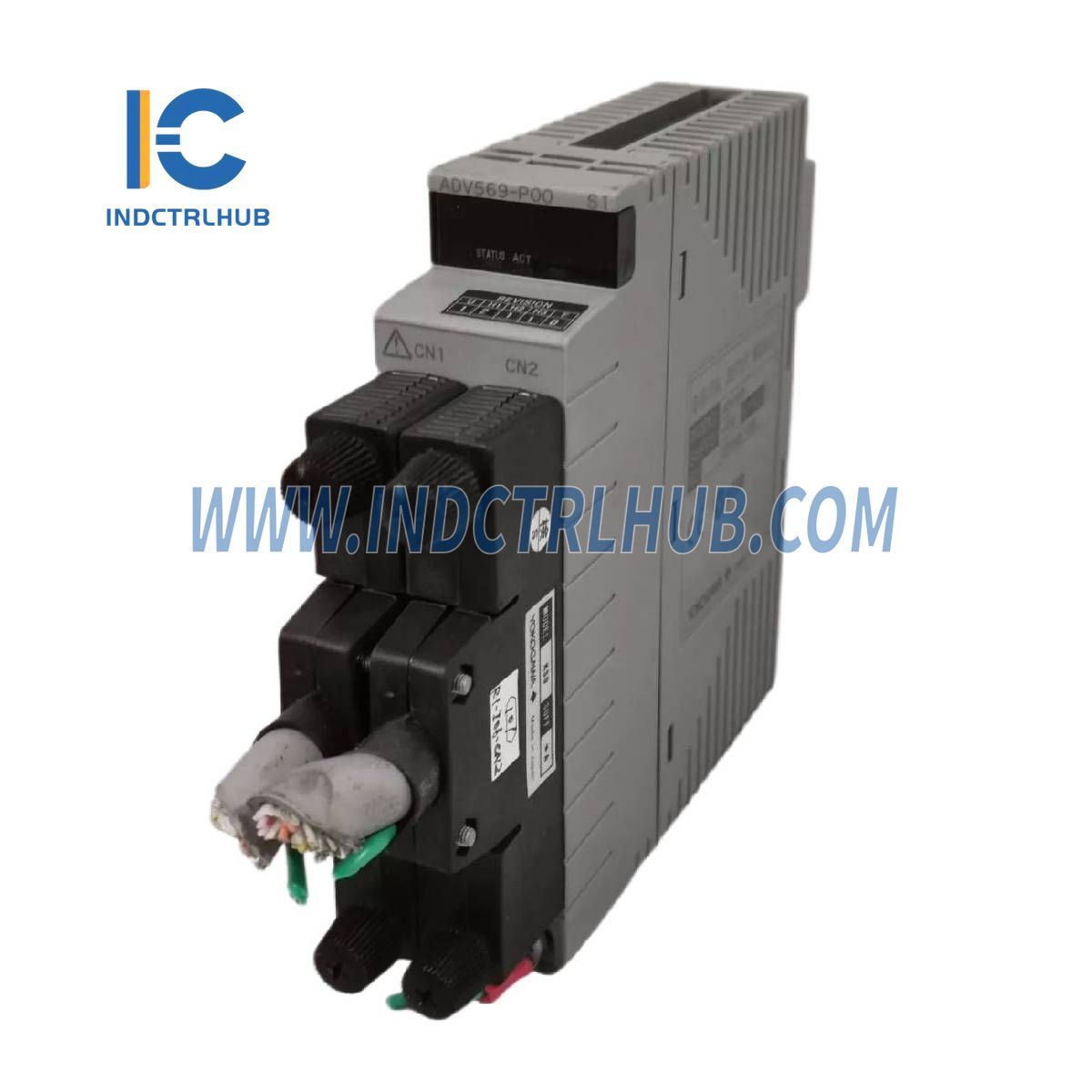

Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Yokogawa |
|
Model/Part Number |
ADV569-P00 (1001789080) |
|
Product Description |
Digital I/O Module (64-channel output, Isolated, Common Minus Side Every 16-channel) |
Specifications
I/O Characteristics
|
Parameter |
ADV569 (Digital Output) |
|---|---|
|
Number of I/O Channels |
64-channel output |
|
Signal Isolation |
Common every 16-channel |
|
Output Signal |
Transistor contact |
|
Output Contact Rating |
Inductive load, resistive load: 30 V DC, 100 mA (*1) |
|
Output Response Time |
16 ms or less |
|
Pulse Width |
8 ms to 7200 s |
|
Pulse Width Resolution |
8 ms, add max. 1 ms for ON/OFF delay time |
Power & Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Maximum Current Consumption |
800 mA (5 V DC) |
|
Weight |
Approx. 0.30 kg |
|
External Connection |
Dedicated cable (KS9) |
|
Compatible Card |
ST7 compatible |
Model Variations & Options
Model Variations (Suffix Codes)
|
Suffix Code |
Description |
|---|---|
|
-P |
With pulse width function/time-proportional output function |
|
0 |
Always 0 |
|
0 |
Basic type |
|
1 |
With ISA Standard G3 option |
