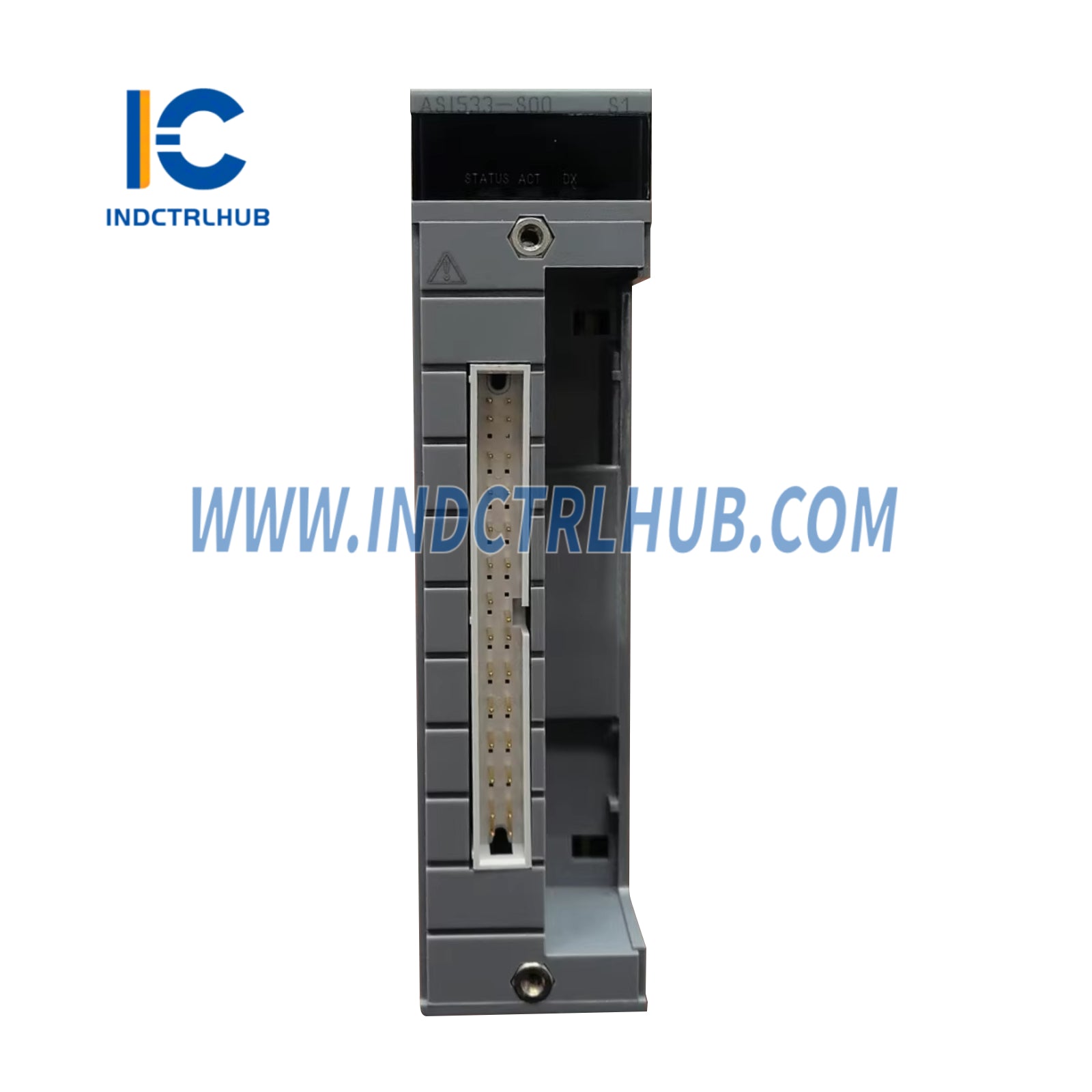

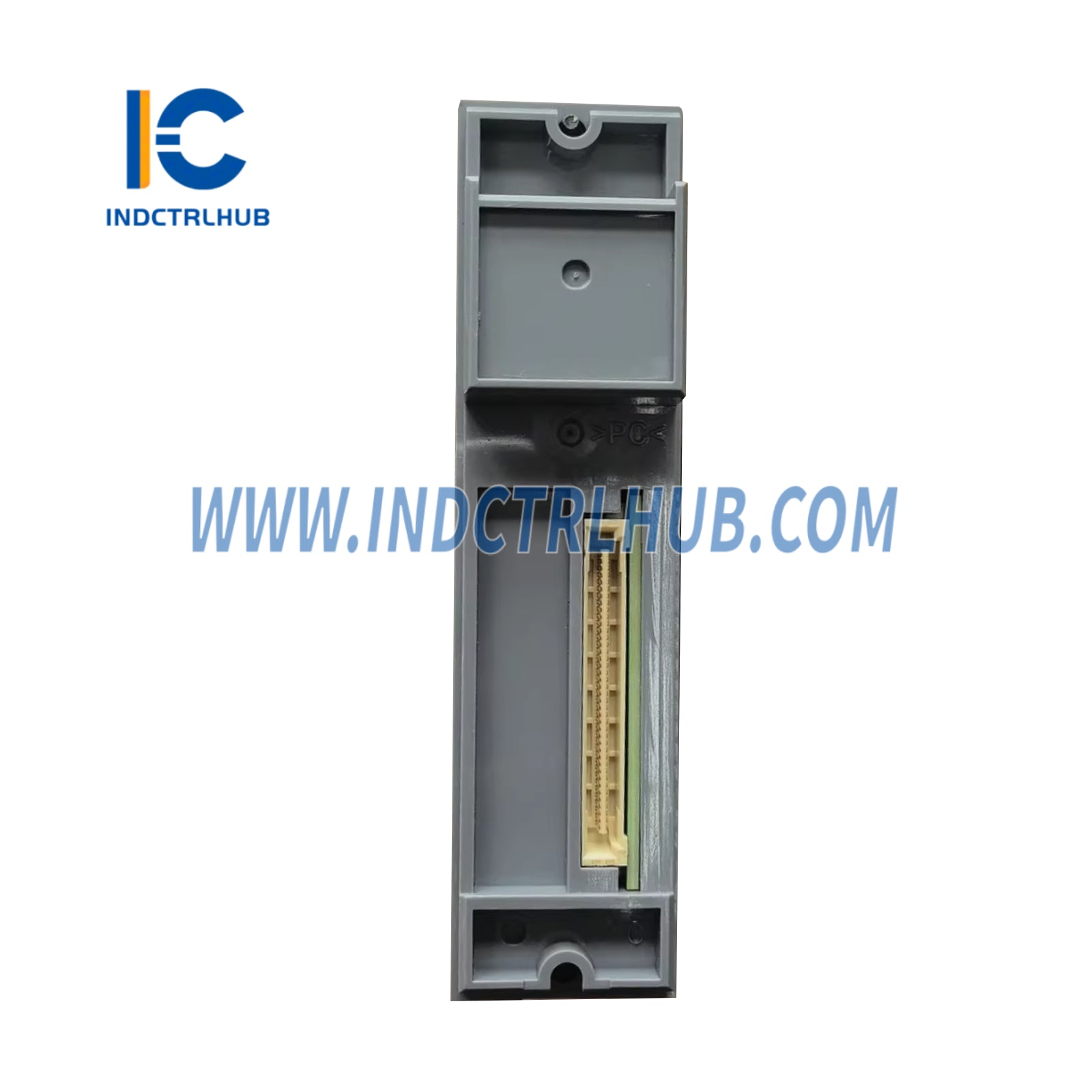

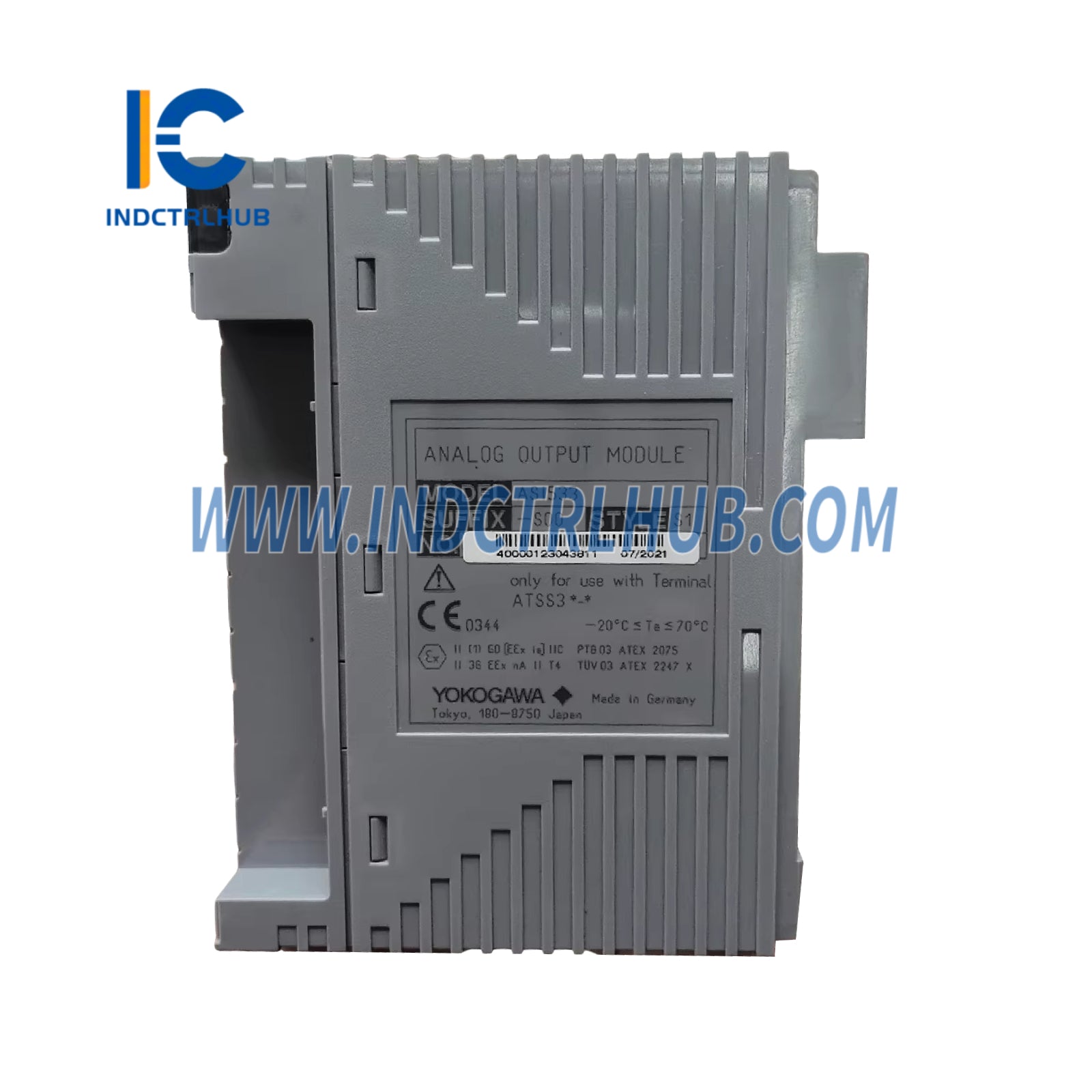

Yokogawa ASI533-S00/SS3S0 Analog Output Module
Yokogawa ASI533-S00/SS3S0 Analog Output Module
Manufacturer: Yokogawa
Product No.: ASI533-S00/SS3S0
Condition:1000 in stock
Product Type: Analog Output Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
ASI533-S00/SS3S0 |
|
Description |
Analog Output Module, 8-channel, 4_20 mA, Isolated, with built-in barrier and pressure clamp terminal, ISA Standard G3 and extended temperature option |
_
_
__ Specifications
|
Item |
Specification |
|---|---|
|
Model |
ASI533 |
|
Output Channels |
8 (isolated) |
|
Output Signal |
4 to 20 mA |
|
Maximum Output Current |
23 mA |
|
Withstanding Voltage |
1500 V AC |
|
Allowable Load Resistance |
- 0 to 750 _ @ 20 mA- 0 to 600 _ @ 23 mA |
|
Accuracy |
±48 µA |
|
Step Response Time |
100 ms |
|
Data Update Period |
10 ms |
|
Temperature Drift |
±16 µA per 10 °C |
|
Maximum Current Consumption |
- 150 mA (5 V DC)- 350 mA (24 V DC) |
|
Weight |
Approx. 0.30 kg |
|
External Connection |
Pressure clamp terminal (Model ATSS3S-0) |
|
HART Communication |
Available |
|
Barrier Type |
Isolated interface |
_
_
__ Configuration Breakdown
_
Model: ASI533-S00/SS3S0
|
Code |
Meaning |
|---|---|
|
-S |
Standard type |
|
0_(1st) |
Always 0 (used for internal classification) |
|
0_(2nd) |
Always 0 (used for internal classification) |
|
/SS3S0 |
Pressure Clamp Terminal for Analog Output [Model: ATSS3S-0] |
_
