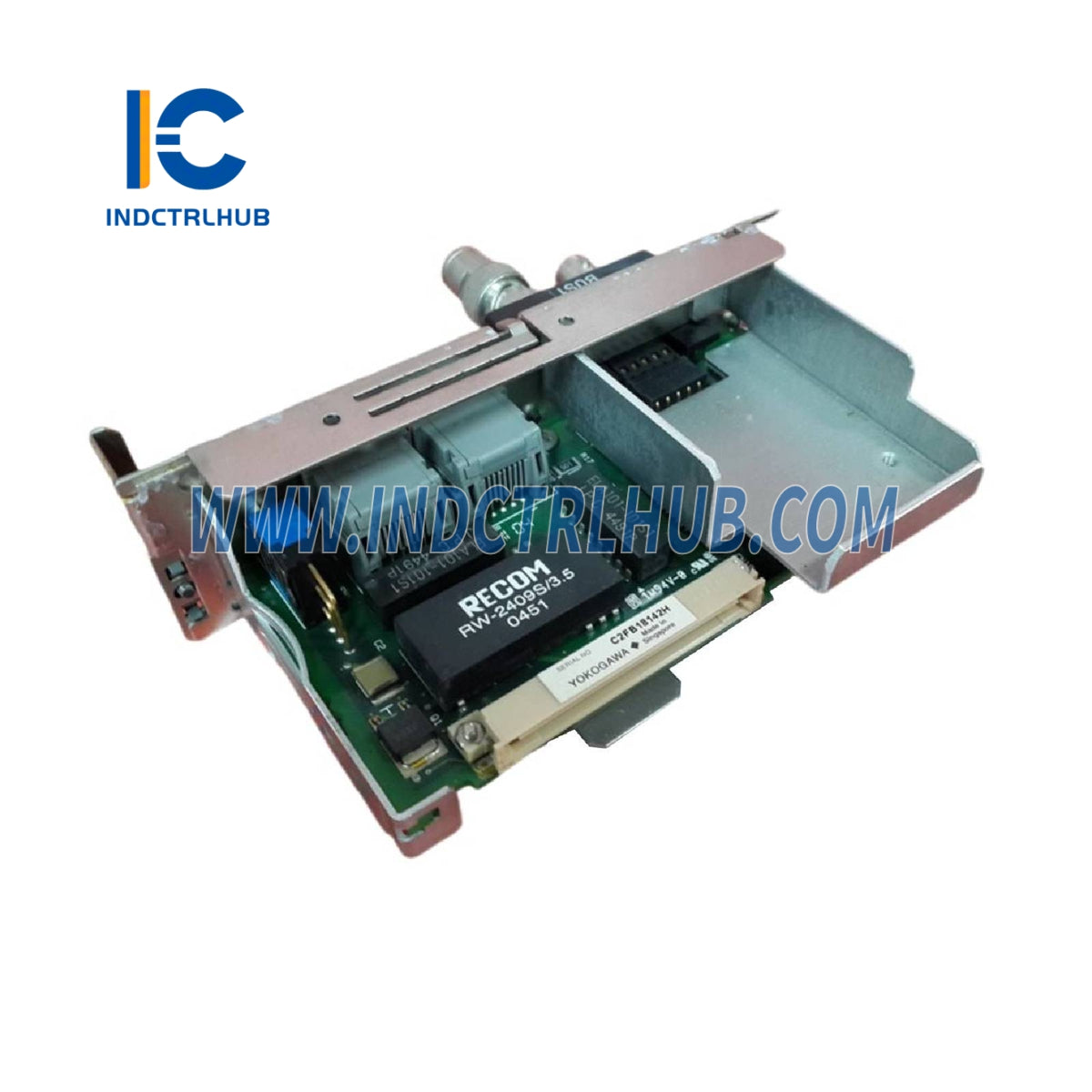

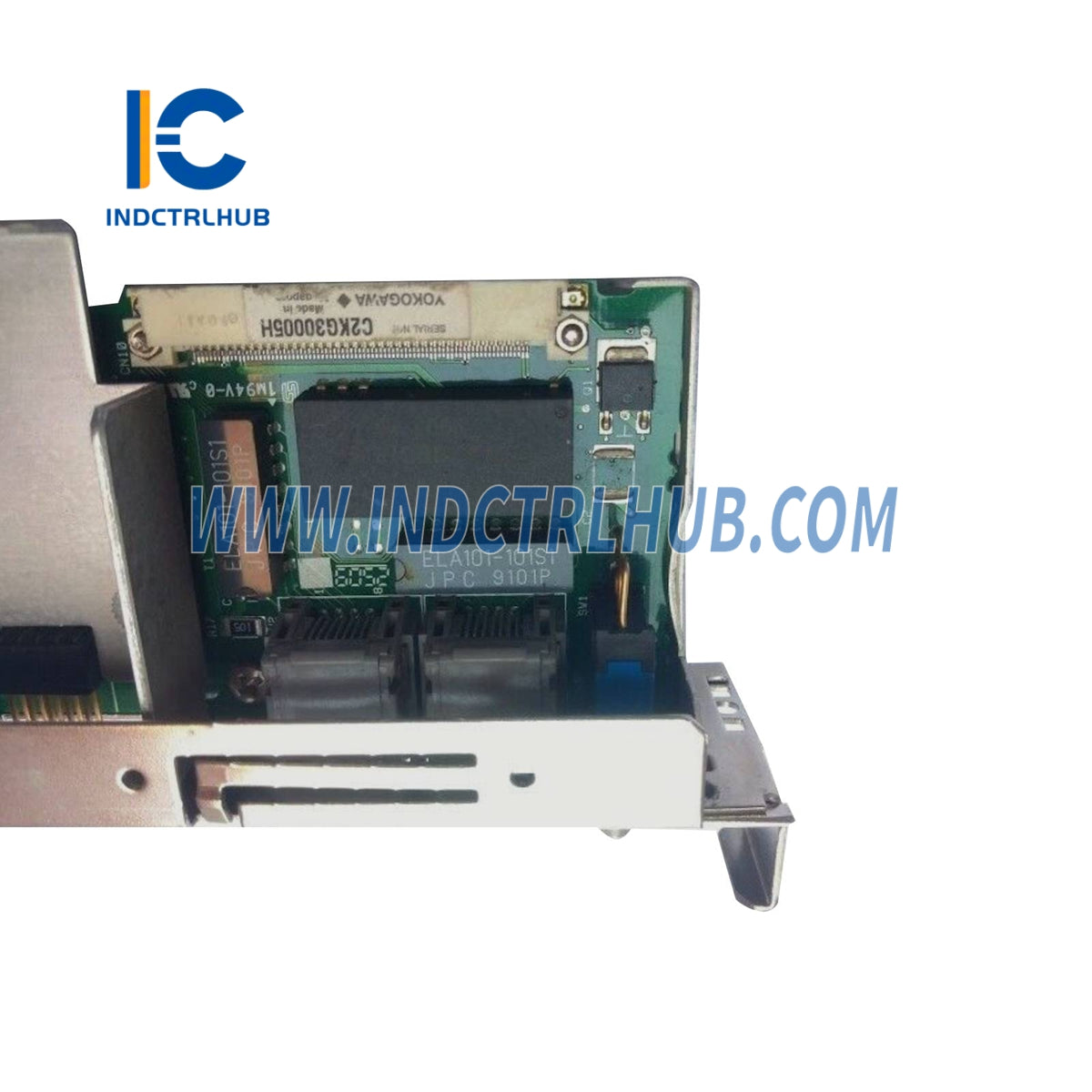

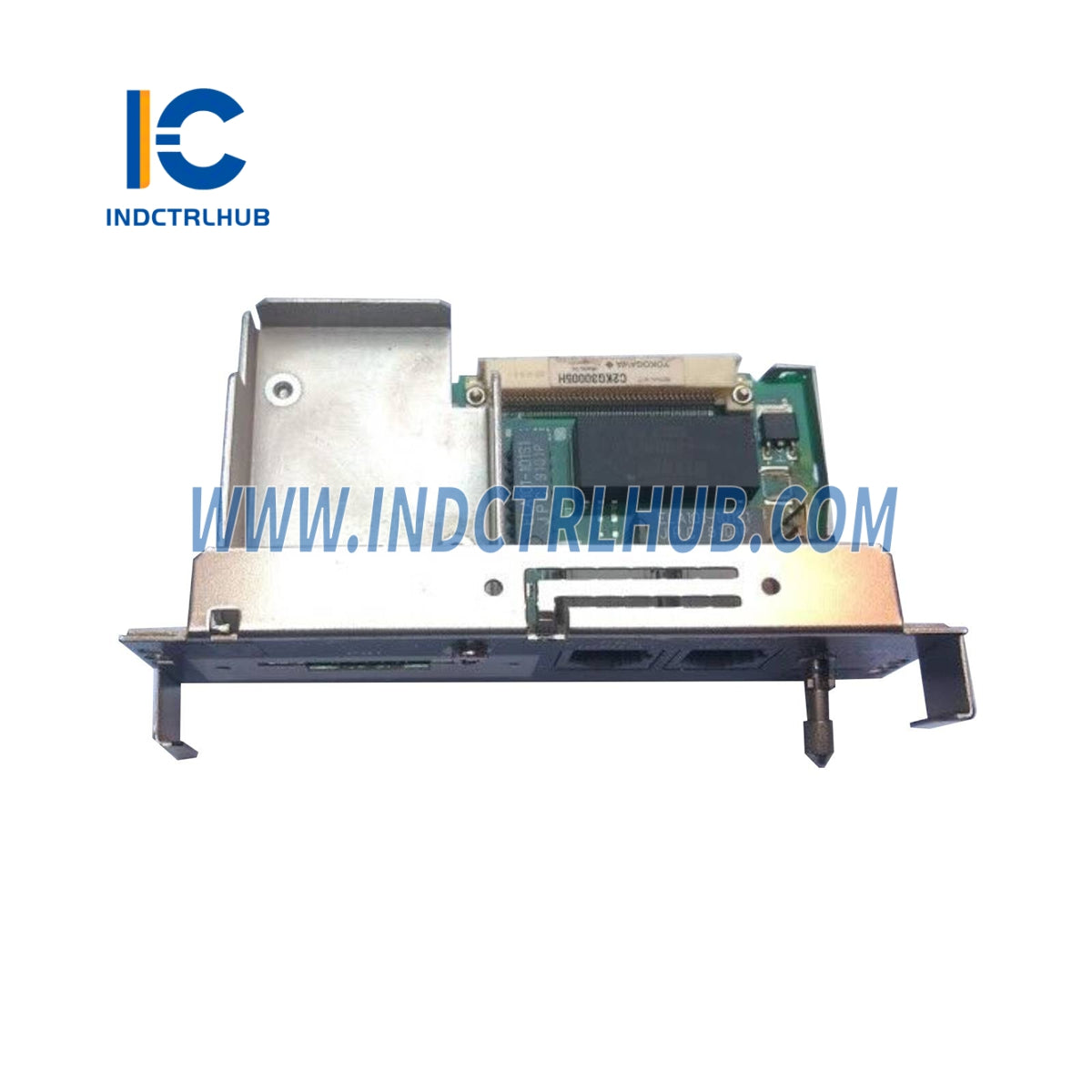

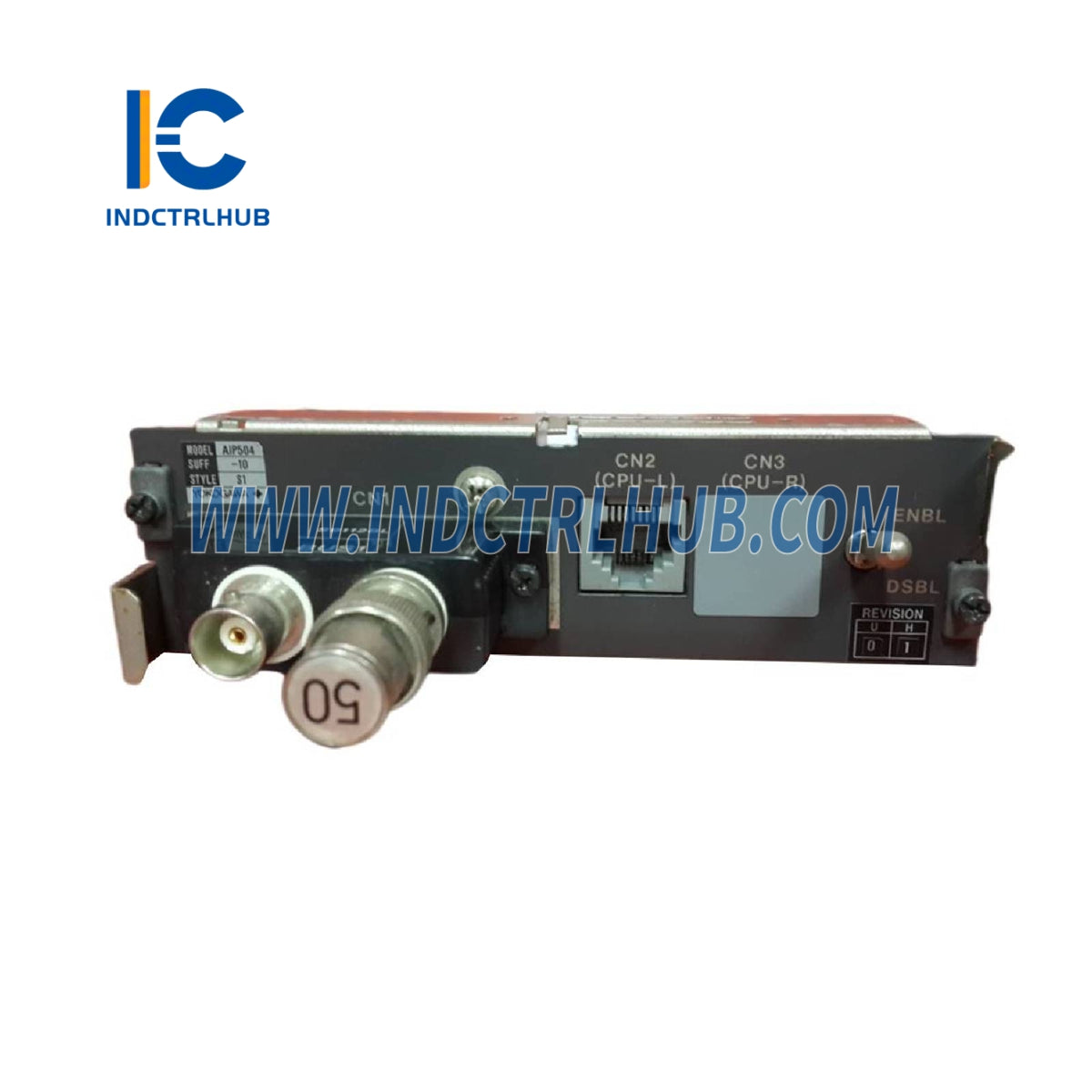

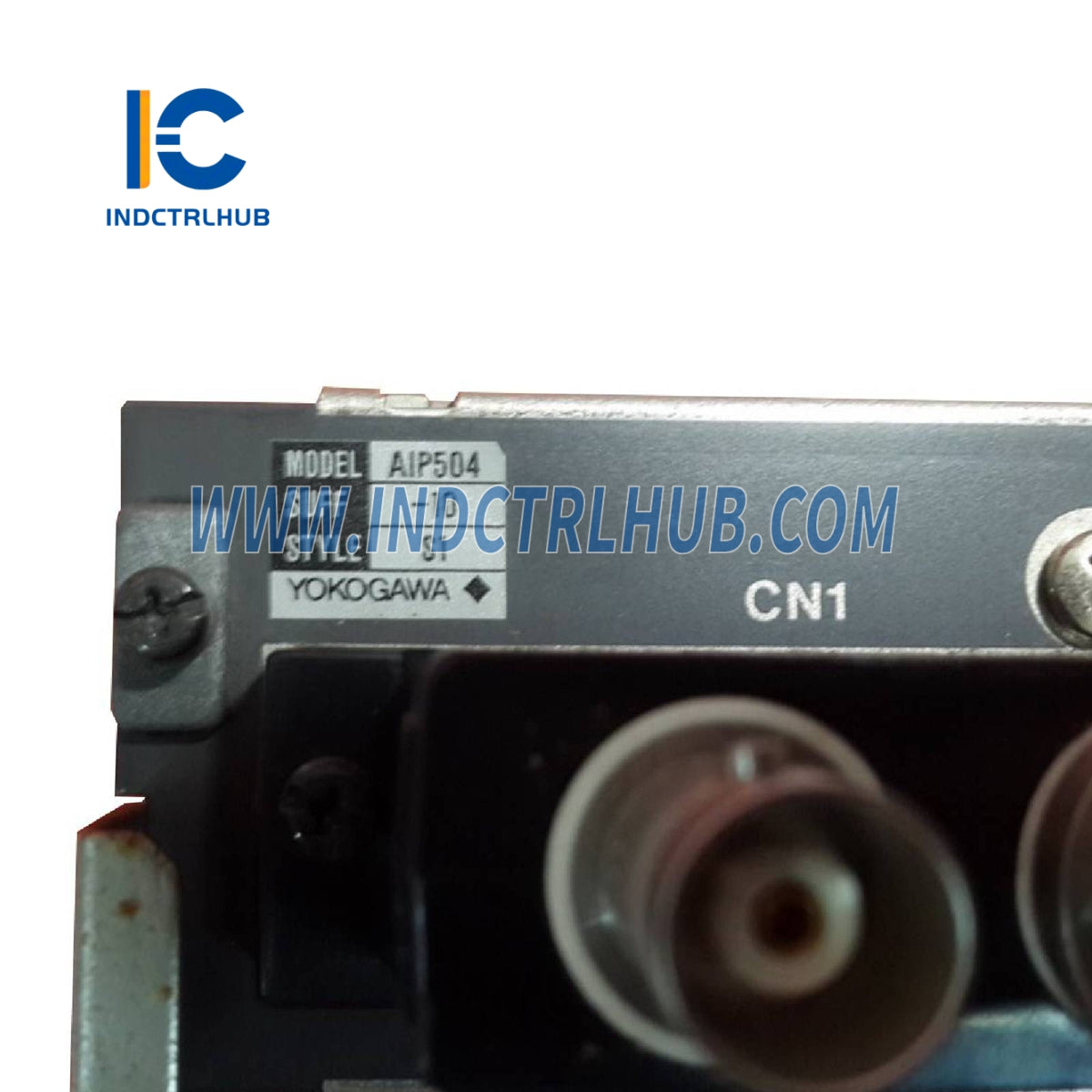

Yokogawa AIP504-10 V-Net Coupler Unit
Yokogawa AIP504-10 V-Net Coupler Unit
Manufacturer: Yokogawa
Product No.: AIP504-10
Condition:1000 in stock
Product Type: V-Net Coupler Unit
Product Origin: Japan
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Yokogawa (Yokogawa Electric Corporation) |
|
Model/Part Number |
AIP504-10 |
|
Description |
V-Net Coupler Unit facilitating communication between Field Control Station (FCS) and Human Interface Station (HIS) in CENTUM CS systems |
|
Key Features |
High-speed V-Net communication, compact design, reliable data exchange, CENTUM CS compatibility |
_
_
__ Technical Specifications
|
Specification |
Details |
|---|---|
|
Model |
AIP504-10 |
|
Product Type |
V-Net Coupler Unit |
|
Communication Protocol |
V-Net (Yokogawa proprietary control network) |
|
Data Transfer Rate |
Up to 10 Mbps |
|
Power Supply |
24 VDC (supplied from FCS or external module) |
|
Operating Temperature |
0°C to 55°C (32°F to 131°F) |
|
Weight |
Approx. 0.5 kg (1.1 lbs) |
_
_
__ External Connection Options
|
Connection Type |
Details |
|---|---|
|
V-Net Bus Interface |
Connects FCS to HIS and other CENTUM CS components via V-Net bus |
_
_
__ Functional Features
|
Feature |
Details |
|---|---|
|
Communication |
Facilitates real-time, high-speed data exchange between FCS and HIS |
|
Reliability |
Ensures stable and continuous communication within the CENTUM CS network |
|
Installation |
Mountable inside FCS cabinet or communication nest |
_
_
__ Model and Configuration
|
Category |
Details |
|---|---|
|
Base Model |
AIP504-10 (Standard V-Net Coupler Unit for CENTUM CS systems) |
|
Configuration |
Preconfigured for seamless integration within FCS communication infrastructure |
_
_
__ Applications and Benefits
|
Category |
Details |
|---|---|
|
Applications |
Oil & gas, chemical plants, power generation, and other critical process industries |
|
Benefits |
Efficient and reliable data exchange, robust control network performance, optimized system uptime |
