Product Description
Standard Specifications
Functionality
-
ESB bus master interface function
Node Connectivity
-
Upper Side: Maximum 9 units
-
Lower Side: Maximum 9 units
-
Total: Maximum 13 units (varies depending on the FCS database)
Data Transmission
-
Transmission Speed: 128 Mbps (I/O module data transmission)
-
Transmission Distance:
-
Upper Side: Maximum 10 m
-
Lower Side: Maximum 10 m
-
Total Distance: Maximum 20 m
Power Consumption & Weight
-
Current Consumption: 0.5 A
-
Weight: Approximately 0.24 kg
Installation Requirements
-
If the ESB bus is non-redundant, install the module in slot 7 of AFV30S, AFV30D, AFV40S, AFV40D, A2FV50S, A2FV50D, A2FV70S, A2FV70D, and cover slot 8 with a dummy module.
-
If the ESB bus is dual-redundant, install the modules in both slot 7 and slot 8.
Model and Suffix Codes

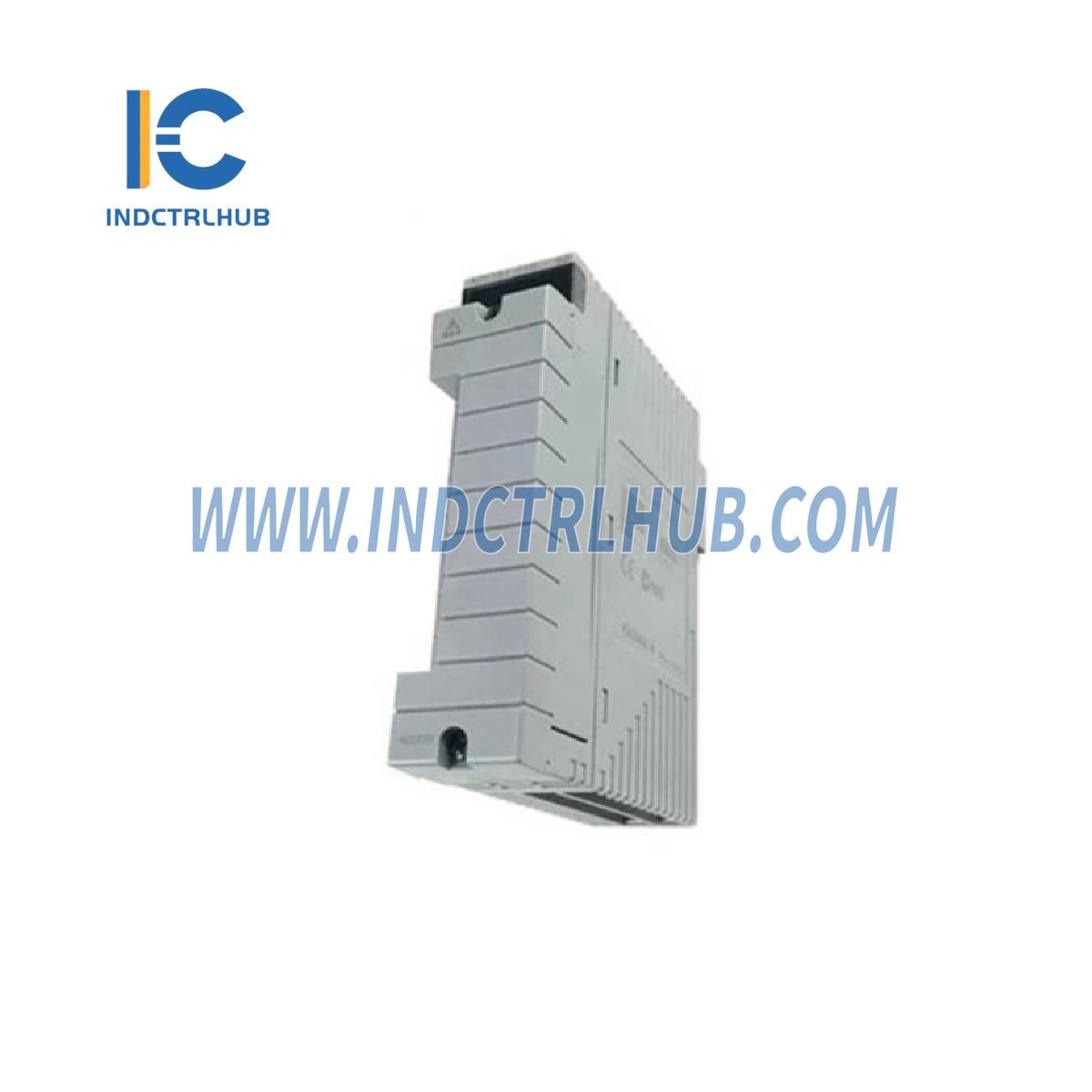

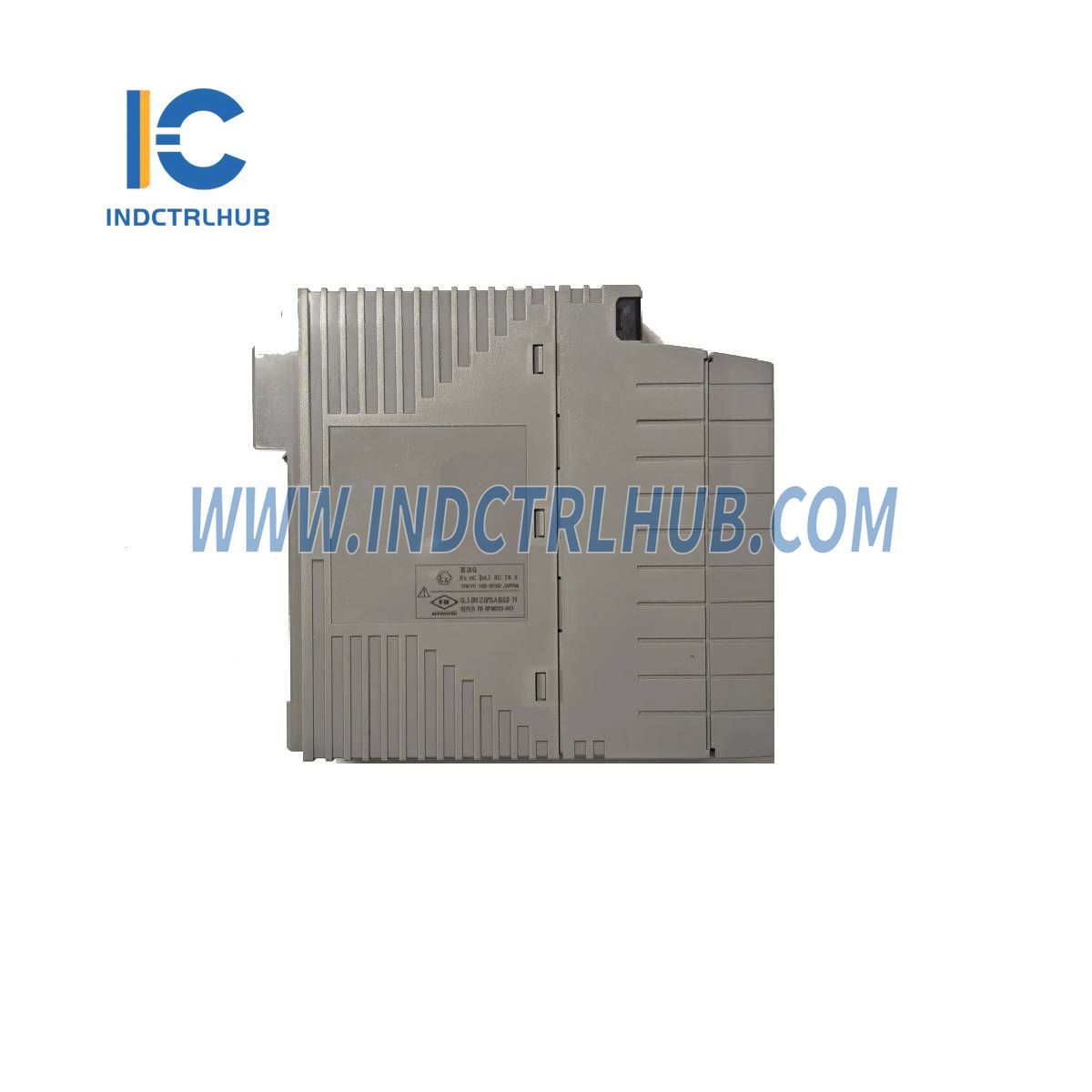

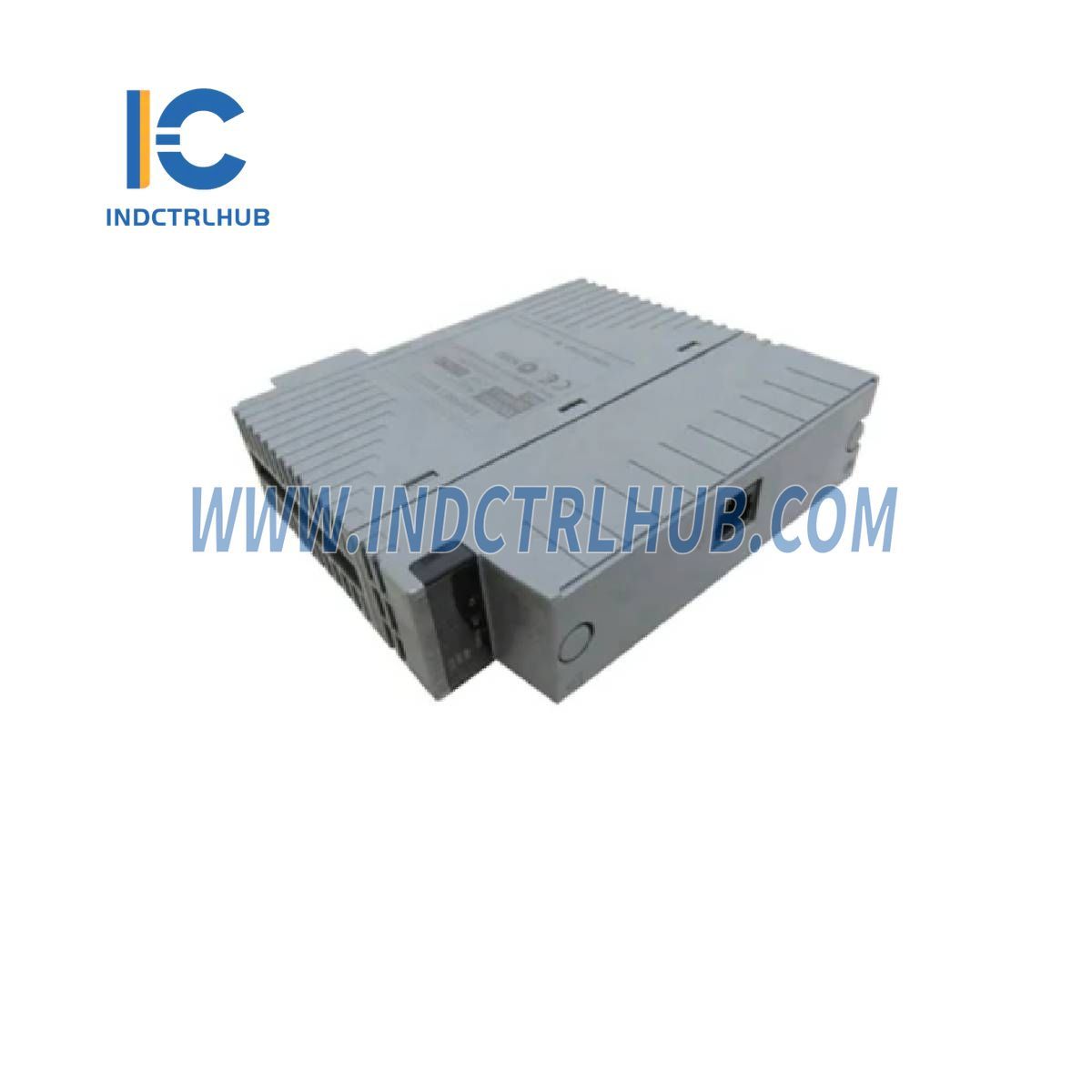

Model: EC402
Description: ESB Bus Coupler Module (for N-IO/FIO, 2-Port)
Suffix Codes
-
-5 Standard type with no explosion protection
-
0 Basic type
