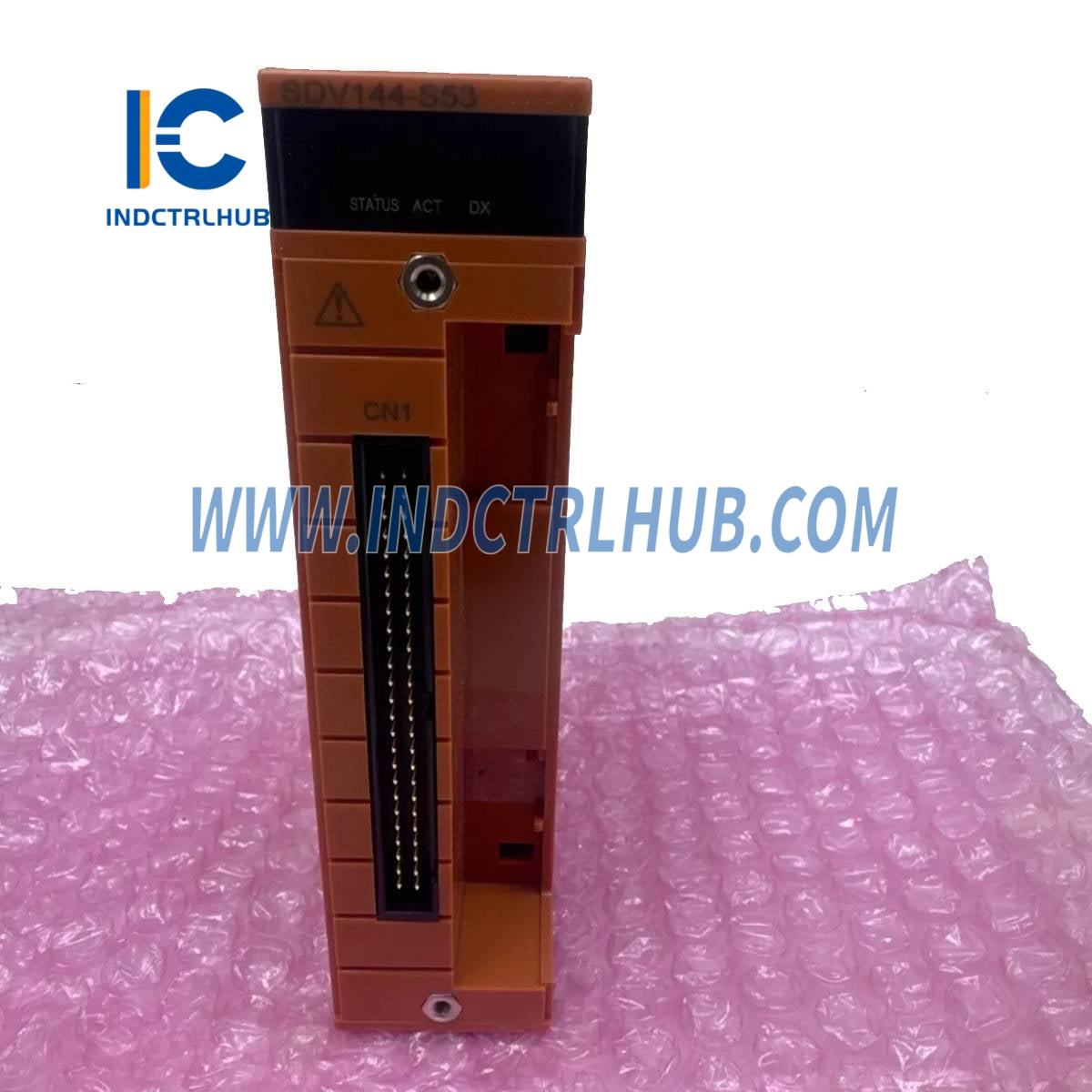

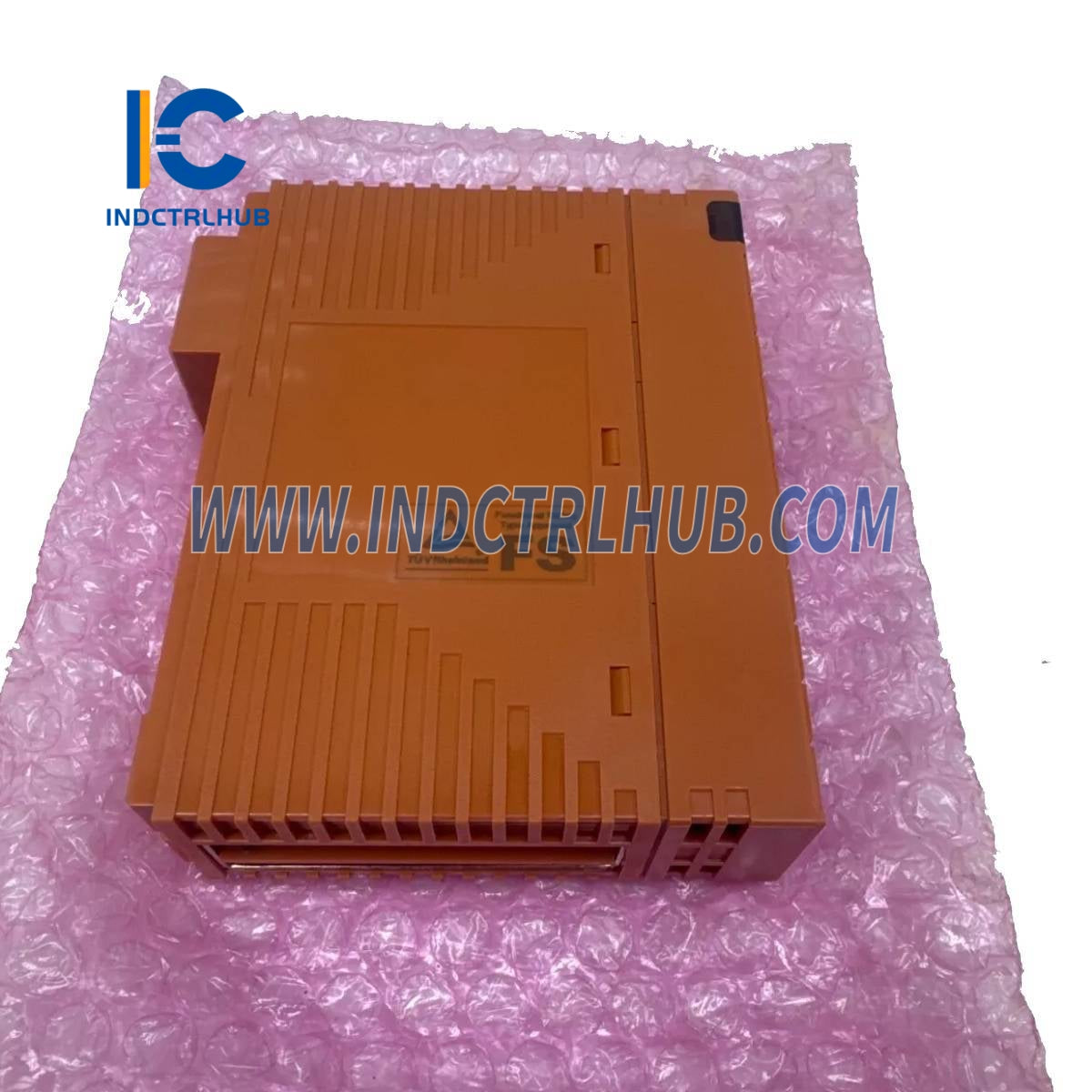

Yokogawa SDV144-S53/B4S00 16-Channel Digital Input Module
Yokogawa SDV144-S53/B4S00 16-Channel Digital Input Module
Manufacturer: Yokogawa
Product No.: SDV144-S53/B4S00
Condition:1000 in stock
Product Type: 16-Channel Digital Input Module
Product Origin: Japan
Payment: T/T, Western Union
Weight: 360g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
__ General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
SDV144-S53/B4S00 |
|
Description |
16-Channel Digital Input Module with Pressure Clamp Terminal Block (No Surge Absorber) |
_
_
__ Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
SDV144 |
|
Number of Inputs |
16-channel, module isolation |
|
Input Signal |
No-voltage contact |
|
ON Condition Resistance |
1 k_ max |
|
OFF Condition Resistance |
100 k_ min |
|
Input Current |
6 mA ±20% (at 0 _ input, 24 V DC external power) |
|
Contact Rating |
24 V DC +20% / -10%, 10 mA or greater |
|
External Power Supply |
24 V DC +20% / -10%, 200 mA capacity |
|
Max Instantaneous Input Voltage |
30.0 V DC |
|
Input Response Time |
40 ms maximum |
|
Withstand Voltage |
2 kV AC (between input signals and system, 1 min, 16-input line collectively connected) |
|
Current Consumption |
290 mA max (5 V DC) / 140 mA max (24 V DC) |
|
Weight |
Approx. 0.36 kg (for pressure clamp terminal block or MIL cable) |
|
External Connection Options |
Pressure clamp terminal, MIL cable, or signal cable (AKB331) |
_
_
__ Model Configuration
|
Model |
Description |
|---|---|
|
SDV144 |
Digital Input Module (16-channel, 24 V DC) |
_
Suffix Code Breakdown (SDV144-S53)
|
Suffix |
Description |
|---|---|
|
-S |
Standard type |
|
5 |
For pressure clamp terminal block or MIL cable, no explosion protection |
|
3 |
With ISA Standard G3, operating temperature -20 to 70 °C |
_
_
__ Option Code Details (Included with This Part)
|
Option Code |
Description |
|---|---|
|
/B4S00 |
Pressure clamp terminal block for digital input, no surge absorber [Model: STB4S-00] |
_
_
__ Additional Optional Codes (Not Included by Default)
|
Option Code |
Description |
|---|---|
|
/B4S10 |
Pressure clamp terminal block with surge absorber [Model: STB4S-10] |
|
/B4D00 |
Dual-redundant pressure clamp terminal block (no surge absorber) [Model: STB4D-00] |
|
/B4D10 |
Dual-redundant pressure clamp terminal block (with surge absorber) [Model: STB4D-10] |
|
/PRP |
Prevention pin of false insertion |
|
/CCC01 |
Connector cover for MIL cable (flat ribbon) [Model: SCCC01] |
|
/CCC02 |
Connector cover for MIL cable (discrete wire) [Model: SCCC02] |
_
_
| Check below popular items for more information in_ | Industrial Control Hub | |||
| Brand | Description | _Price (USD)_ | Stock | Link |
| YOKOGAWA | CP451-10-S2 Processor Module for Distributed Control Systems | 1786_2786 | 210 | CP451-10-S2 Processor Module |
| YOKOGAWA | SSC60D-F2542 Safety Control Unit for ProSafe-RS Systems | 13500_14500 | 630 | SSC60D-F2542 Safety Control Unit |
| YOKOGAWA | AFV10D-F1 Duplexed Field Control Unit for Redundant Operation | 3786_4786 | 870 | AFV10D-F1 Field Control Unit |
| YOKOGAWA | ADV561-P50 64-Channel Digital Output Module for Industrial Applications | 643_1643 | 320 | ADV561-P50 Digital Output Module |
| YOKOGAWA | AAI143-H53/A4S00 Analog Input Module with HART Communication | 1000_2000 | 740 | AAI143-H53/A4S00 Analog Input Module |
| YOKOGAWA | ASR133-S00/SR3S0 8-Channel RTD/Potentiometer Input Module | 429_1429 | 510 | ASR133-S00/SR3S0 RTD Input Module |
| YOKOGAWA | A1BD5D-05 Terminal Board for Digital Signals in DCS | 571_1571 | 290 | A1BD5D-05 Terminal Board |
