Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Yokogawa |
|
Model/Part Number |

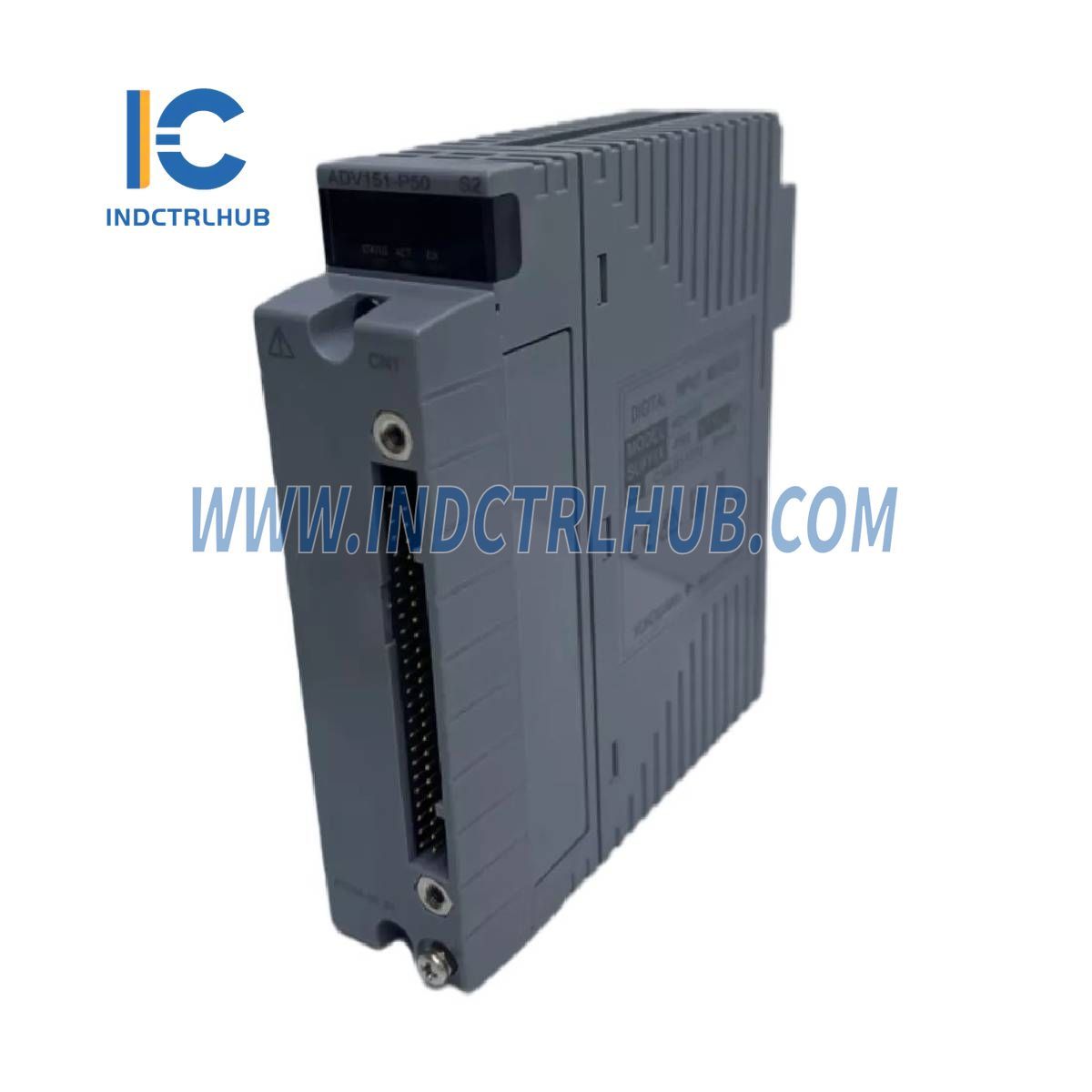

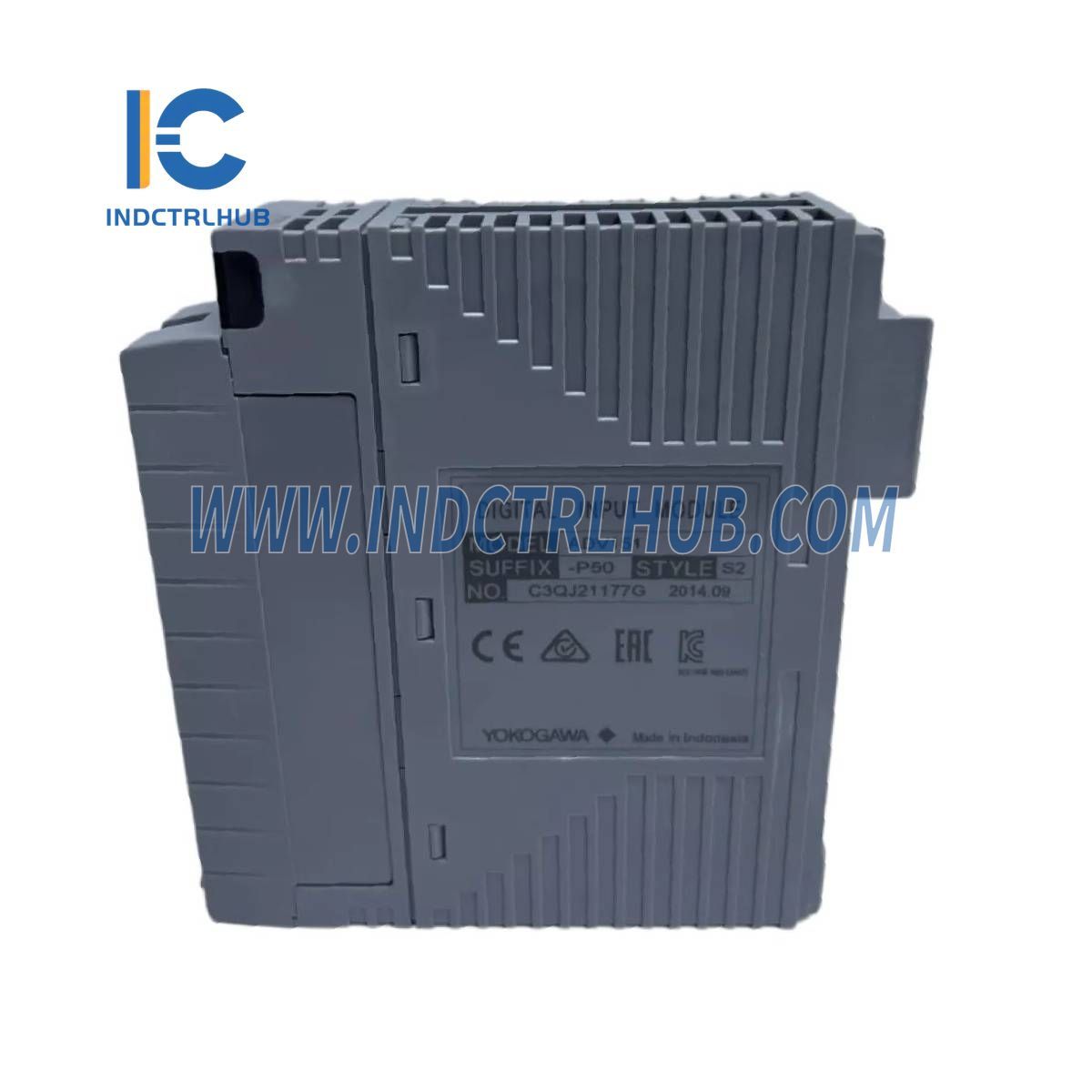

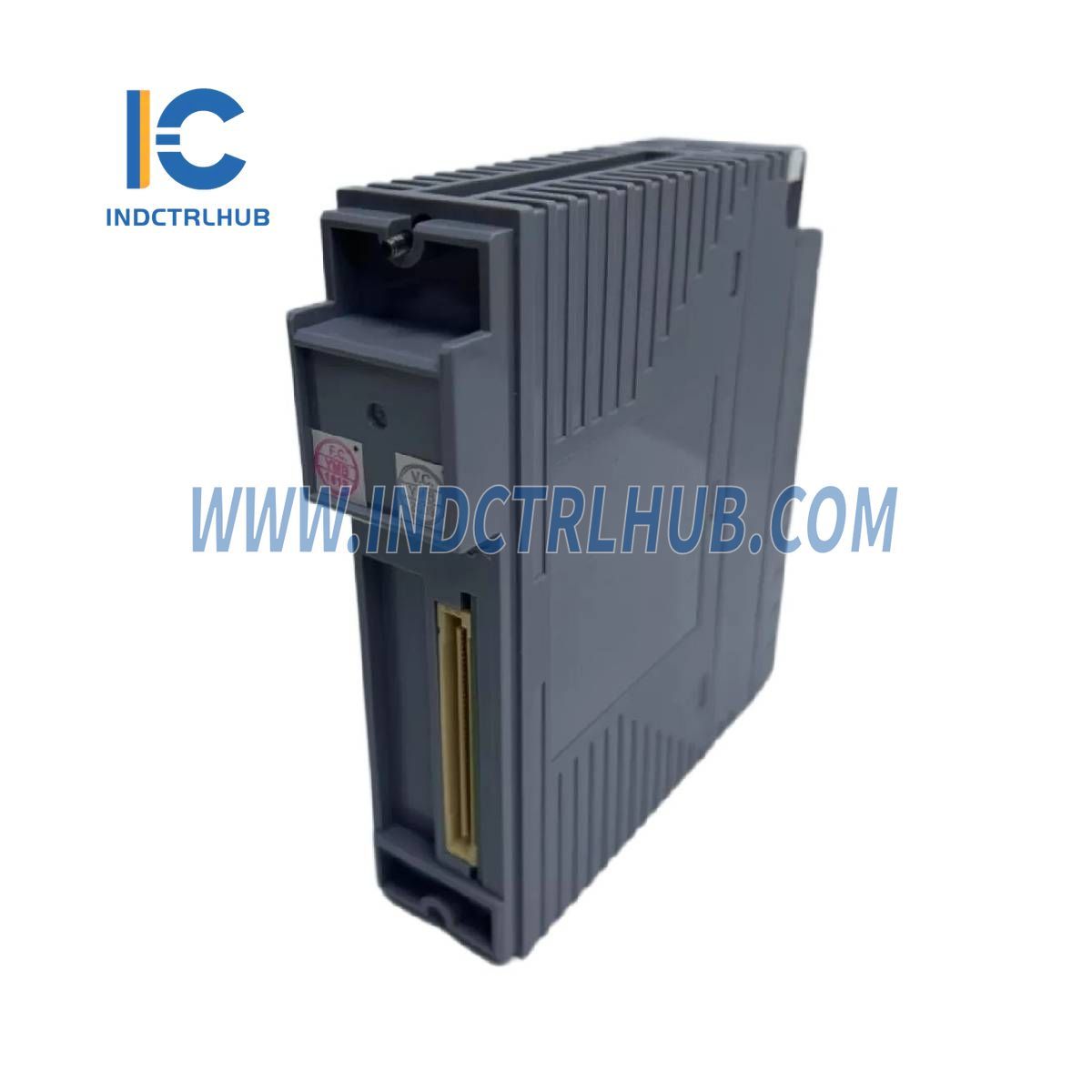

ADV151-P50 |
|
Product Description |
Digital Input Module for receiving 32-channel 24V DC ON/OFF signals, supporting dual redundant configurations. |
Specifications
Input Characteristics
|
Parameter |
Value |
|---|---|
|
Number of Input Channels |
32 |
|
Rated Input Voltage |
24 V DC (sink/source) |
|
Input ON Voltage |
18 to 26.4 V DC |
|
Input OFF Voltage |
5.0 V DC or less |
|
Input Current (at Rated Input Voltage) |
4.1 mA ±20% per channel |
|
Maximum Allowable Input Voltage |
30.0 V DC |
Electrical & Communication
|
Parameter |
Value |
|---|---|
|
Withstanding Voltage |
2 kV AC (between input signal and system, for 1 min) |
|
Common Withstanding Voltage |
500 V AC (between commons, for 1 min, common every 16 channels) |
|
Input Response Time |
8 ms or less (for status input) |
|
Minimum ON Detection Time |
20 ms (for pushbutton input) |
|
Maximum ON/OFF Cycle |
25 Hz (for pushbutton input) |
|
Maximum Current Consumption |
500 mA (5V DC) |
|
External Connection |
Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable |
Functional Capabilities
|
Function |
Description |
|---|---|
|
Status Input |
Detects ON/OFF status |
|
Pushbutton Input |
Counts pushbutton edges |
|
SOE Input |
Captures Sequence of Events (SOE) data |
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Weight |
Approx. 0.30 kg |
