Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |

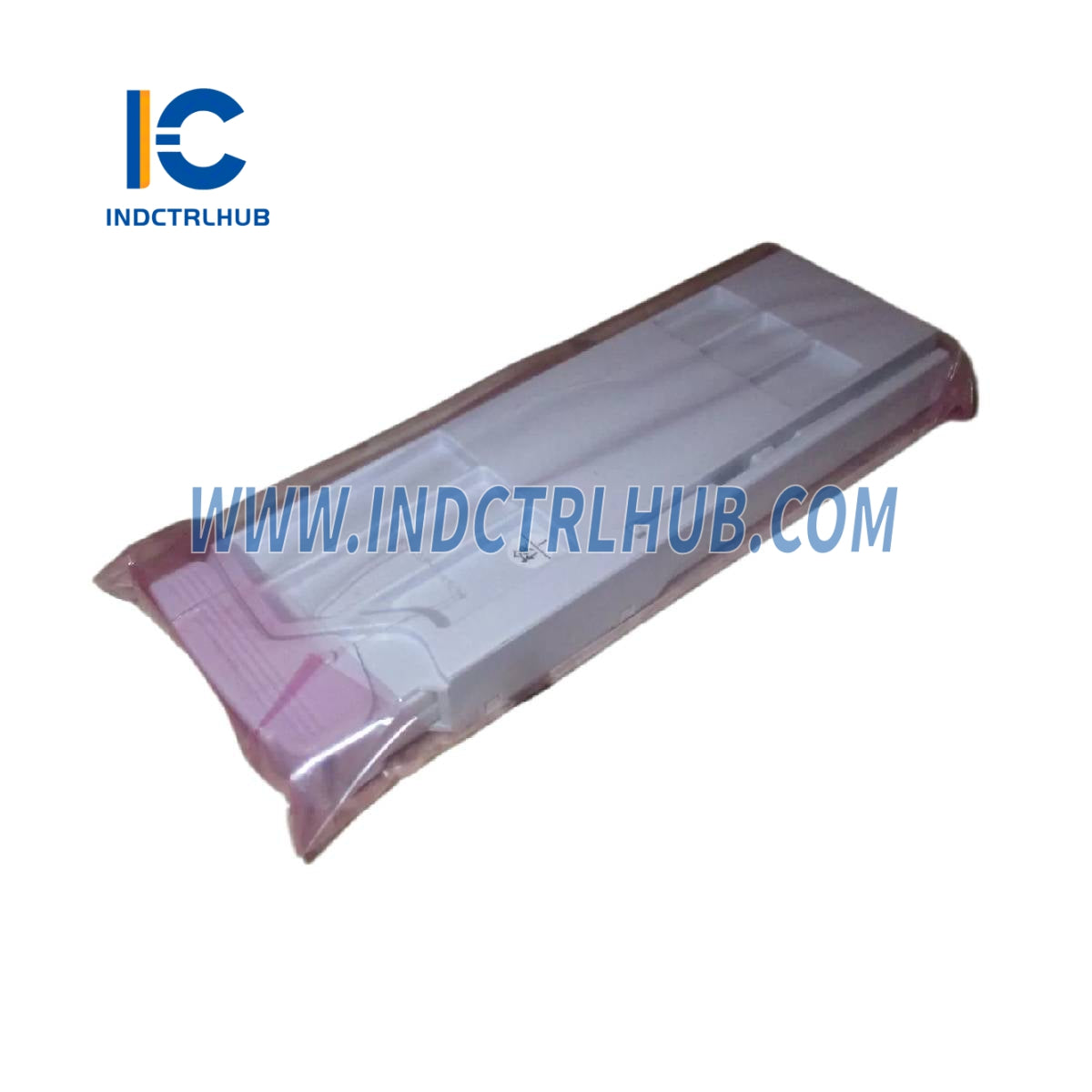

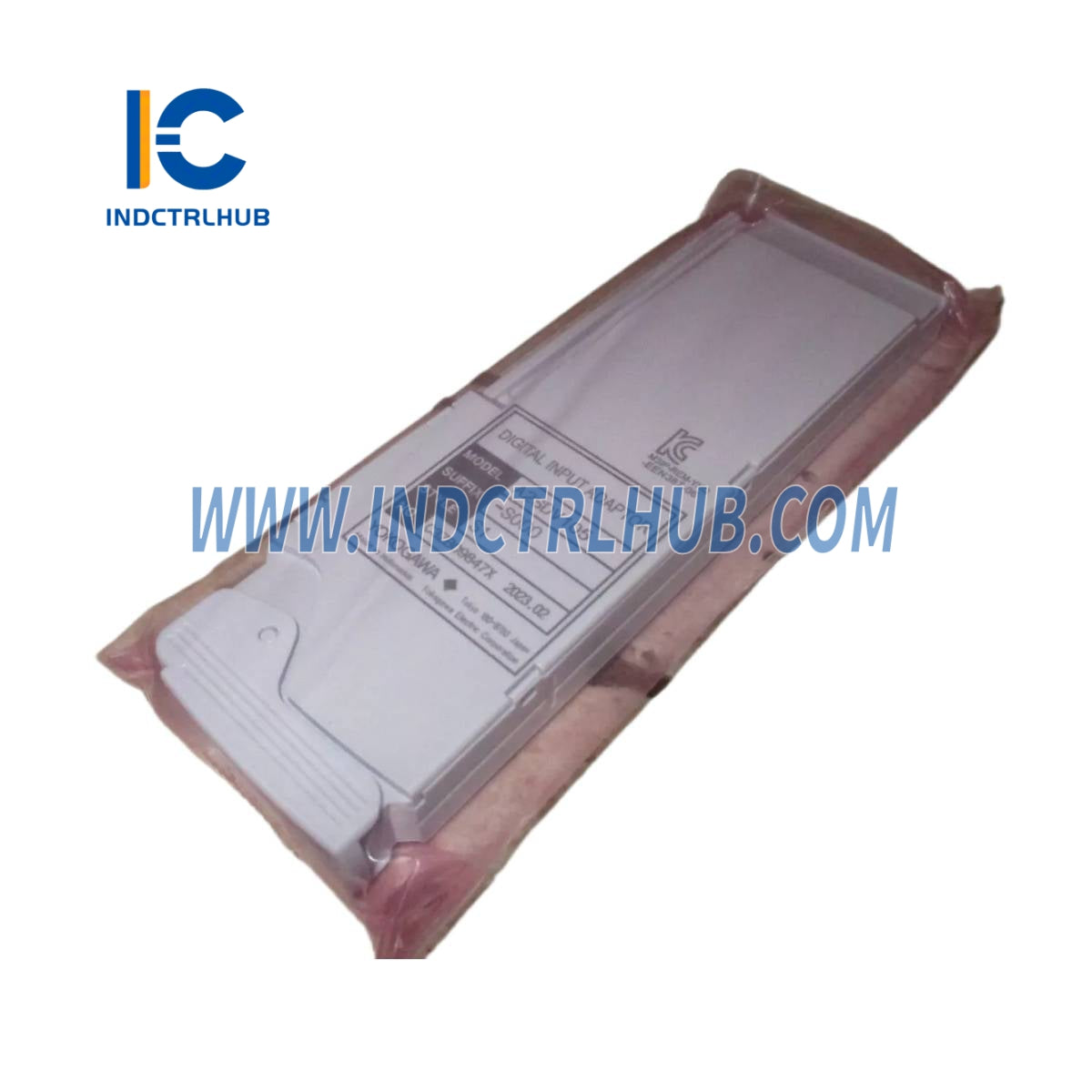

A2SDV105-S000 |
|
Description |
Digital input adaptor for 24 V DC voltage input and dry contact input |
🔹 Specifications
|
Item |
Description |
|---|---|
|
Input Format |
Voltage input and dry contact input |
|
Rated Input Voltage |
24 V DC (voltage input) |
|
Input Current |
6 mA ±1.2 mA at rated input voltage |
|
Input ON Voltage |
18 to 26.4 V DC |
|
Input OFF Voltage |
5.0 V DC or lower |
|
Field Voltage Rating |
24 V DC ±2.4 V DC (contact input), ≥10 mA |
|
Input ON Resistance |
1 kΩ or lower (contact input) |
|
Input OFF Resistance |
50 kΩ or higher (contact input) |
|
Max Allowable Input Voltage |
30.0 V DC |
|
Withstanding Voltage |
- Between input signal & system: 1500 V AC (1 min), 42 V DC- Between I/O adaptors: 500 V AC (1 min), 42 V DC |
|
Max Current Consumption |
5 V DC internal power supply: 14 mA24 V DC system power: Unused |
|
Input Response Time |
150 µs (A2DV105 alone)Up to 22 ms (with I/O module) |
|
Mounting Procedure |
Mounted on base plate for adaptor (Model A2BN3D) |
|
Weight |
≤ 0.10 kg |
|
Current Limitation |
20 mA or lower (contact input) |
🔹 Ordering Information (Suffix Codes)
|
Code |
Description |
|---|---|
|
-S |
Standard type |
|
0 |
No explosion protection |
|
0 |
Basic type |
|
0 |
Default suffix (always 0) |
Model: A2SDV105-S000 = Standard type, non-explosion protected, basic configuration
