Product Description

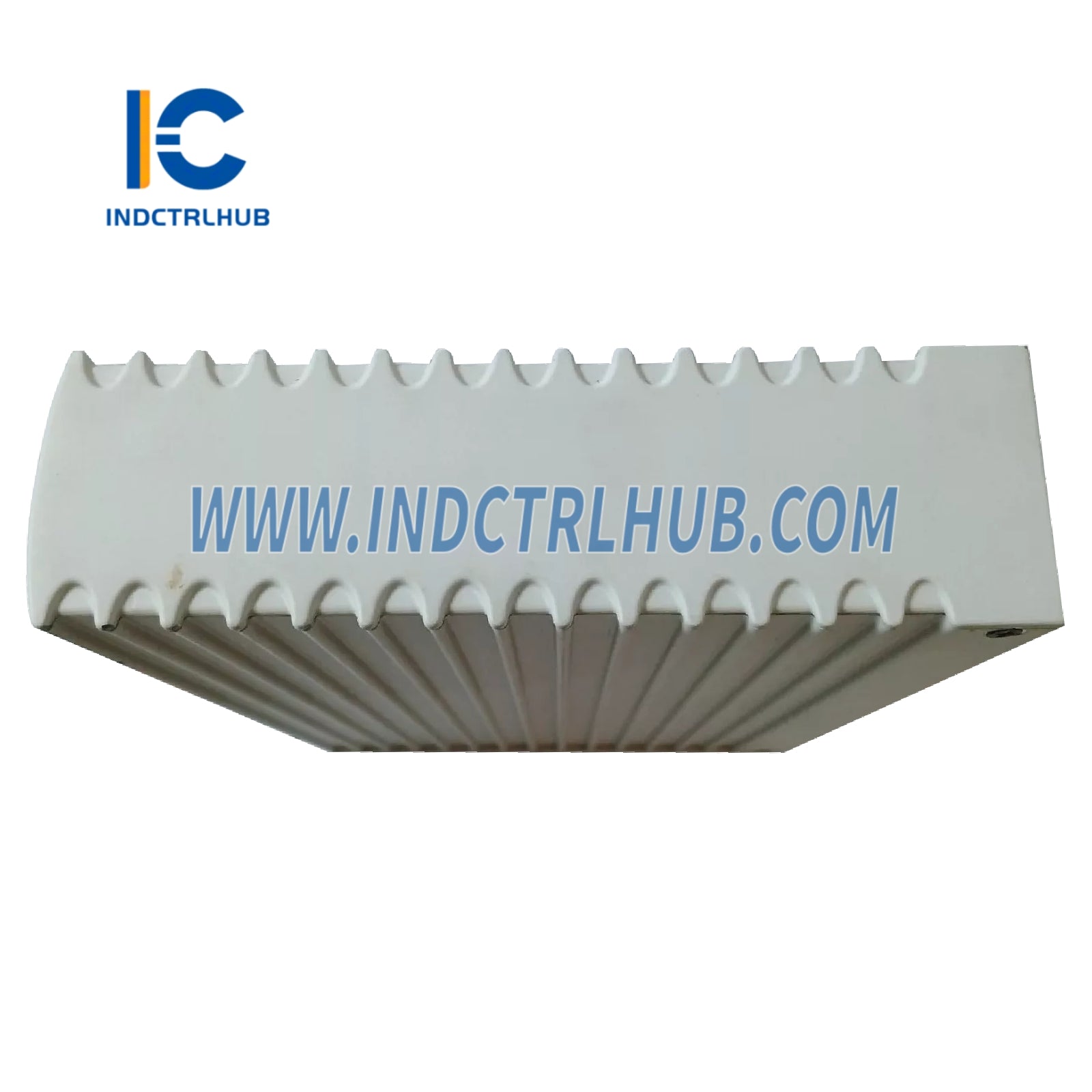

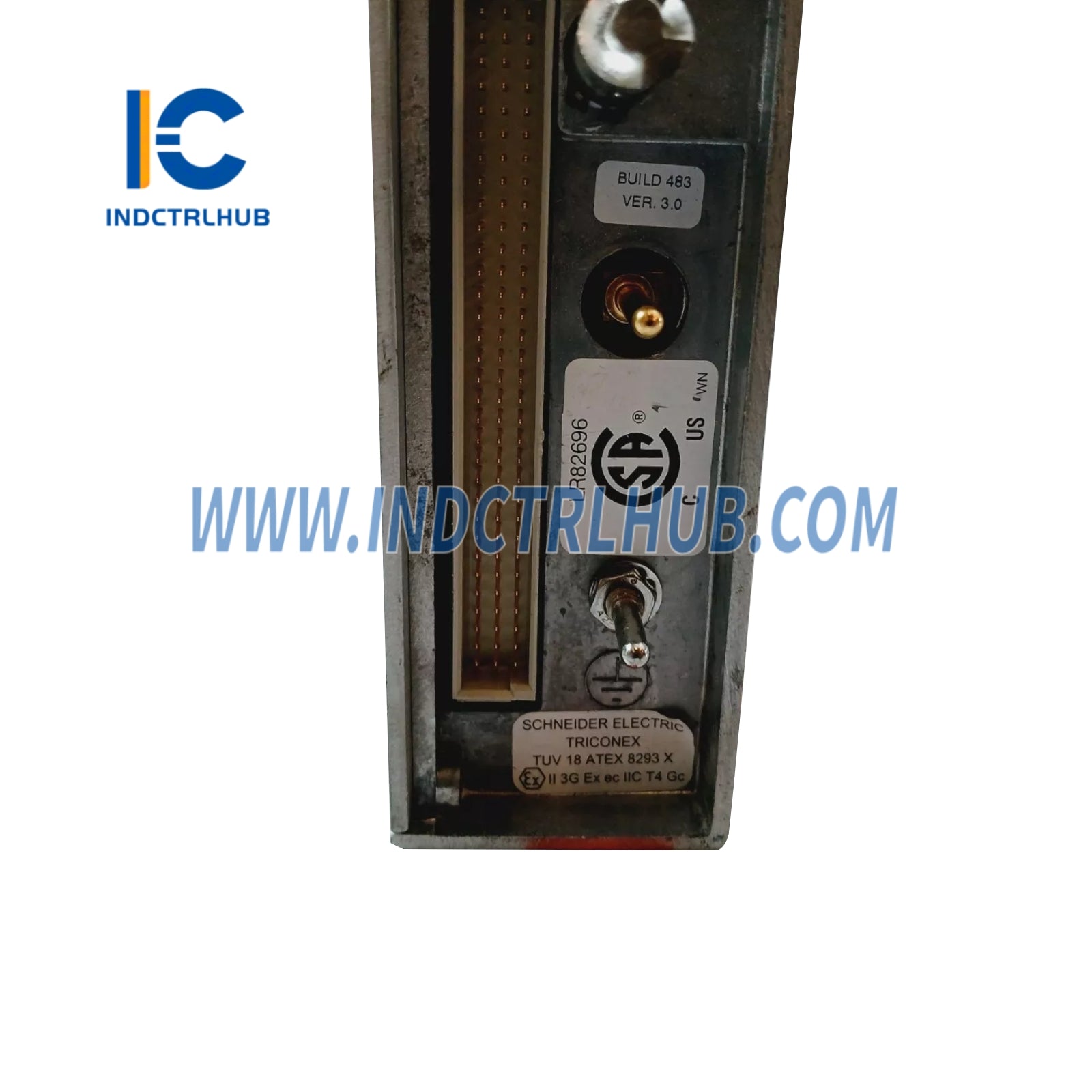

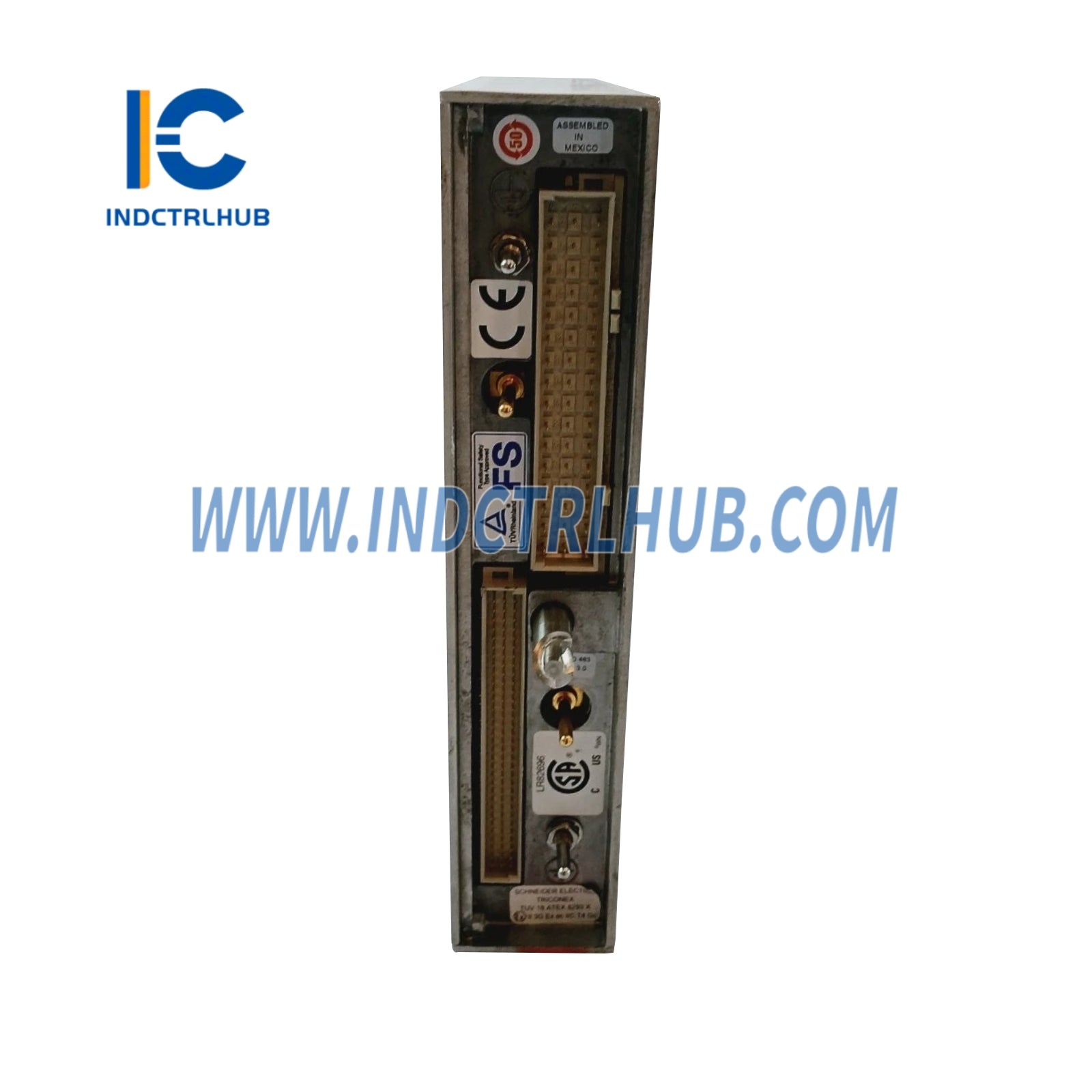

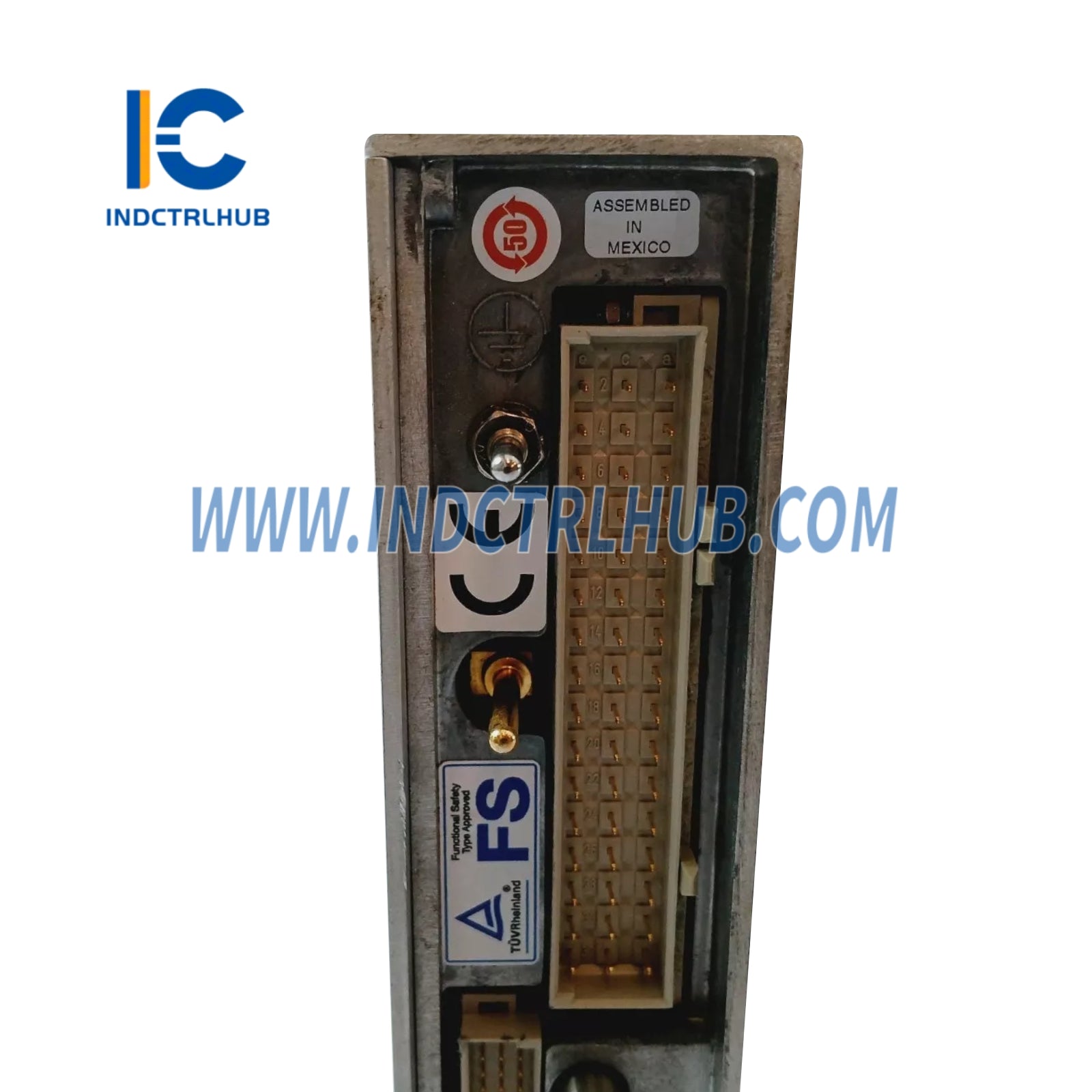

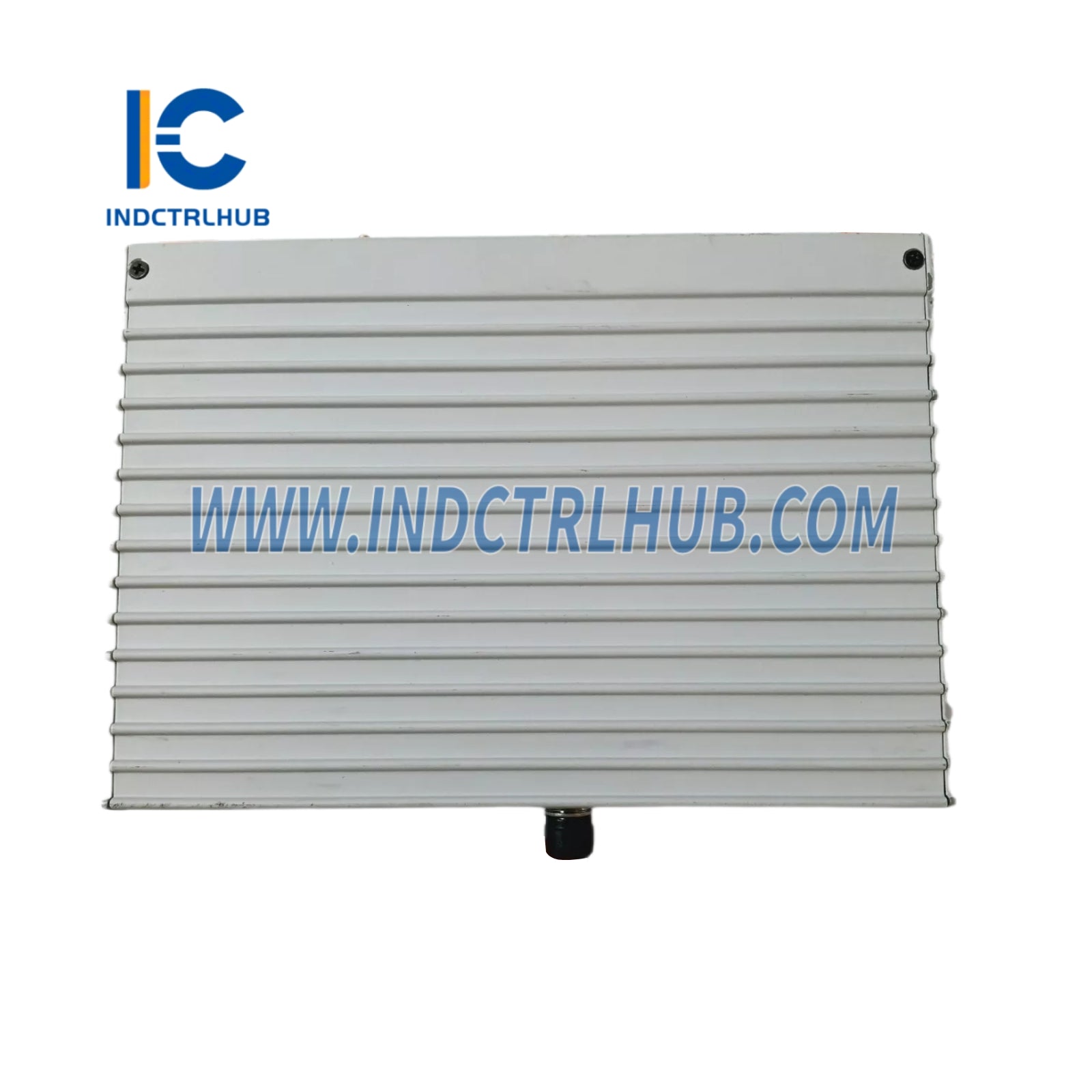

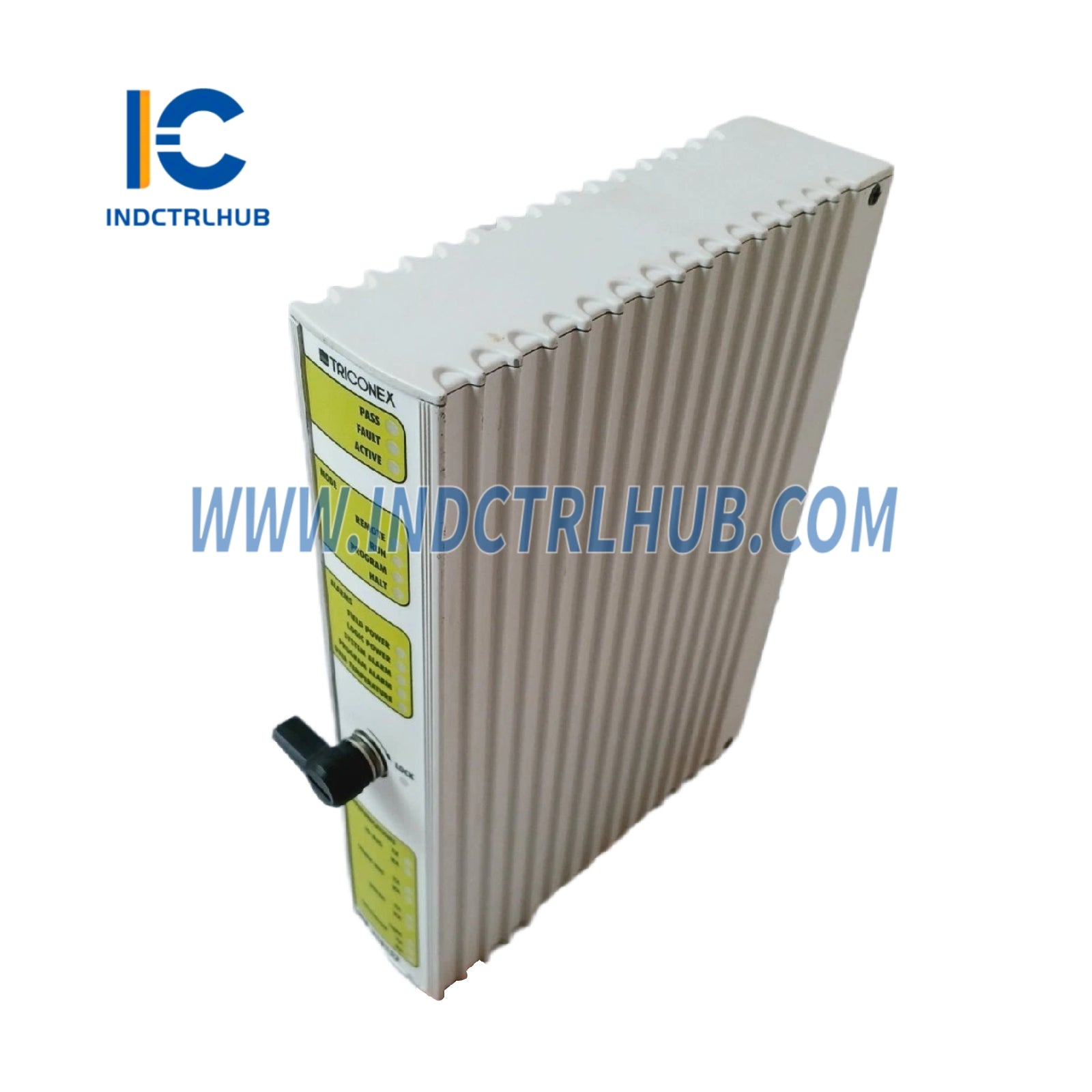

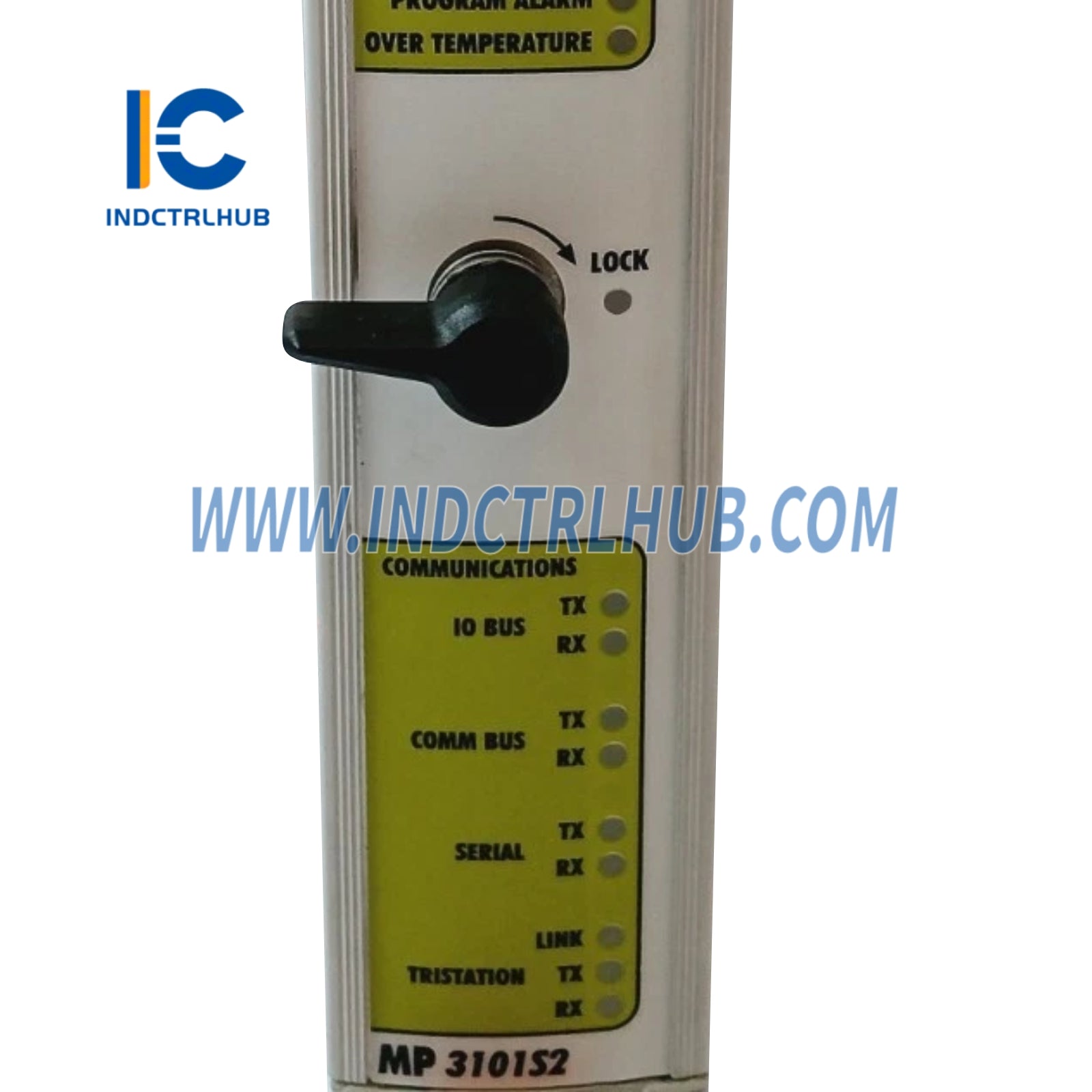

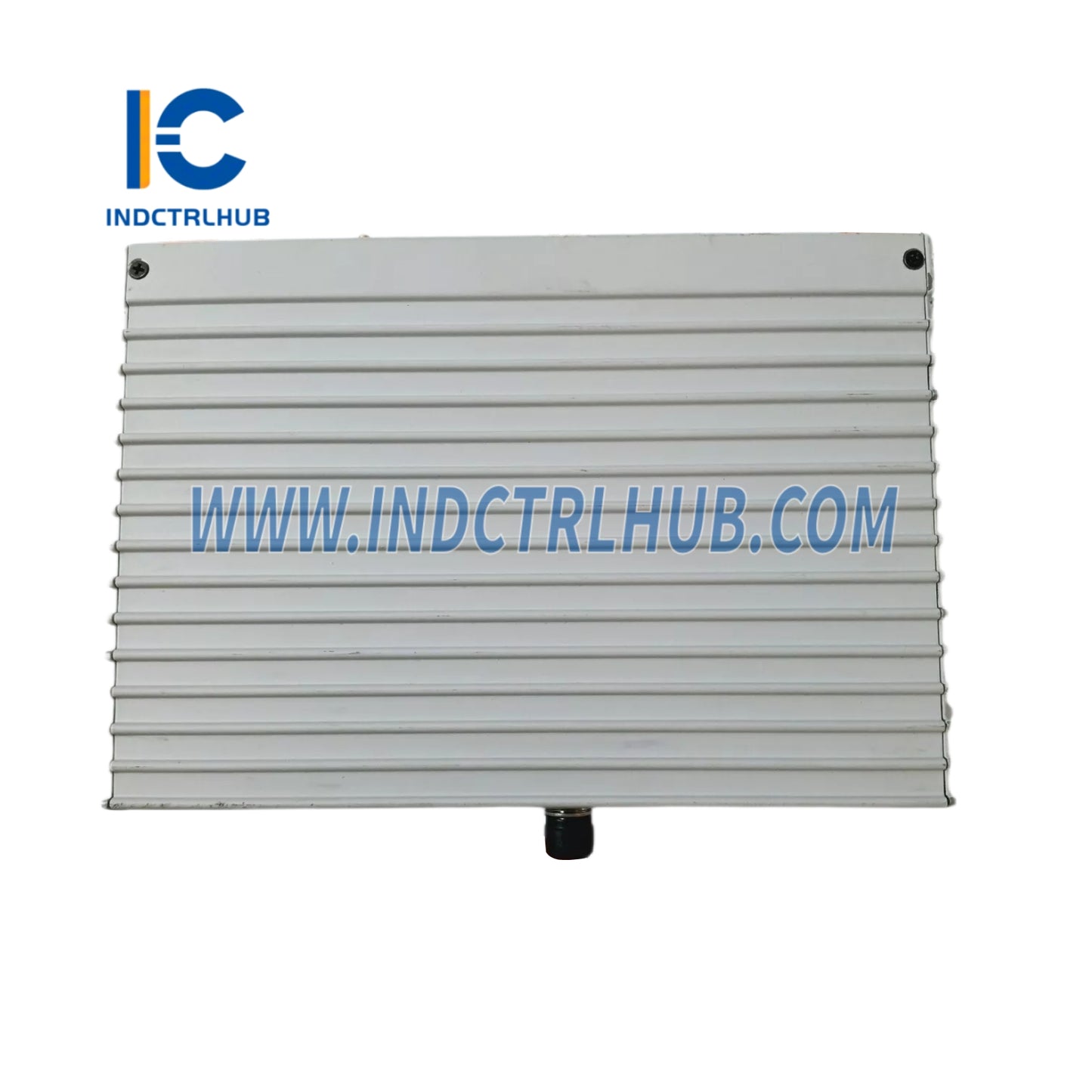

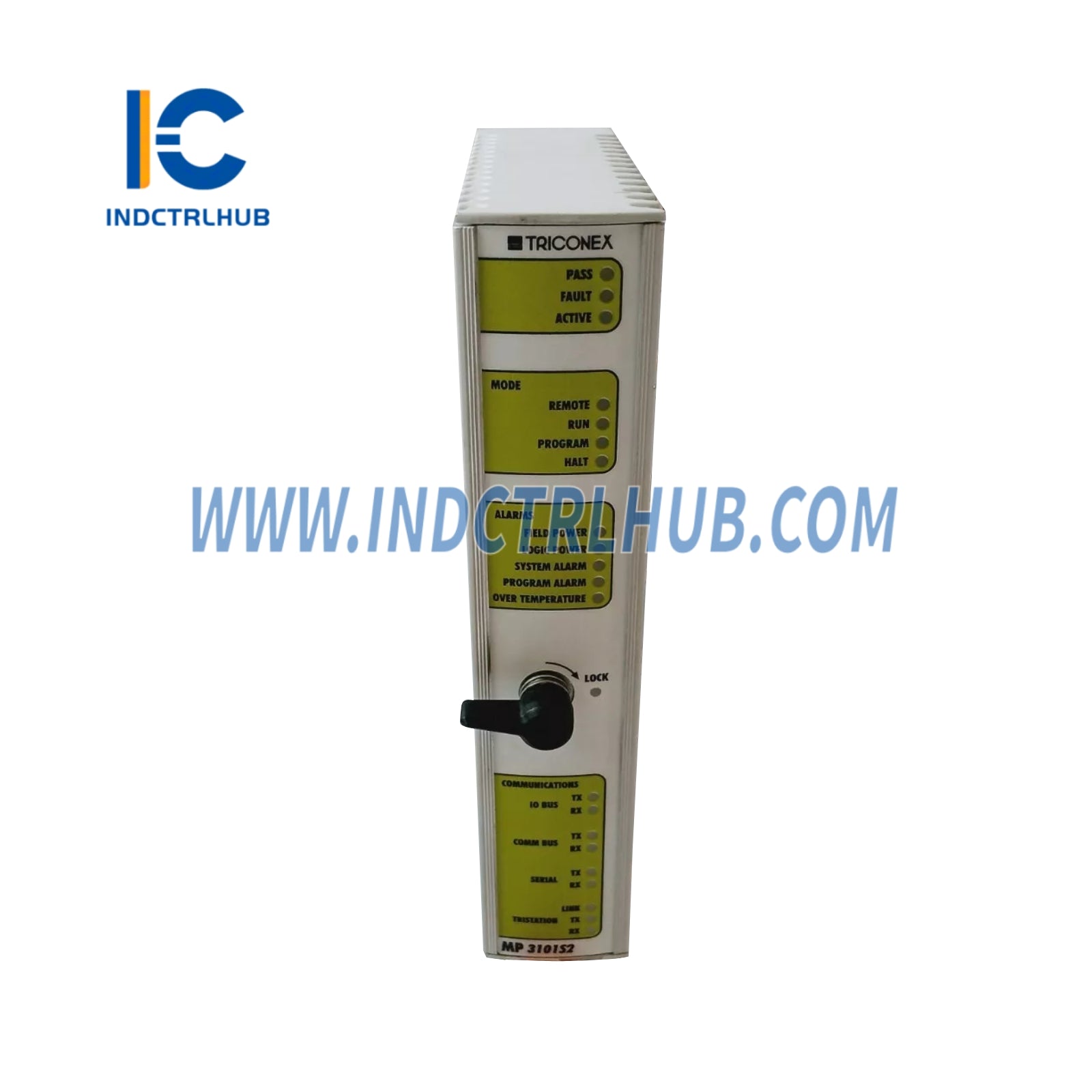

Triconex MP3101 S2 Main Processor Module
- Manufacturer: Triconex
- Model/Part Number: MP3101 S2
- Description: Trident Redundant Main Processor Module
Overview
- The Triconex MP3101 S2 is a Trident Triple Modular Redundant (TMR) Main Processor Module designed for safety-critical applications in Triconex safety instrumented systems (SIS). It provides high-performance processing, executing control logic and managing communications for applications such as emergency shutdown, fire and gas detection, and process control. The TMR architecture ensures fault tolerance and reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MP3101 S2 |
| Series | Triconex Main Processor Modules |
| Type | Main Processor Module |
| Description | Trident TMR Main Processor for safety-critical control |
| Weight | 0.4 kg (0.88 lbs) |
| Processor | PowerPC 7448 |
| Clock Speed | 900 MHz |
| Memory | 512 MB SDRAM, 128 MB Flash |
| Communication | Ethernet, RS-232 |
| I/O Support | Supports up to 14 I/O modules |
| Dimensions | 86 mm x 70 mm x 28 mm (3.38" x 2.75" x 1.10") |
| Operating Temperature | -40°C to +70°C |
Additional Information
- Functionality: The MP3101 S2 utilizes TMR with three independent channels, comparing outputs to isolate faults and ensure continuous operation. It supports complex control algorithms, extensive data storage, and comprehensive diagnostics, including self-testing and fault detection.
