Product Description

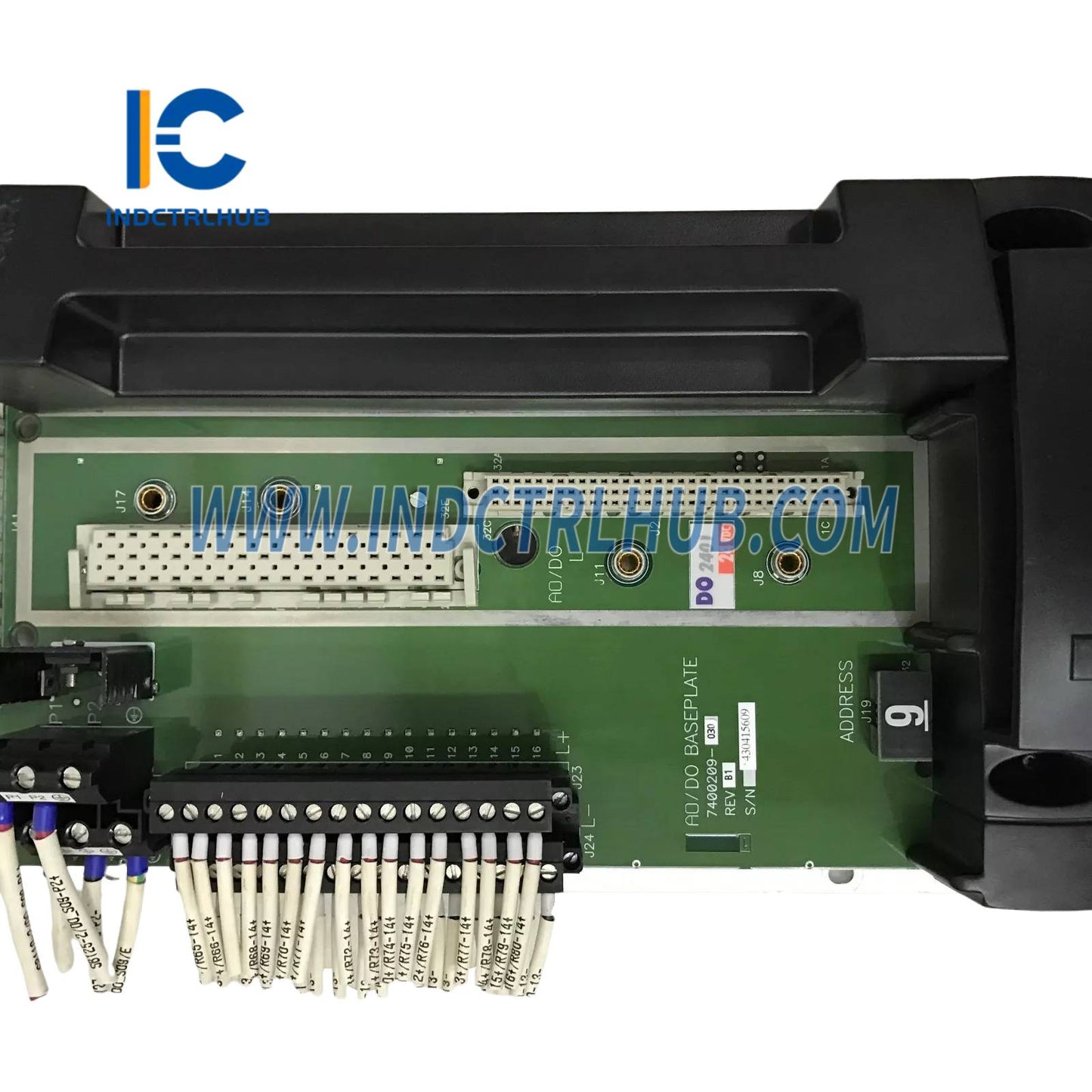

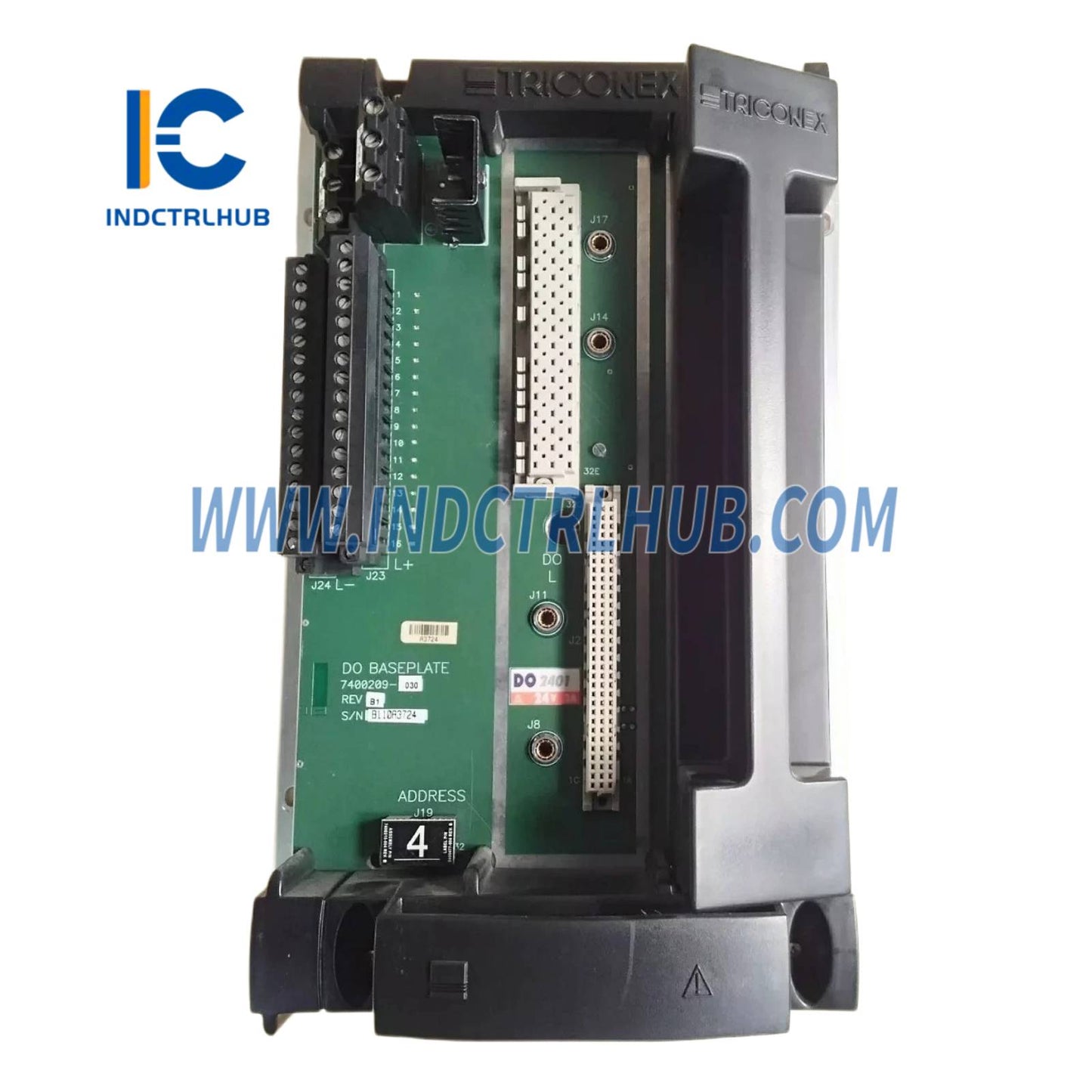

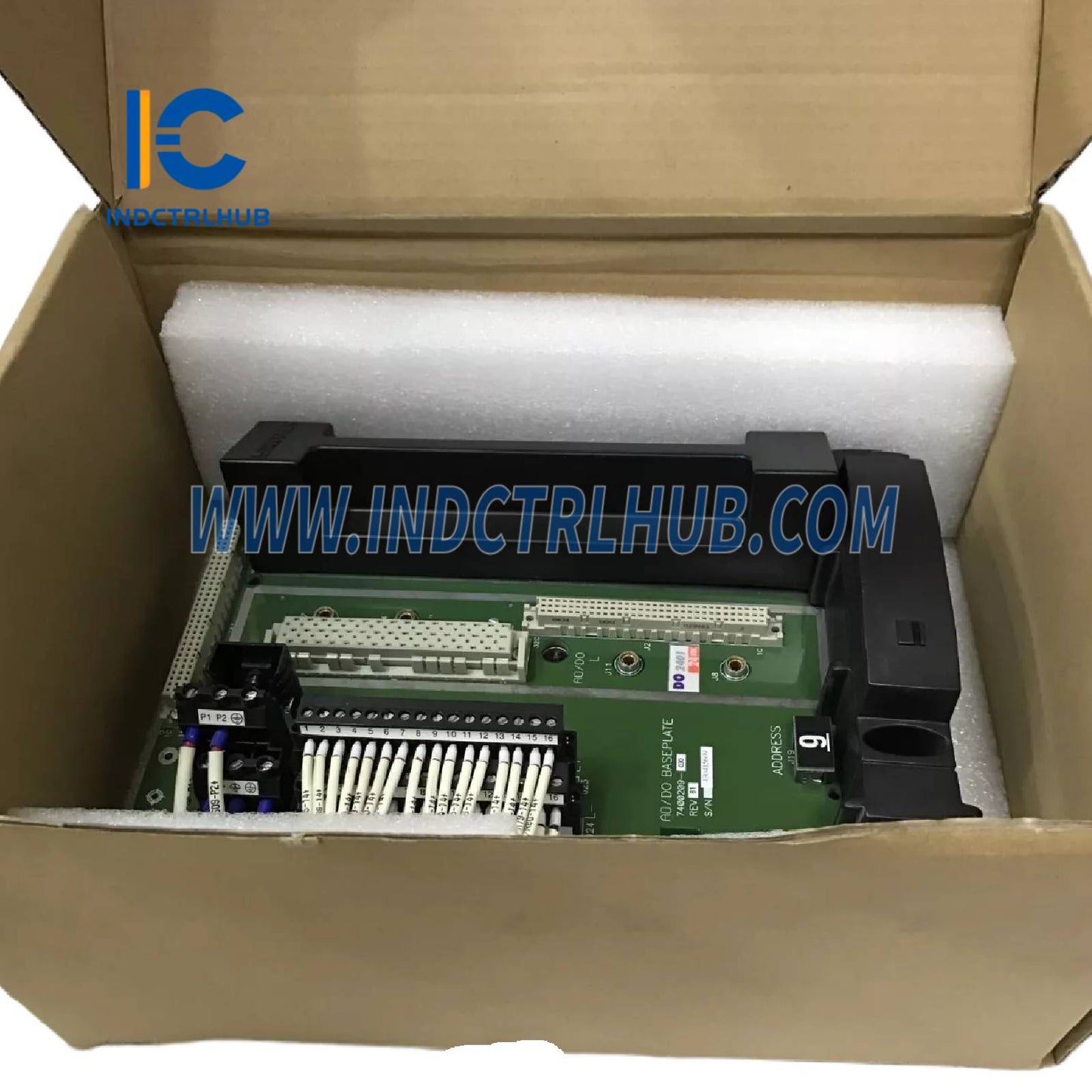

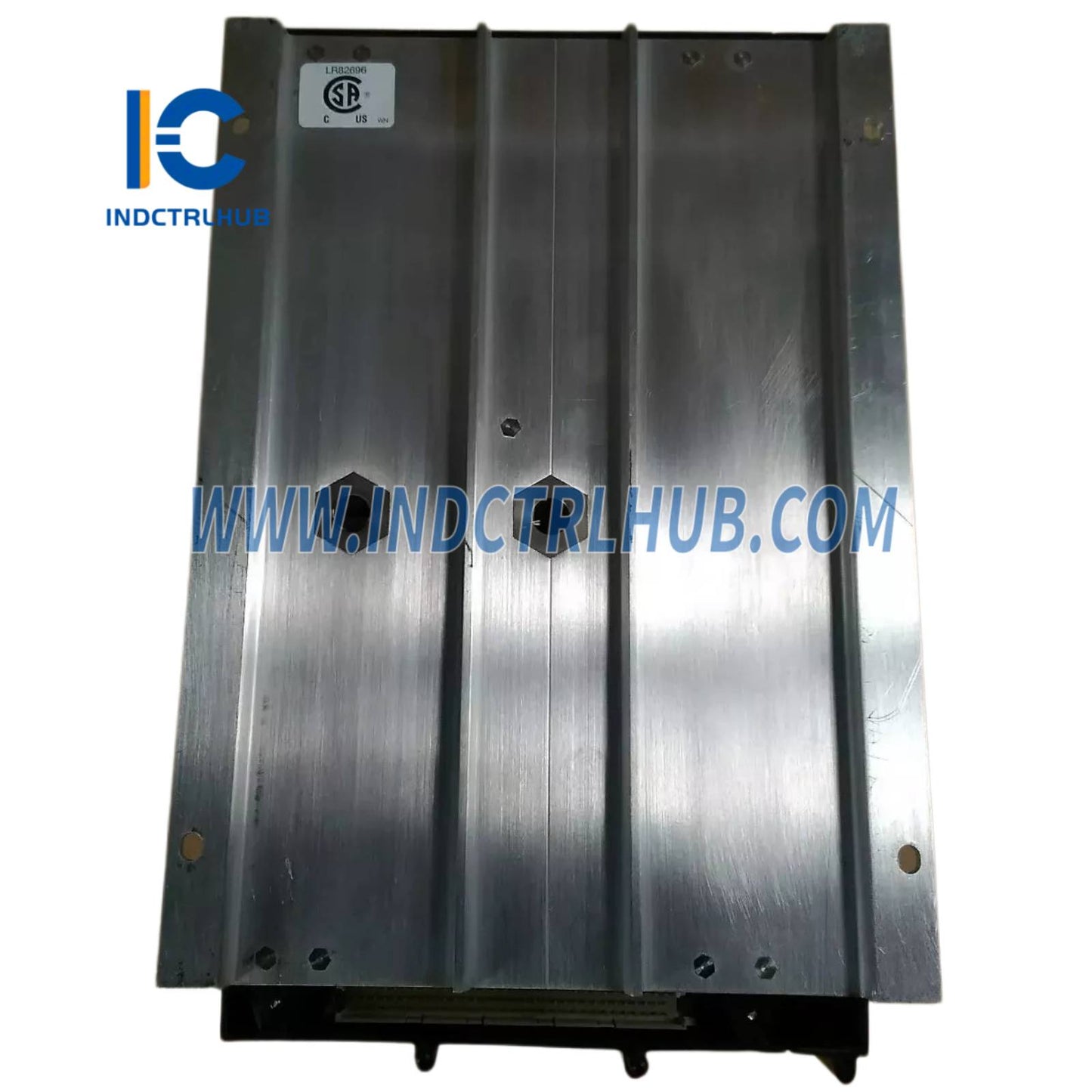

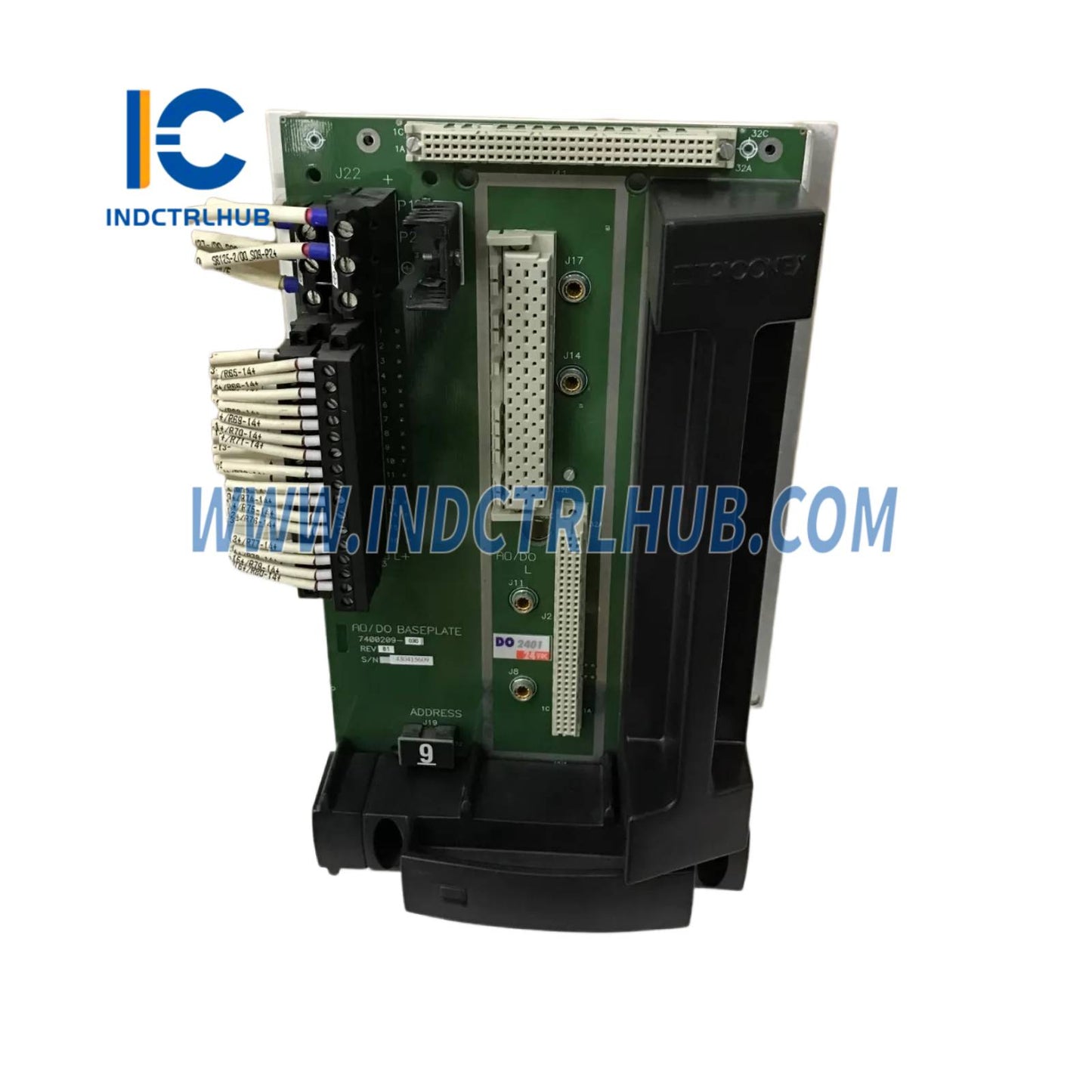

Triconex 7400209-030 AO2481 Analog Output Baseplate
- Manufacturer: Triconex
- Model/Part Number: 7400209-030
- Description: AO2481 Analog Output Baseplate
Overview
- The Triconex 7400209-030 AO2481 Analog Output Baseplate connects analog output modules to Triconex safety instrumented systems (SIS). It supports reliable signal transmission for controlling field devices in safety-critical applications such as emergency shutdown, fire and gas detection, and process control. The baseplate ensures robust performance in harsh industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 7400209-030 AO2481 |
| Series | Triconex Other Modules |
| Type | Analog Output Baseplate |
| Description | Connects analog output modules to SIS |
| Weight | 0.8 kg |
| Dimensions | 16 cm x 16 cm x 12 cm |
| Voltage | 24 VDC |

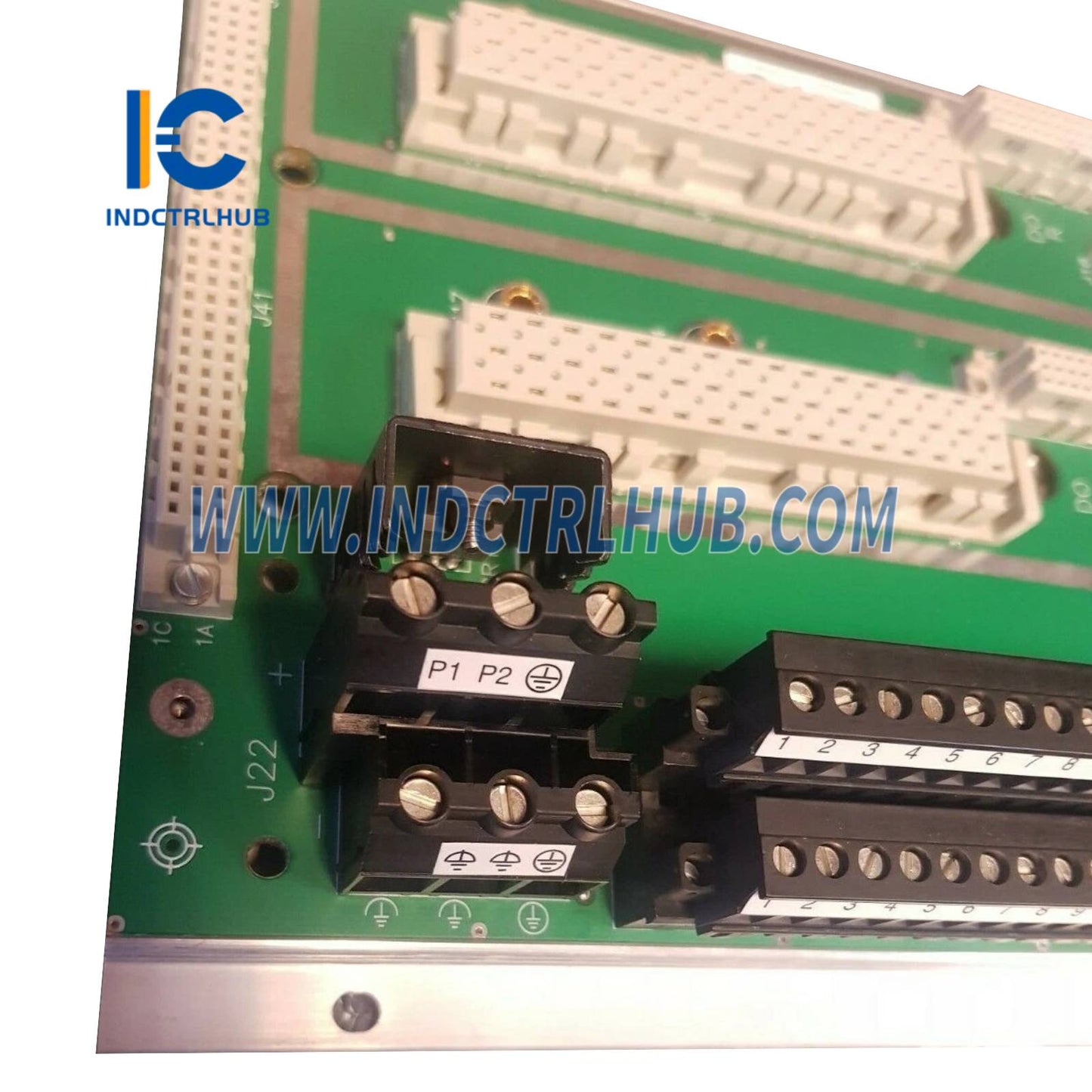

| Connection Type | Screw terminals |
| Operating Temperature | -20°C to +60°C |
Additional Information
- Functionality: The baseplate supports fault-tolerant operation by facilitating triple modular redundancy (TMR) for analog output signals, ensuring high reliability in safety-critical systems.
- Environmental Durability: The baseplate uses robust materials to ensure reliable operation in demanding industrial conditions.
- Integration: The baseplate integrates seamlessly with Triconex SIS, supporting flexible configurations for process control applications.
