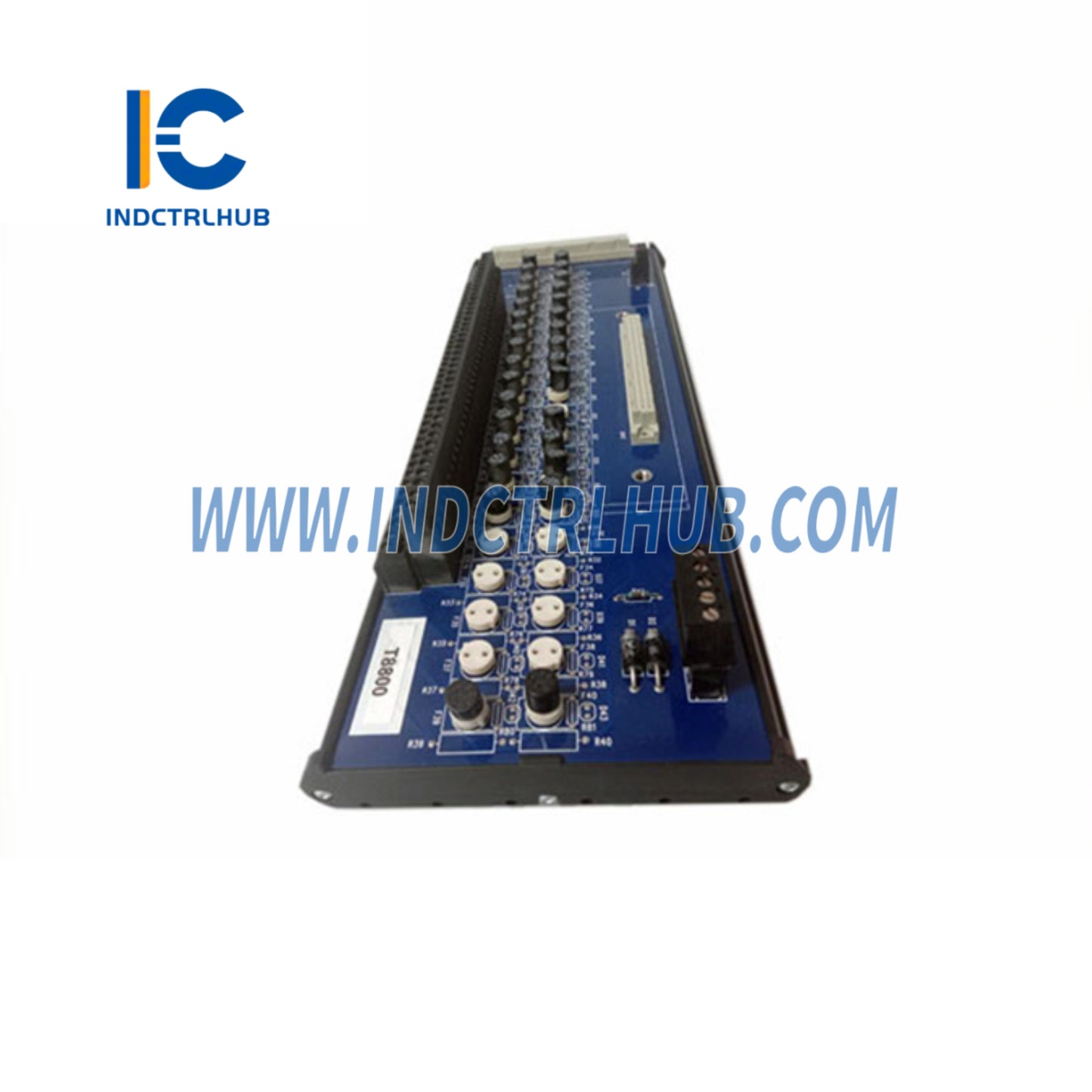

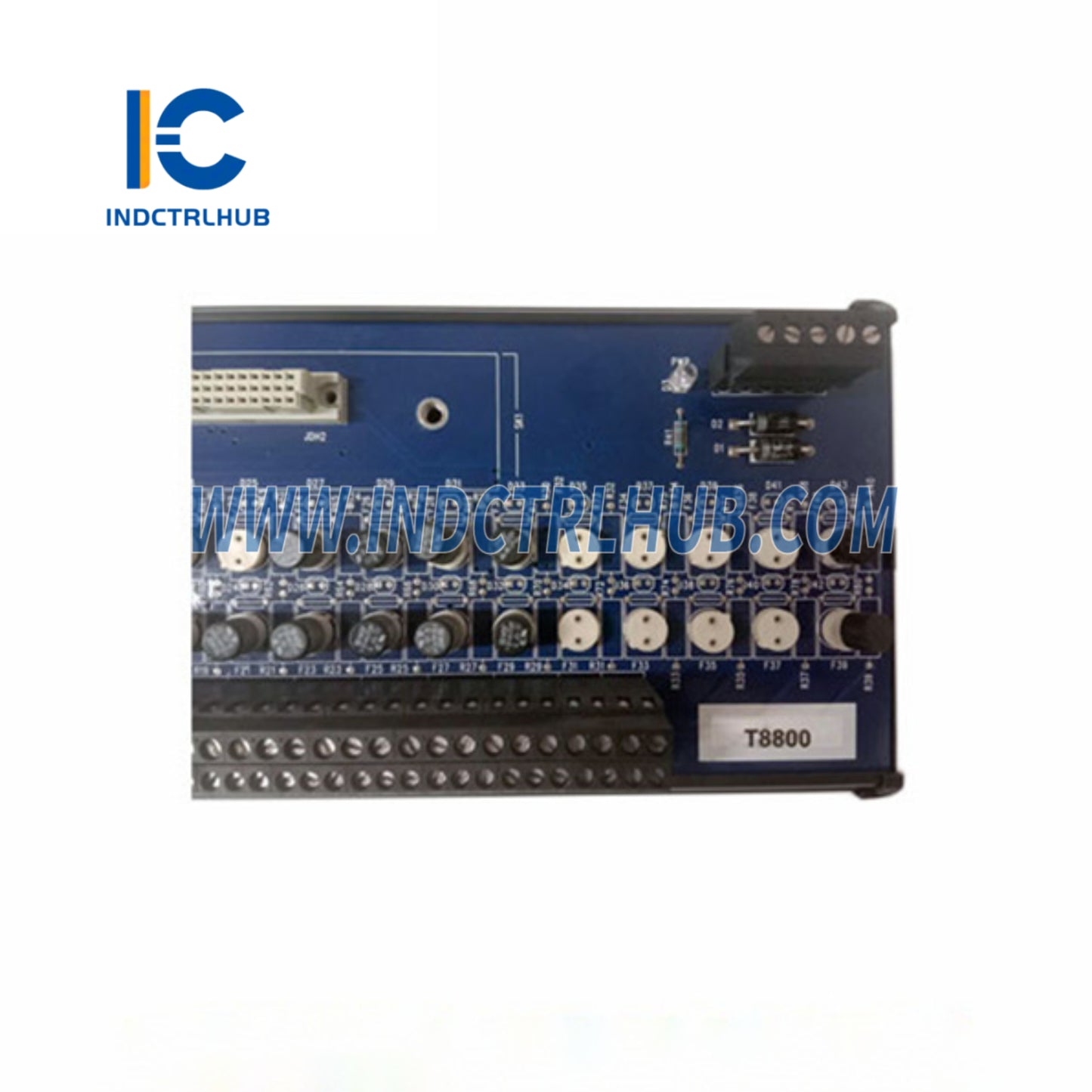

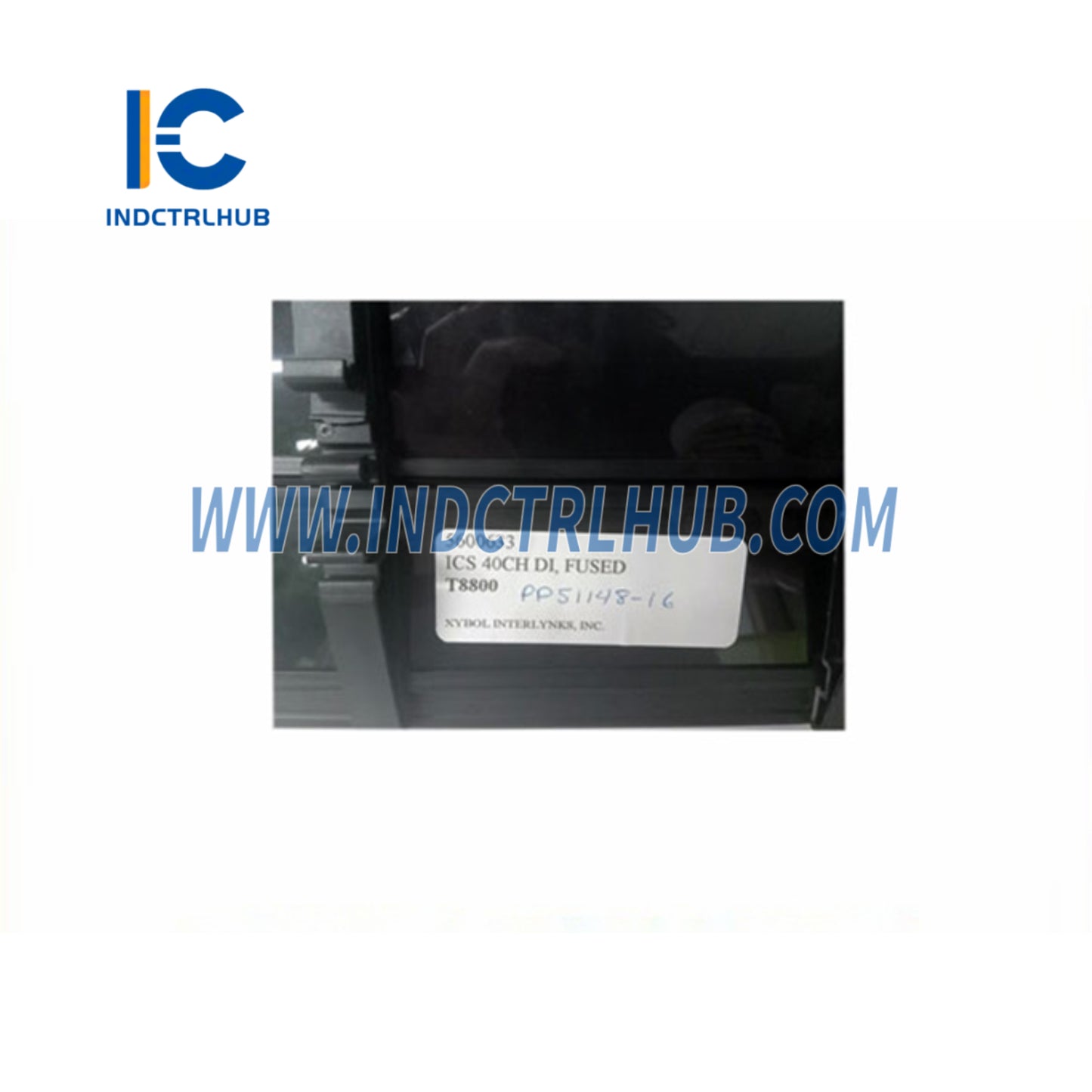

Triconex T8800 Trusted TMR 40 Channel 24 Vdc Digital Input Module
Product Overview
- The Triconex T8800 is a Trusted TMR (Triple Modular Redundant) 40 Channel 24 Vdc Digital Input Module designed for Triconex safety instrumented systems (SIS) by Schneider Electric, under the ICS Triplex brand. Belonging to the Triconex Other Modules series, this module processes digital input signals from field devices, such as sensors and switches, in TMR architectures. It is critical for safety-critical applications in industries like oil and gas, petrochemicals, and power generation, ensuring high reliability and fault tolerance.
Technical Specifications
- The T8800 has the following specifications based on industry documentation:
| Specification | Details |
|---|---|
| Model/Part Number | T8800 |
| Manufacturer | Triconex (Schneider Electric, ICS Triplex) |
| Description | Trusted TMR 40 Channel 24 Vdc Digital Input Module |
| Series | Triconex Other Modules |
| Input Type | Digital, 24 Vdc |
| Channel Capacity | 40 channels |
| System Supply Voltage Range | 20 to 32 Vdc |
| Power Consumption | 15–18 W |
| Connector Type | Terminal blocks via external termination panel or cable |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | Approx. 26.6 x 3.1 x 30.3 cm |
| Weight | Approx. 1.03 kg |
Additional Details
- The T8800 includes the following additional information based on its standard use and documentation:
- Function: Captures digital input signals from field devices, processing them in a TMR configuration with voting logic to ensure fault tolerance; performs continuous diagnostics to detect and isolate faults in real time.
- Compatibility: Compatible with Triconex Trusted systems (v9–v10); interfaces with termination panels (e.g., 9563-8XX) or cables (e.g., 9101-010F) for field wiring; integrates with Trusted controllers and DCS systems.
- Configuration: Features triple modular redundant architecture with three independent processing slices; supports hot-swappable replacement; configured via Trusted Toolkit or TriStation software for diagnostics, monitoring, and Sequence of Events (SOE) reporting with 1 ms resolution.
- Certifications: Certified to IEC 61508 for Safety Integrity Level 3 (SIL3); meets CE, UL, and standards for hazardous environments; TÜV certified.
