Product Description

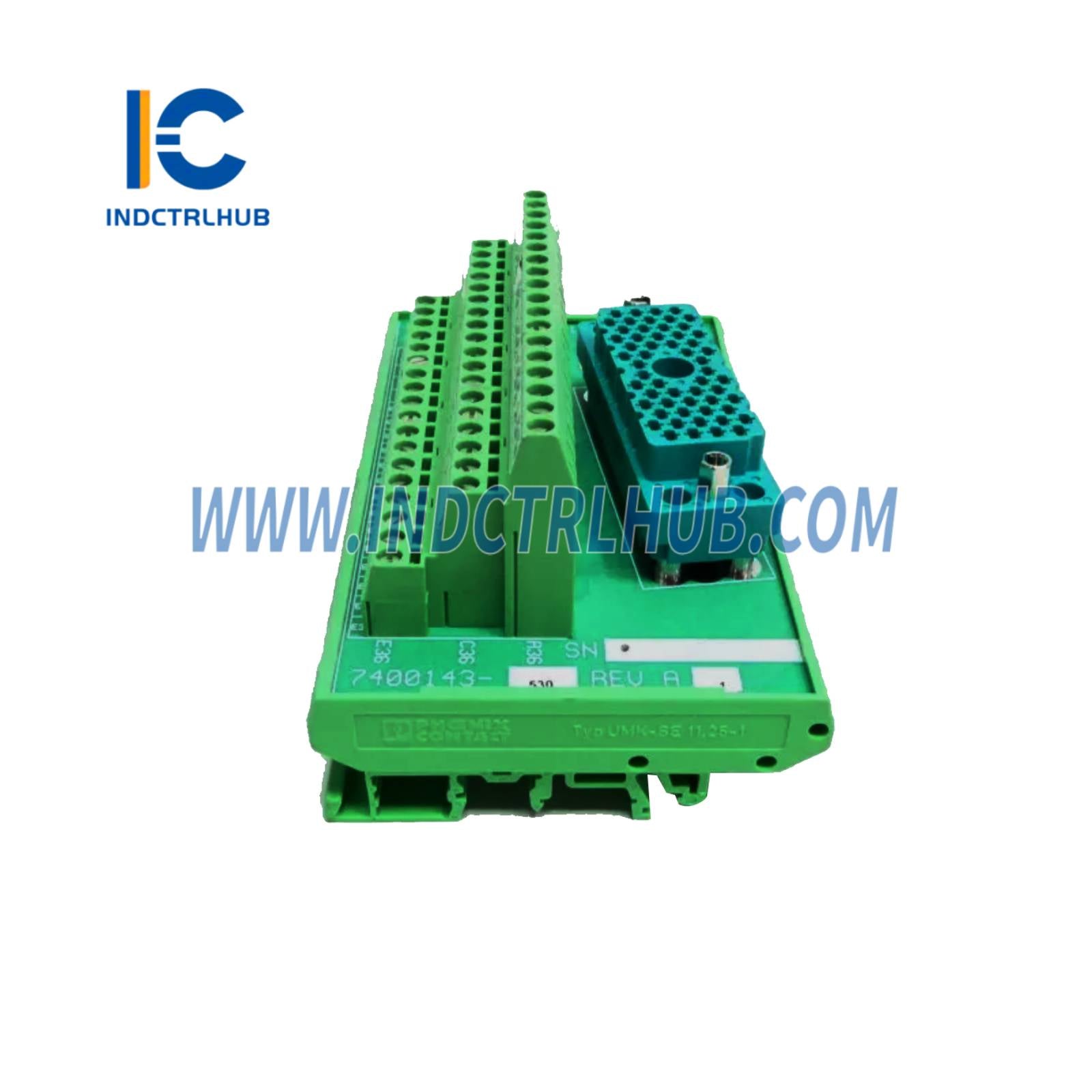

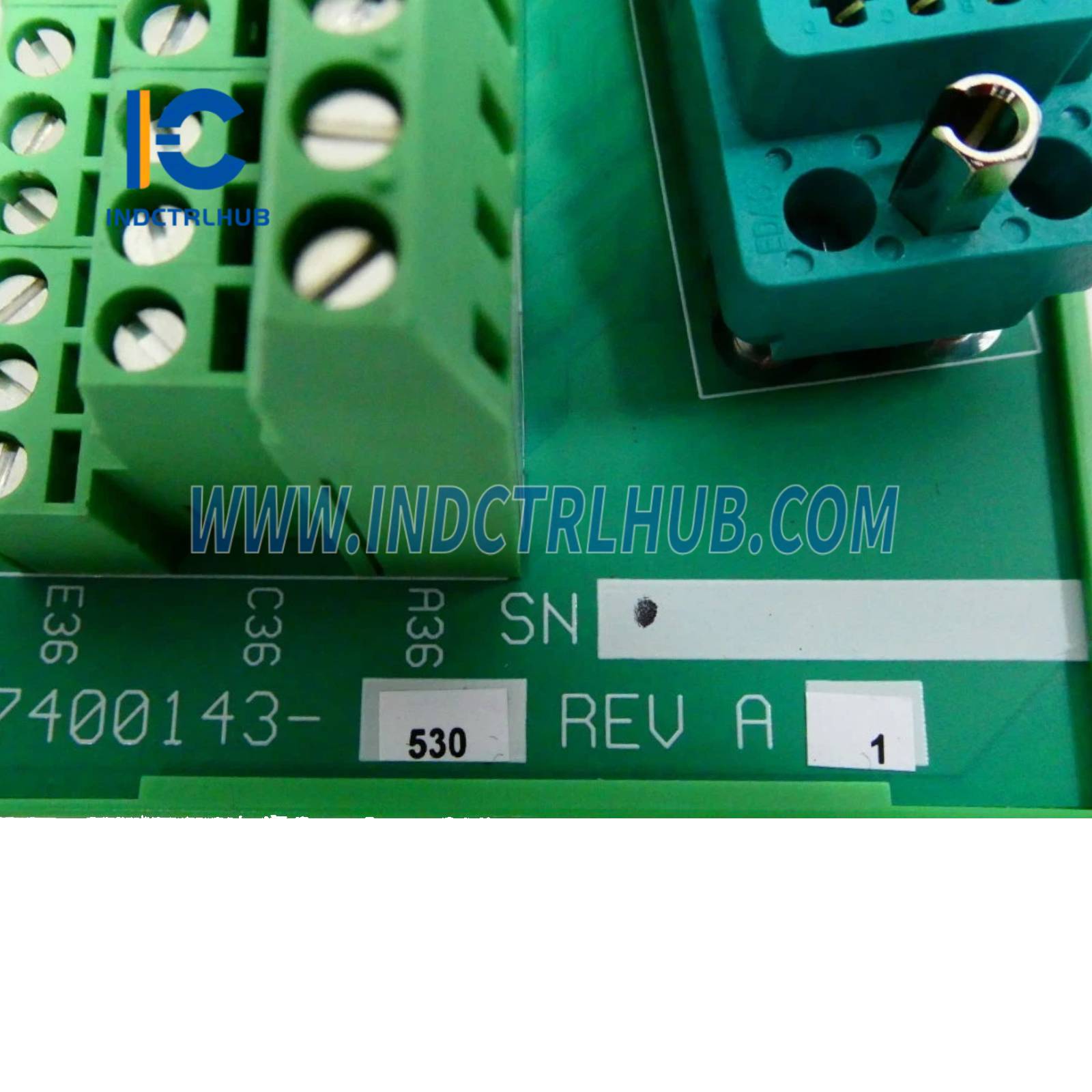

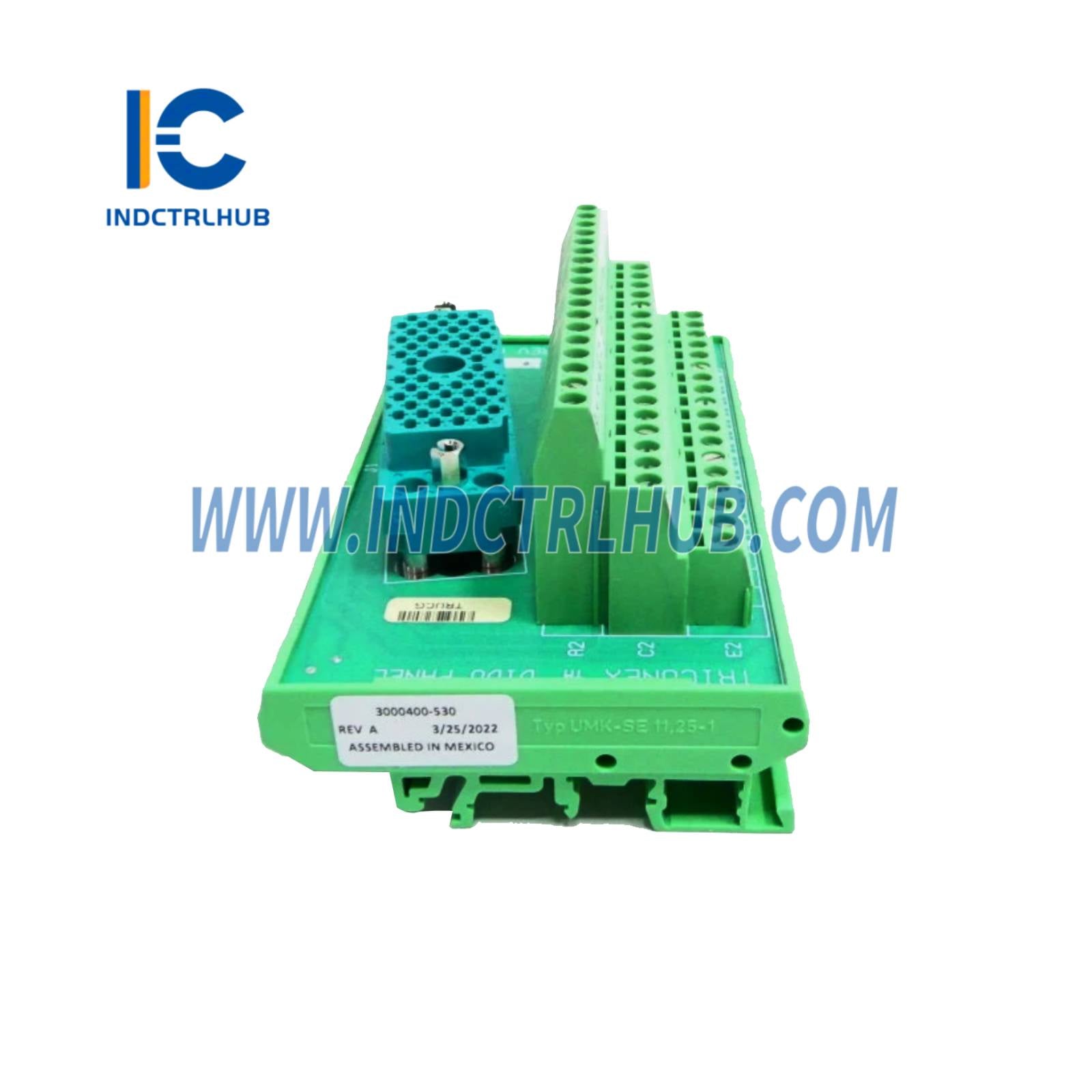

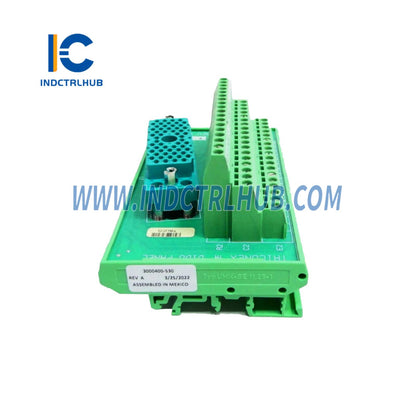

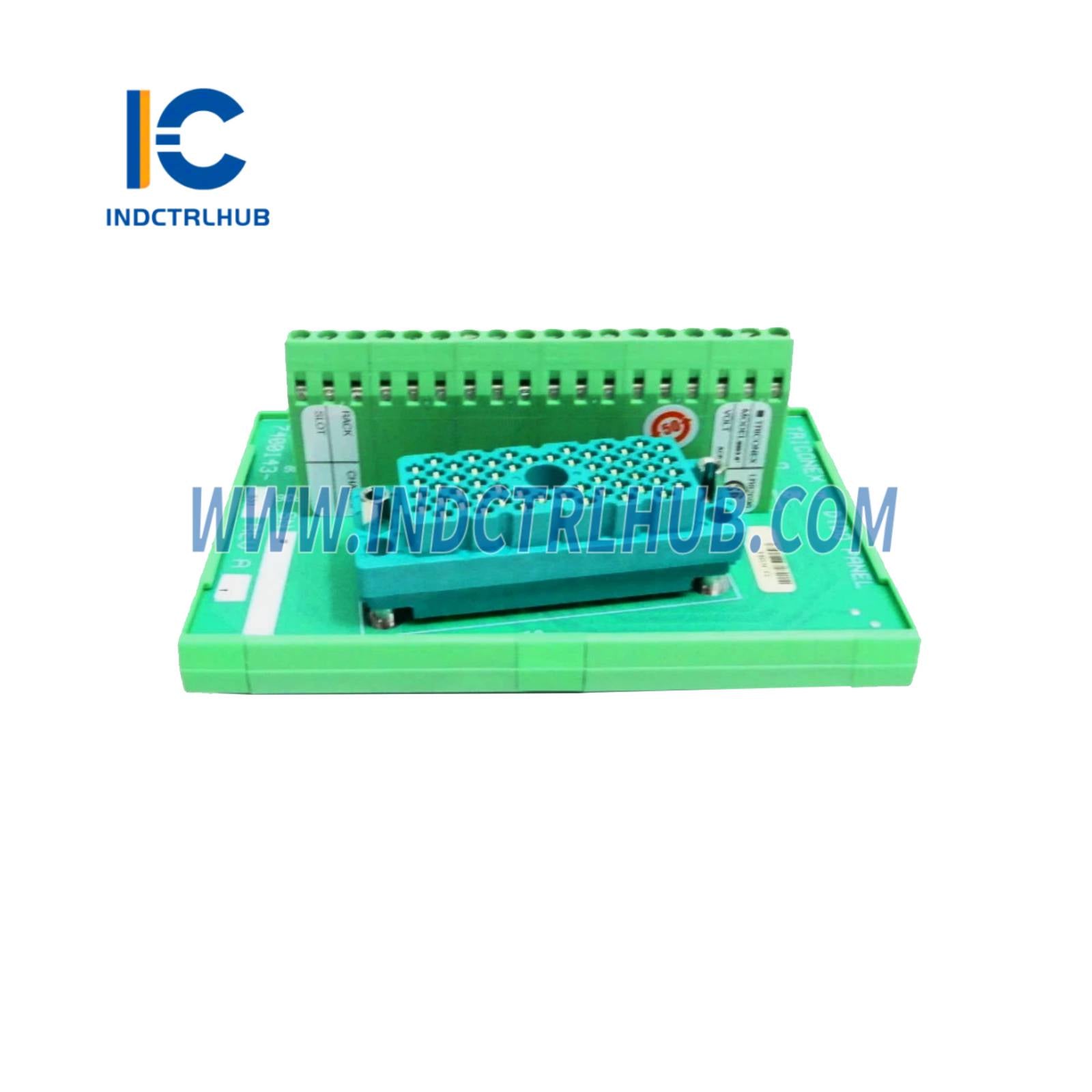

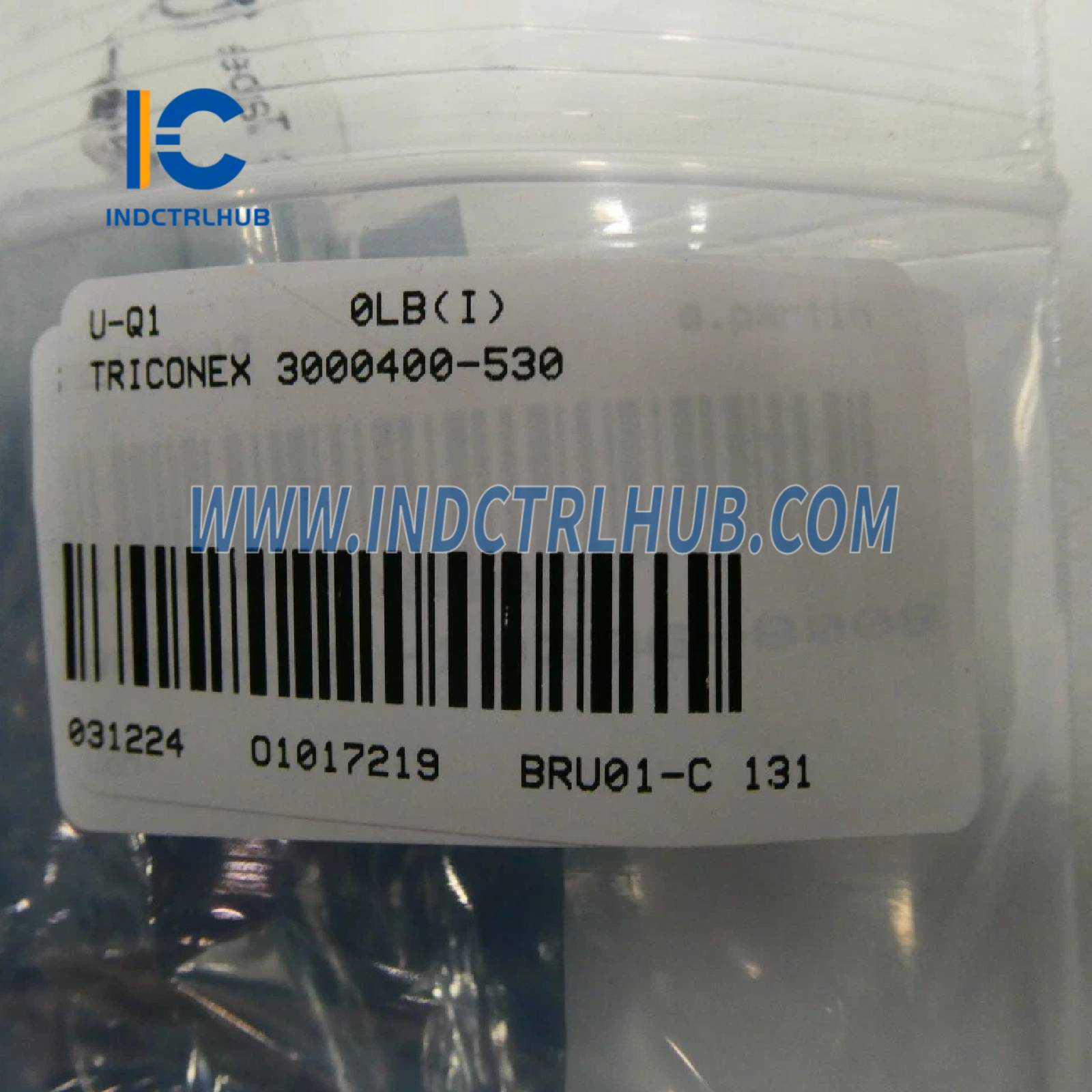

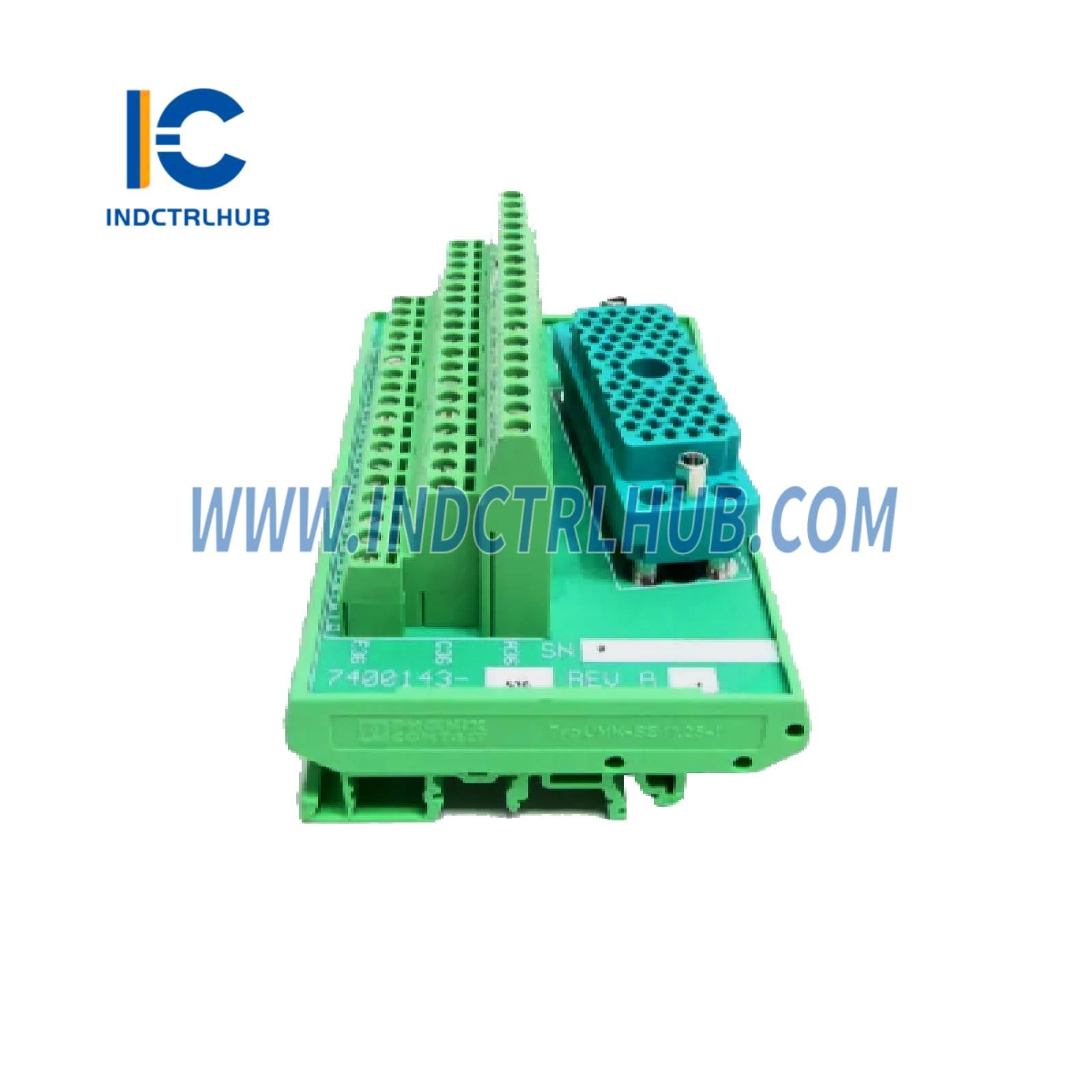

Triconex 3000400-530 Terminal Block
Product Overview
- The Triconex 3000400-530 is a Terminal Block manufactured by Phoenix Contact for use in Triconex Safety Instrumented Systems (SIS), part of Schneider Electric’s EcoStruxure Tricon platform. It serves as an interface module for connecting field wiring to Triconex I/O modules, ensuring secure and reliable signal transmission in safety-critical applications. Designed for industries like oil and gas, chemical, and power generation, it supports the Triple Modular Redundant (TMR) architecture, maintaining Safety Integrity Level 3 (SIL3) compliance.
Technical Specifications
- The 3000400-530 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 3000400-530 (Phoenix Contact 5529544) |
| Manufacturer | Triconex (Schneider Electric, produced by Phoenix Contact) |
| Description | Terminal Block (Interface Module) |
| Series | Tricon Safety System |
| Connection Type | Screw or spring-cage terminals |
| Signal Compatibility | 4-20 mA, 8-320 mA (analog), digital signals |
| Voltage Rating | Up to 250 V AC/DC |
| Current Rating | Up to 8 A |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 0.2 kg |
Additional Details
- The 3000400-530 includes the following additional information based on its standard use and documentation:
- Function: Provides a secure connection point for field wiring to Triconex I/O modules, supporting analog and digital signals for applications like emergency shutdown (ESD), fire and gas detection, and process control. Ensures reliable signal integrity within the TMR framework.

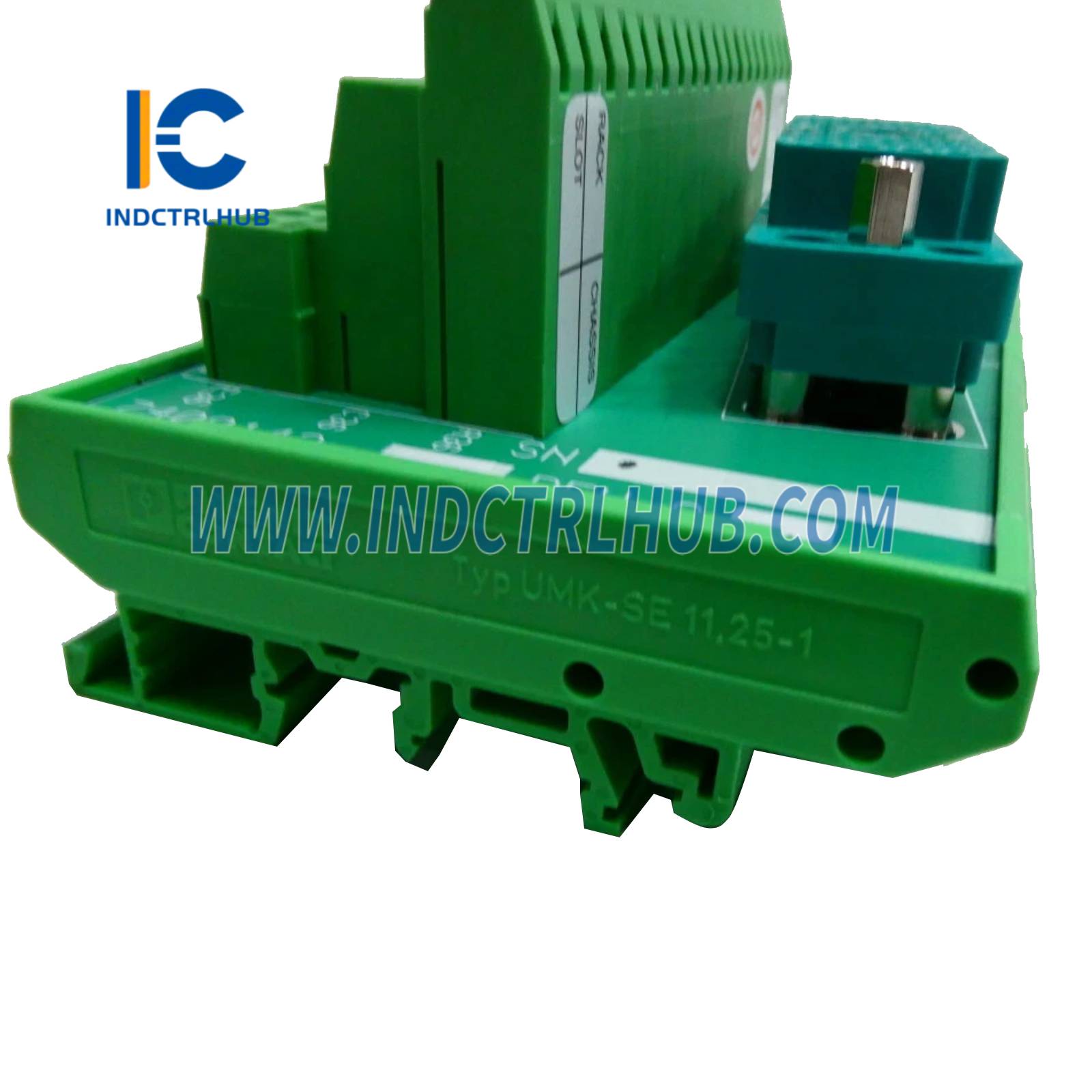

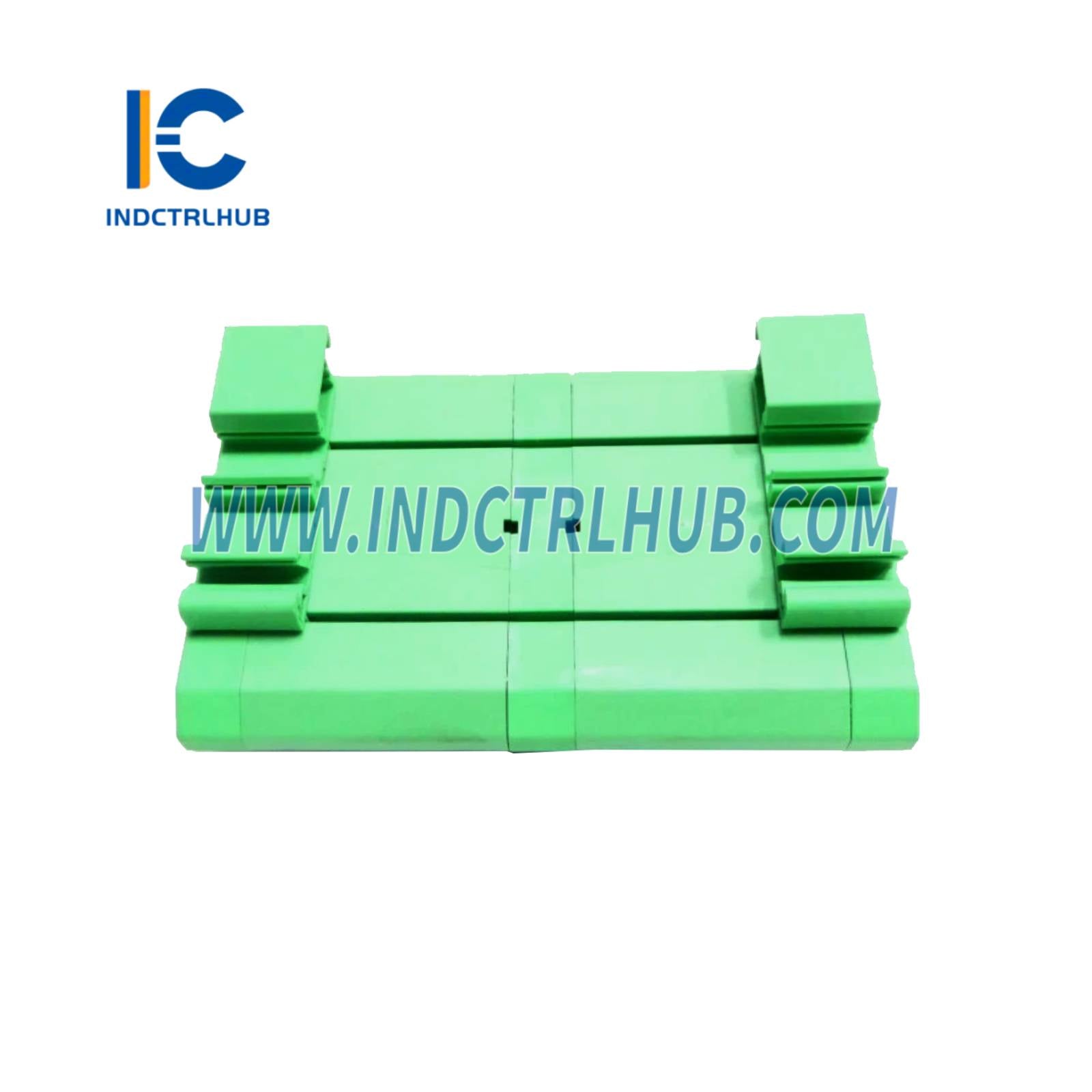

- Mounting: DIN rail mountable; integrates with Tricon chassis (e.g., 8110, 8400) and connects to I/O modules via standard cabling.
- Compatibility: Compatible with Tricon v9.6 and later systems; supports I/O modules such as 3503E, 3700A, and others requiring analog or digital signal termination.
- Configuration: No programming required; designed for plug-and-play integration with Triconex I/O systems. Configurable for specific signal types based on module requirements.
- Certifications: Meets IEC 61508 SIL3, UL, CE, and Factory Mutual (FM) standards for Class I, Division 2 hazardous locations; complies with IEC 61131 environmental and EMC requirements.
