Product Description

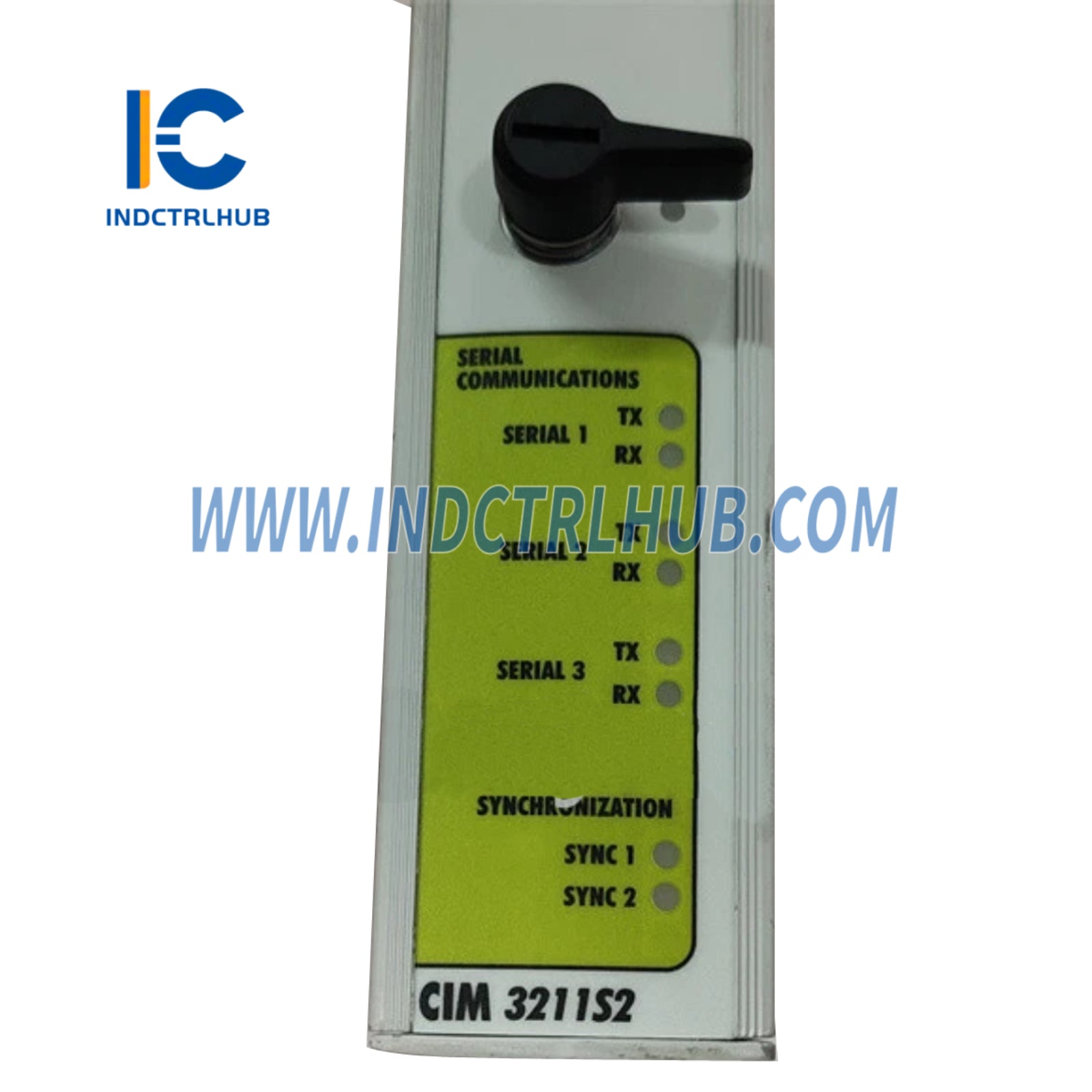

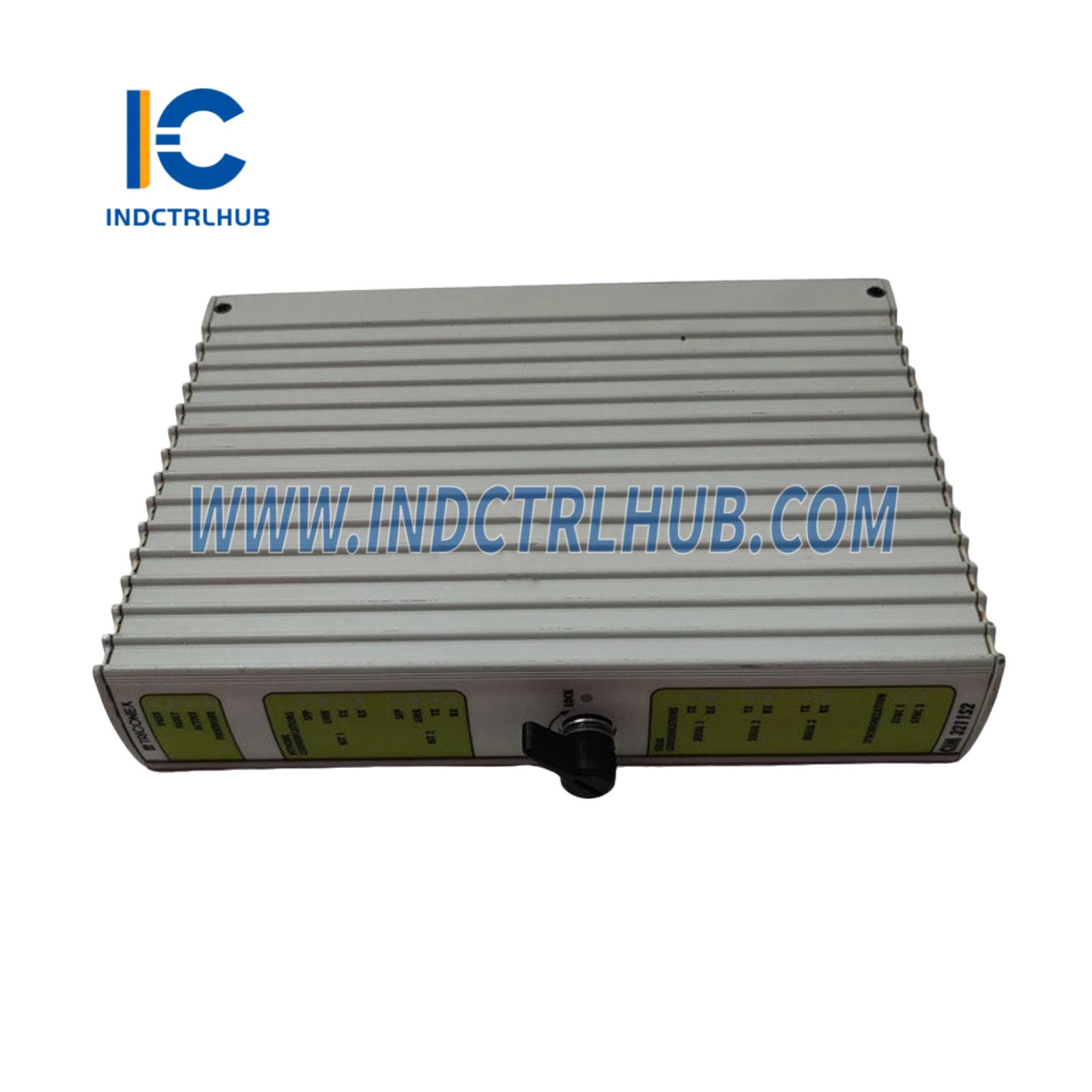

Triconex CIM3211 Communication Module
Product Overview
- The Triconex CIM3211 is a Communication Interface Module designed for Triconex safety instrumented systems (SIS) by Schneider Electric. Belonging to the Triconex Other Modules series, this module enables seamless data exchange between Triconex safety controllers, I/O modules, and external systems, such as distributed control systems (DCS) or human-machine interfaces (HMI), within triple modular redundant (TMR) architectures. It is critical for safety applications in industries like oil and gas, chemical, and power generation, ensuring reliable and secure communication.
Technical Specifications
- The CIM3211 has the following specifications based on standard characteristics for similar Triconex communication modules:
| Specification | Details |
|---|---|
| Model/Part Number | CIM3211 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Communication Interface Module |
| Series | Triconex Other Modules |
| Communication Protocols | Modbus, Ethernet/IP, OPC, or proprietary Triconex protocols |
| Ports | Multiple serial ports (RS-232/RS-485) and Ethernet ports |
| Data Rate | Up to 460.8 kbps (serial), 100 Mbps (Ethernet) |
| Operating Voltage | 24 VDC |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | Approx. 150 x 120 x 50 mm |
| Weight | Approx. 0.5 kg |
Additional Details
- The CIM3211 includes the following additional information based on its standard use and documentation for similar Triconex communication modules, such as the CM3201:
- Function: Facilitates bidirectional communication of process data, safety signals, and control commands between Triconex systems and external devices; supports TMR fault tolerance for high reliability.
- Compatibility: Compatible with Triconex Tricon and Tricon CX systems; integrates with modules like 3008, 7400209B-030, and supports connectivity to DCS, HMI, or other Triconex controllers.
- Configuration: Features multiple serial and Ethernet ports for flexible connectivity; supports Modbus master/slave configurations; configured via TriStation software for diagnostics and monitoring; hot-swappable for maintenance without system disruption.
- Certifications: Meets CE, UL, and IEC 61508 standards for Safety Integrity Level 3 (SIL3) applications; certified for hazardous environments.
