Product Description
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model/Part Number | 2755 |

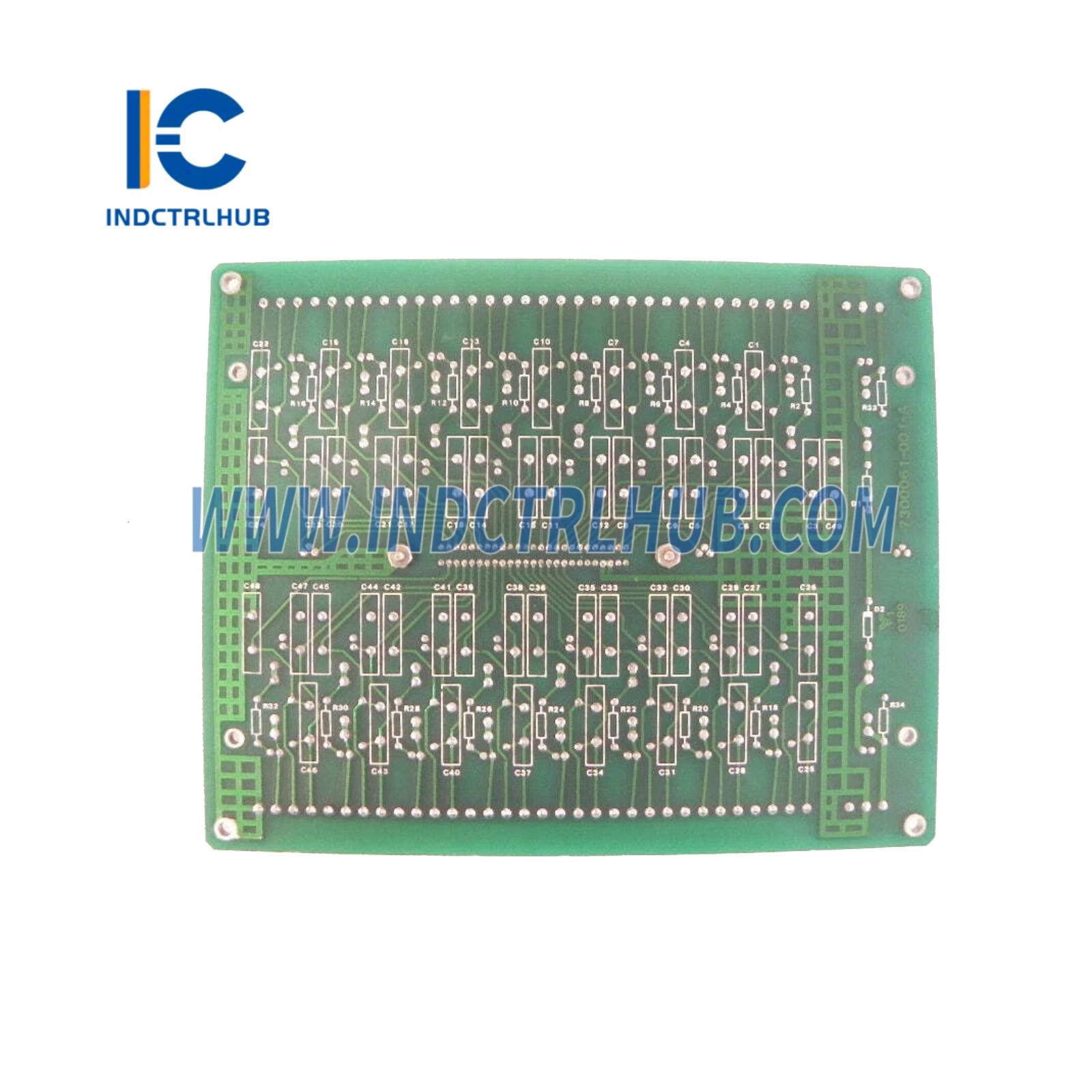

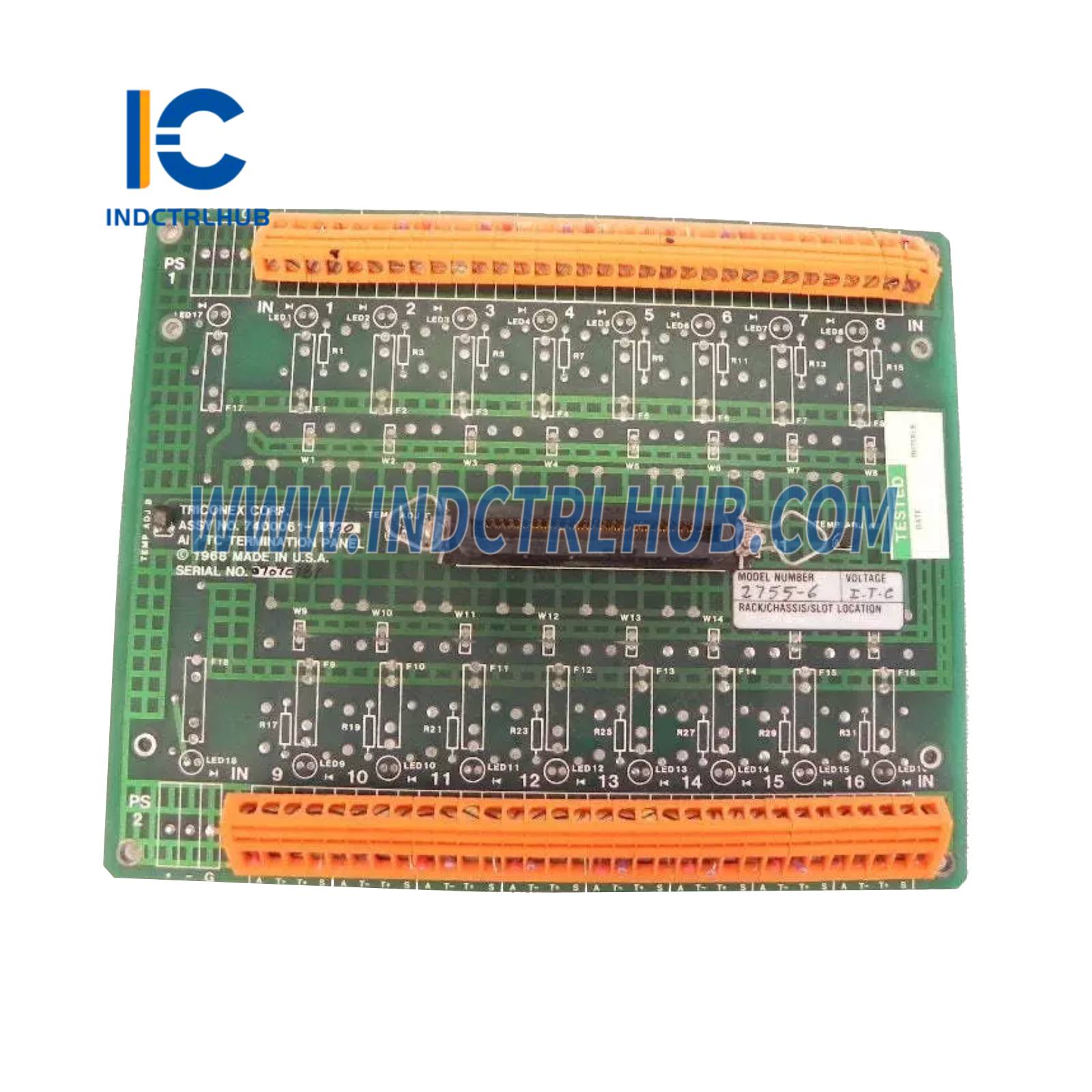

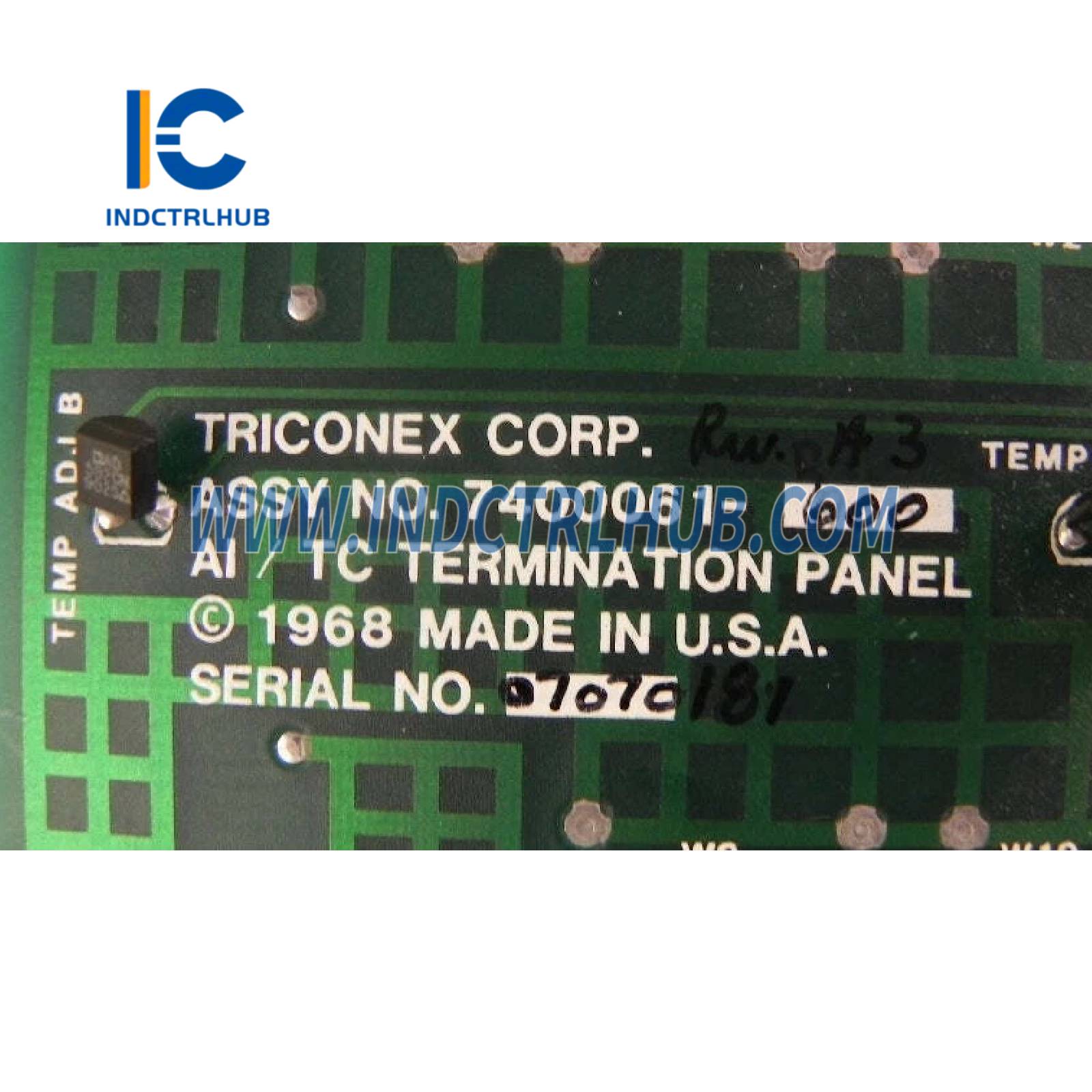

| Description | ITC (Interface Termination Card) Module for Triconex safety systems, designed to provide termination for digital and analog I/O signals in safety-critical applications |
| Key Features | Supports digital and analog I/O termination, triple modular redundancy (TMR), high reliability, SIL 3 certified, compatible with Triconex I/O modules |
Technical Specifications
| Specification | Details |
|---|---|
| Model | 2755 |
| Product Type | Interface Termination Card (ITC) Module |
| Series | Tricon Safety System |
| Input/Output Support | Digital and analog I/O signals |
| Power Supply | 24 VDC (via chassis backplane) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions | Approx. 300 x 50 x 200 mm (11.8 x 2.0 x 7.9 in) |
| Weight | Approx. 1 kg (2.2 lbs) |
| Certifications | SIL 3 (IEC 61508), CE |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Terminal blocks for field wiring, integrates with Tricon chassis backplane |
Functional Features
| Feature | Details |
|---|---|
| Signal Termination | Provides reliable termination for digital and analog I/O signals |
| Redundancy | Supports TMR architecture for fault-tolerant operation |
| Diagnostics | Built-in diagnostics for signal status and module health |
| Compatibility | Seamless integration with Triconex I/O modules |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | 2755 |
| Configuration | Standard, non-redundant module, compatible with Triconex termination panels |
