Product Description

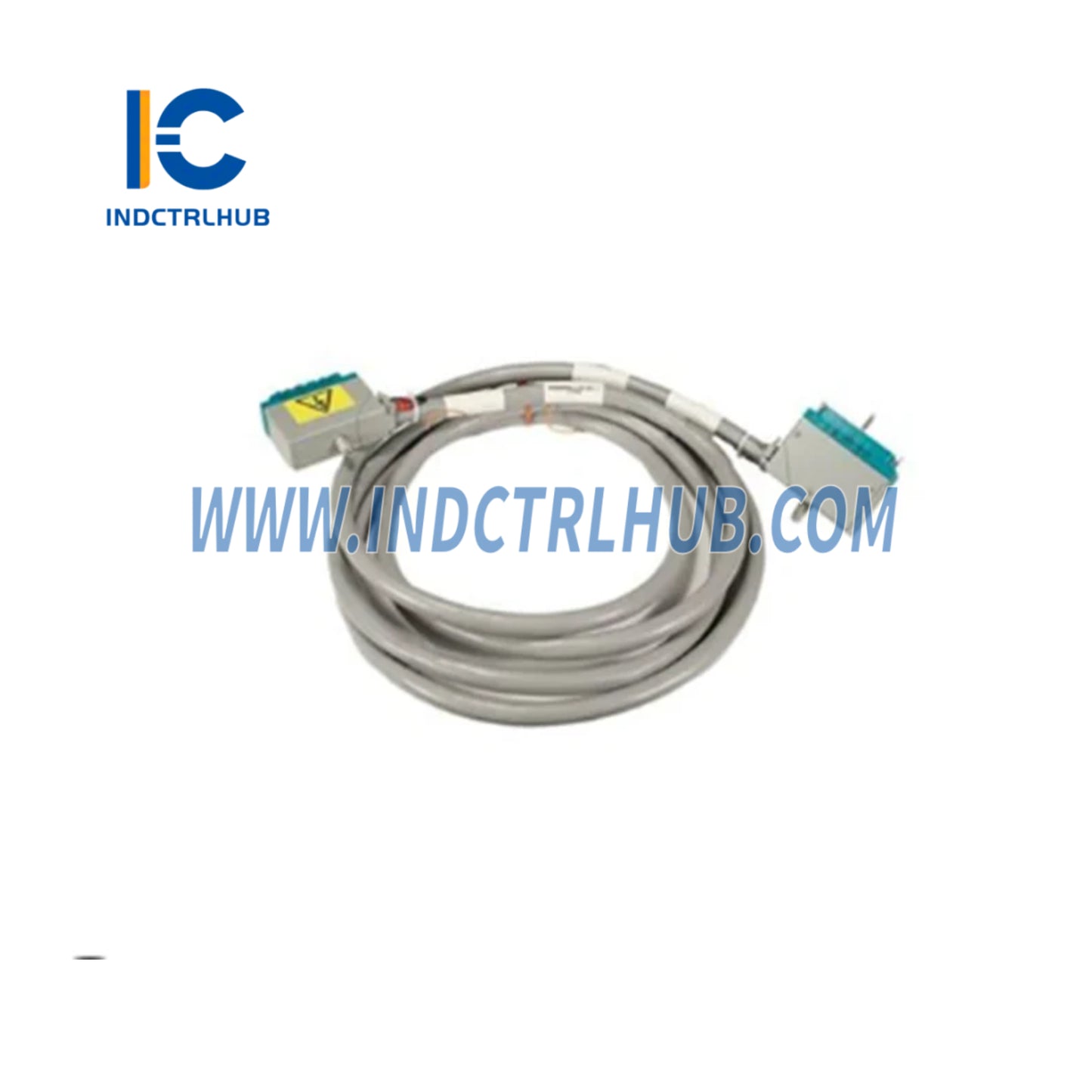

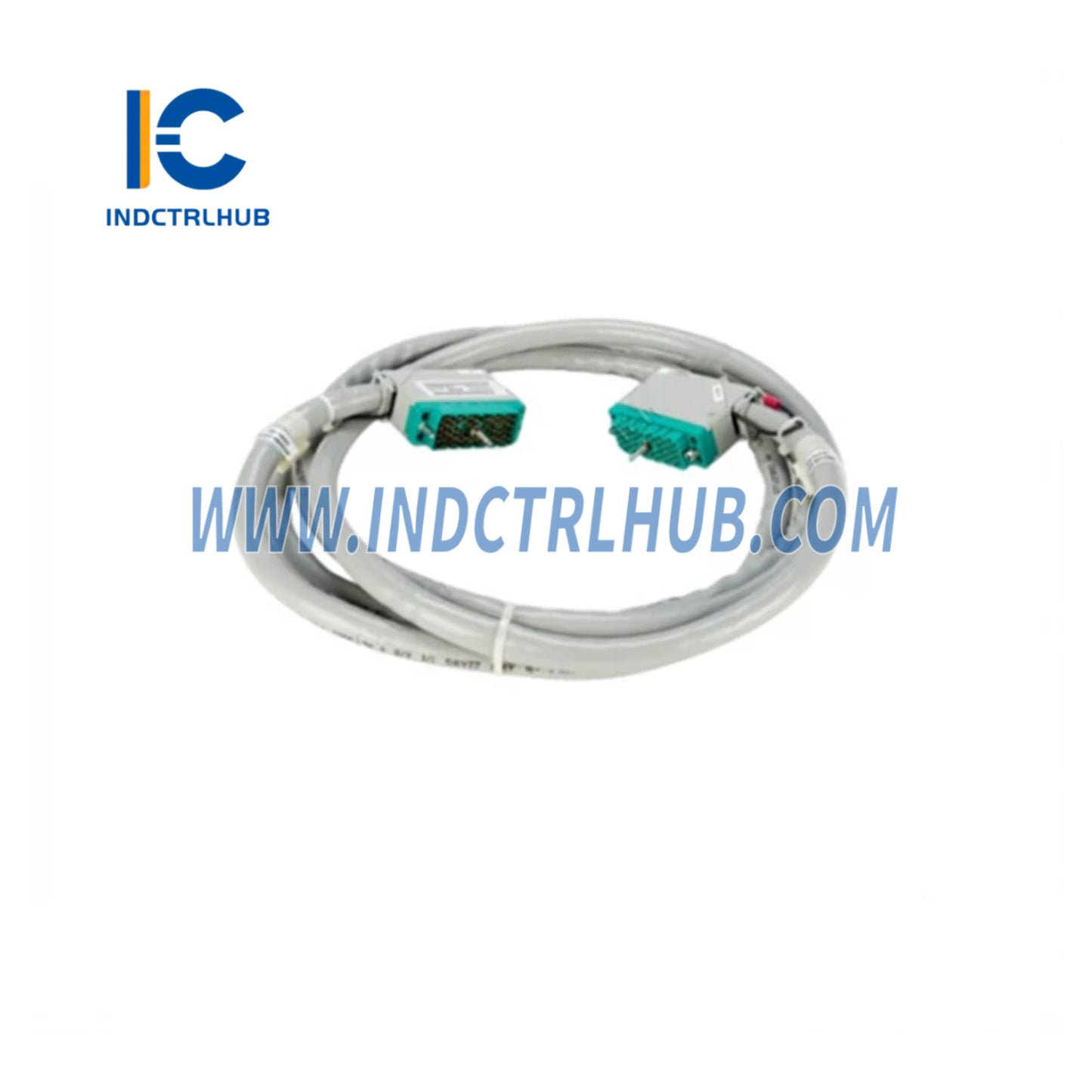

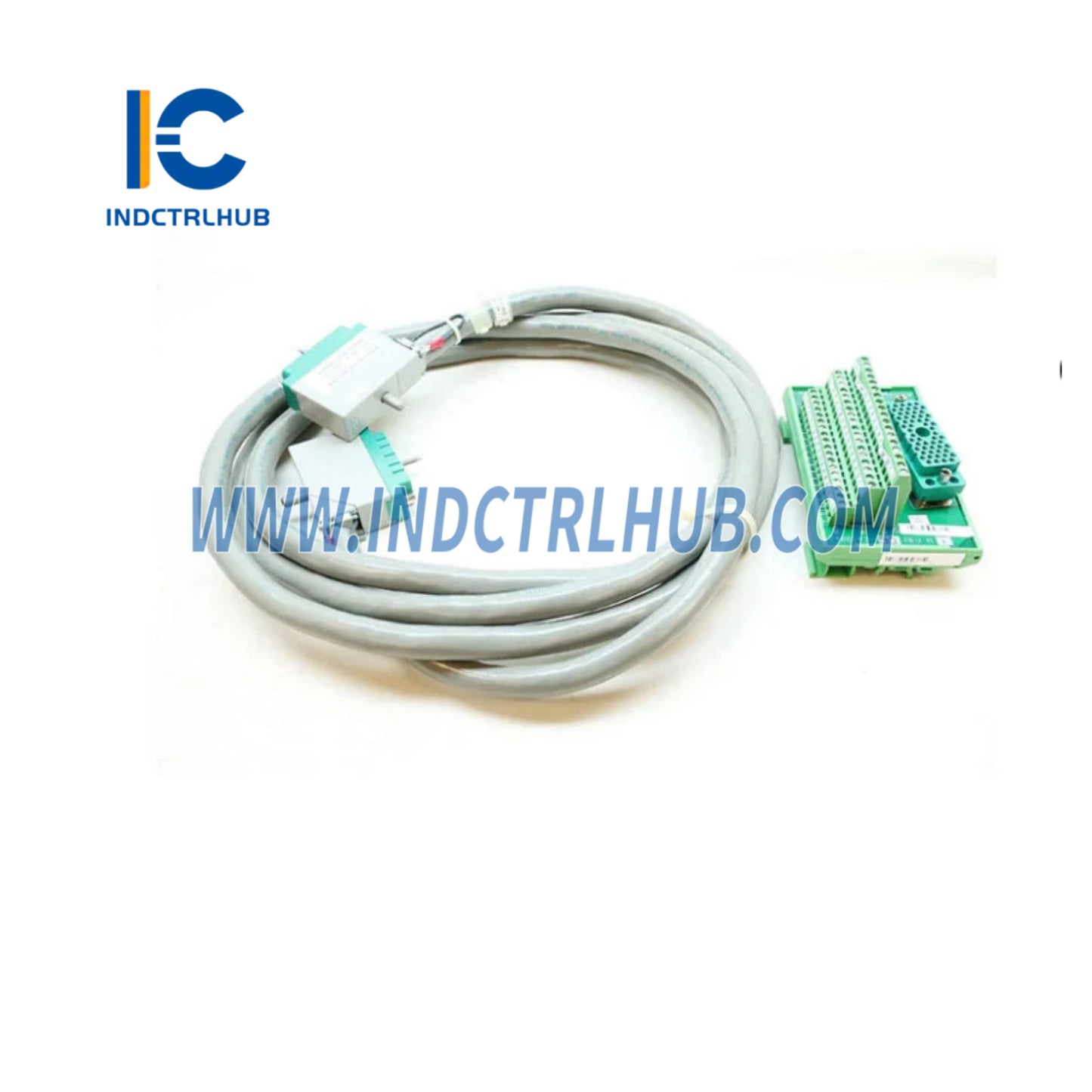

Triconex 4000103-516 External Termination Cable
Product Overview
- The Triconex 4000103-516 is an External Termination Cable designed for Triconex safety instrumented systems (SIS) by Schneider Electric. This cable connects Triconex I/O modules to external termination panels, ensuring reliable signal transmission for safety-critical operations within triple modular redundant (TMR) architectures. It is ideal for industries such as oil and gas, chemical, and power generation, where fault-tolerant communication is essential.
Technical Specifications
- The 4000103-516 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 4000103-516 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | External Termination Cable |
| Series | Tricon, Tricon CX |
| Cable Type | Signal Transmission Cable |
| Length | 5 meters (16.4 feet) |
| Connector Type | Custom Triconex multi-pin connector |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Weight | Approx. 0.7 kg |
Additional Details
- The 4000103-516 includes the following additional information based on its standard use and documentation:
- Function: Transmits critical process data, including digital and analog signals, between Triconex I/O modules and external termination panels, supporting safety monitoring and control in SIS applications.
- Compatibility: Compatible with Triconex Tricon and Tricon CX systems, interfacing with I/O modules and termination panels in TMR configurations for fault-tolerant operation.
