Product Description

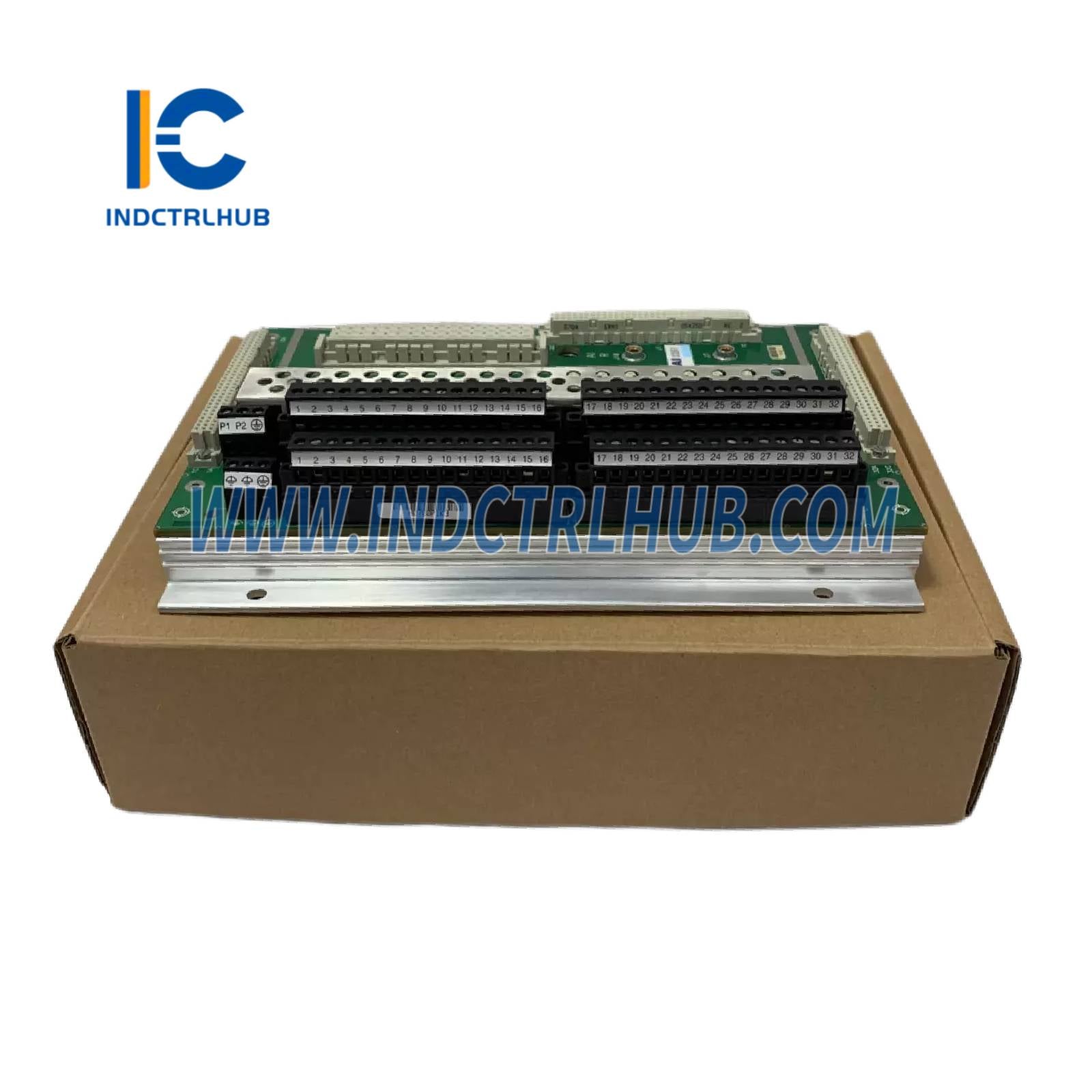

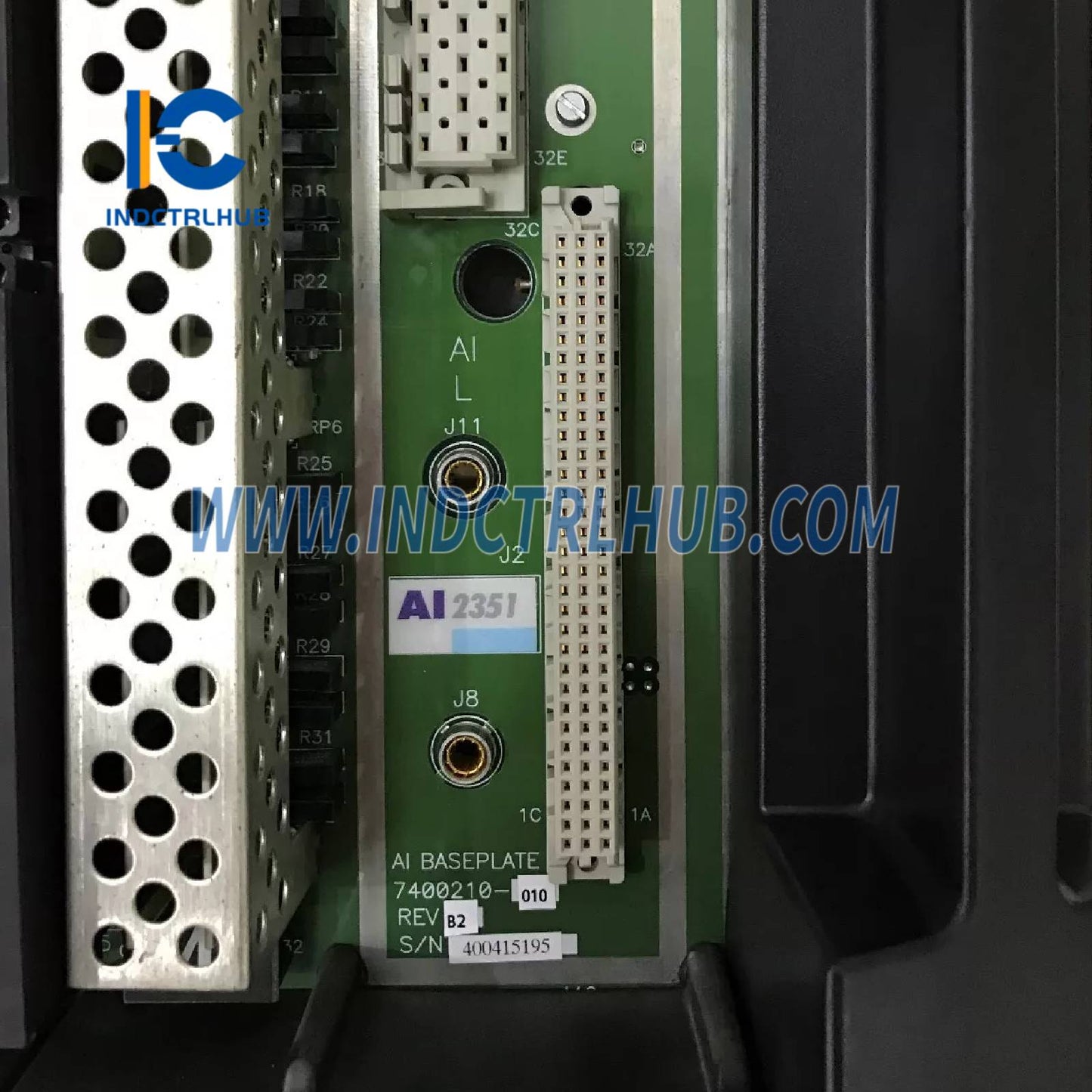

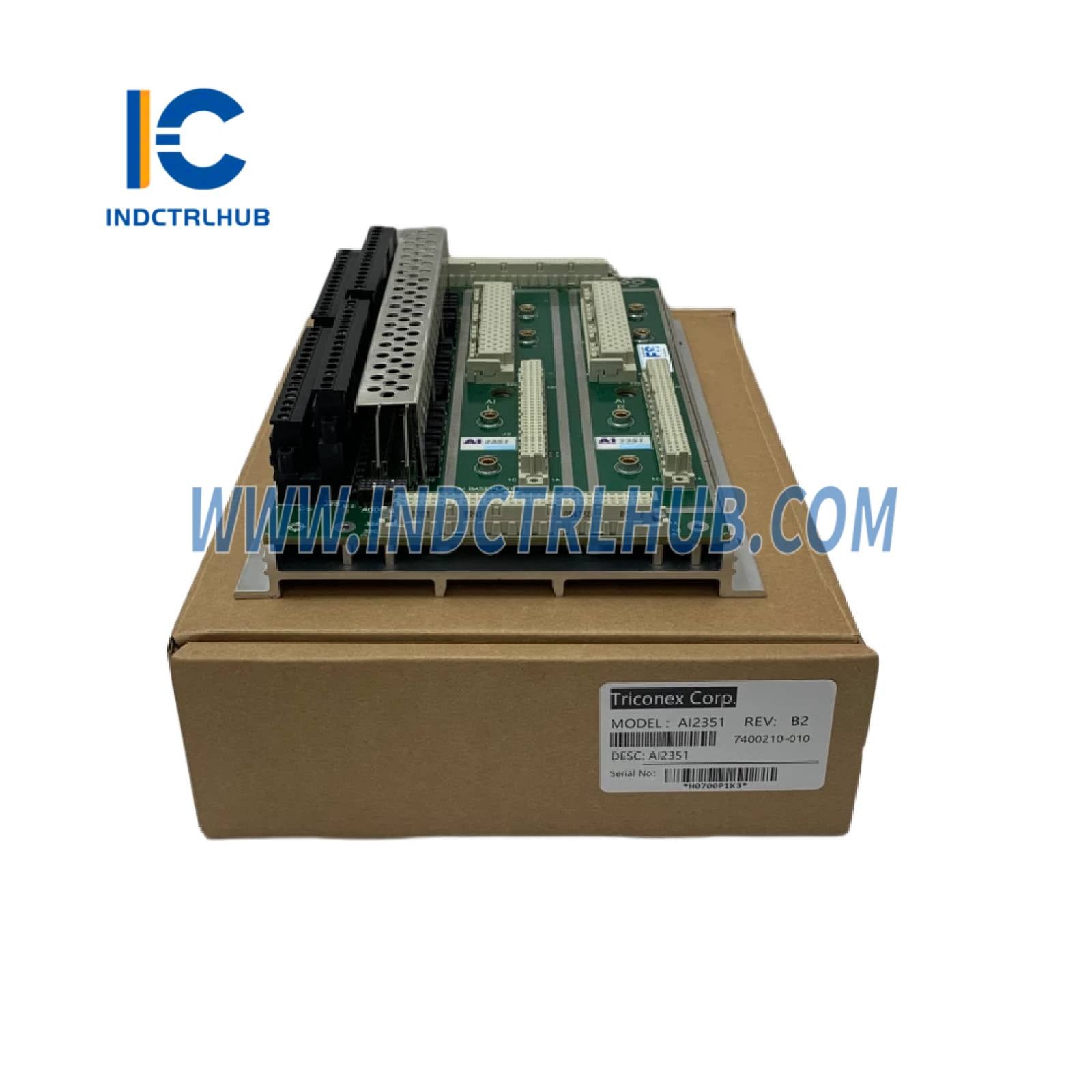

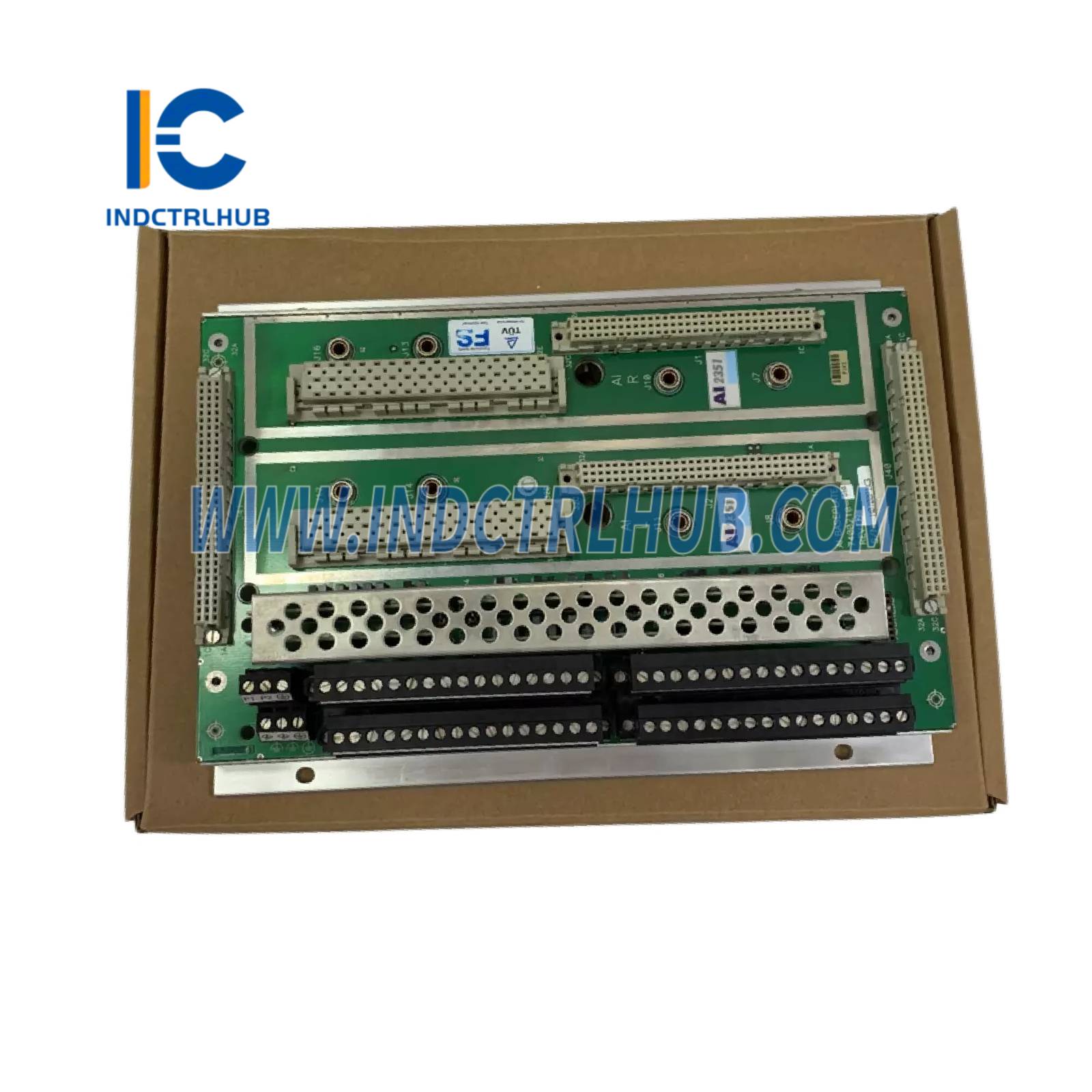

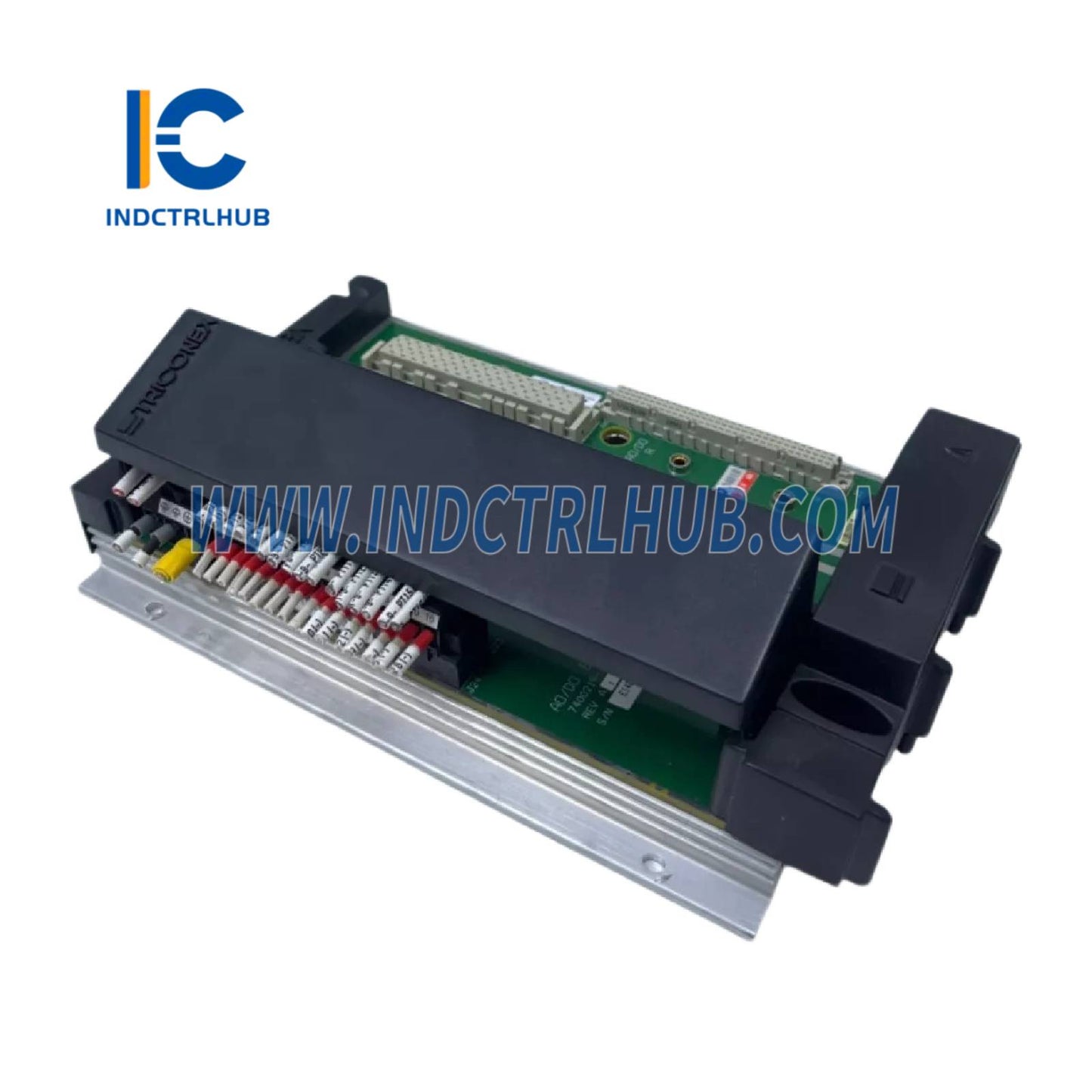

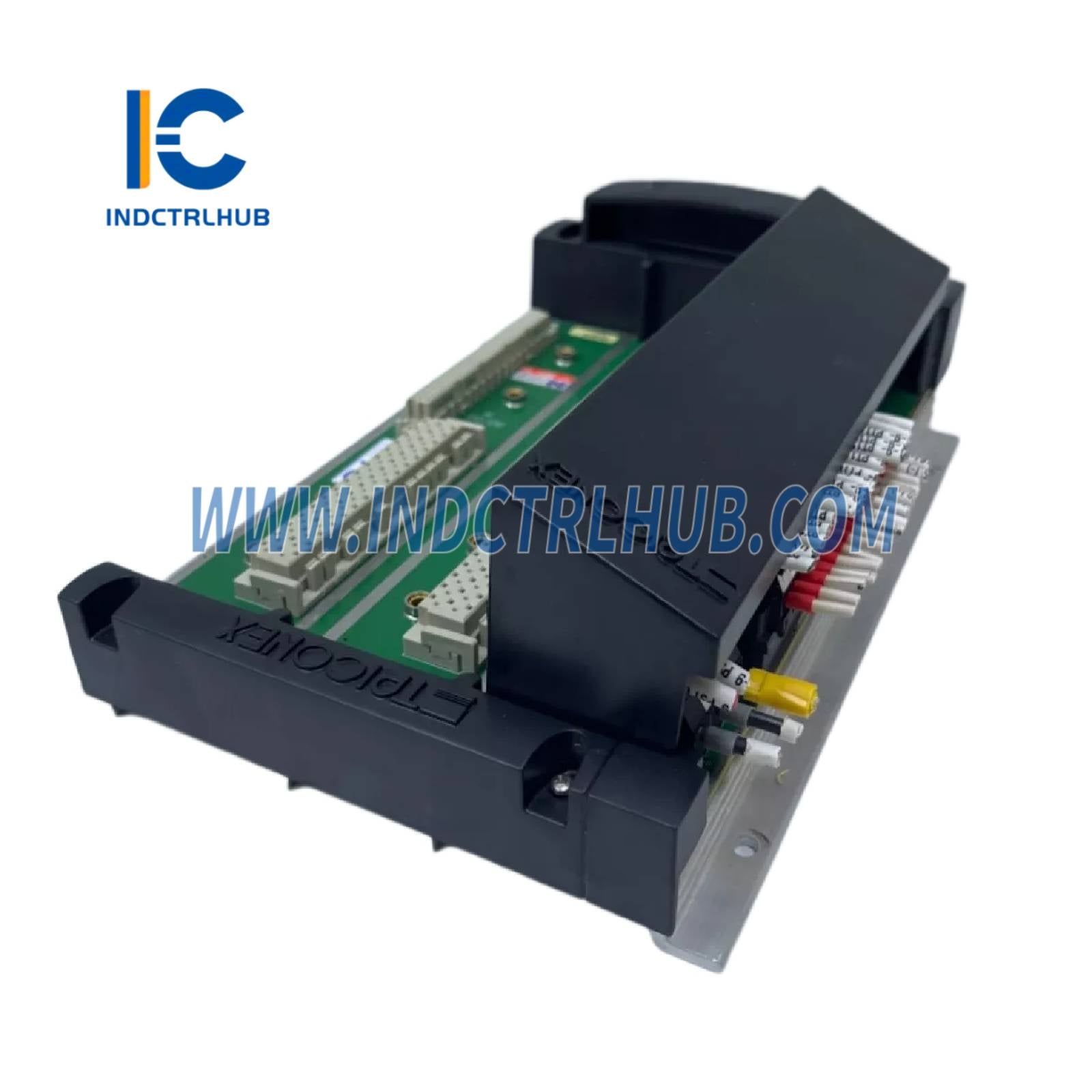

Triconex 7400210-010 Digital Input Module
Product Overview
- The Triconex 7400210-010 is a Digital Input Module designed for Triconex safety instrumented systems (SIS) by Schneider Electric. Belonging to the Triconex Other Modules series, this module processes digital input signals from field devices, such as switches and sensors, in triple modular redundant (TMR) architectures. It is critical for safety applications in industries like oil and gas, chemical, and power generation, ensuring reliable data acquisition for safety-critical operations.
Technical Specifications
- The 7400210-010 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 7400210-010 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Digital Input Module |
| Series | Triconex Other Modules |
| Input Type | Digital, 24 VDC |
| Channel Capacity | 32 points |
| Input Voltage Range | 18-36 VDC |
| Connector Type | Terminal blocks via external termination panel |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | Approx. 150 x 120 x 50 mm |
| Weight | Approx. 0.5 kg |
Additional Details
- The 7400210-010 includes the following additional information based on its standard use and documentation:
- Function: Acquires digital input signals from field devices, such as pressure switches or level sensors, and processes them in a TMR configuration with voting logic to ensure high reliability and fault tolerance.
- Compatibility: Compatible with Triconex Tricon and Tricon CX systems; interfaces with external termination panels and cables like 4000094-310 for field wiring.
- Configuration: Triple modular redundant (TMR) design for fault tolerance; supports online module replacement without process disruption; configured via TriStation software for diagnostics and monitoring.
- Certifications: Meets IEC 61508 and IEC 61511 standards for Safety Integrity Level 3 (SIL3) applications; certified by TÜV Rheinland.
