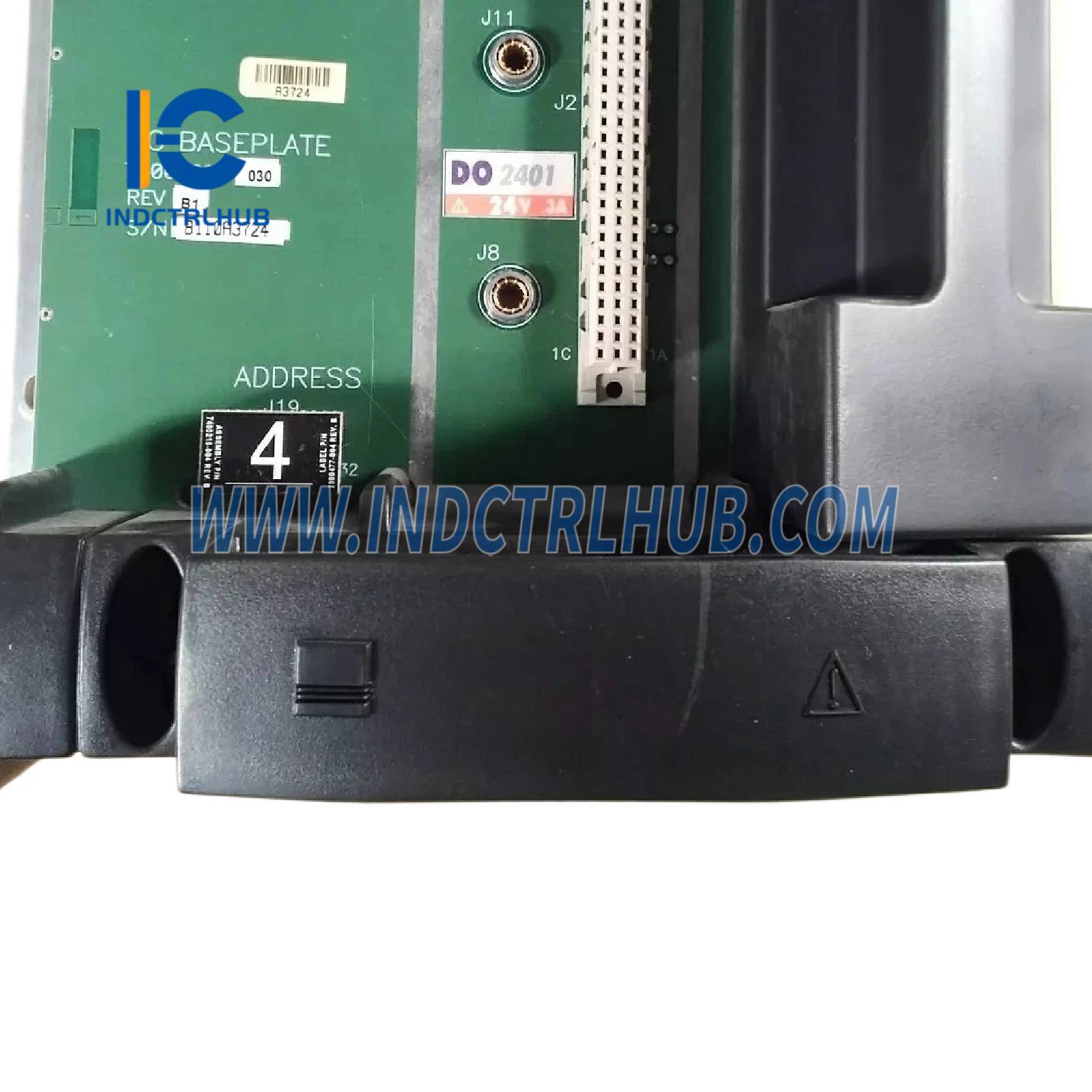

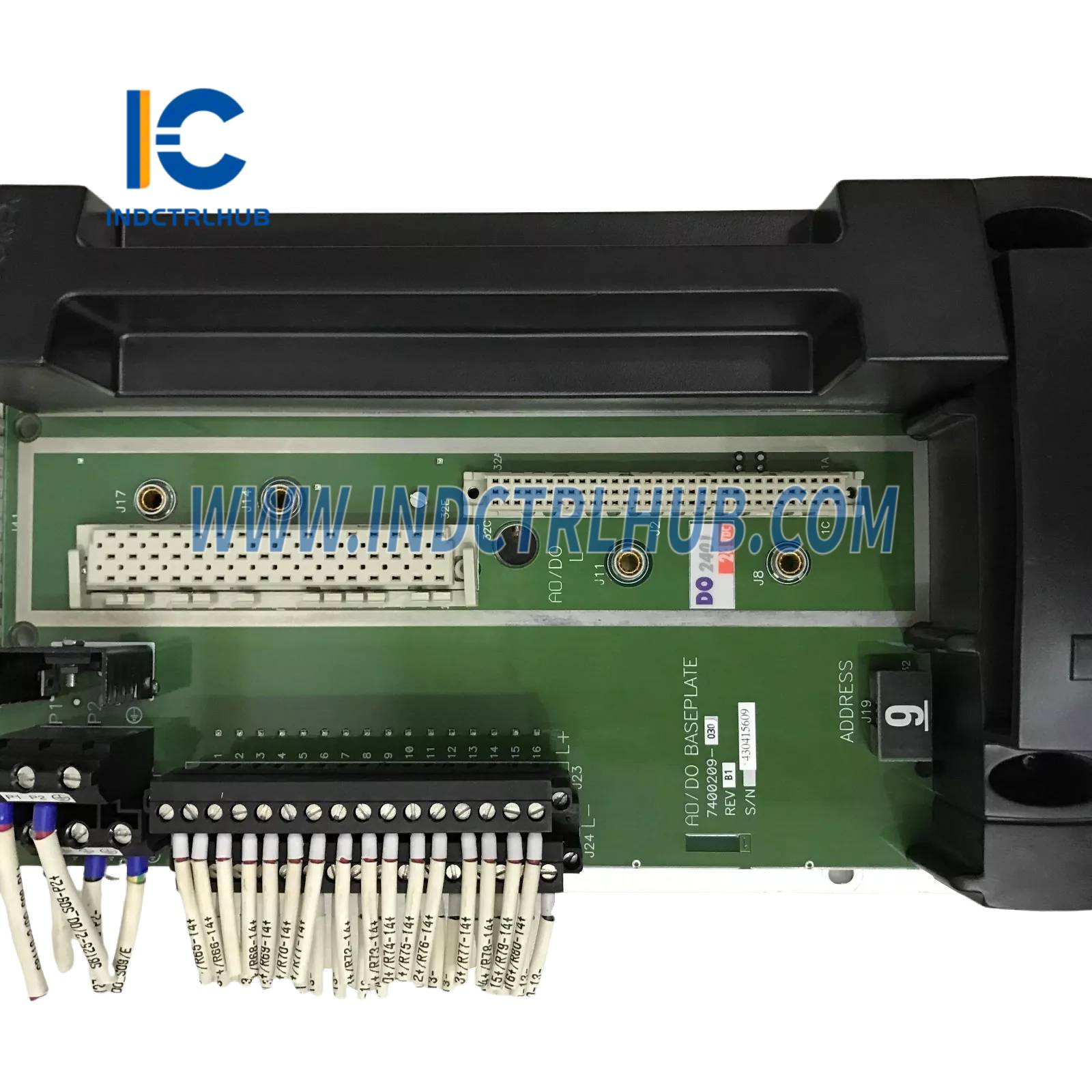

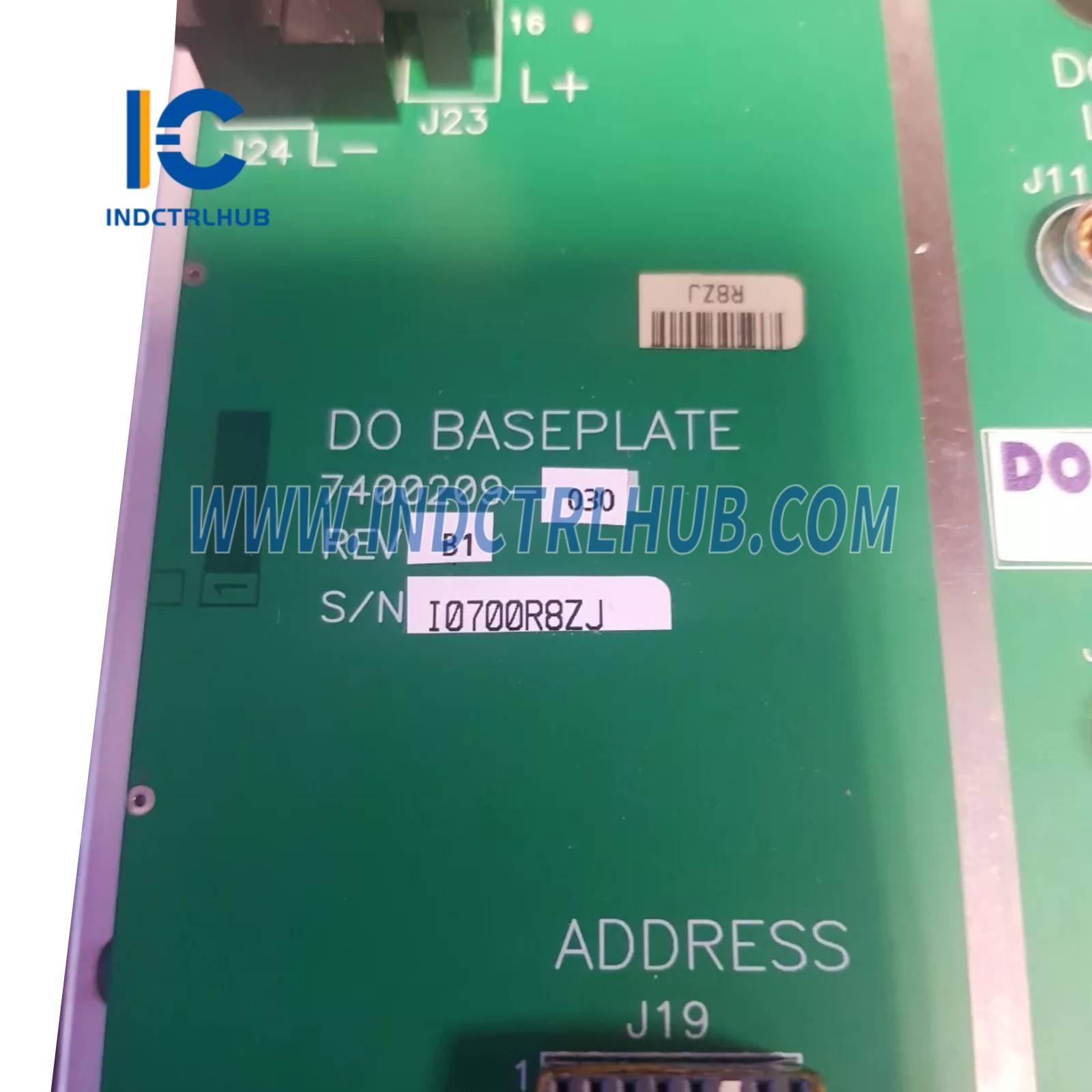

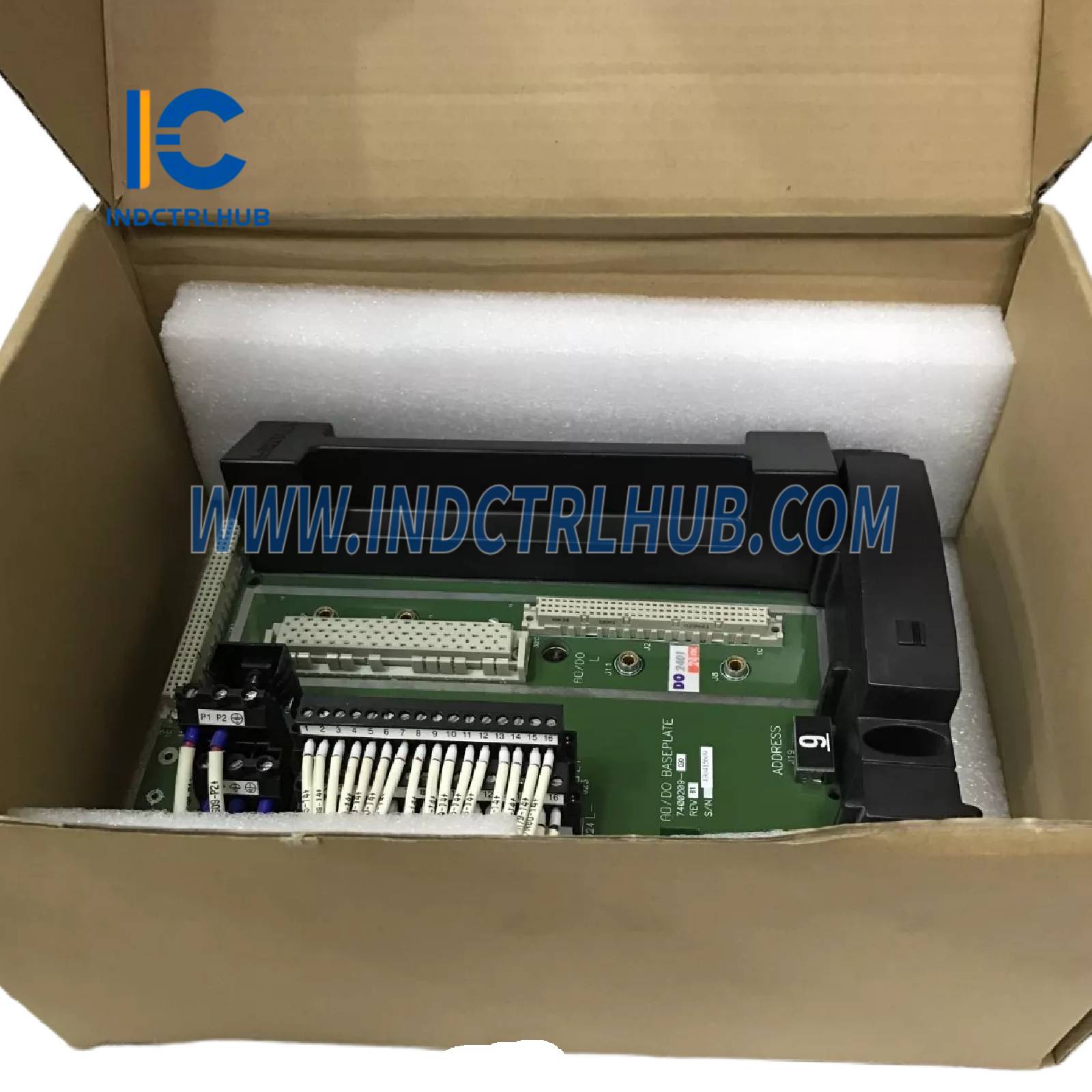

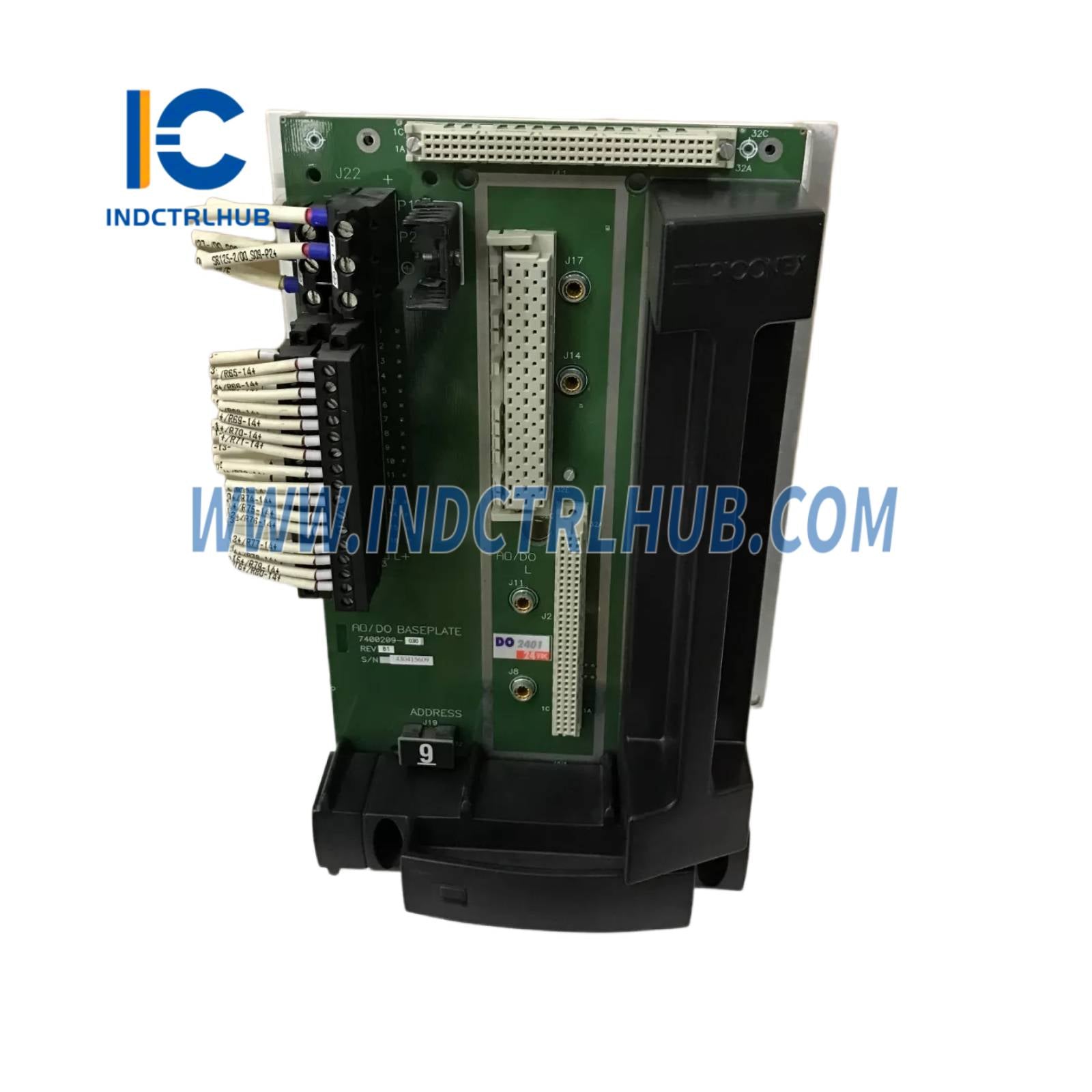

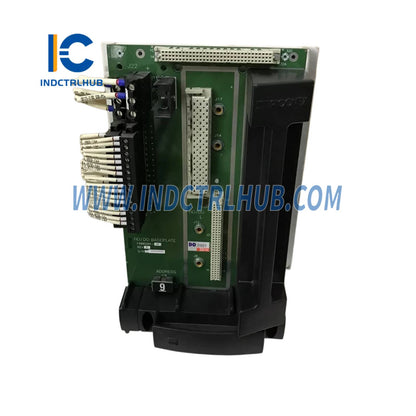

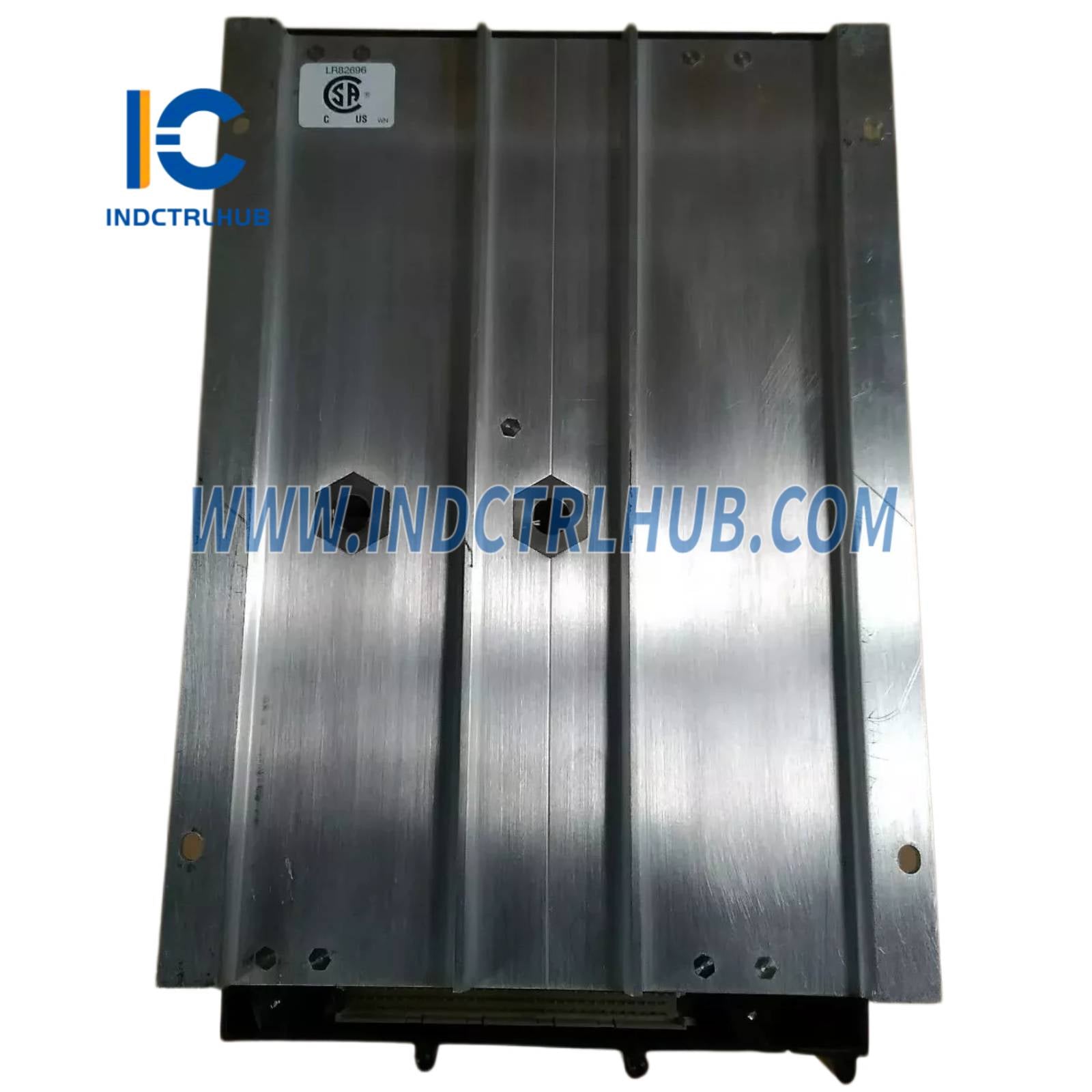

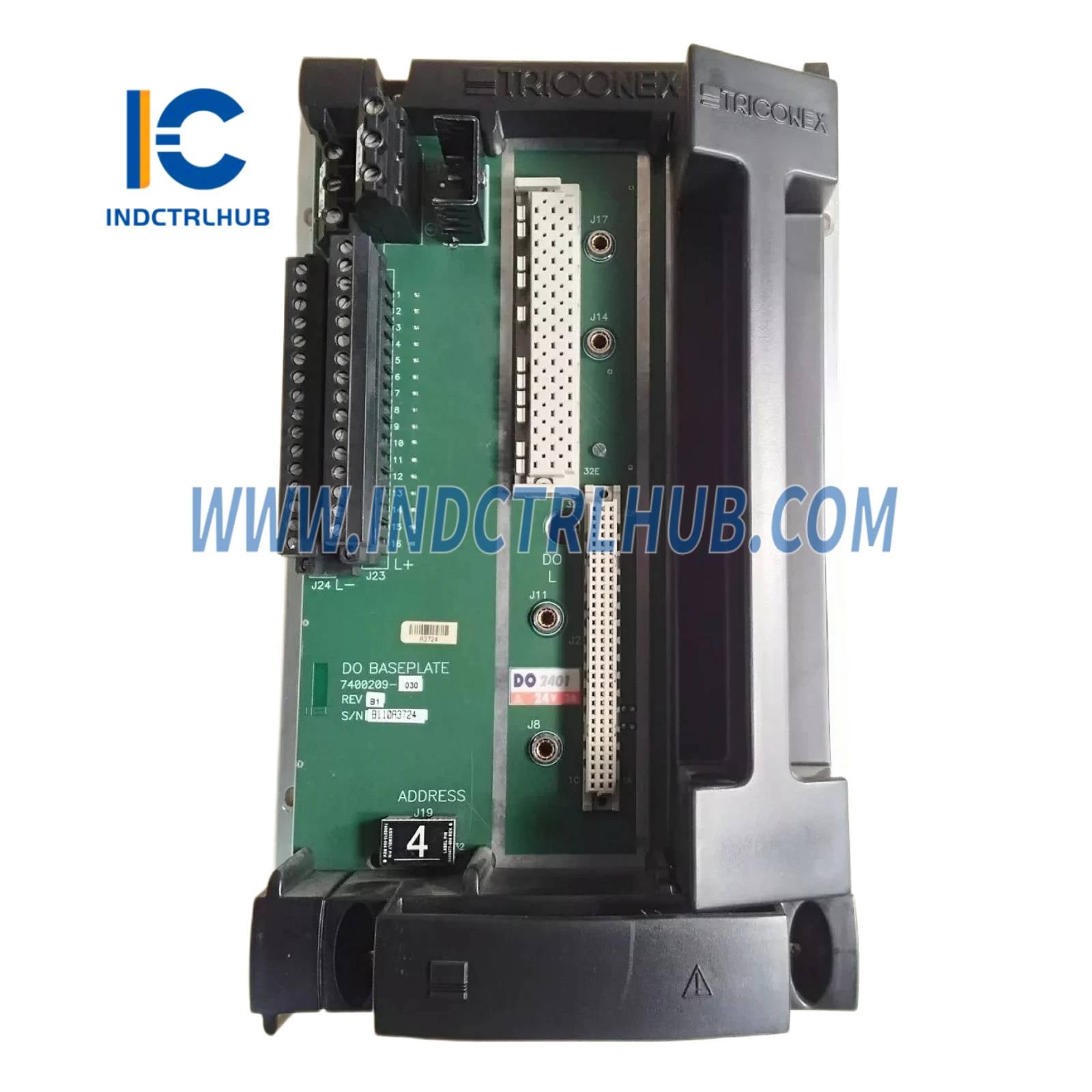

Triconex 2401 Digital Output Baseplate Kit
Triconex 2401 Digital Output Baseplate Kit
Manufacturer: Triconex
Product No.: 2401
Condition:1000 in stock
Product Type: Digital Output Baseplate Kit
Product Origin: USA
Payment: T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model/Part Number | 2401 |
| Description | Digital Output Baseplate Kit for Triconex Trident safety systems, designed to interface with digital output modules for controlling process elements in safety-critical environments |
| Key Features | Supports 16-channel digital output modules, triple modular redundancy (TMR), includes I/O baseplate and interconnect assembly, hot-swappable, SIL 3 certified, supervised outputs |
Technical Specifications
| Specification | Details |
|---|---|
| Model | 2401 |
| Product Type | Digital Output Baseplate Kit |
| Series | Trident Safety System |
| Output Channels | 16 (per module) |
| Output Type | Digital, Relay |
| Output Rating | 24 VDC, 120 VAC, 240 VAC (depending on configuration) |
| Isolation | Optically isolated outputs, channel-to-channel and channel-to-backplane |
| Power Supply | 24 VDC (via chassis backplane) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Dimensions | Approx. 300 x 100 x 200 mm (11.8 x 3.9 x 7.9 in) |
| Weight | Approx. 1.5 kg (3.3 lbs) |
| Certifications | SIL 3 (IEC 61508), CE |
External Connection Options
| Connection Type | Details |
|---|---|

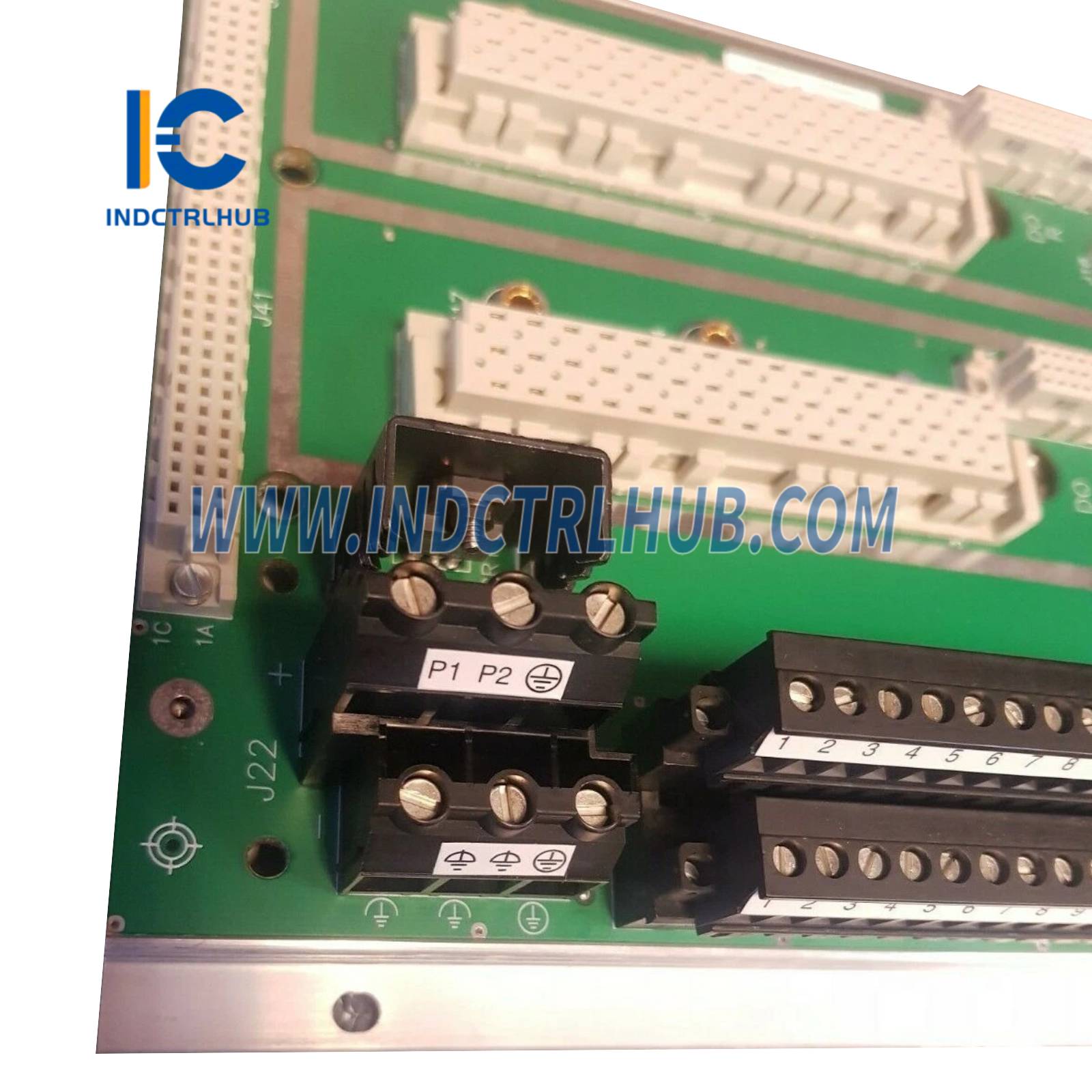

| Supported Connections | Terminal cover for field wiring, integrates with Trident chassis backplane, compatible with 3401 digital output module |
Functional Features
| Feature | Details |
|---|---|
| Digital Output Interface | Connects digital output modules to field devices for control |
| Supervised Outputs | Monitors for faults (open/short circuits), generating alarms and disabling faulty channels |
| Redundancy | Supports TMR architecture for fault-tolerant operation |
| Hot-Swappable | Allows module replacement without system shutdown |
| Diagnostics | Built-in diagnostics for output status and baseplate health |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | 2401 |
| Configuration | Standard, non-redundant baseplate, compatible with 3401 digital output module |
