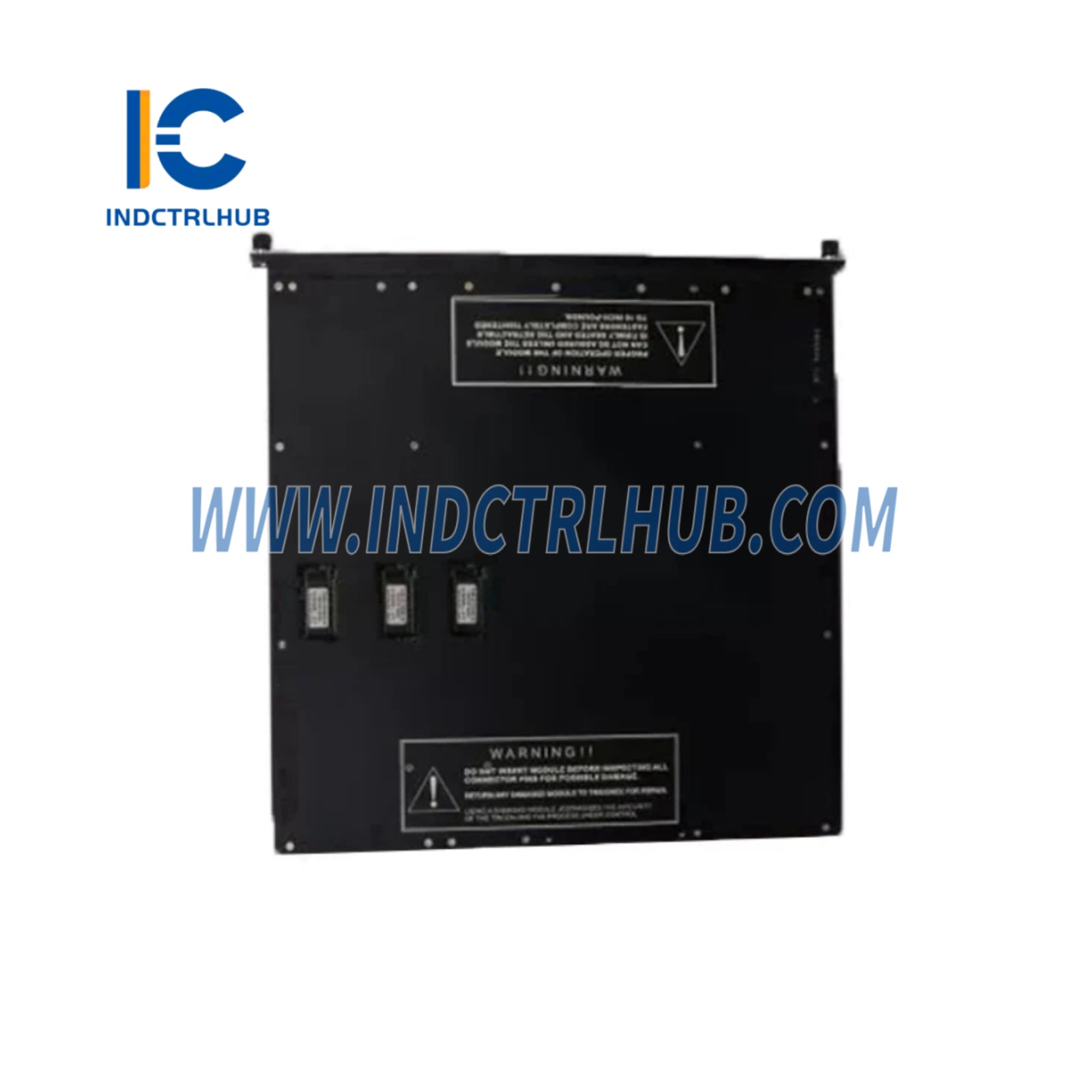

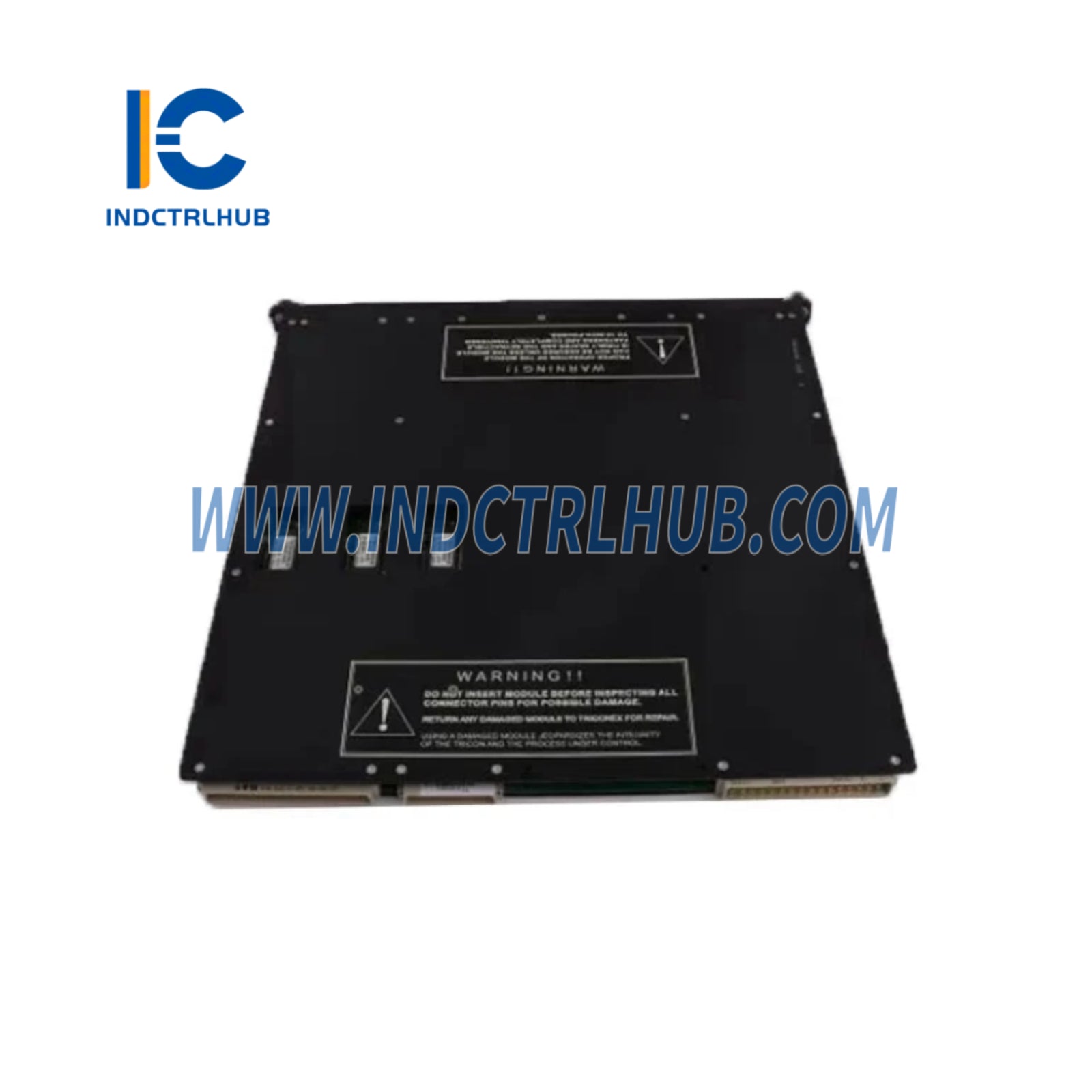

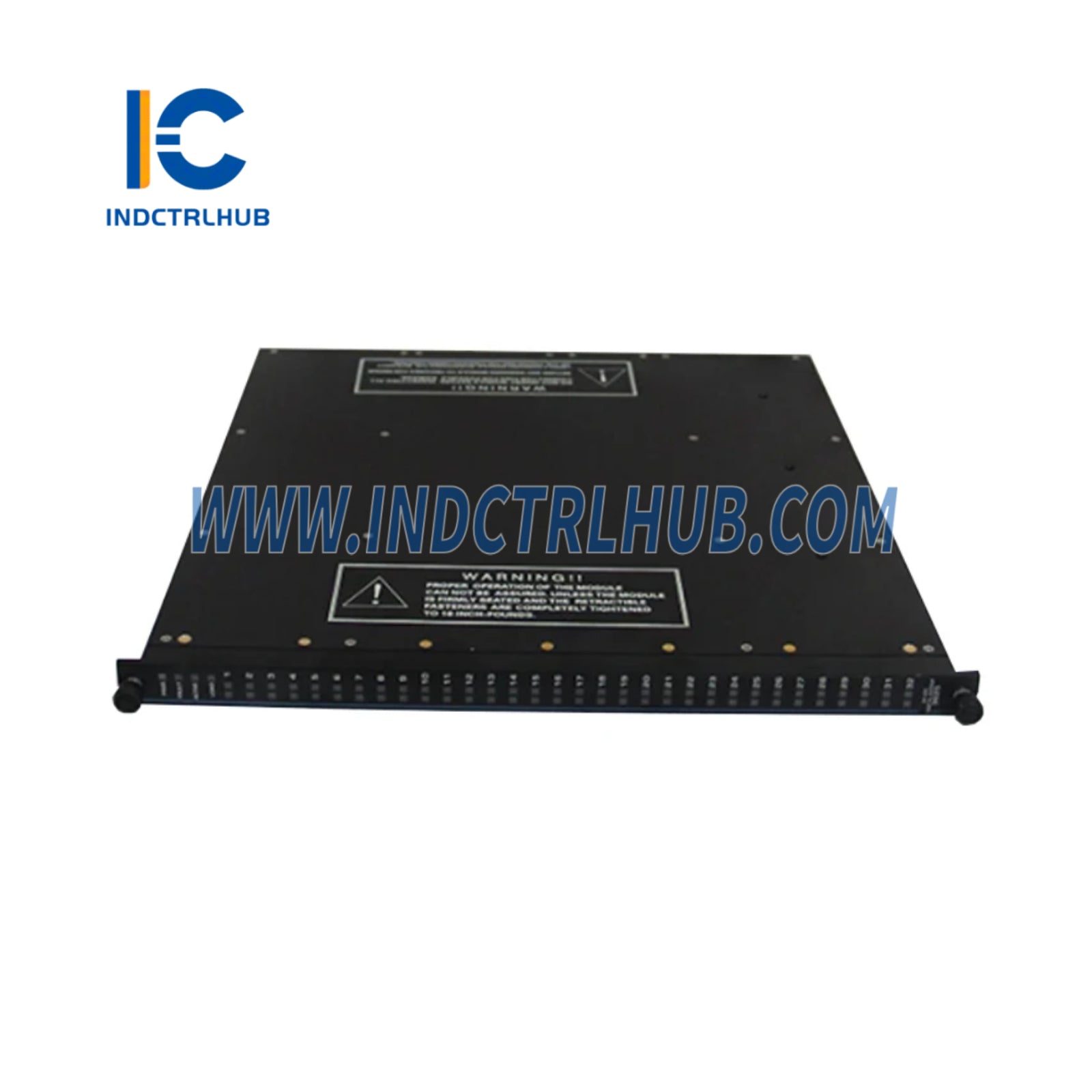

Triconex AP3101 Communication Module

Triconex AP3101 Communication Module

Product Overview

• The Triconex AP3101 is a high-performance Communication Module designed for Triconex safety instrumented systems (SIS) by Schneider Electric. Belonging to the Triconex Other Modules series, this module facilitates reliable and secure data transmission between safety controllers, I/O modules, and other devices within a safety instrumented system, supporting triple modular redundant (TMR) architectures. It is used in safety-critical applications across industries such as oil and gas, chemical, and power generation, ensuring compliance with stringent safety standards.

Technical Specifications

• The AP3101 has the following specifications based on standard characteristics for this model:

Additional Details

• The AP3101 includes the following additional information based on its standard use and documentation:
• Function: Enables secure communication between Triconex safety controllers, I/O modules, and external systems, transmitting process data, safety signals, and control commands in TMR configurations for fault-tolerant operation.
• Compatibility: Compatible with Triconex Tricon and Tricon CX systems; integrates with modules like 3008, 7400209B-030, and supports connectivity to distributed control systems (DCS) and field devices.
• Configuration: Supports multiple communication protocols (HART, Profibus, FOUNDATION Fieldbus) for flexible integration; features hot-swappable design for replacement without system disruption; configured via TriStation software for diagnostics and monitoring.
• Certifications: Certified to IEC 61508 for Safety Integrity Level 3 (SIL3); meets CE, UL, and standards for hazardous environments.
