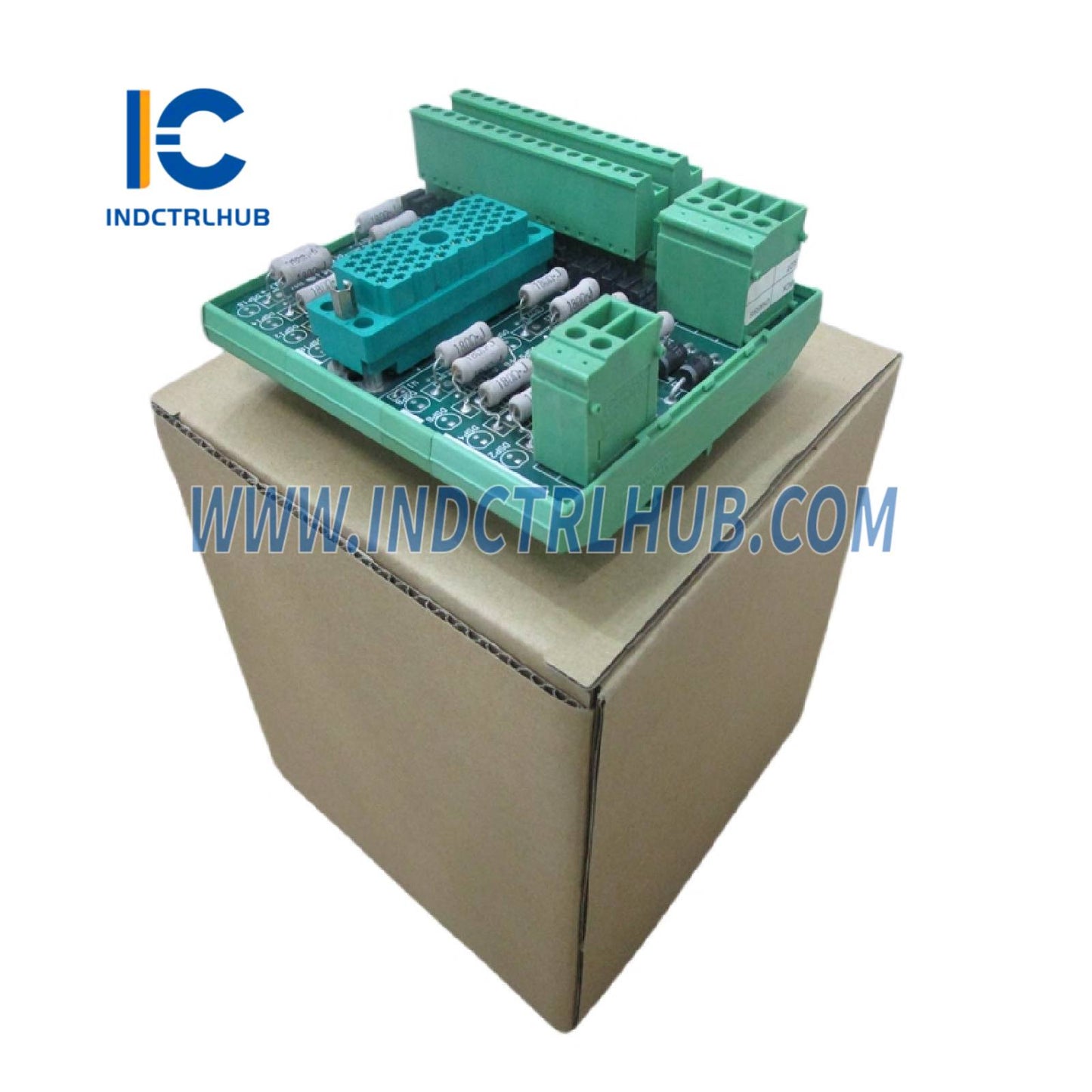

Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
9761-210 |
|
Model Type |
Analog Input Termination Panel (Current Input, 0–5 VDC) |
|
Description |
Termination panel for 0–5 VDC / ±5 VDC analog input modules and HART interface modules. |
⚙️

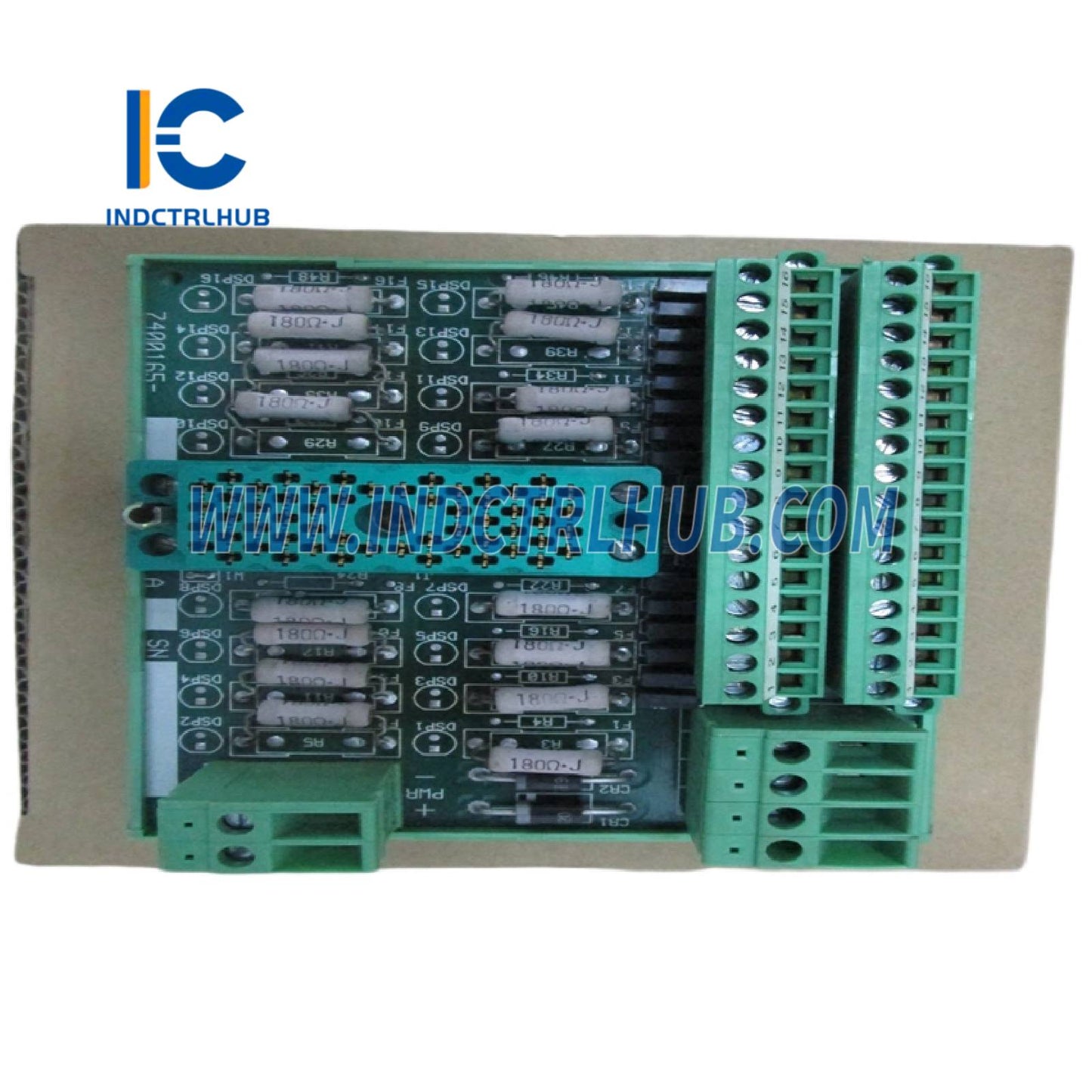

Technical Specifications – 9761-210
|
Feature |
Specification |
|---|---|
|
Panel Type |
Current input |
|
Total Points |
16 |
|
Power Terminals |
16 positive terminals (+), current-limited with 180 ohm series resistors |
|
Current Input Terminals |
16 negative terminals (–), each with precision 250 ohm current-to-voltage conversion resistors |
|
Power Redundancy Support |
Yes – supports redundant 24 VDC power sources with diode ORing |
|
Labeling |
Comes with 1–16 and 17–32 label sets for 32-point modules |
✅ Two panels are required per 32-point module.
🔌
Compatible Modules
|
Module Part Number |
Points per Module |
Description |
|---|---|---|
|
2770H |
32 |
HART analog input interface module |
|
3700 |
32 |
0–5 VDC, non-commoned, differential, DC-coupled, TMR |
|
3700A |
32 |
0–5 VDC, non-commoned, differential, DC-coupled, TMR with +6% over-range |
|
3721 |
32 |
±5 VDC or 0–5 VDC, differential, DC-coupled, TMR (input range selectable via TriStation) |
