Product Description

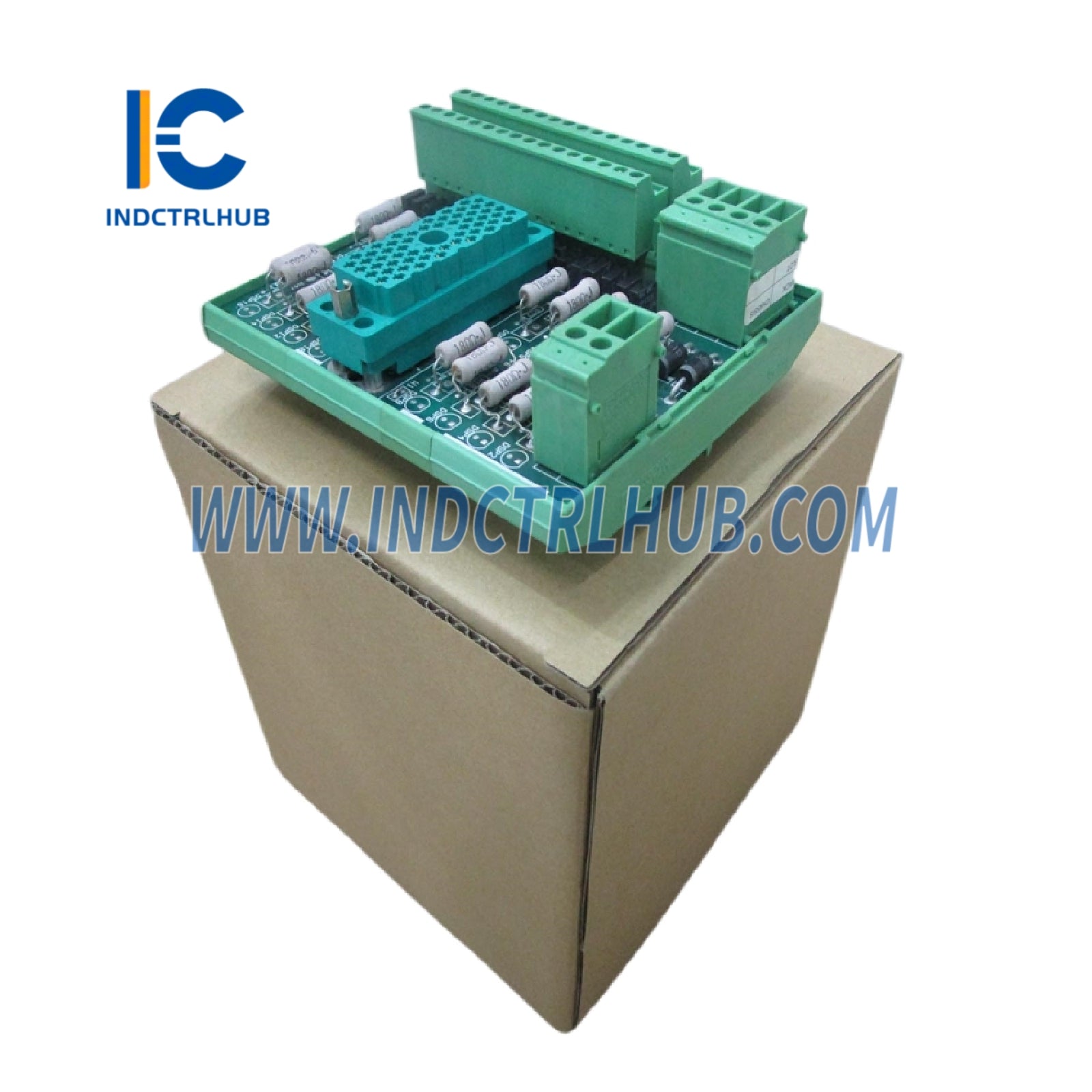

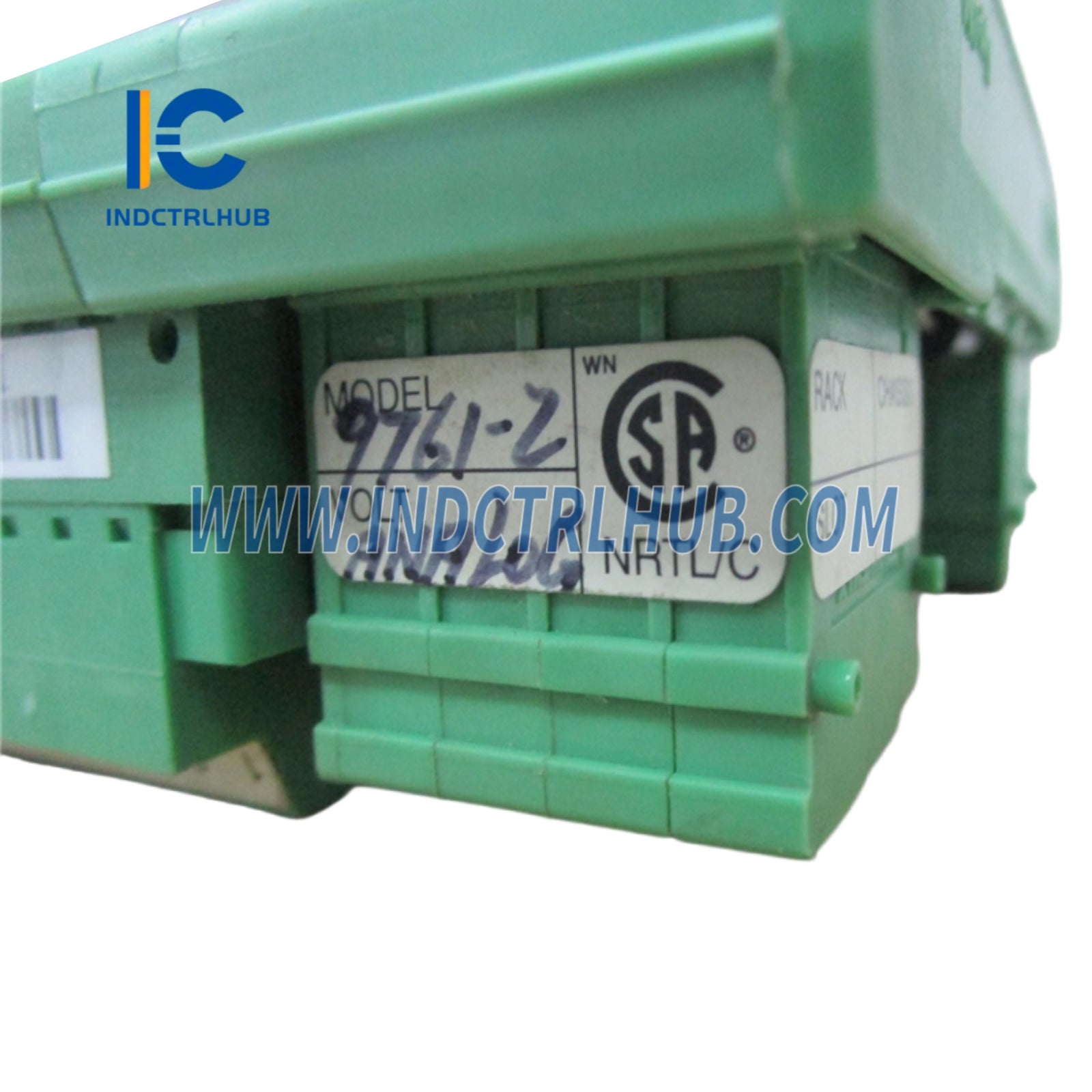

Triconex 9761-210F Analog Input Termination Panel
Product Overview
- The Triconex 9761-210F is an Analog Input Termination Panel designed for Triconex safety instrumented systems (SIS) by Schneider Electric. Belonging to the Triconex Other Modules series, this panel interfaces analog field devices, such as 4-20 mA transmitters, with Triconex analog input modules, ensuring reliable signal transmission in triple modular redundant (TMR) architectures. The "F" suffix typically indicates a fanned-out cable configuration, providing a cost-effective alternative to standard termination panels. It is used in safety-critical applications in industries like oil and gas, chemical, and power generation.
Technical Specifications
- The 9761-210F has the following specifications based on standard characteristics for the 9761-210 series:
| Specification | Details |
|---|---|
| Model/Part Number | 9761-210F |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Analog Input Termination Panel (Fanned-Out Cable) |
| Series | Triconex Other Modules |
| Signal Type | Analog Input, 4-20 mA, 0-5 VDC, -5 to +5 VDC |
| Channel Capacity | 16 points |
| Connector Type | Multi-pin connector to individual wire terminals |

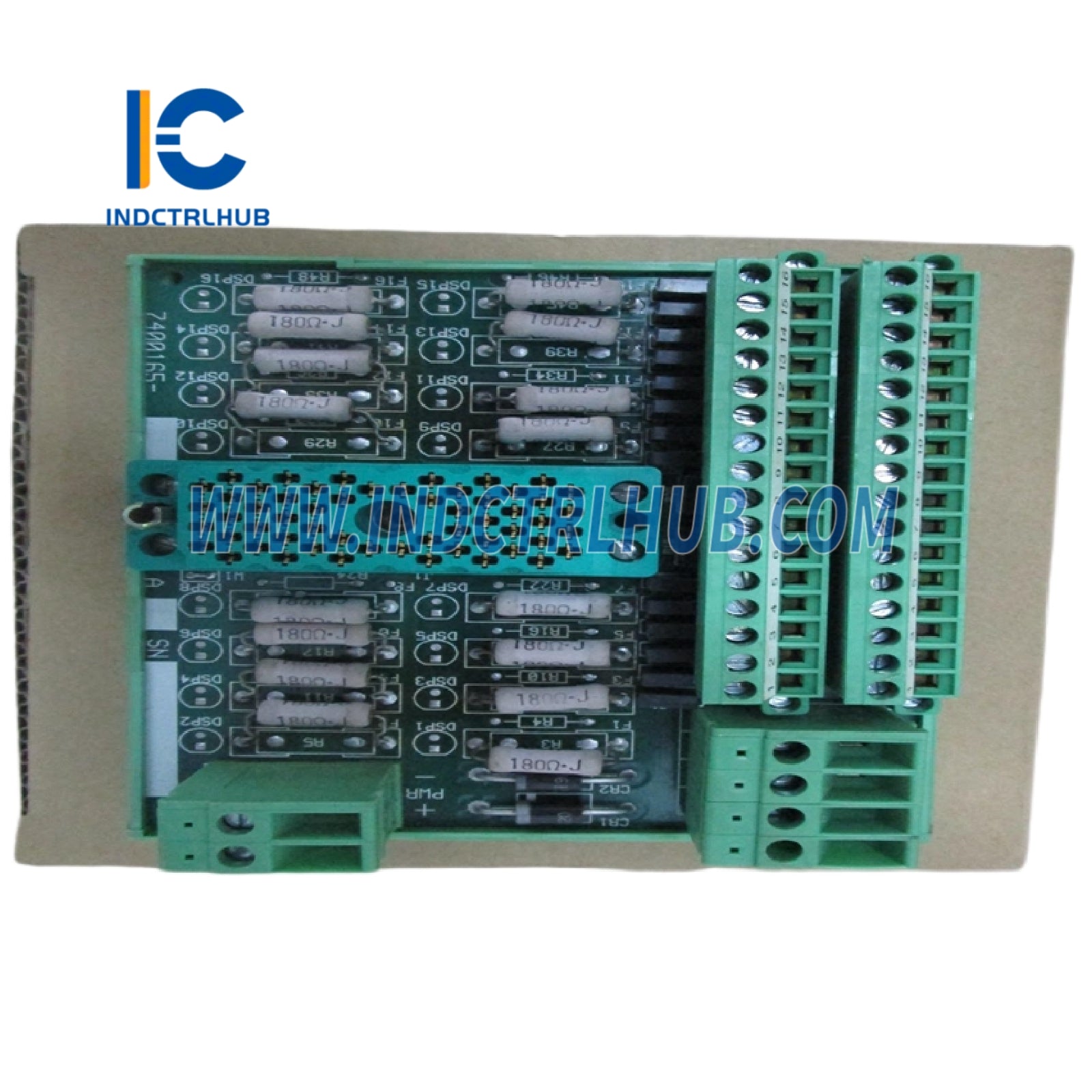

| Power Output Terminals | 16 (+), current-limited with 180 ohm series resistor |
| Input Terminals | 16 (-), with 250 ohm precision resistor for 0-5 VDC conversion |
| Power Source | Redundant 24 VDC with diode ORing |
| Length | 10 feet (3 meters, customizable in 10-foot increments) |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Weight | Approx. 0.5 kg |
Additional Details
- The 9761-210F includes the following additional information based on its standard use and documentation for the 9761-210 series:
- Function: Connects analog field devices to Triconex analog input modules (e.g., 3700, 3700A, 3721) or HART AI interface modules (e.g., 2770H), converting current signals to voltage for processing in TMR systems.
