Product Description

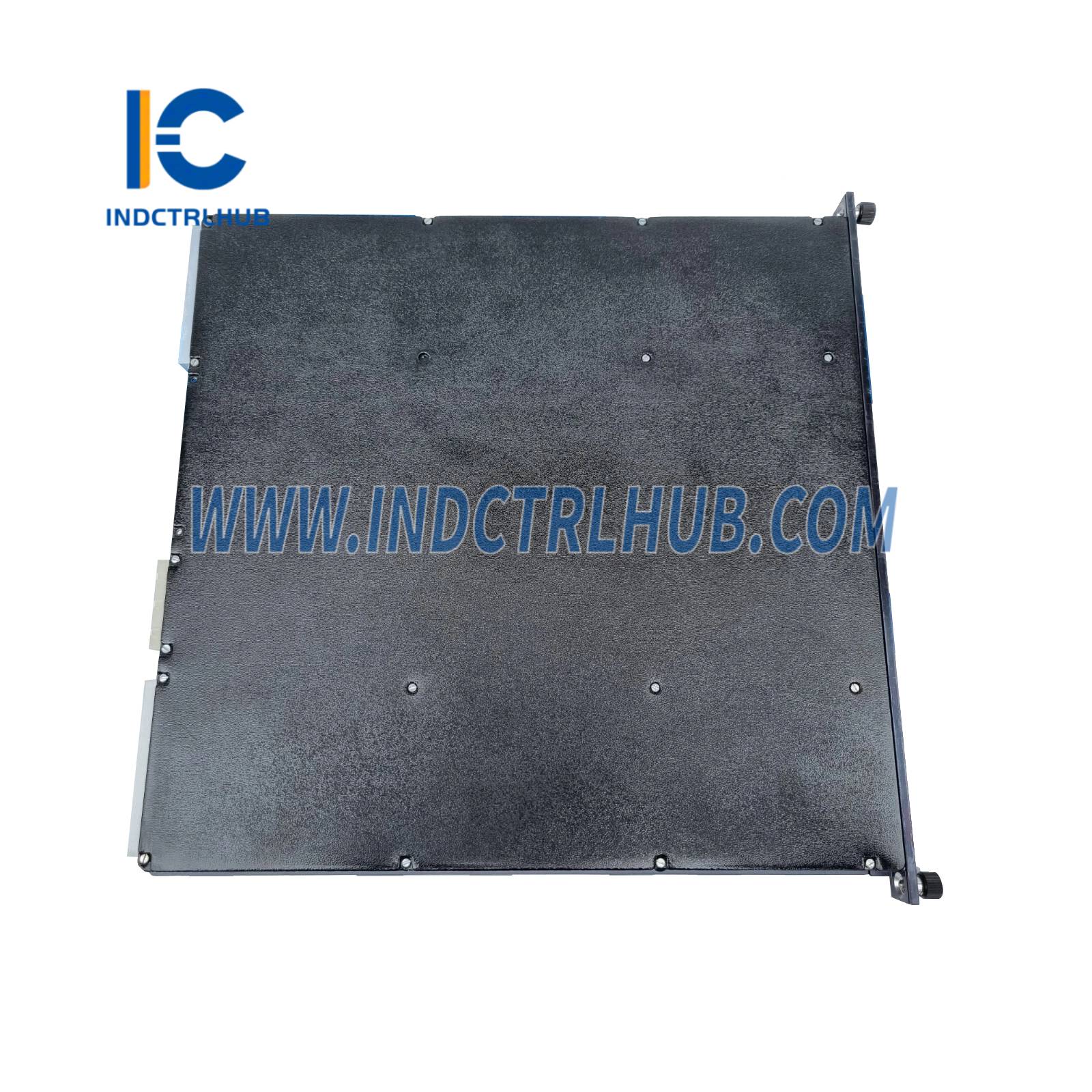

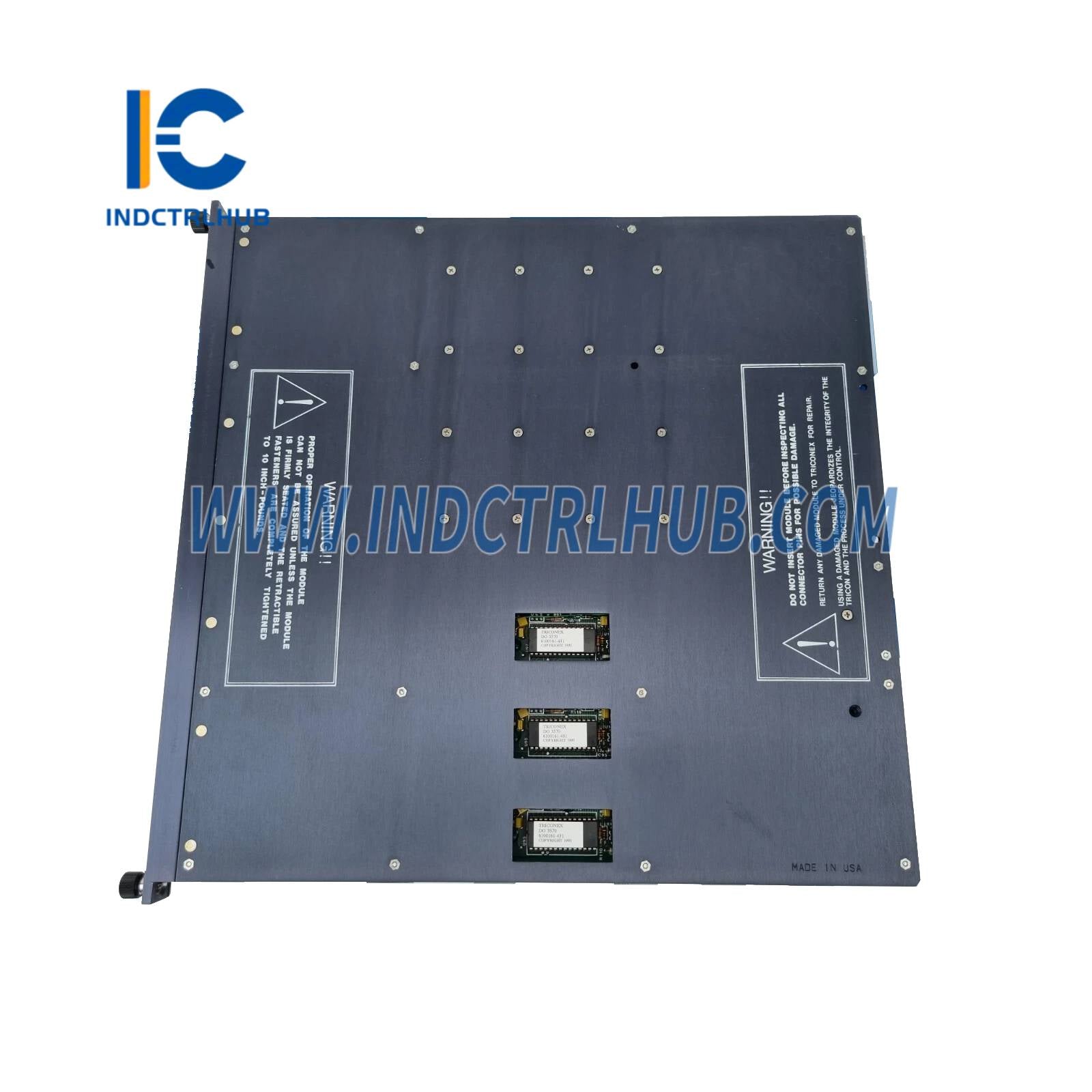

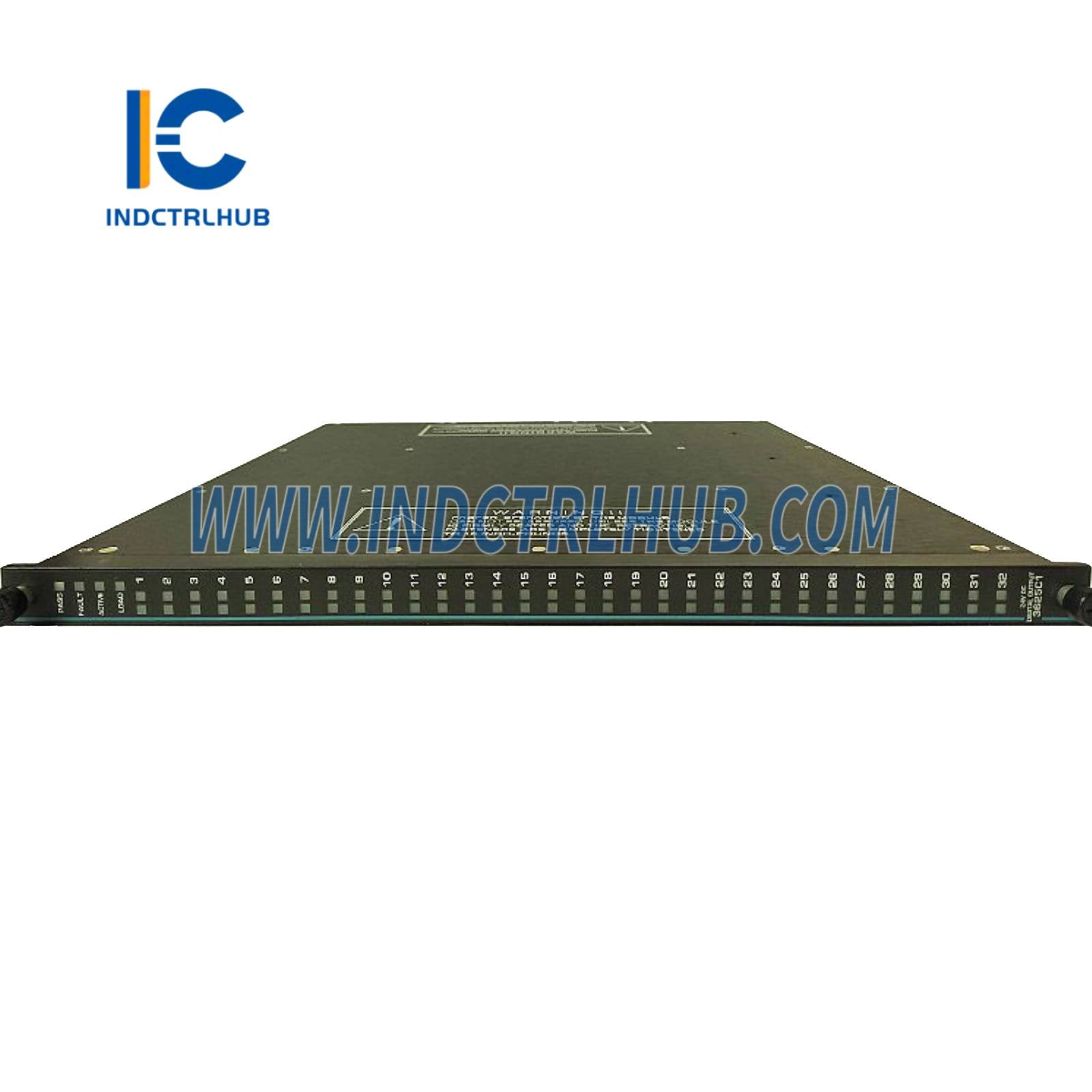

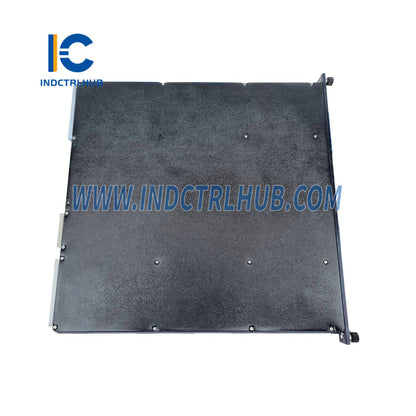

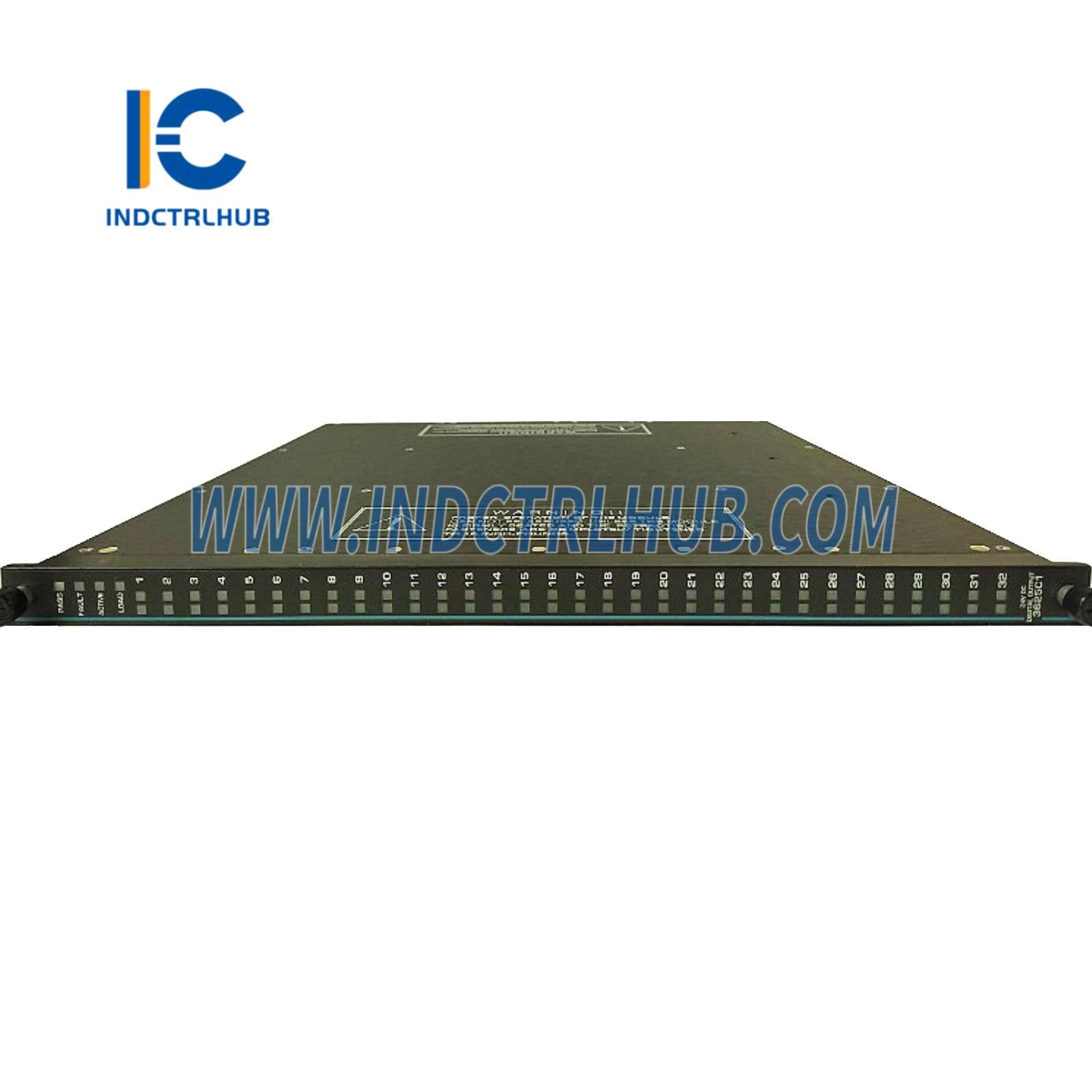

Triconex 3625C1-J Digital Output Module
Product Overview
- The Triconex 3625C1-J is a Digital Output Module designed for the Triconex Safety Instrumented System (SIS), part of Schneider Electric’s EcoStruxure Tricon platform. It provides supervised and non-supervised digital outputs for safety-critical applications, supporting the Triple Modular Redundant (TMR) architecture to ensure fault tolerance and high reliability. Used in industries such as oil and gas, chemical, and power generation, the 3625C1-J meets Safety Integrity Level 3 (SIL3) requirements for applications like emergency shutdown (ESD), fire and gas systems, and process control. The “C1-J” designation likely indicates a specific revision or configuration of the 3625 series, possibly with regional or application-specific adaptations.
Technical Specifications
- The 3625C1-J has the following specifications based on standard characteristics for the 3625 series:
| Specification | Details |
|---|---|
| Model/Part Number | 3625C1-J |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Digital Output Module, 24V DC, Supervised/Non-Supervised |
| Series | Tricon Safety System |
| Output Channels | 32 supervised or non-supervised outputs |
| Output Type | 24V DC |
| Voltage Range | 18-30V DC |
| Current Rating | 0.1 A per channel, 3.2 A total |
| Safety Integrity Level | SIL3 (TÜV certified) |
| Power Consumption | Approx. 10 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 0.8 kg |
