Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Triconex (Schneider Electric) |
|
Model/Part Number |

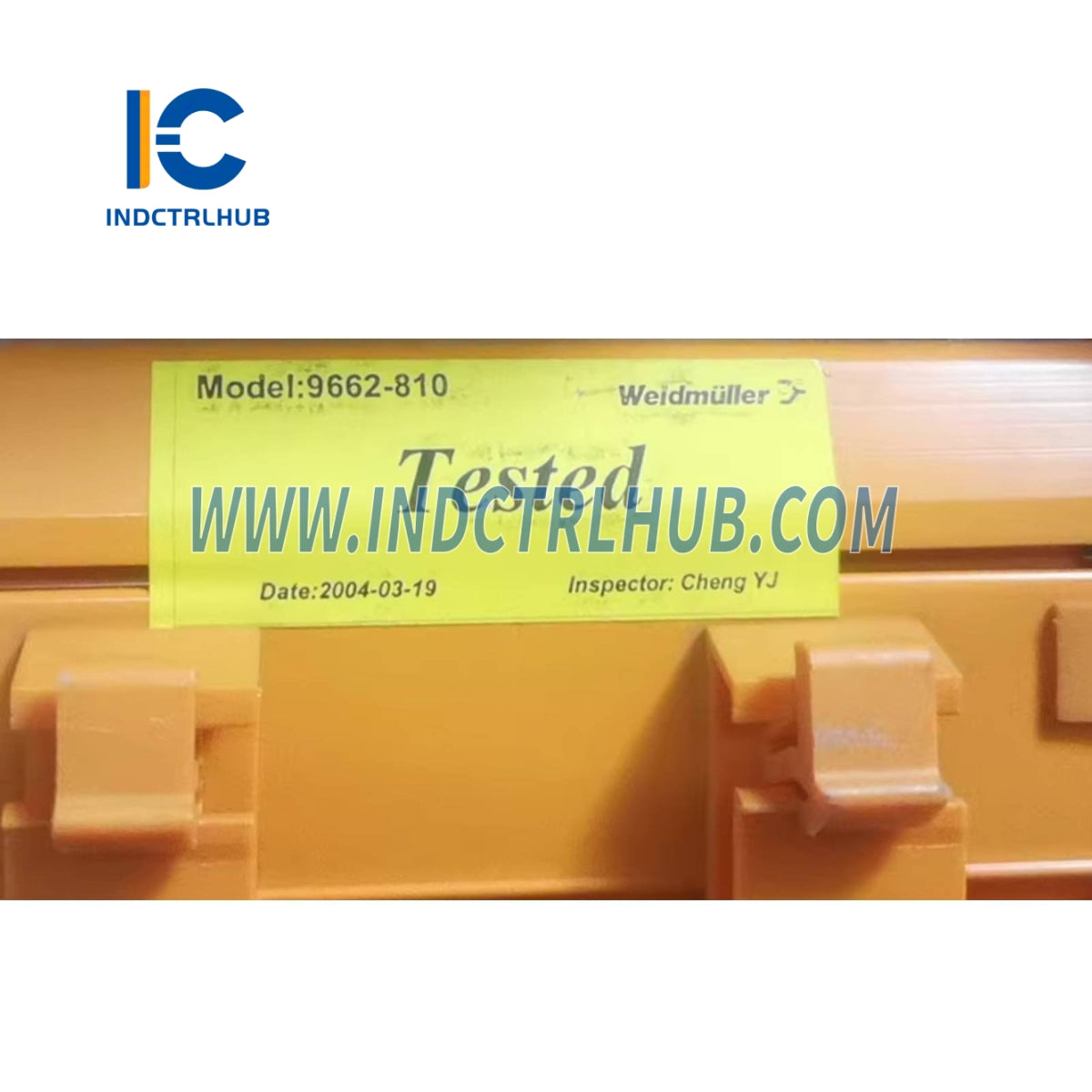

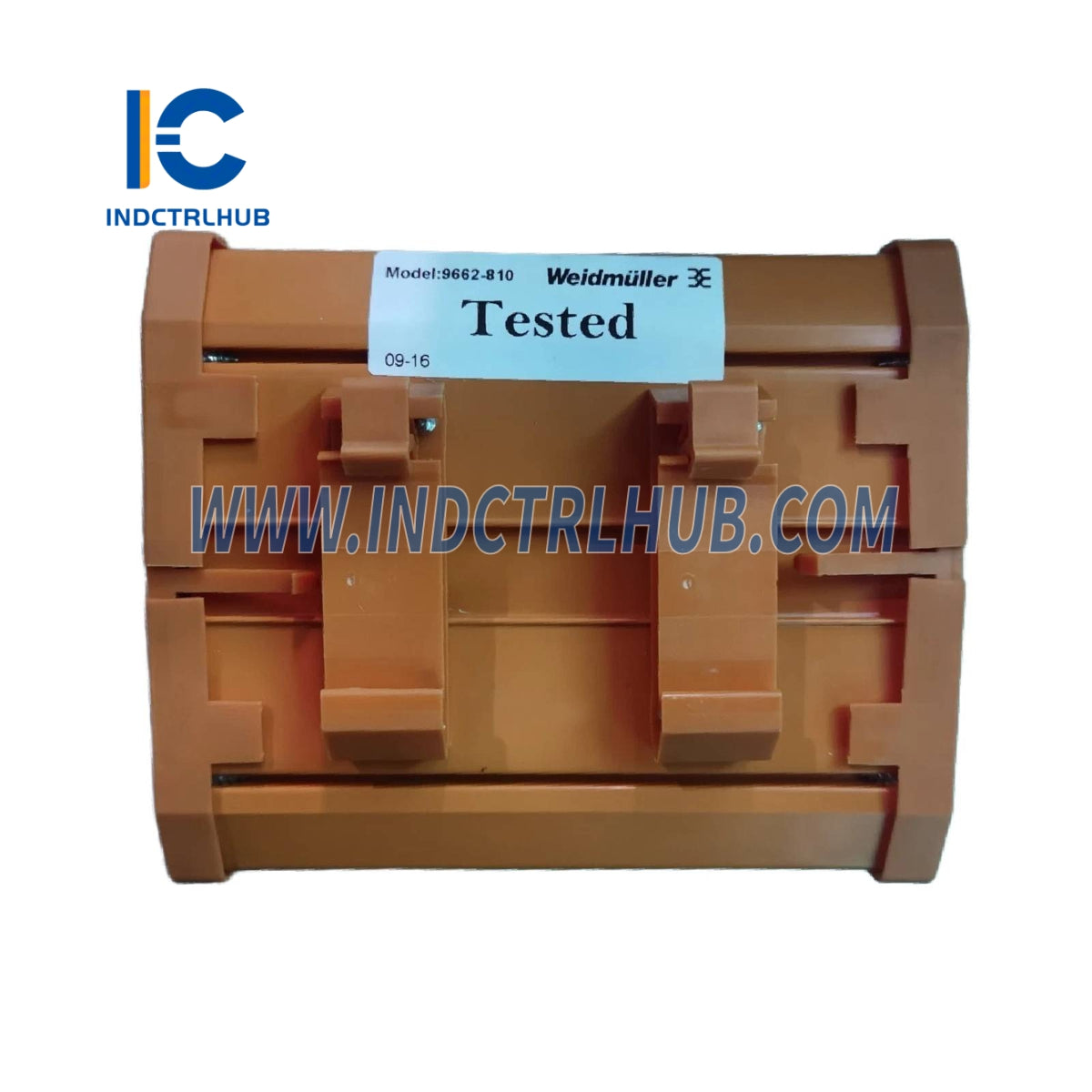

9662-810 |
|
Description |

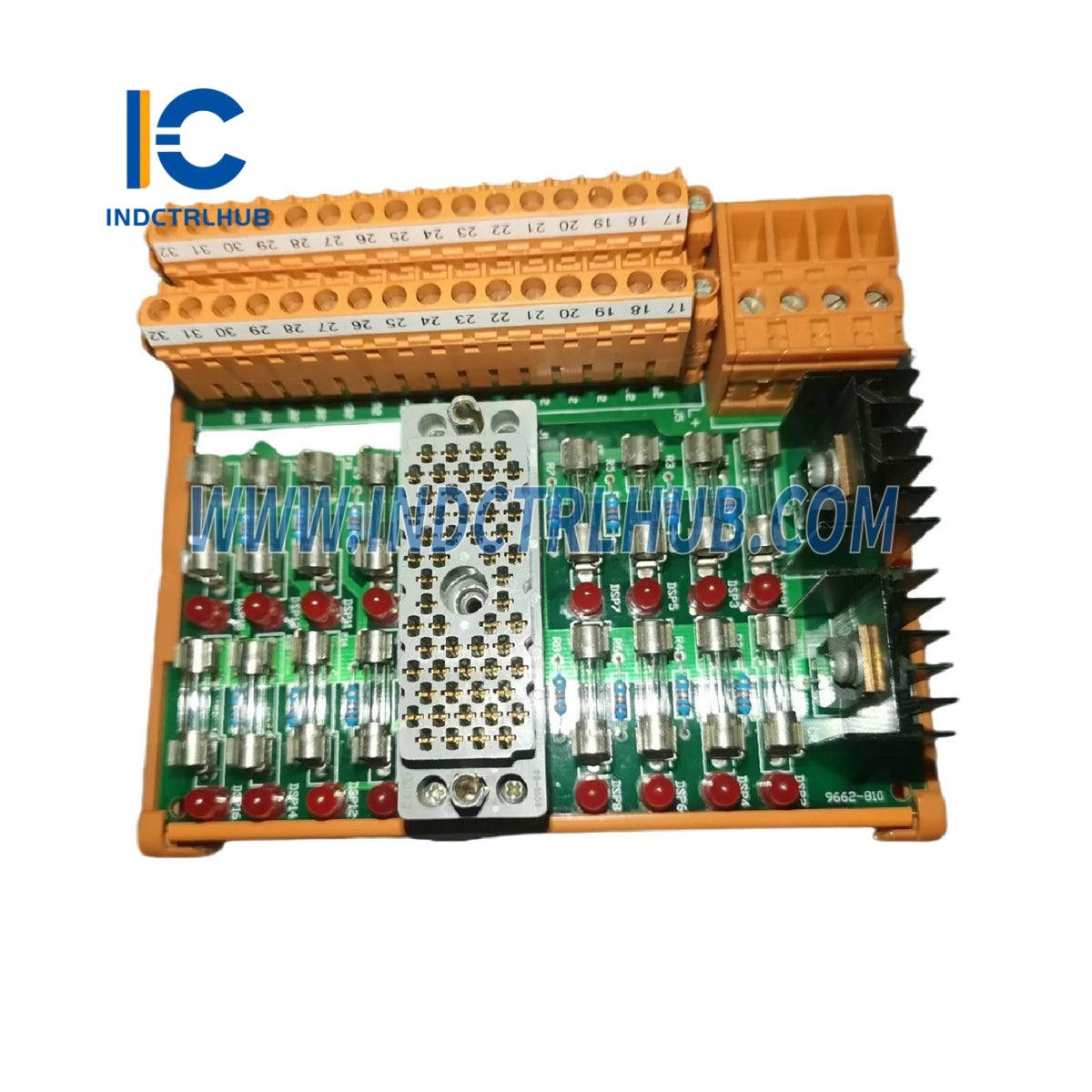

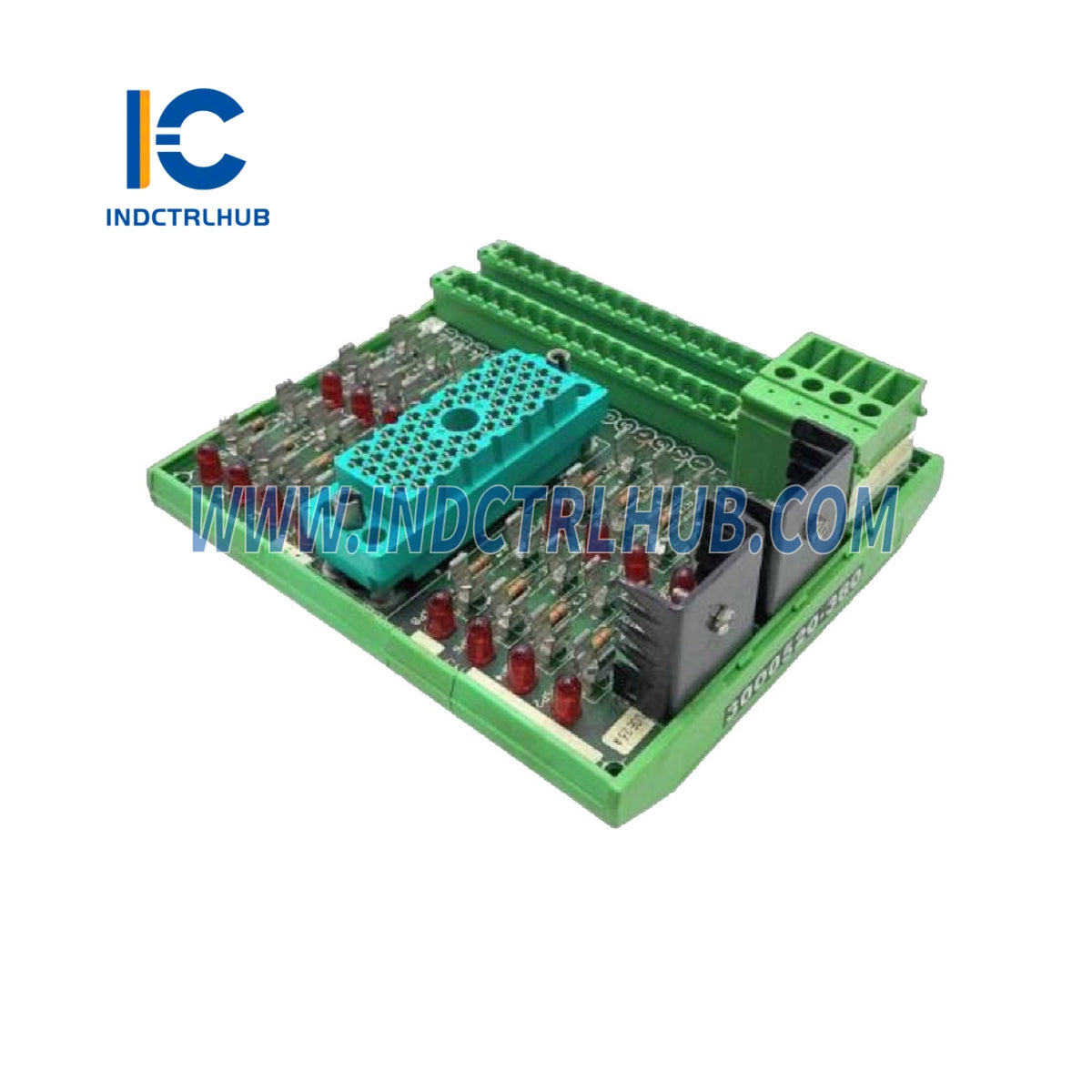

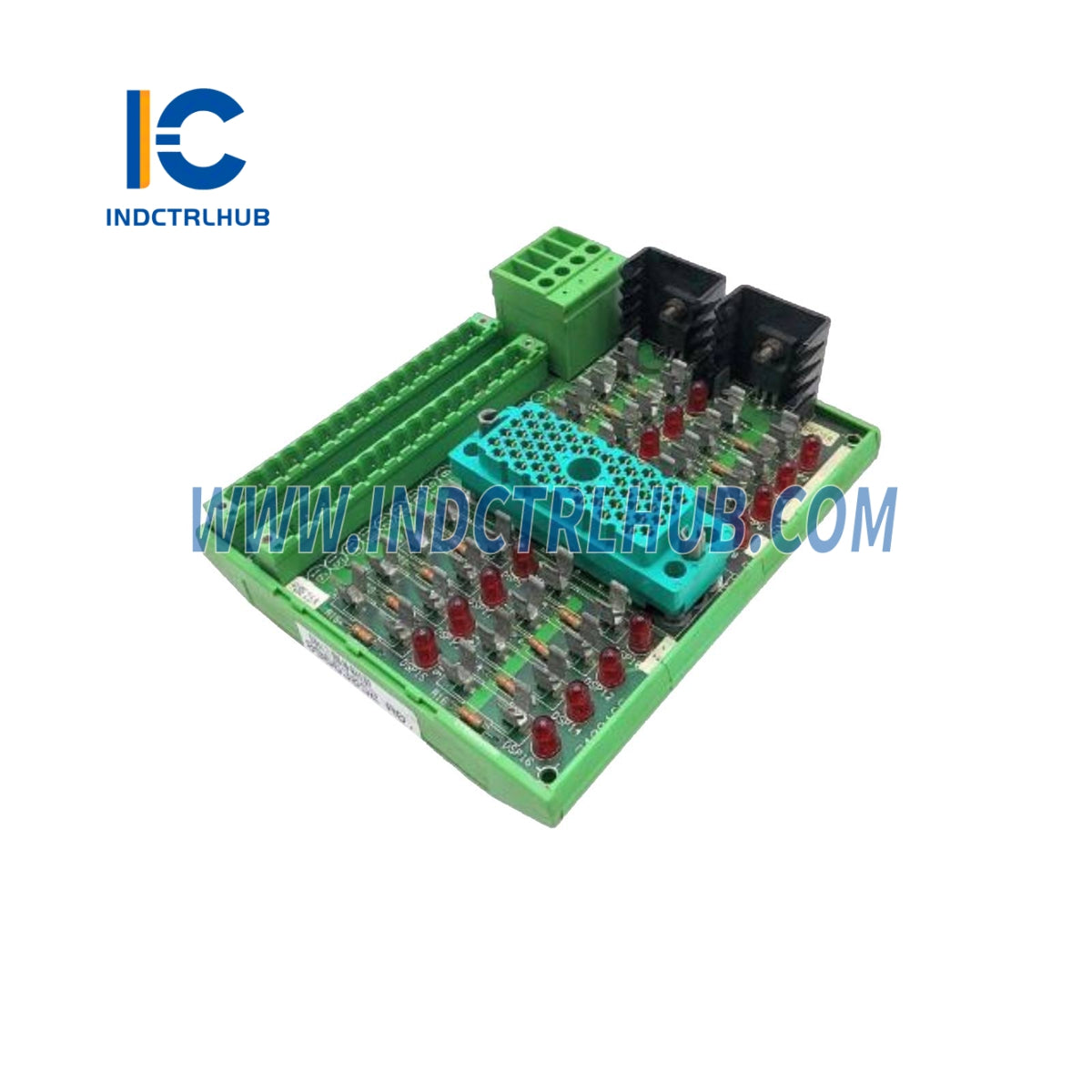

24 VDC digital output termination panel with 16 load points and commoned power terminals. Designed for use with specific TMR digital output modules. |
Key Features
-
16 load output points with commoned power terminals (PWR+ and PWR–)
-
Each output point protected by an individual 2.5A fast-acting fuse
-
Fuses equipped with blown-fuse indicators for easy diagnostics
-
Designed for use with self-protected digital output modules
-
Ideal for TMR (Triple Modular Redundant) configurations
Technical Specifications
|
Specification |
Details |
|---|---|
|
Panel Type |
Commoned |
|
Number of Points |
16 |
|
Maximum Total Current |
16 amps |
Compatible Modules
|
Module Part Number |
Points per Module |
Module Description |
Primary Fuse |
|---|---|---|---|
|
3604E |
16 |
24 VDC, non-commoned, opto-isolated, TMR digital output |
2.5A, fast-acting |
