Product Description

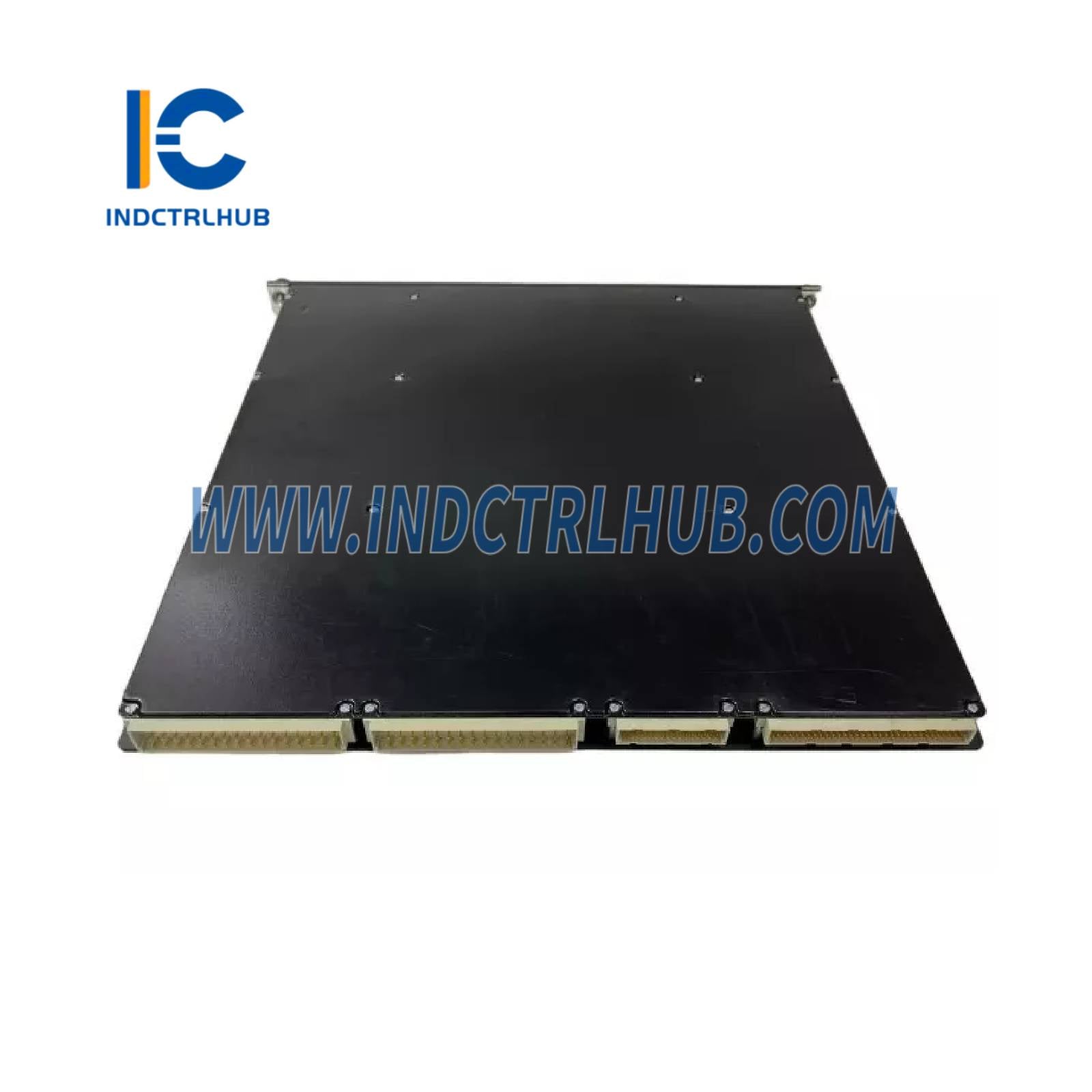

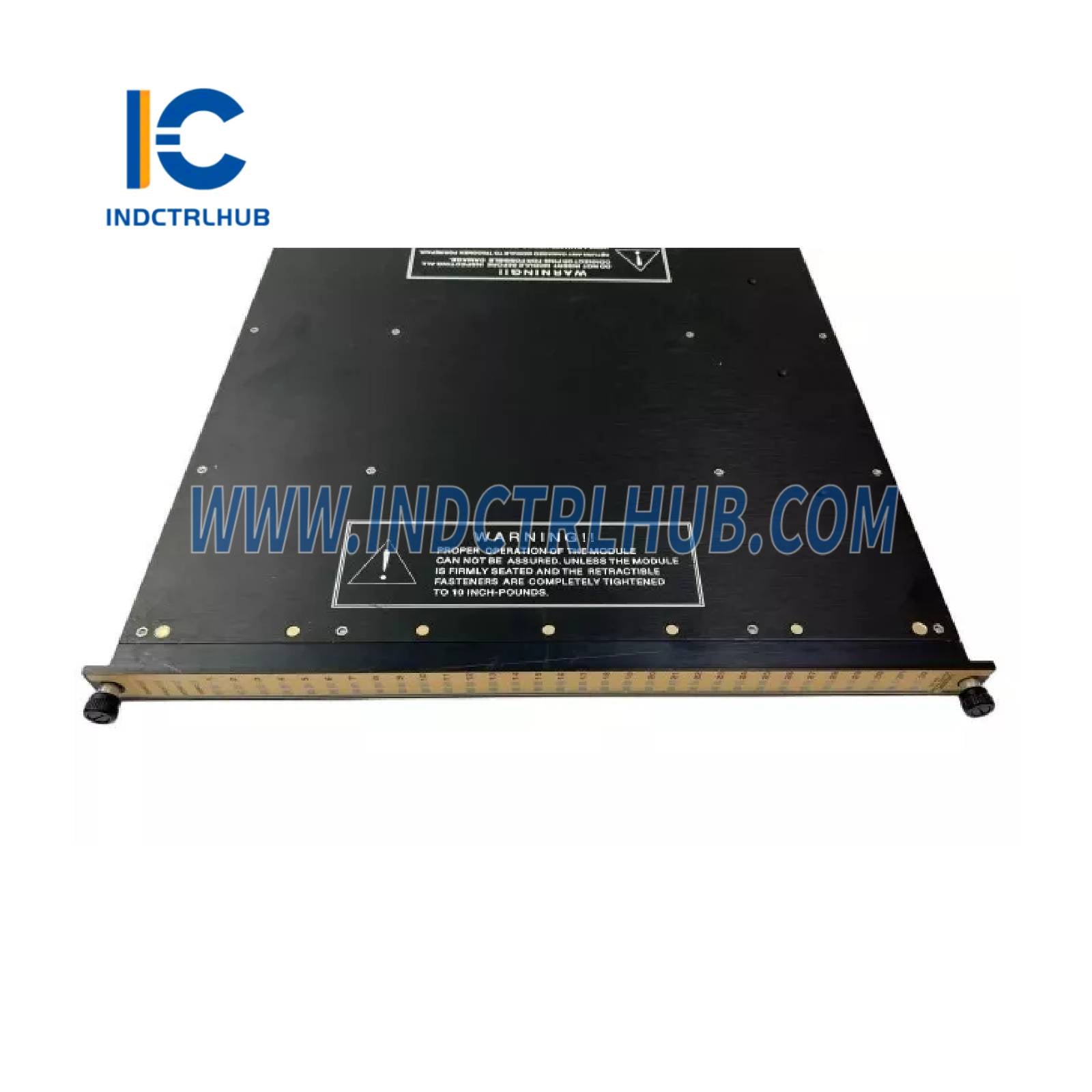

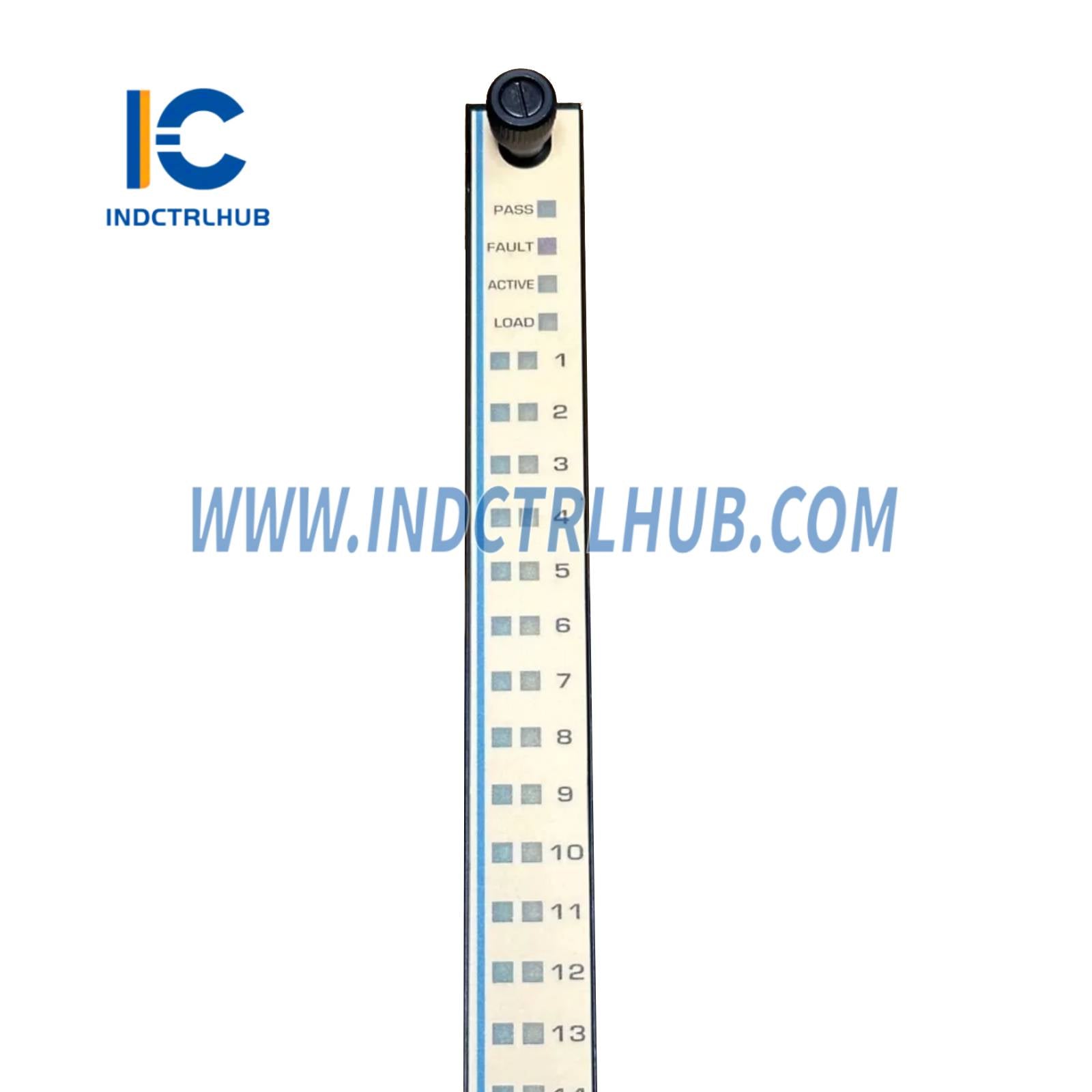

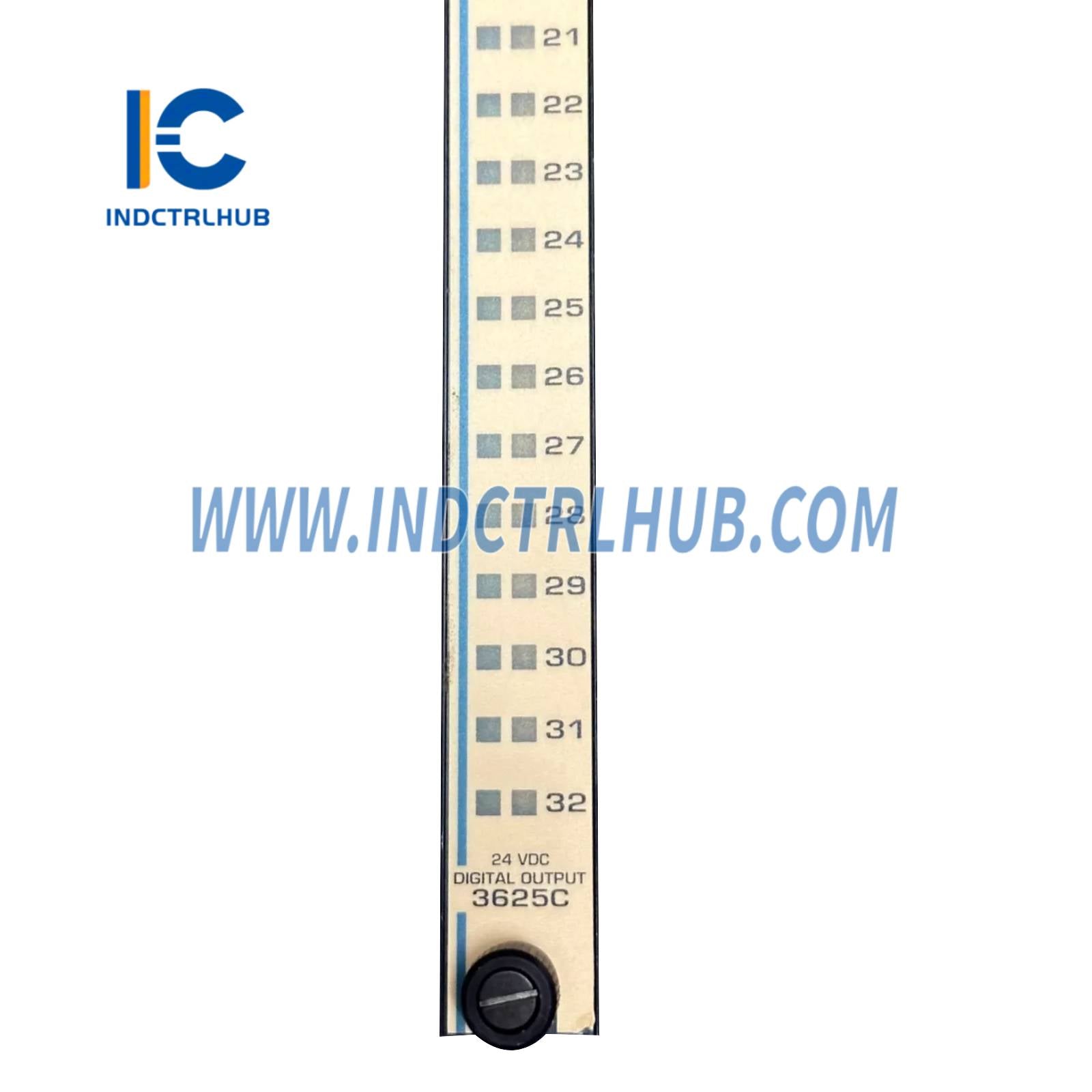

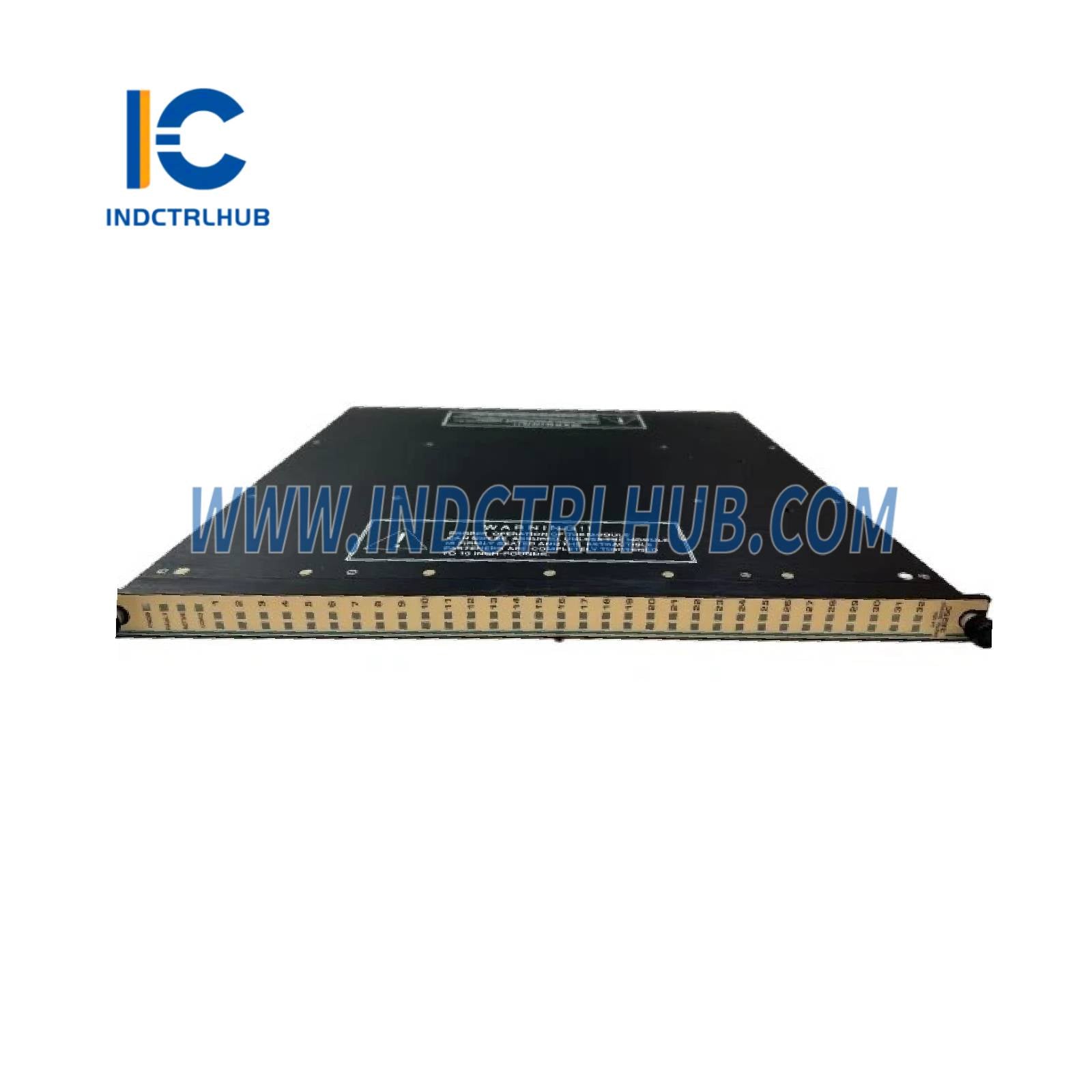

Triconex 3625C Digital Output Module
Product Overview
- The Triconex 3625C is a Digital Output Module designed for the Triconex Safety Instrumented System (SIS), part of Schneider Electric’s EcoStruxure Tricon platform. It provides supervised and non-supervised digital outputs for safety-critical applications, supporting the Triple Modular Redundant (TMR) architecture to ensure fault tolerance and high reliability. Used in industries such as oil and gas, chemical, and power generation, the 3625C meets Safety Integrity Level 3 (SIL3) requirements for applications like emergency shutdown (ESD), fire and gas systems, and process control.
Technical Specifications
- The 3625C has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 3625C |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Digital Output Module, 24V DC, Supervised/Non-Supervised |
| Series | Tricon Safety System |
| Output Channels | 32 supervised or non-supervised outputs |
| Output Type | 24V DC |
| Voltage Range | 18-30V DC |
| Current Rating | 0.1 A per channel, 3.2 A total |
| Current Consumption | 1.1 A |
| Safety Integrity Level | SIL3 (TÜV certified) |
| Power Consumption | Approx. 10 W |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | Approx. 150 x 120 x 50 mm |
| Weight | Approx. 0.8 kg |
Additional Details
- The 3625C includes the following additional information based on its standard use and documentation:
- Function: Sends digital signals to control external devices like valves, pumps, and alarms in safety-critical systems, ensuring reliable operation. Supports both supervised (with line monitoring) and non-supervised outputs for flexibility in safety applications such as ESD and fire and gas detection.
