Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
3401 |
|
Description |

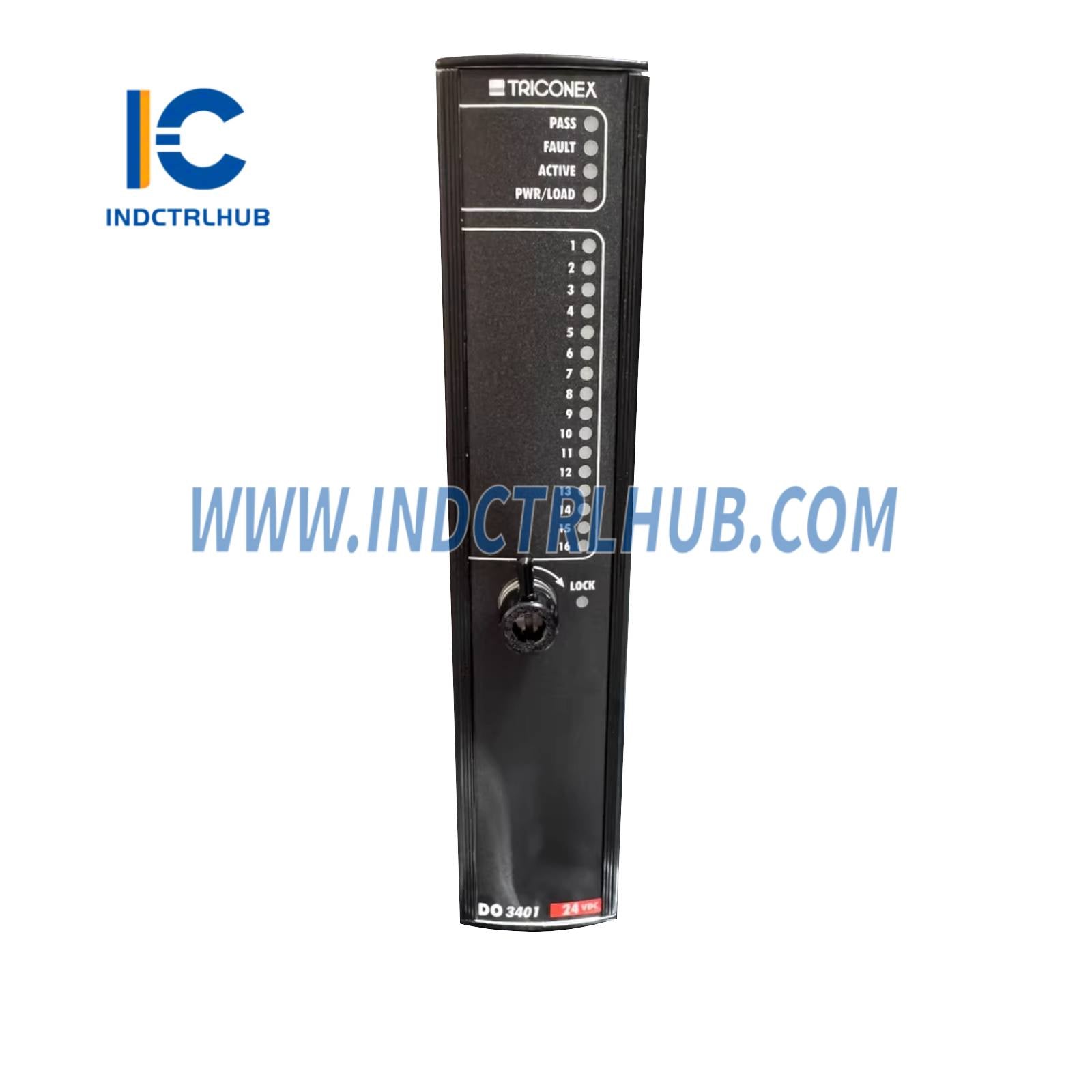

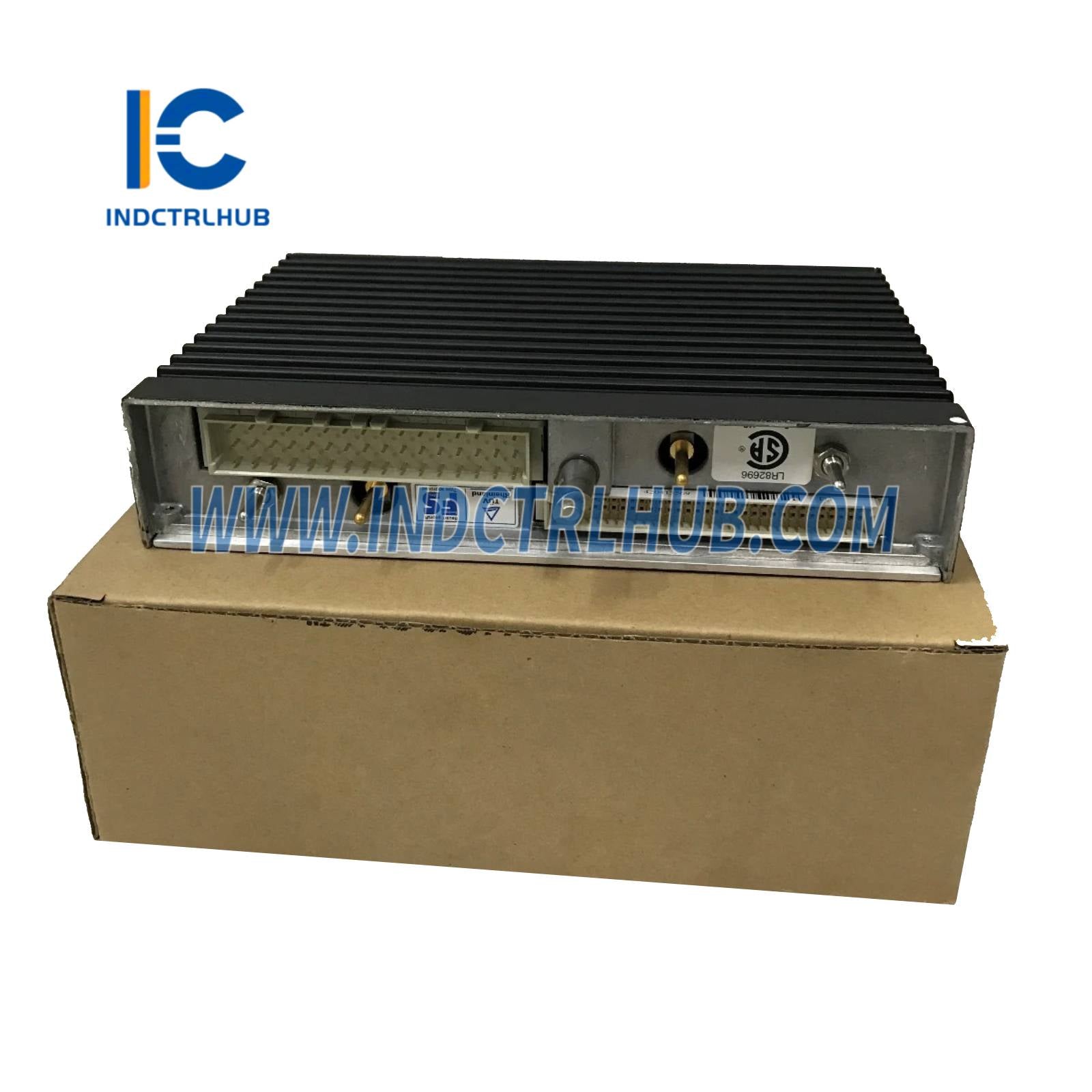

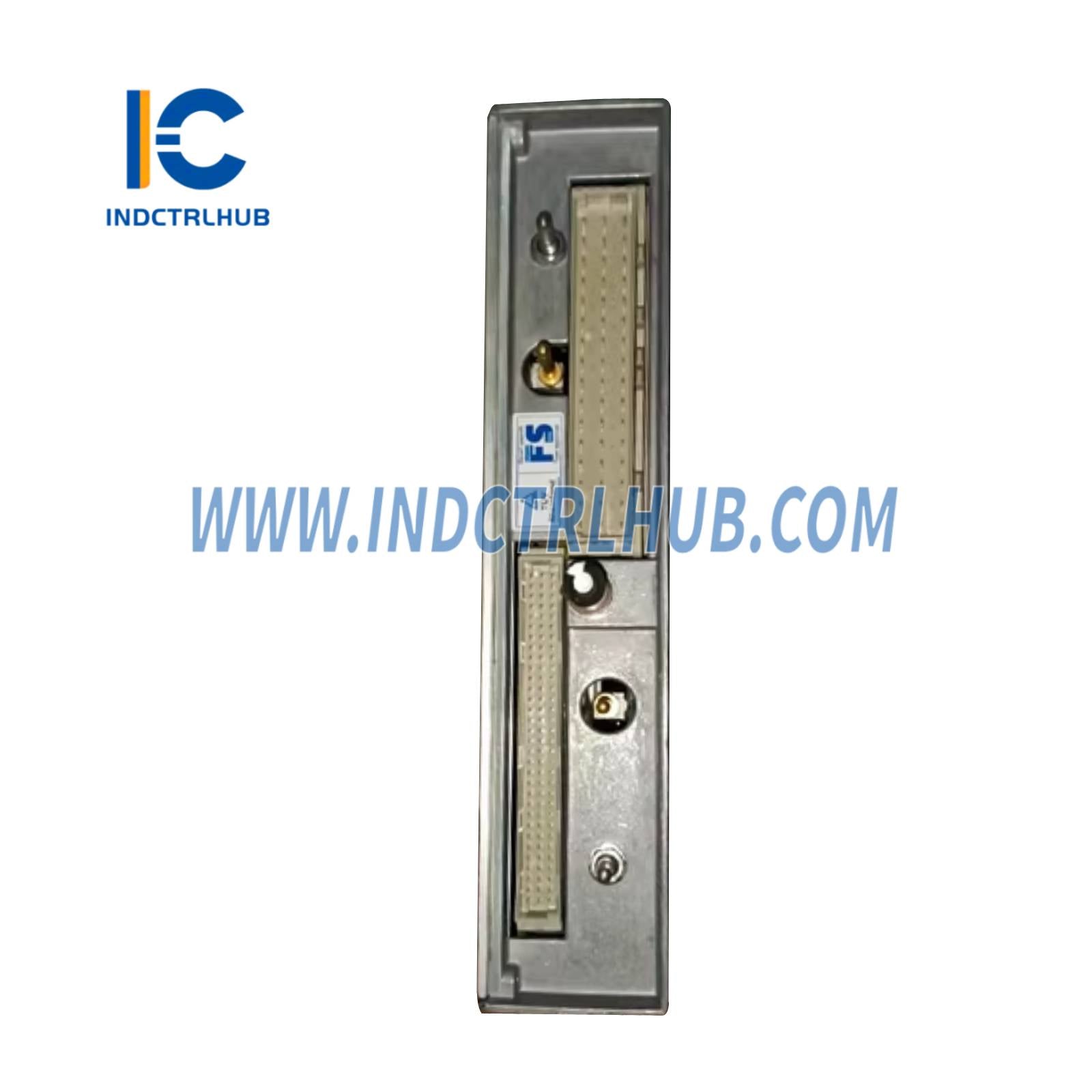

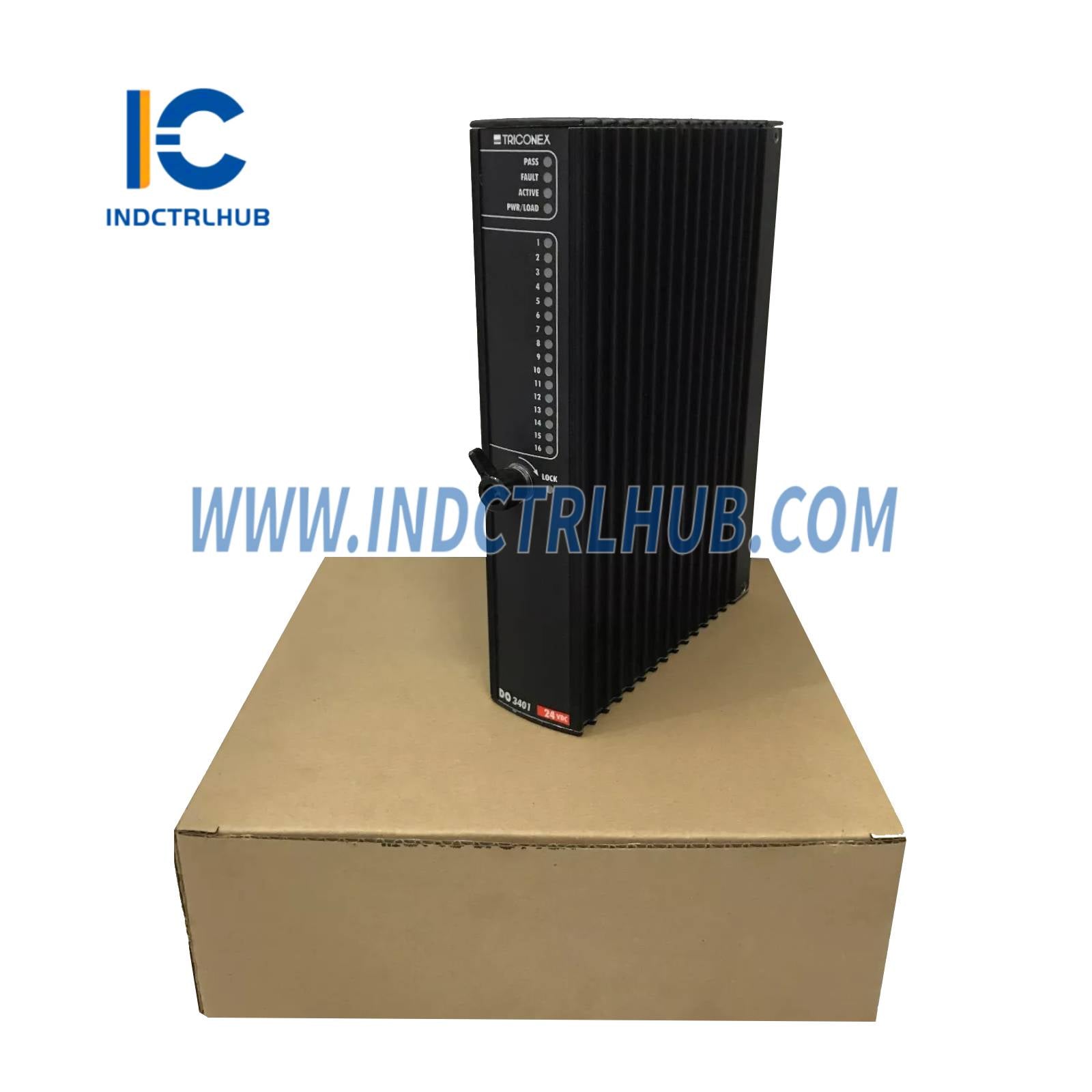

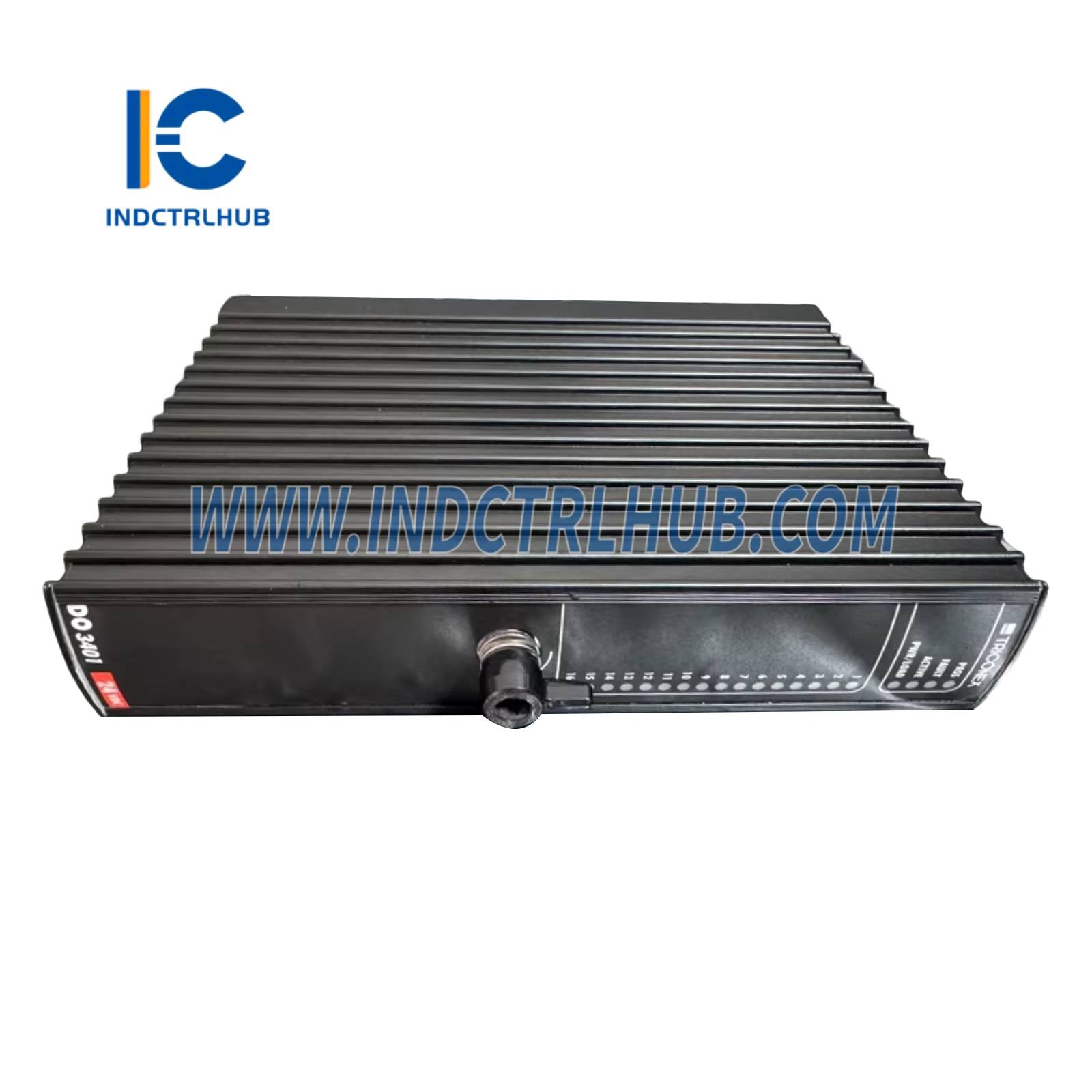

16-Point Digital Output Module (24 VDC) |
⚙️
Technical Specifications
|
Attribute |
Specification |
|---|---|
|
Number of Output Points |
16 (commoned) |
|
Nominal Output Voltage |
24 V DC |
|
Operational Voltage Range |
15–30 V DC |
|
Absolute Max Output Voltage |
33 V DC |
|
Absolute Max Reverse Input Voltage |
–0.6 V DC |
|
Output Current (Switching) |
< 4.8 A (self-limiting), 3 A typical |
|
Output Current (Carrying) |
> 0.7 A (self-limiting), 1.5 A typical |
|
On-State Voltage Drop |
< 1 V DC @ 1.5 A |
|
Leakage to Load (Off-State) |
< 1 mA |
|
Loop-Back Thresholds |
0–5 V DC = Off, 6–14 V = Transition, 15–30 V = On |
|
Loop-Back Scan Time |
< 1 ms for all 16 points |
|
Field Alarms |
Loss of field power, output point shorted (On/Off) |
|
Diagnostic Glitch Duration |
< 2 ms max, 500 µs typical |
|
Diagnostic Fault Coverage (Max Toggle Rate) |
> 20 ms |
|
Functional-to-Protective Earth Isolation |
≥ 500 V DC |
|
Functional-to-Logic Earth Isolation |
≥ 800 V DC |
