Product Description
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Triconex (Schneider Electric) |
|
Model/Part Number |
9563-810 |
|
Description |

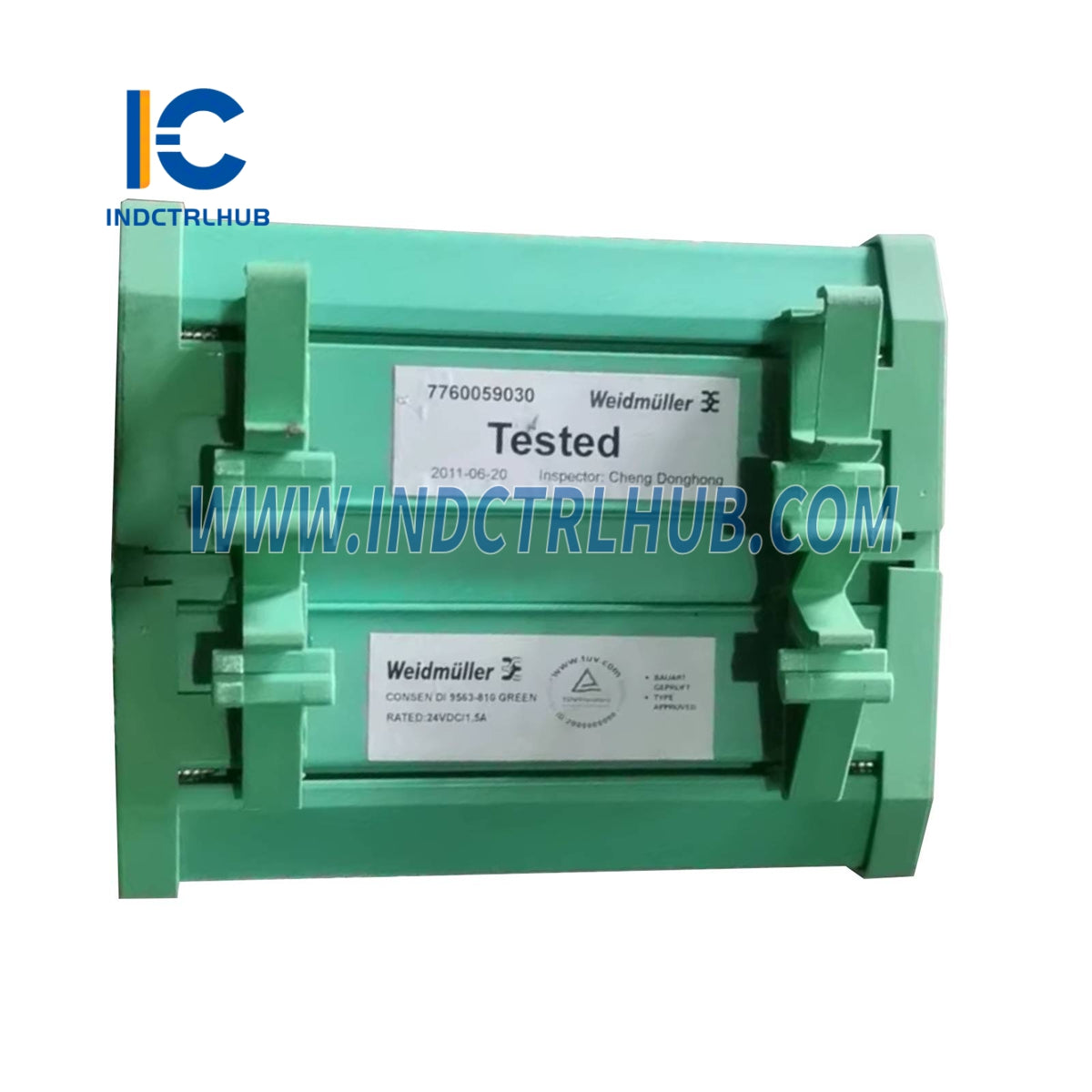

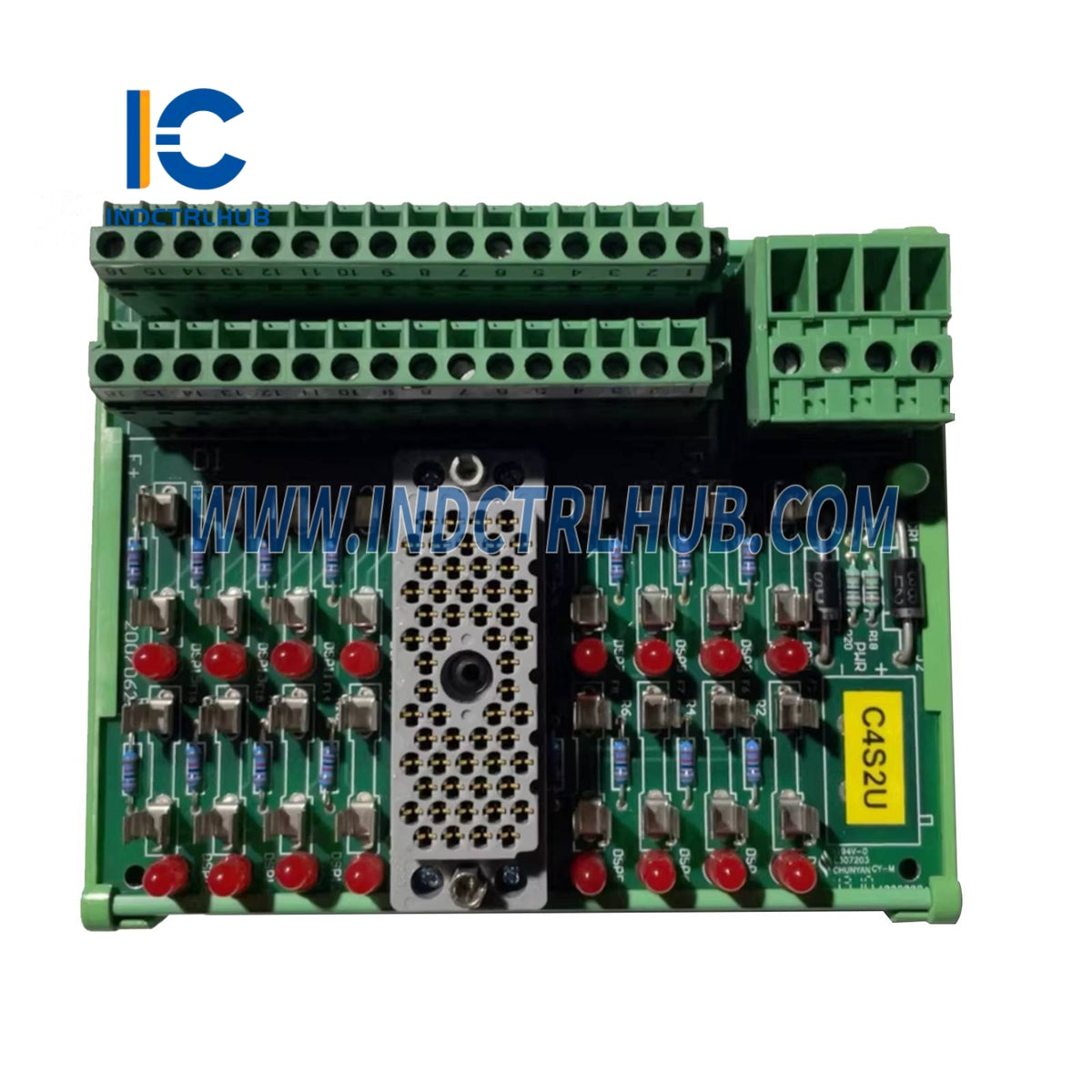

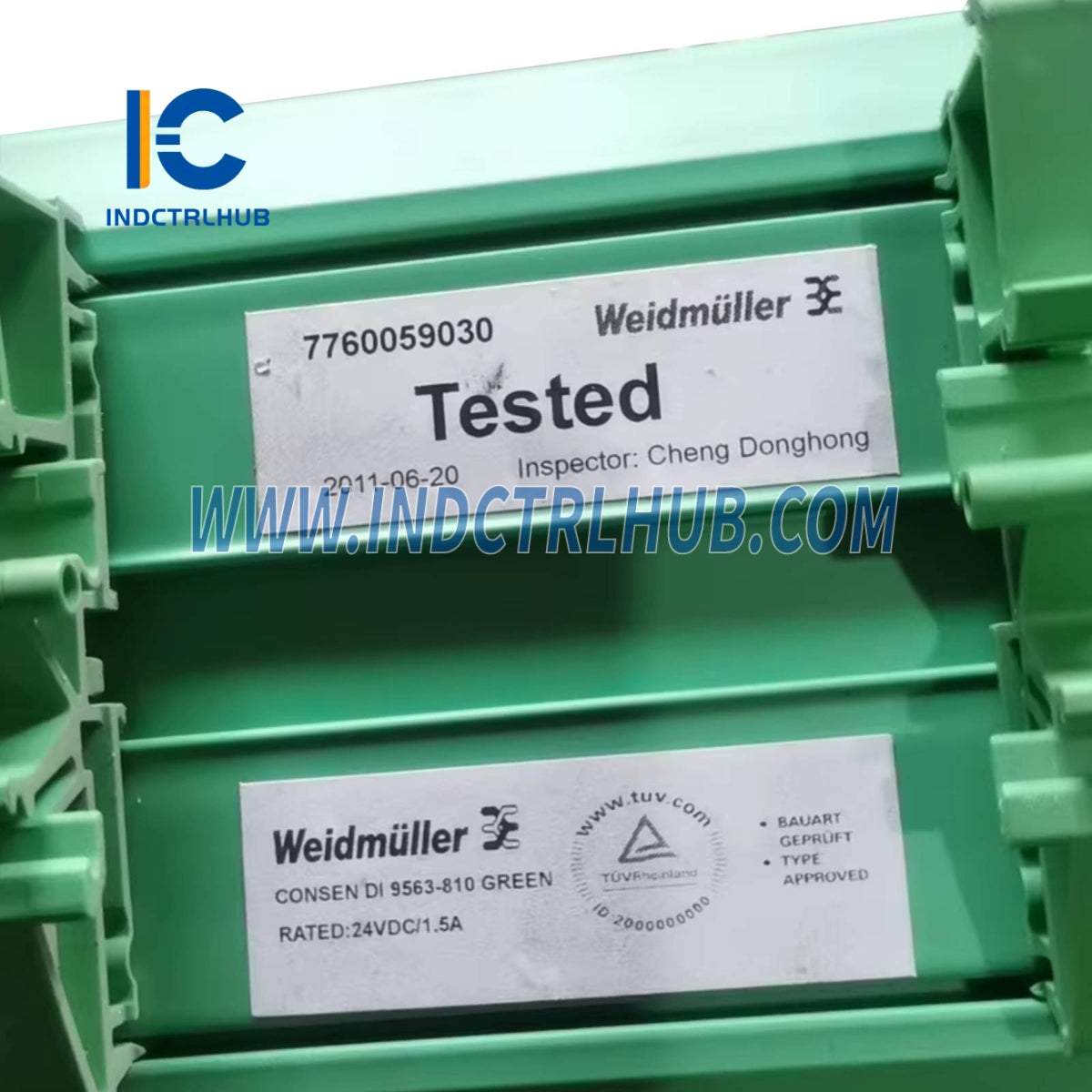

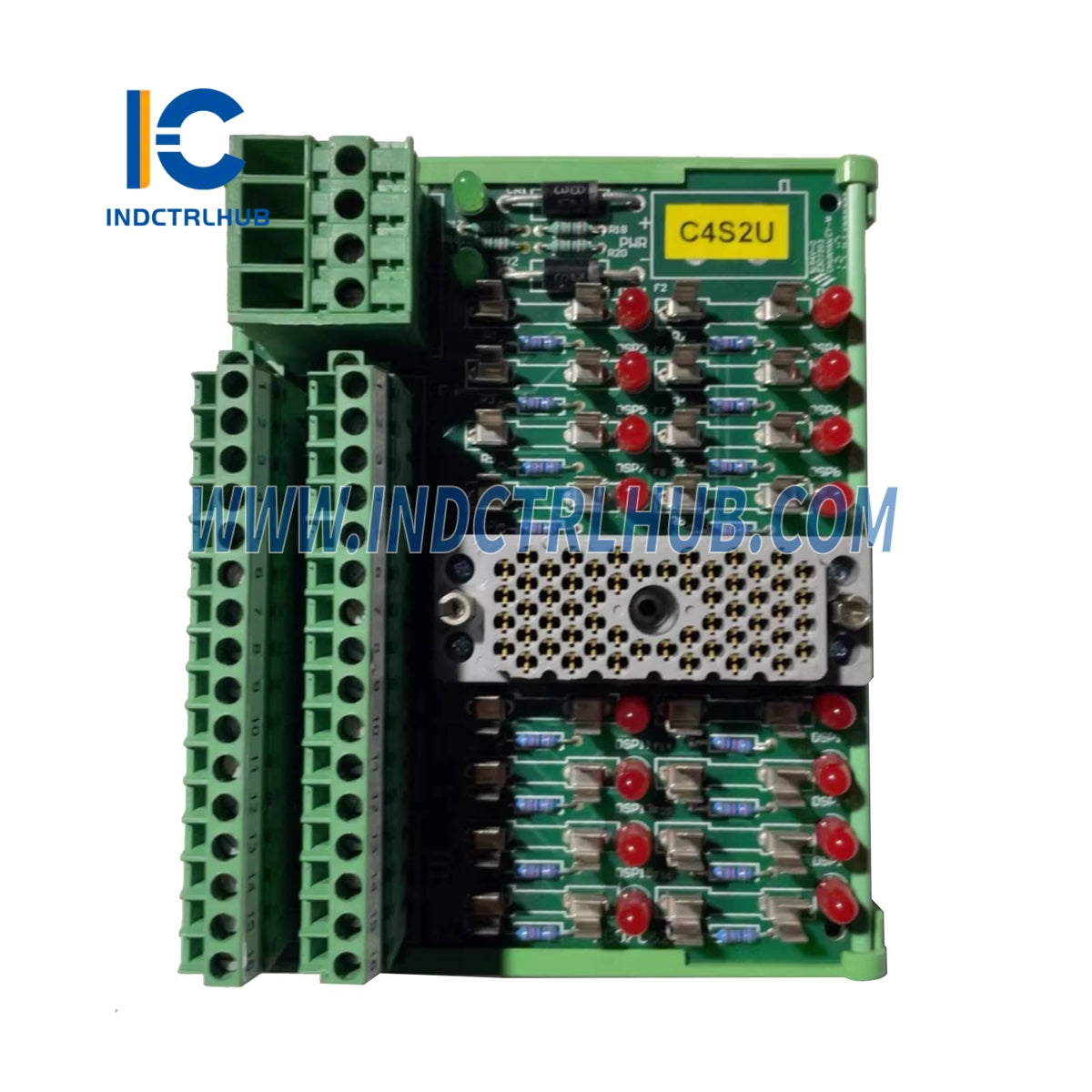

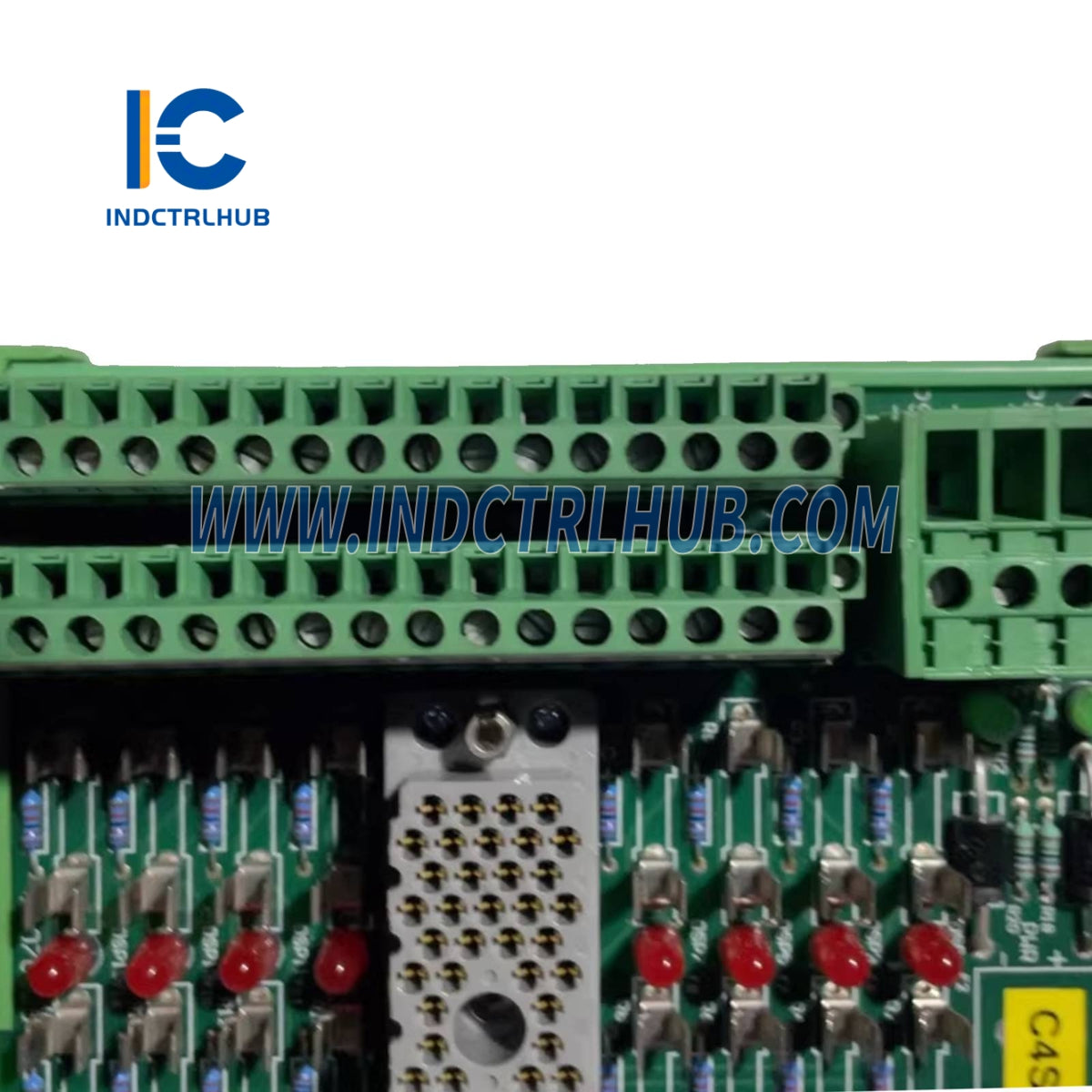

24 V digital input termination panel with 16 commoned input points, fuse protection, and compatibility with TMR digital input modules. |
Key Features
-
16 input points with shared (commoned) power terminals (PWR+ and PWR–)
-
Designed for 24 V digital input modules
-
Fuse protection on each point with blown-fuse indicators
-
Two panels required per 32-point input module
-
Includes label sets for 1–16 and 17–32
Technical Specifications
|
Specification |
Details |
|---|---|
|
Panel Type |
Commoned |
|
Number of Points |
16 |
|
Leakage Current per Point |
Maximum: 3.3 mATypical: 2.5 mA |
|
Fuse Type |
1A, slow (on compatible modules) |
Compatible Modules
|
Module Part Number |
Points per Module |
Module Description |
Fuse |
|---|---|---|---|
|
3503E |
32 |
24 VAC/VDC, commoned in groups of 8, TMR with self-test |
1A, slow |
|
3505E |
32 |
24 VDC, low-threshold, commoned in groups of 8, TMR with self-test |
Not specified |
