Triconex 4329 Network Communications Module
Triconex 4329 Network Communications Module
Manufacturer: Triconex
Product No.: 4329
Condition:1000 in stock
Product Type: Network Communications Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Triconex (Schneider Electric) |
|
Model/Part Number |
4329 (also includes variant 4329G) |
|
Description |

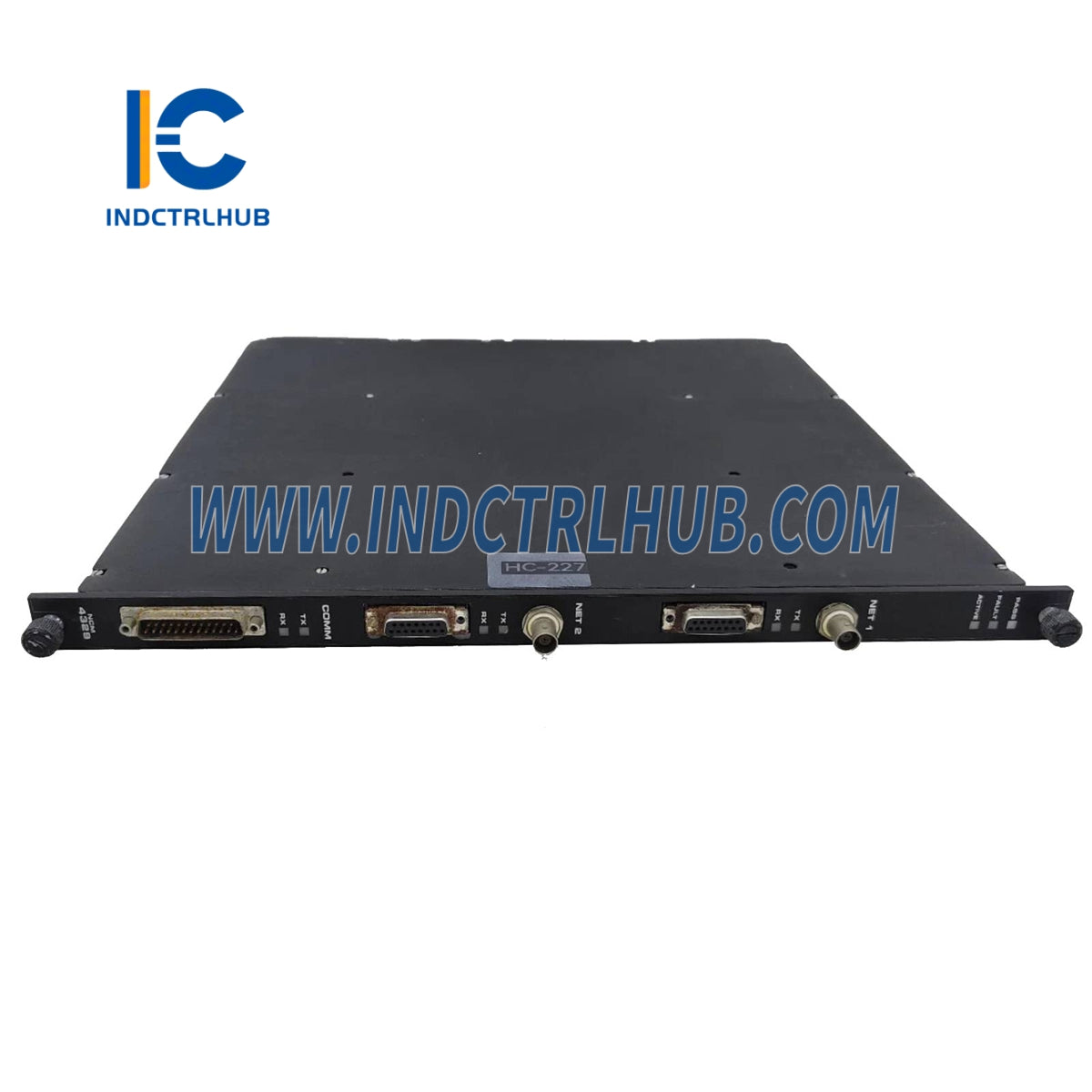

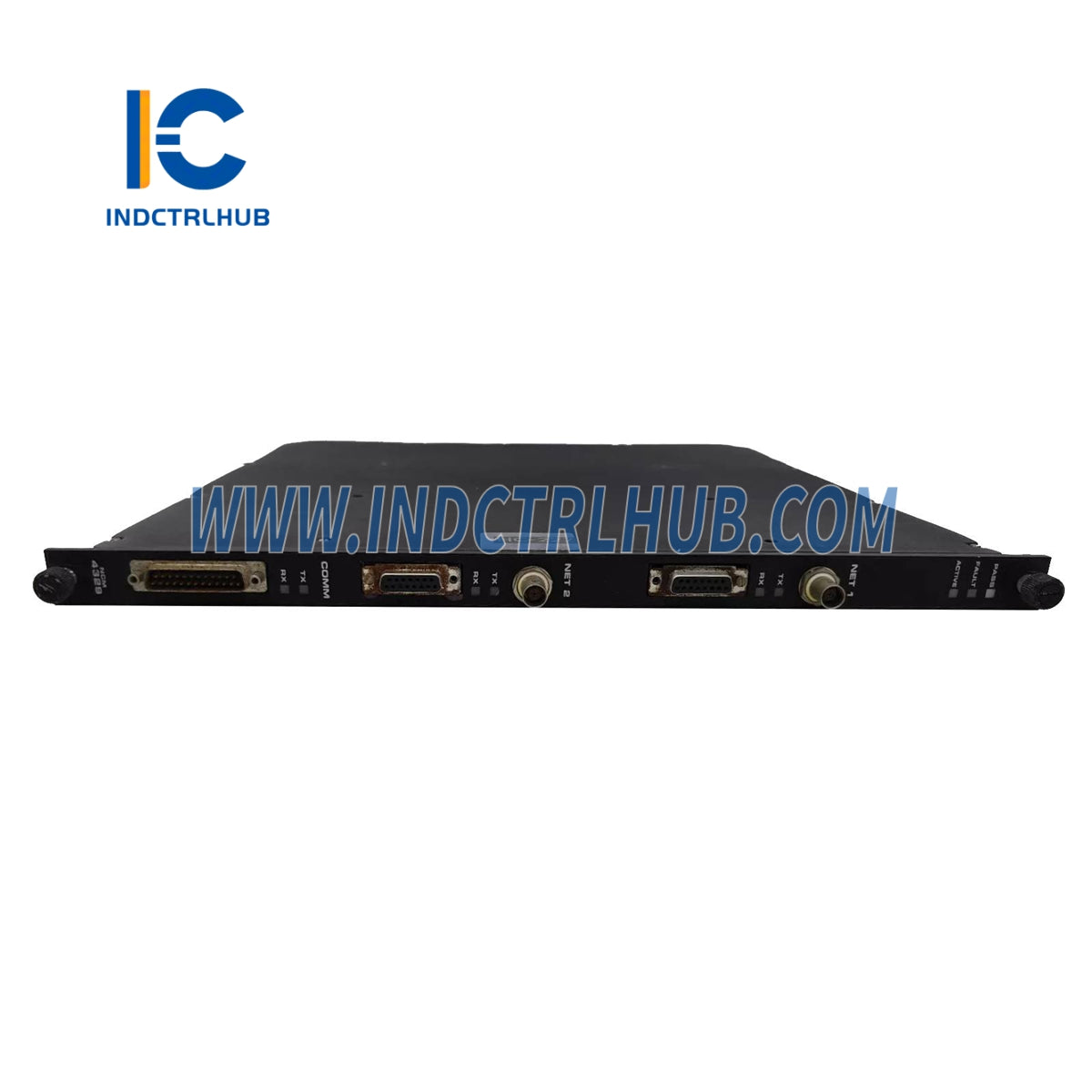

Network Communications Module (NCM) for Triconex systems, enabling Ethernet and serial communication with external systems. |
_
_
Key Features
_
-
Dual Ethernet ports with BNC connectors (10 Mbps)
-
Two external transceiver ports with 15-pin D-connectors
-
One RS-232 serial communication port
-
Protocol support for TSAA (TCP/UDP over IP/802.3)
-
Supports data and clock read/write functions
-
Port isolation for enhanced communication integrity
-
Real-time communication with Tricon controllers
-
Status and data transmission indicators per port
_
_
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model Numbers |
4329, 4329G |
|
Ethernet Ports |
2 (BNC connectors, RG58 50-ohm cable) |
|
External Transceiver Ports |
2 (15-pin D-sub connectors) |
|
Serial Port |
1 RS-232 compatible |
|
Port Isolation |
500 VDC |
|
Communication Protocol |
TSAA (TCP(UDP)/IP/802.3) |
|
Communication Speed |
10 Mbps (Ethernet) |
_
_
Supported Functions (TSAA Frame Types)
|
Frame Type |
Function |
|---|---|
|
1 |
TRICON_DATA |
|
2 |
TRICON_DATA_REQ |
|
3 |
WRITE_TRICON_DATA |
|
4 |
WRITE_TRICON_DATA_RSP |
|
5 |
READ_TRICON_CLOCK |
|
6 |
READ_TRICON_CLOCK_RSP |
|
7 |
SET_TRICON_CLOCK |
|
8 |
SET_TRICON_CLOCK_RSP |
|
11 |
READ_TRICON_DATA |
|
12 |
READ_TRICON_RSP |
_
_
Diagnostic Indicators
|
Indicator |
Description |
|---|---|
|
PASS |
Module passed self-checks |
|
FAULT |
Fault detected on the module |
|
ACTIVE |
Module is operational |
|
TX (Transmit) |
One per port |
|
RX (Receive) |
One per port |
_
