Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
3008 V10.4 |
|
Description |

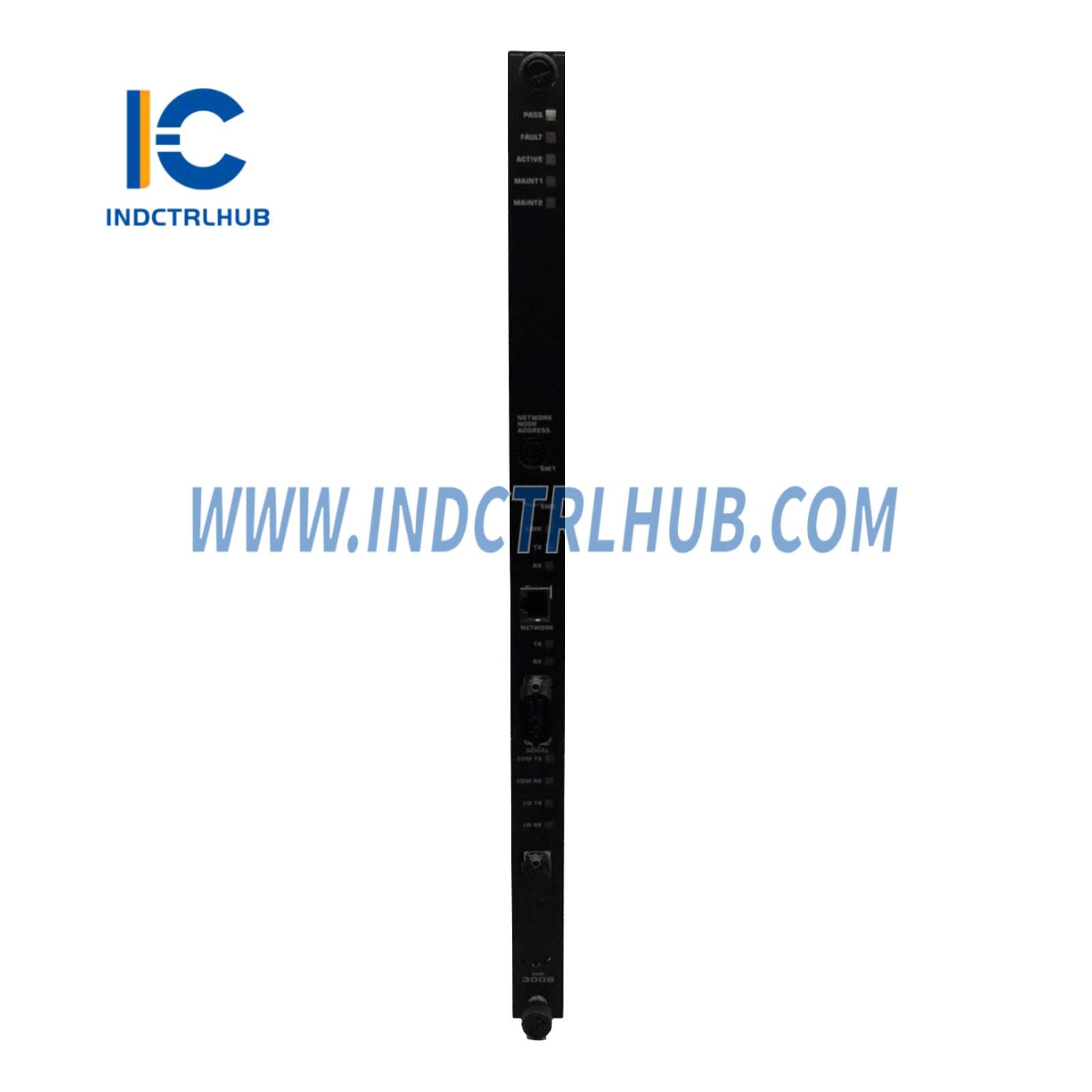

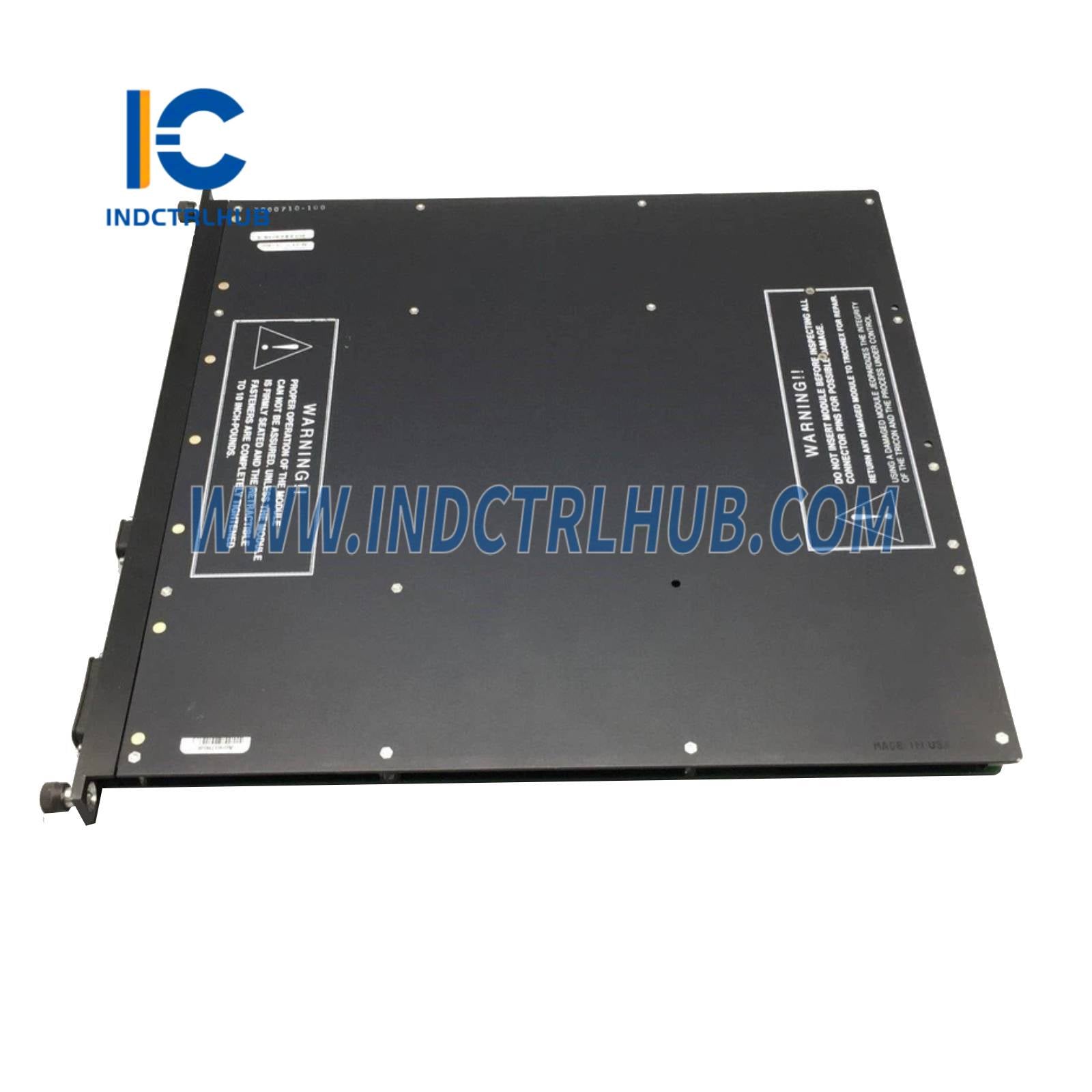

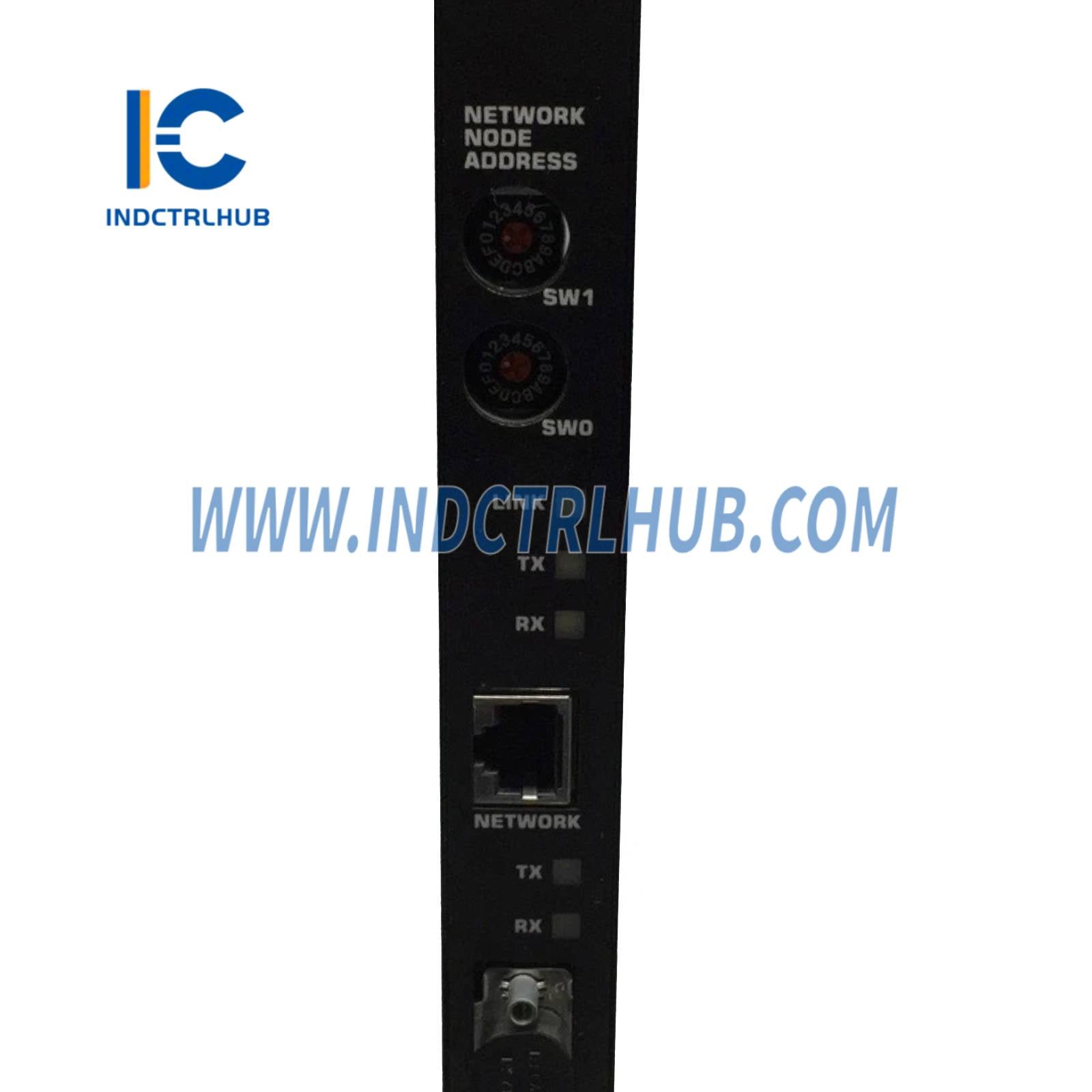

Main Processor Module for Tricon TMR Systems |
⚙️
Technical Specifications – Triconex 3008 V10.4
|
Attribute |
Specification |
|---|---|
|
Main Processor |
Motorola MPC860, 32-bit, 50 MHz |
|
Memory |
16 MB DRAM (non-backed), 32 KB SRAM (battery-backed) |
|
Flash PROM |
6 MB |
|
Real-Time Clock (TriClock) |
Battery-backed, Typical drift: ±2 sec/day, Max: ±2.16 sec/day |
|
TriBus |
25 Mbps, 32-bit CRC-protected, 32-bit DMA, fully isolated |
|
Serial Port |
RS-232 (optically isolated, 25-pin, for diagread diagnostics) |
|
Serial Port Isolation |
500 VDC |
|
Communication Processor |
Motorola MPC860, 50 MHz, 32-bit |
|
Communication Interface |
RS-485 |
|
Communication Baud Rate |
2 Mbps |
|
I/O Interface Protocol |
RS-485 |
|
I/O Interface Baud Rate |
375 kbps |
|
Logic Power Consumption |
10 W |
