Product Description
Product Overview

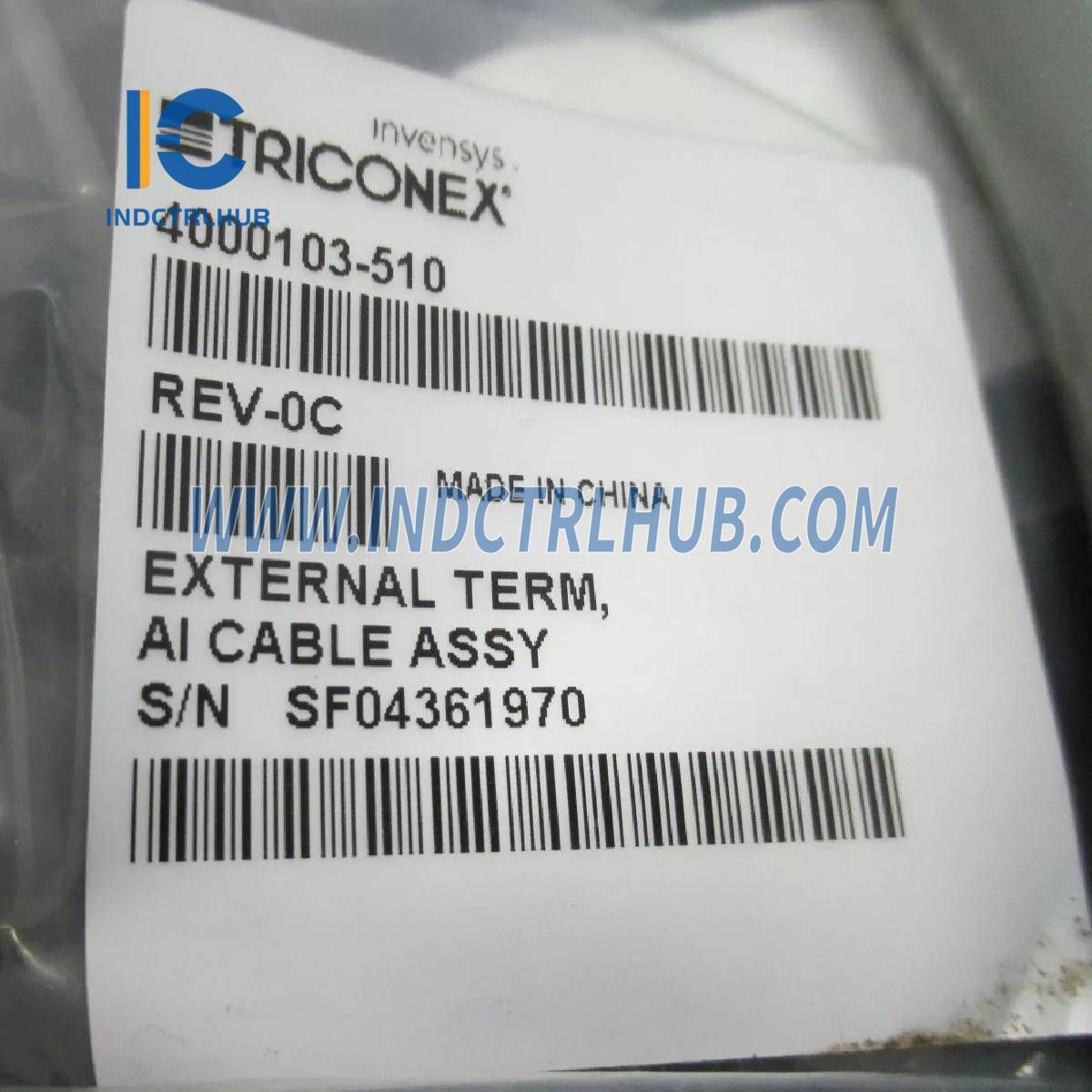

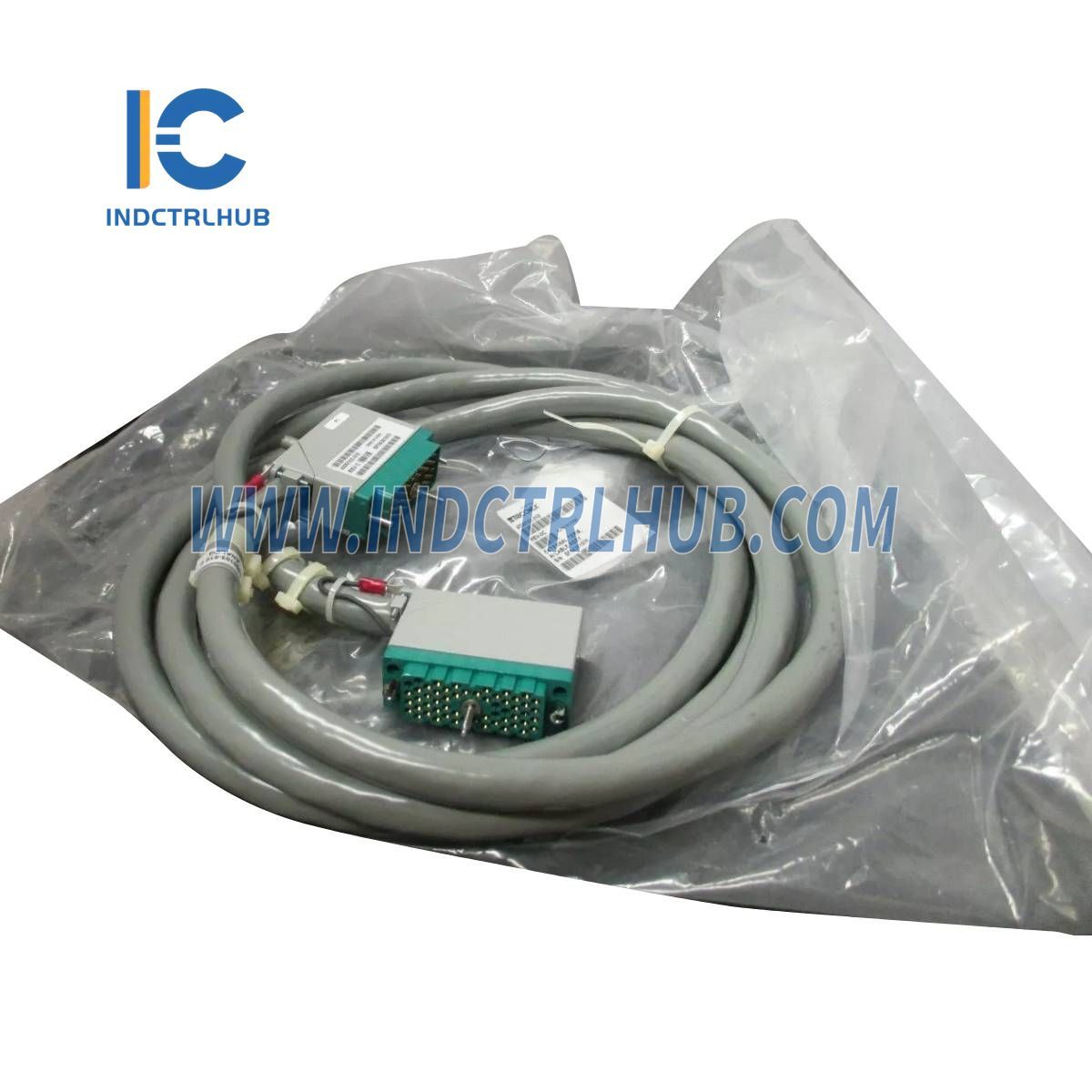

The Triconex 4000103-510 is a Cable Assembly designed for use within the Tricon safety instrumented system (SIS) by Triconex, a brand under Schneider Electric (formerly Invensys). This module serves as a communication cable, providing a reliable connection between Tricon I/O modules and external termination panels or field devices. It supports the Triple Modular Redundant (TMR) architecture, ensuring fault-tolerant data transfer for safety-critical applications in industries such as oil & gas, petrochemical, and power generation.
Technical Specifications
The 4000103-510 has the following specifications based on standard characteristics for this model:
| Item | Specification |
|---|---|
| Model/Part Number | 4000103-510 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Cable Assembly |
| Series | Tricon SIS |
| Cable Length | 10 ft (3 m) |

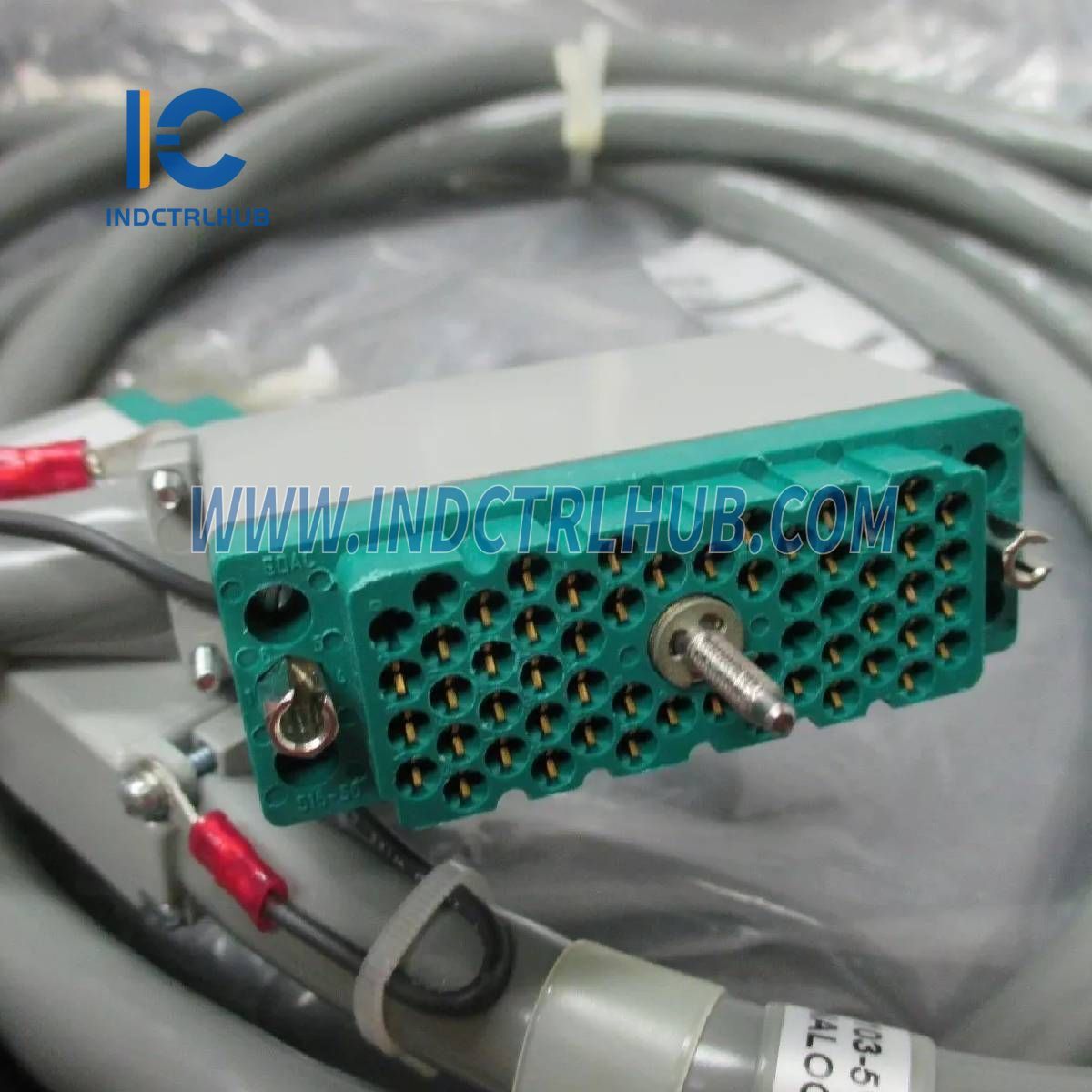

| Connector Type | Multi-pin proprietary (Tricon-specific) |
| Voltage Rating | 24 VDC (signal compatibility) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.4 kg |
Additional Details
The 4000103-510 includes the following additional information based on its standard use and documentation:
| Category | Details |
|---|---|
| Function | Connects Tricon I/O modules to external termination panels or field devices |
| Compatibility | Tricon I/O modules (e.g., 3601E, 3625), external termination panels (e.g., 4000093-310) |
| Features | Supports TMR architecture, shielded for signal integrity, durable insulation |
| Certifications | Meets IEC 61508 SIL 3, UL, and CE standards |
| Part Type | New, surplus, or refurbished |
