Product Description
🔍
Product Overview
|
Field |
Details |
|---|---|
|
Manufacturer |
Triconex |
|
Model/Part Number |
RO 3451 |
|
Model Type |
Solid-State Relay Output Module |
|
Description |

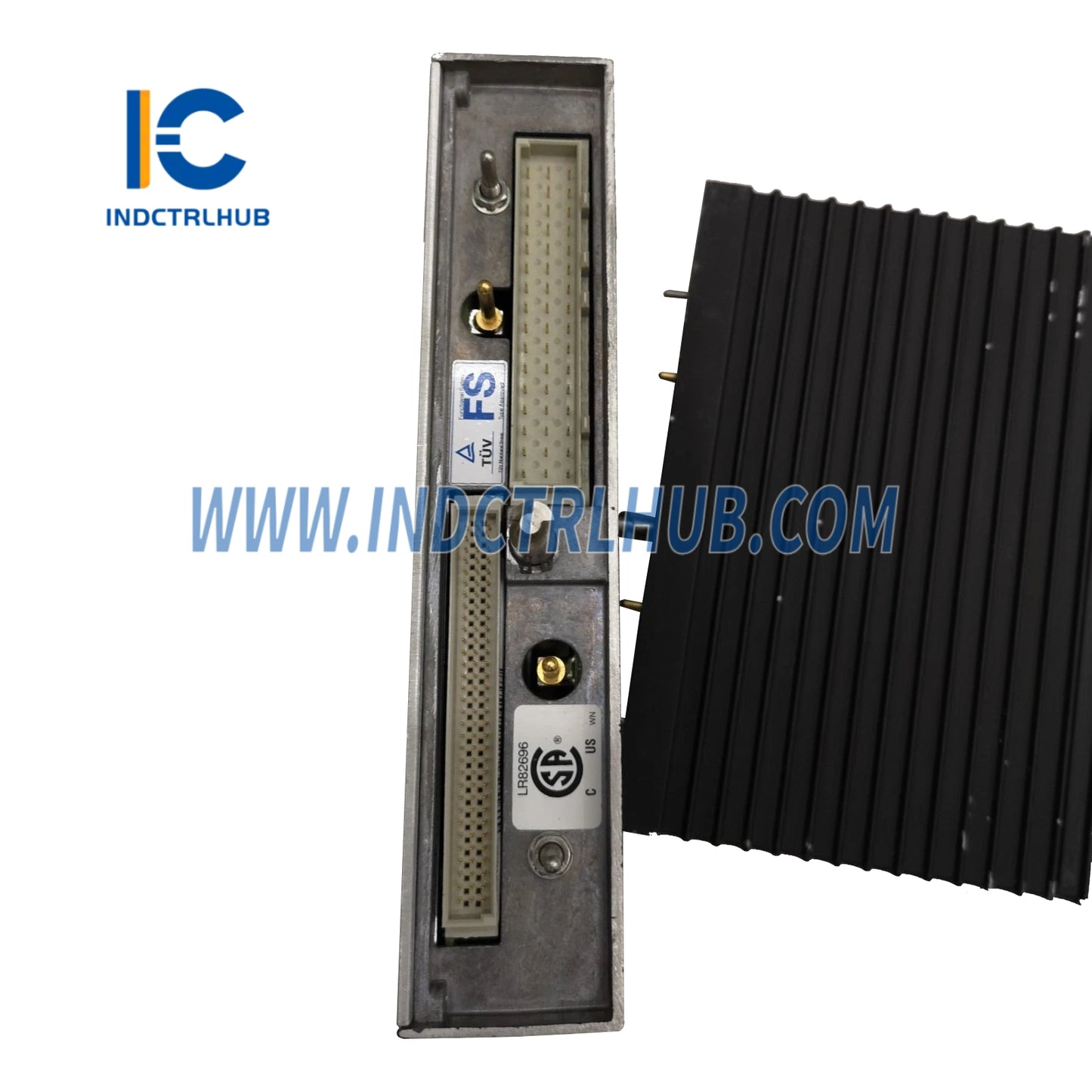

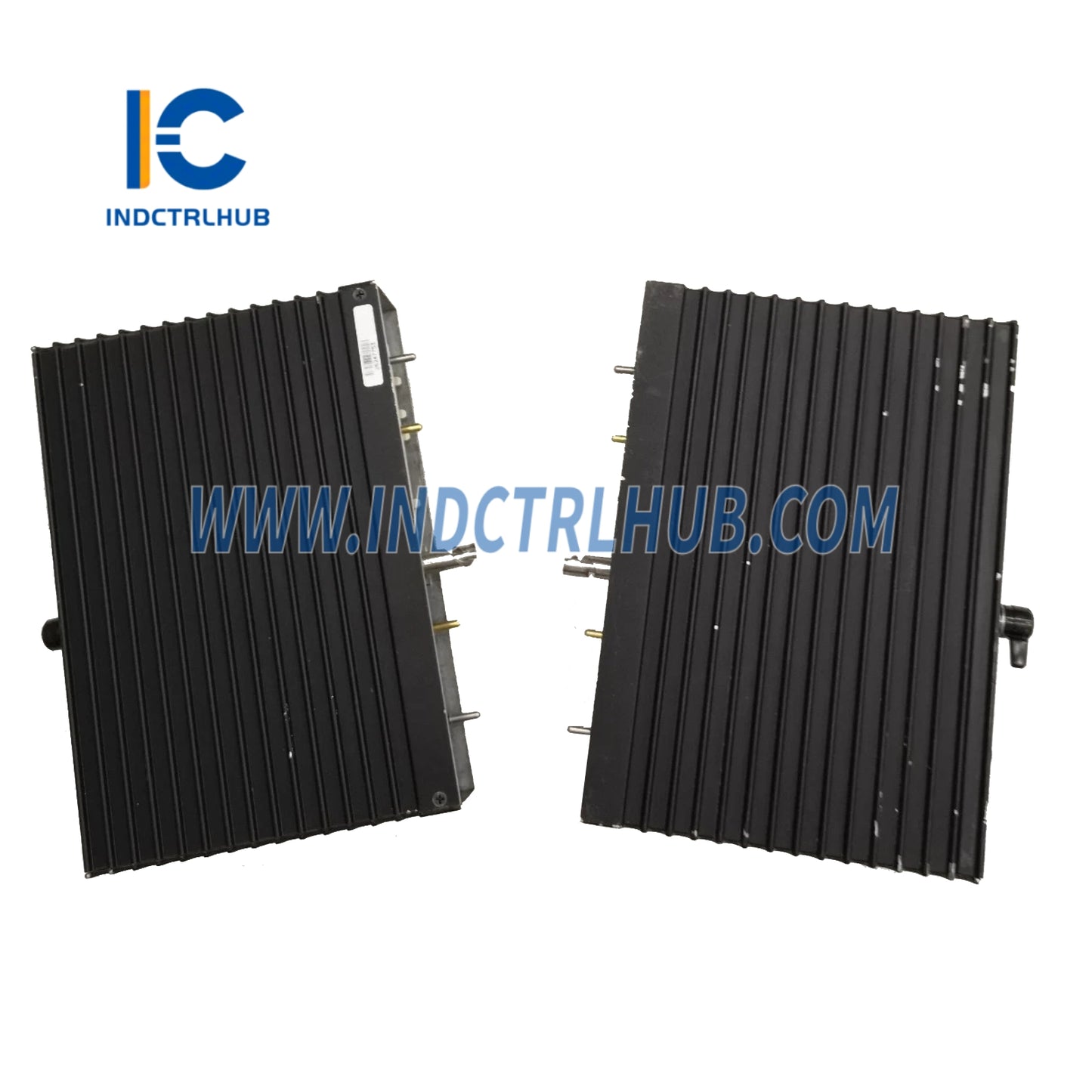

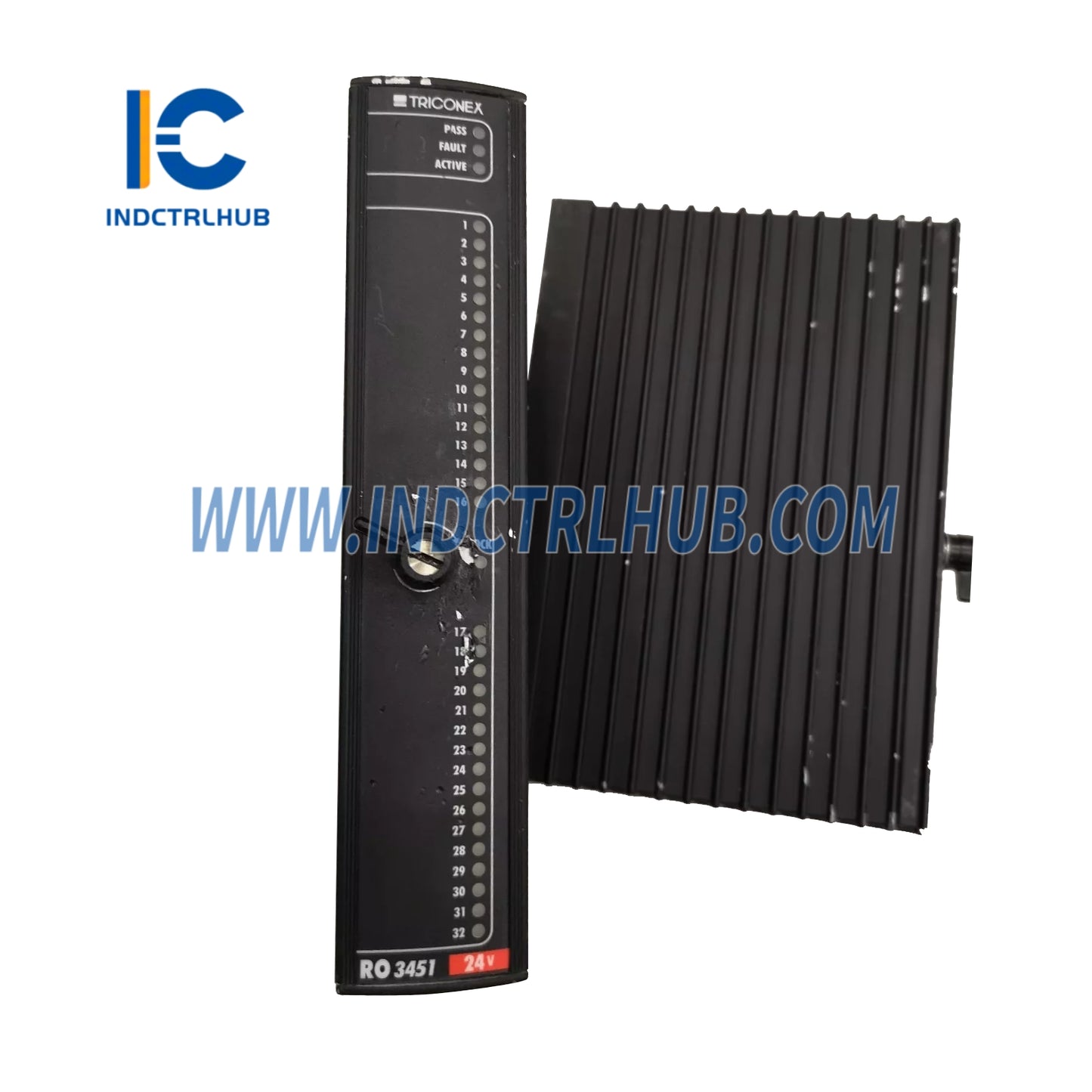

The Triconex RO 3451 is a 32-point solid-state relay output module. It is designed for high-integrity output switching in safety and critical control applications, featuring fast switching, low voltage drop, and excellent isolation. Outputs are commoned in pairs and each channel is protected with a fast-acting fuse. |
⚙️
Technical Specifications
|
Feature |
Specification |
|---|---|
|
Output Channels |
32 (commoned in pairs) |
|
Nominal Input Voltage |
±24 V |
|
Operational Voltage Range |
±30 V |
|
Maximum Switching Voltage |
±33 V peak |
|
Maximum Switching Power |
15 W (resistive load) |
|
Maximum Off-State Leakage |
< 100 µA |
|
Nominal Output Current |
0.5 A per channel |
|
Maximum Overcurrent Limit |
0.7 A per channel |
|
Voltage Drop (at Baseplate) |
< 0.25 V @ 0.5 A |
|
Fuses (Mounted on Baseplate) |
1 per output, 0.75 A, fast-acting |
|
Functional-to-Protective Earth Isolation |
500 V DC minimum |
|
Functional-to-Functional Earth Isolation |
800 V DC minimum |
