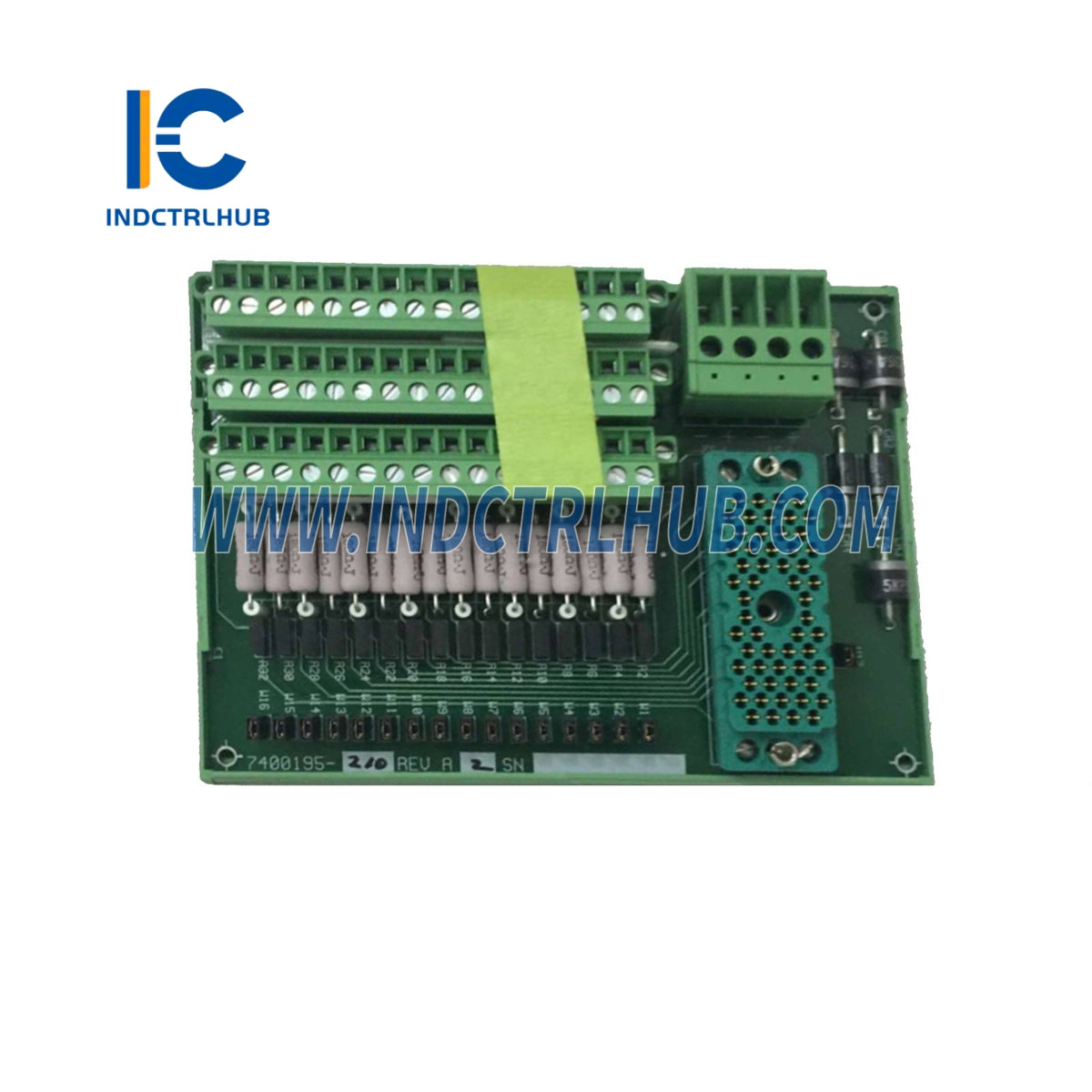

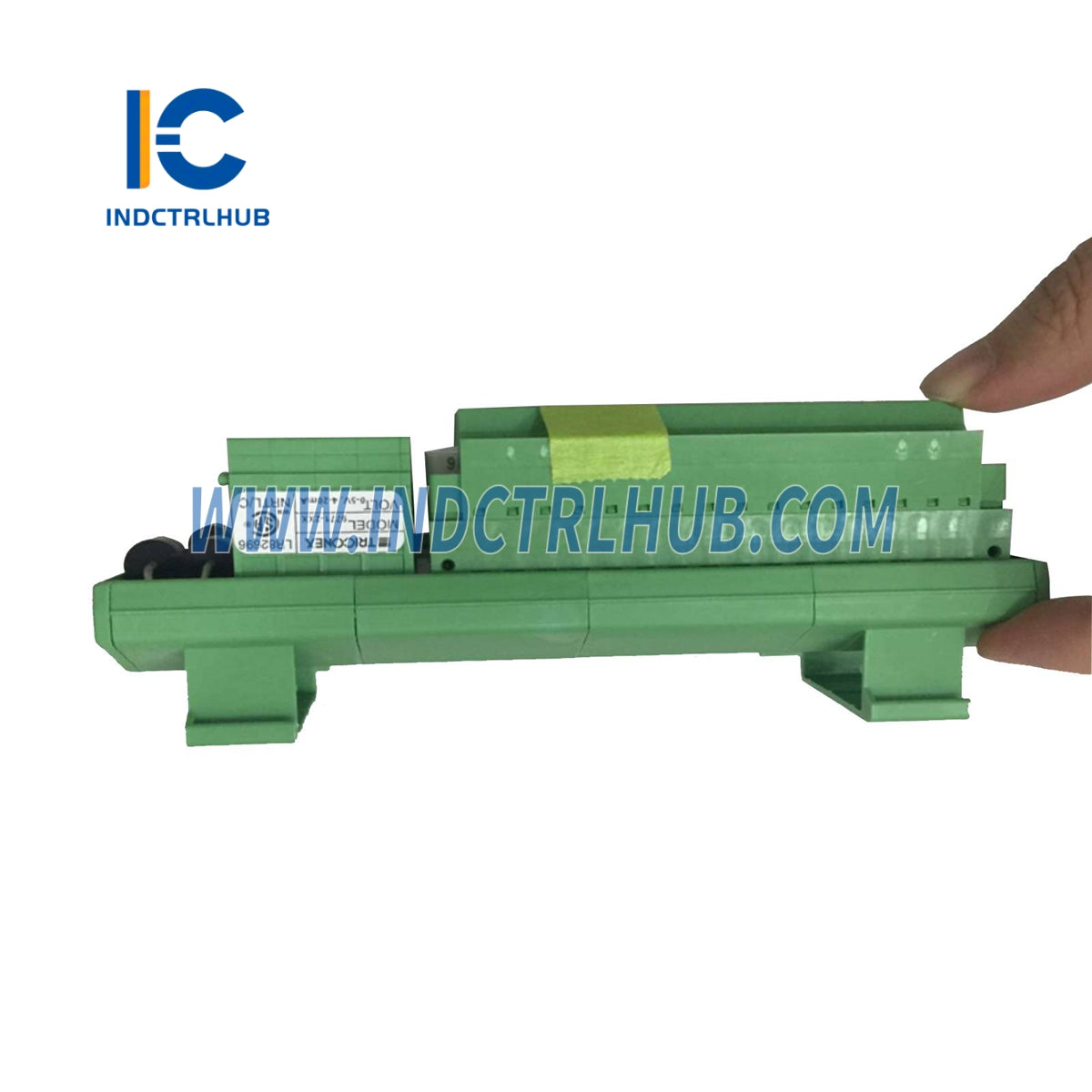

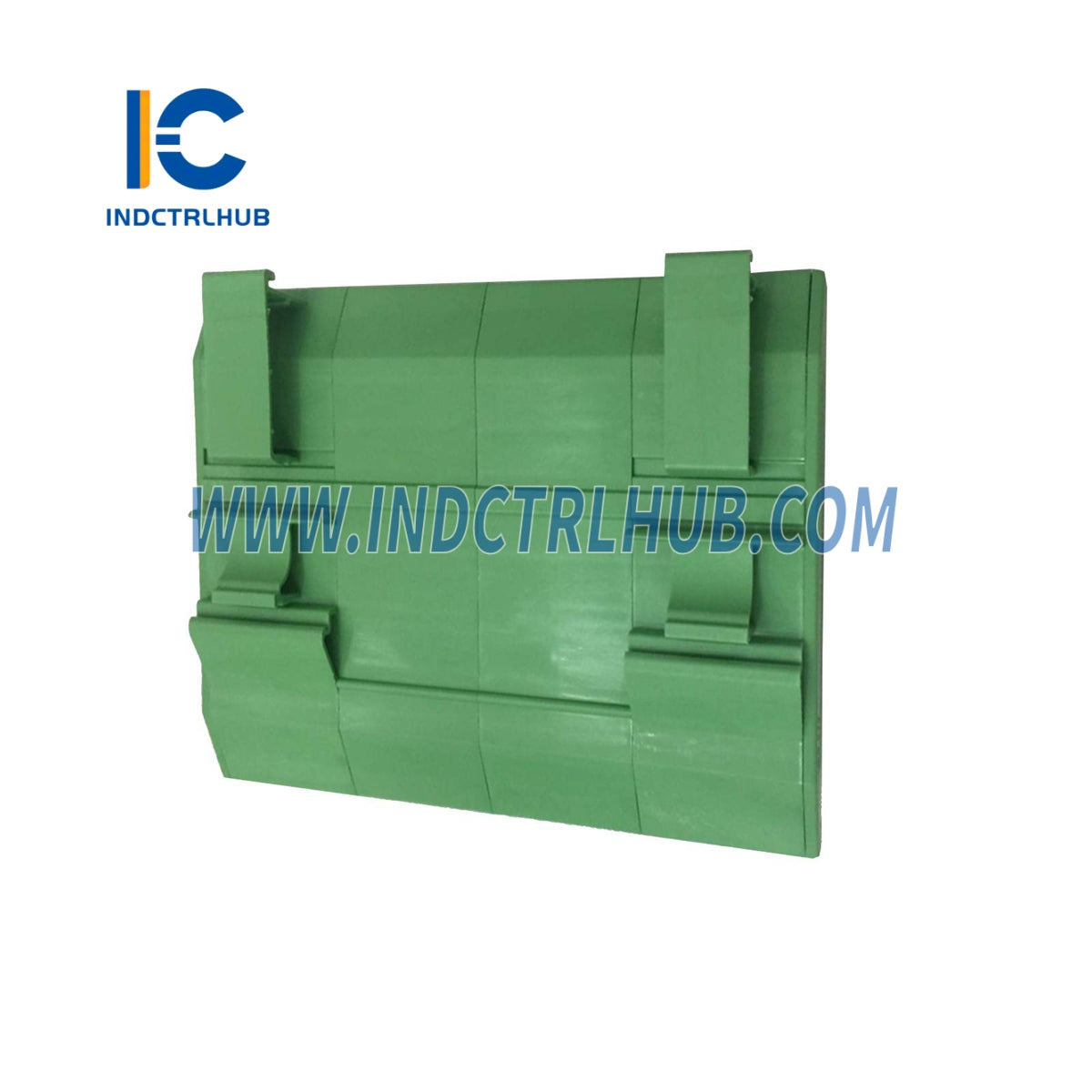

Triconex 9771-210 Analog current input termination panel
Triconex 9771-210 Analog current input termination panel
Manufacturer: Triconex
Product No.: 9771-210
Condition:1000 in stock
Product Type: Analog current input termination panel
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
|
Category |
Details |
|---|---|
|
Manufacturer |
Triconex (Schneider Electric) |
|
Model/Part Number |
9771-210 |
|
Description |
Analog current input termination panel compatible with 0_5 VDC, 0_10 VDC, and _5 to +5 VDC signals; provides 16 user-configurable input channels with internal resistors for voltage and current signal handling. |
_
_
Key Features
_
-
Panel Type: Current input, user-configurable
-
Number of Points: 16
-
Compatible with_analog input modules_that support various voltage ranges
-
Each input has:
_
-
One_current input terminal (_)
-
One_power output terminal (+)
-
180 _ series resistor_at each power terminal for current limiting
-
250 _ precision resistor_per input for current-to-voltage conversion
-
Supports_redundant 24 VDC power sources_with_diode ORing
-
Designed for_differential, non-commoned, DC-coupled_analog modules
-
Requires_two panels_for 32-point analog input modules
-
Comes with labeling sets for_1_16_and_17_32
_
_
Technical Specifications
|
Specification |
Details |
|---|---|
|
Panel Type |
Current input, user-configurable |
|
Number of Points |
16 |
|
Series Resistor |
180 _ on power terminals |
|
Conversion Resistor |
250 _ precision resistor on each input |
|
Power Support |
Redundant 24 VDC, diode ORed |
_
_
Compatible Modules
|
Module Part Number |
Points per Module |
Module Description |
|---|---|---|
|
3700 |
32 |
0_5 VDC, non-commoned, differential, DC-coupled, TMR |
|
3700A |
32 |
0_5 VDC, non-commoned, differential, DC-coupled, TMR, with +6% input over-range |
|
3703E |
16 |
0_5 VDC or 0_10 VDC, non-commoned, differential, isolated, TMR |
|
3721 |
32 |
0 to 5 VDC or _5 to +5 VDC, differential, DC-coupled, TMR |
_
