Product Description

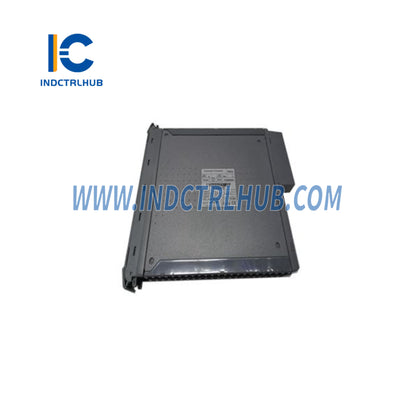

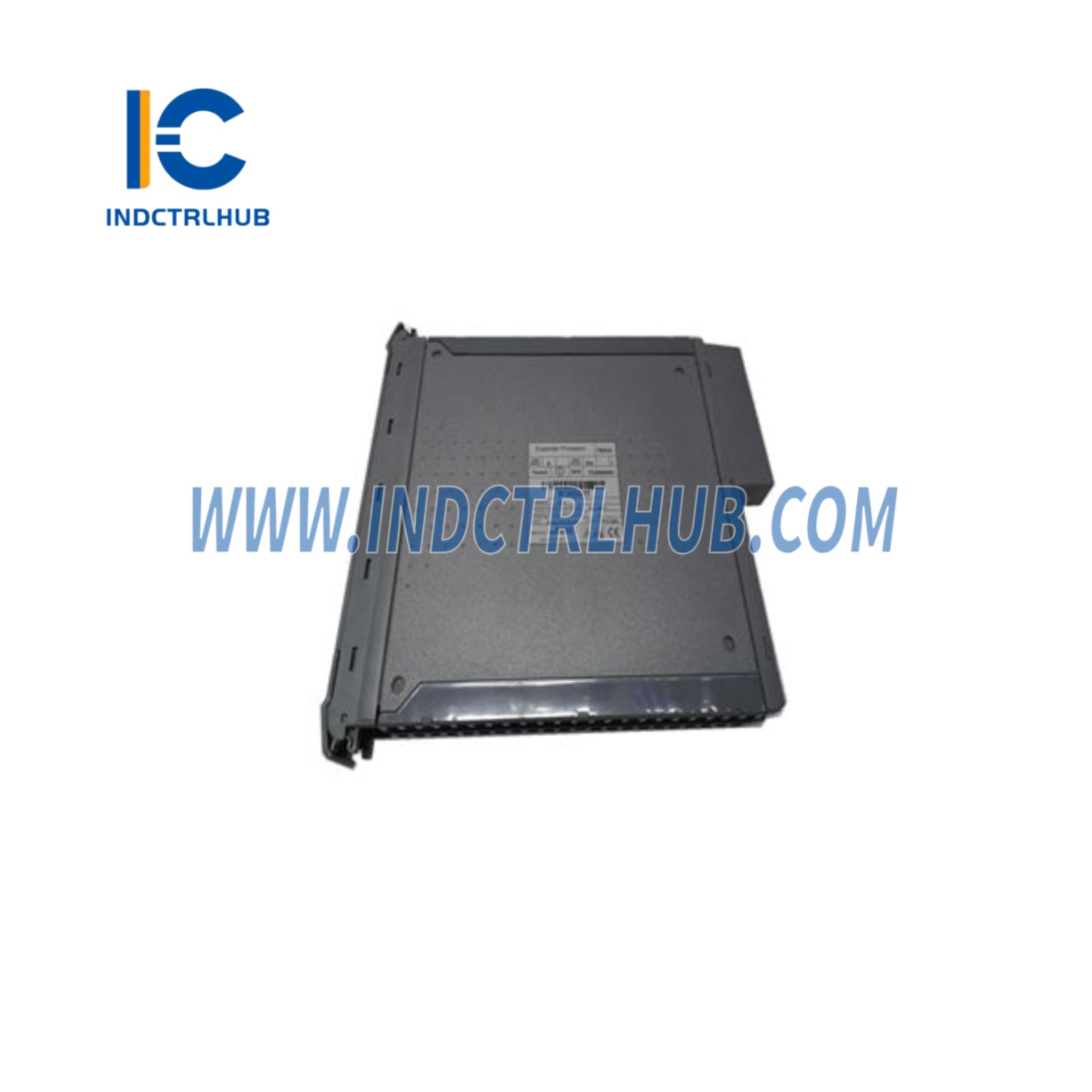

Triconex T8225 Power Supply Module
- Manufacturer: Triconex
- Model/Part Number: T8225
- Description: Trusted Power Supply Module
Overview
- The Triconex T8225 Power Supply Module, part of the ICS Triplex Trusted TMR System, provides reliable power to Triconex safety instrumented systems (SIS). It supports critical applications, such as emergency shutdown, fire and gas detection, and process control, by converting redundant main line voltages to stable DC output. The module features dual redundant inputs and outputs for high availability and fault tolerance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | T8225 |
| Series | Triconex Power Modules |
| Type | Power Supply Module |
| Description | Converts redundant voltages to +15 VDC or +24 VDC output |
| Weight | 0.6 kg |
| Dimensions | 31.8 x 168 x 147 mm |
| Input Voltage | 110–240 VAC or 24 VDC, dual redundant |
| Output Voltage | +15 VDC or +24 VDC |
| Operating Temperature | -20°C to +60°C |
| Diagnostic Indicators | Input status, output voltage status, output current level |
| Approvals | CE, UL |
| Warranty | 12 months |
Additional Information
- Functionality: The T8225 features hot-swappable design for maintenance without system shutdown, online diagnostics for continuous health monitoring, and a robust design resistant to vibration and shock. It supports the Trusted TMR system’s fault-tolerant architecture, ensuring continuous operation even if one power supply fails.
- Environmental Durability: The module is built with robust materials to withstand harsh industrial environments, including wide temperature ranges.
- Integration: The T8225 integrates seamlessly with Triconex SIS, providing reliable power for main processors, I/O modules, and communication modules in safety-critical applications.
