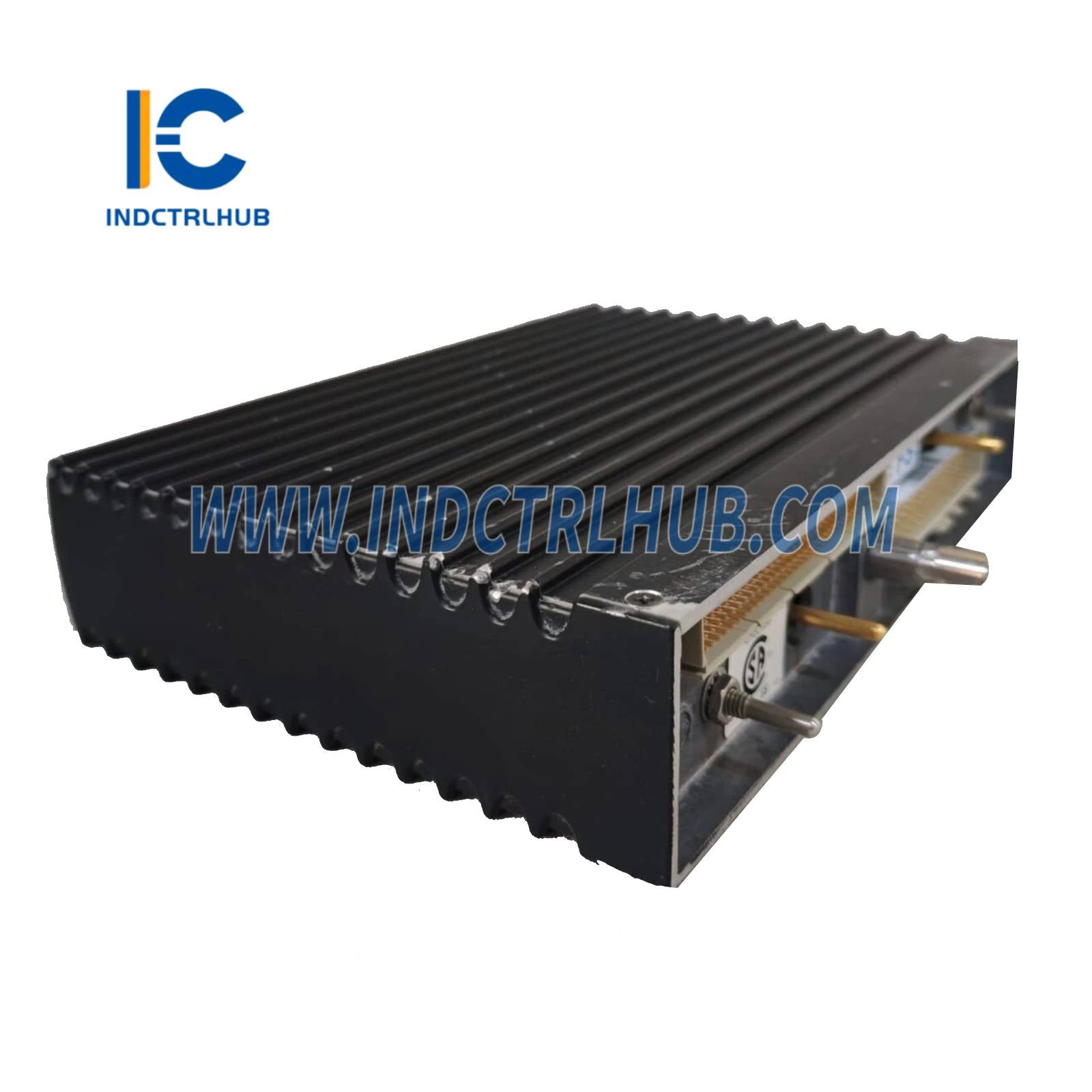

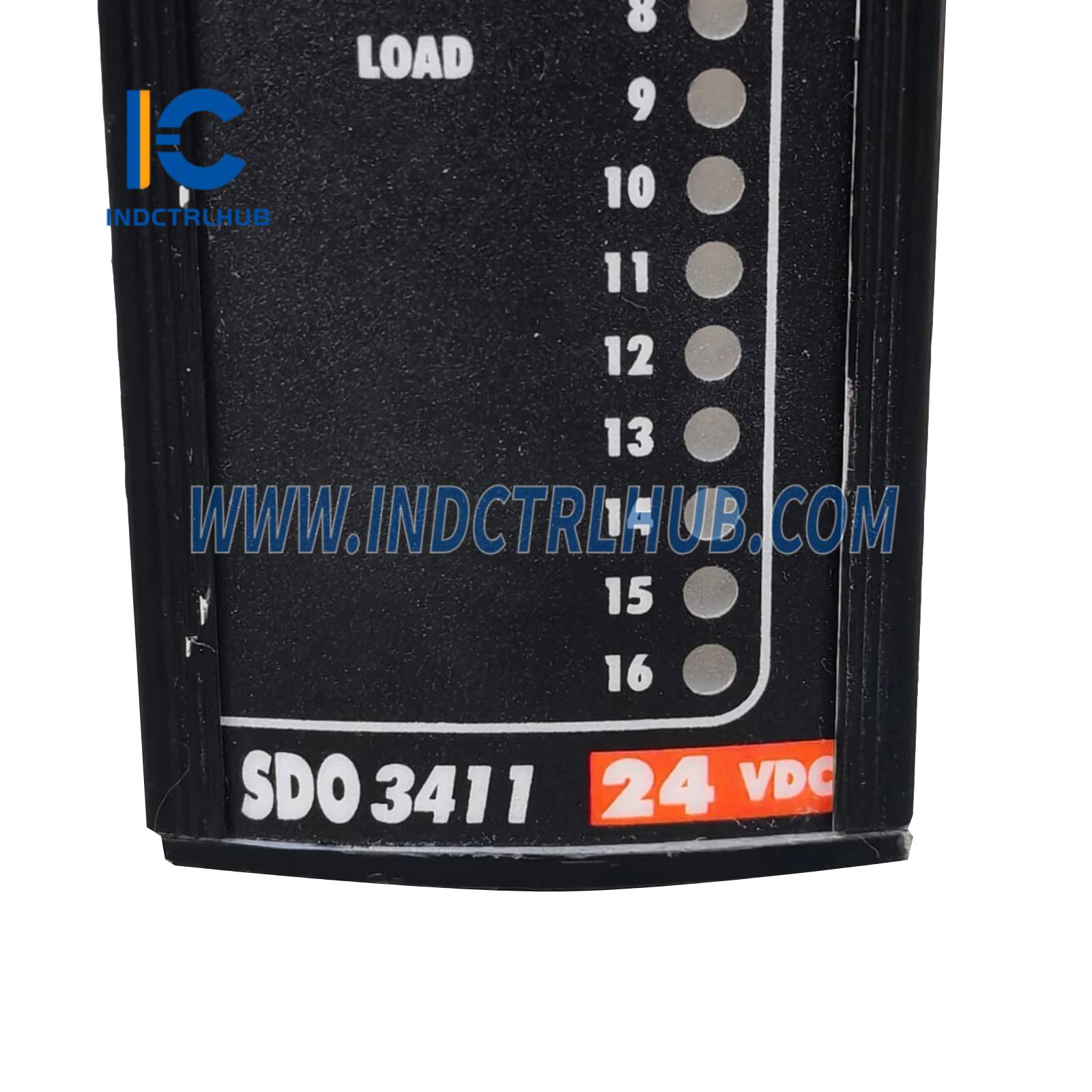

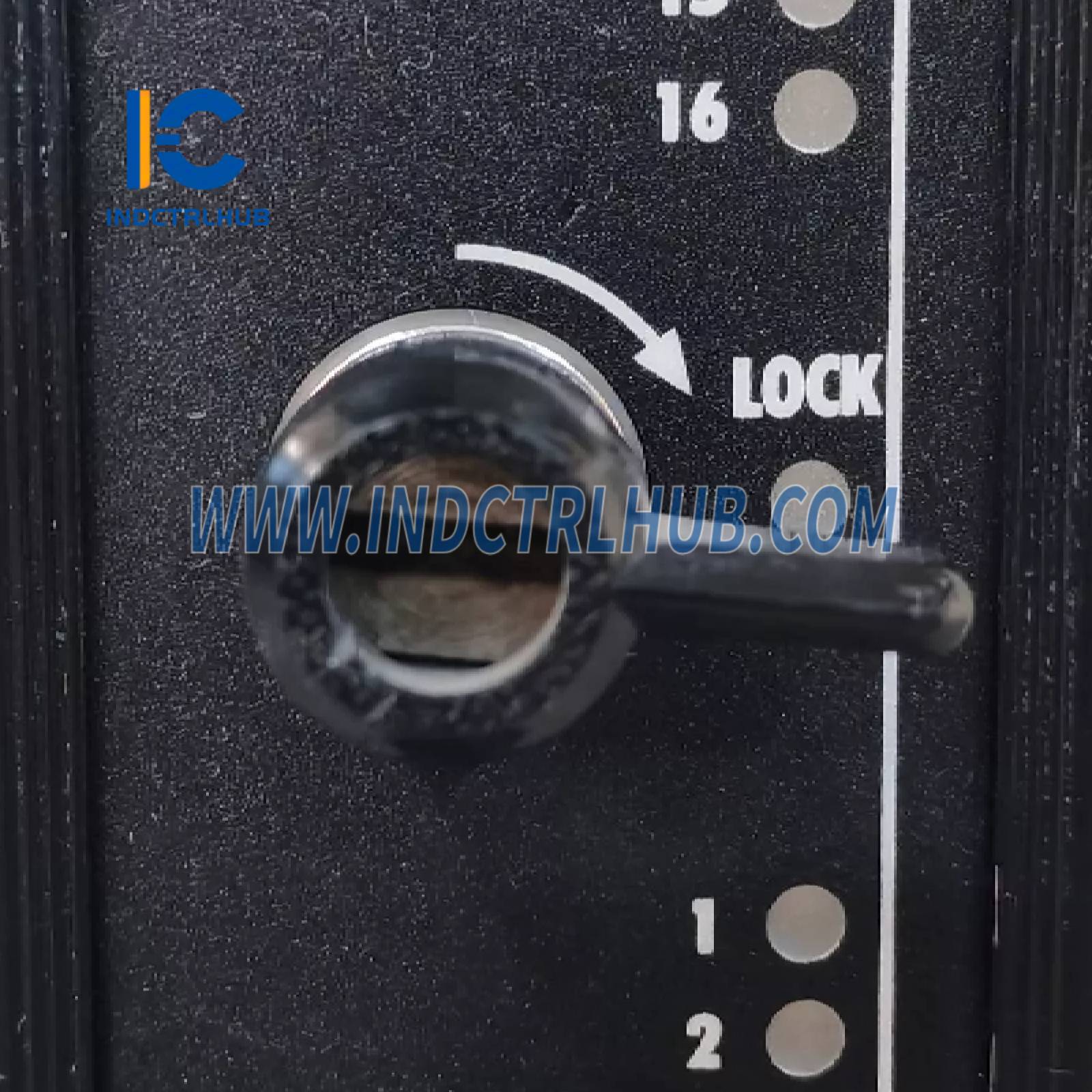

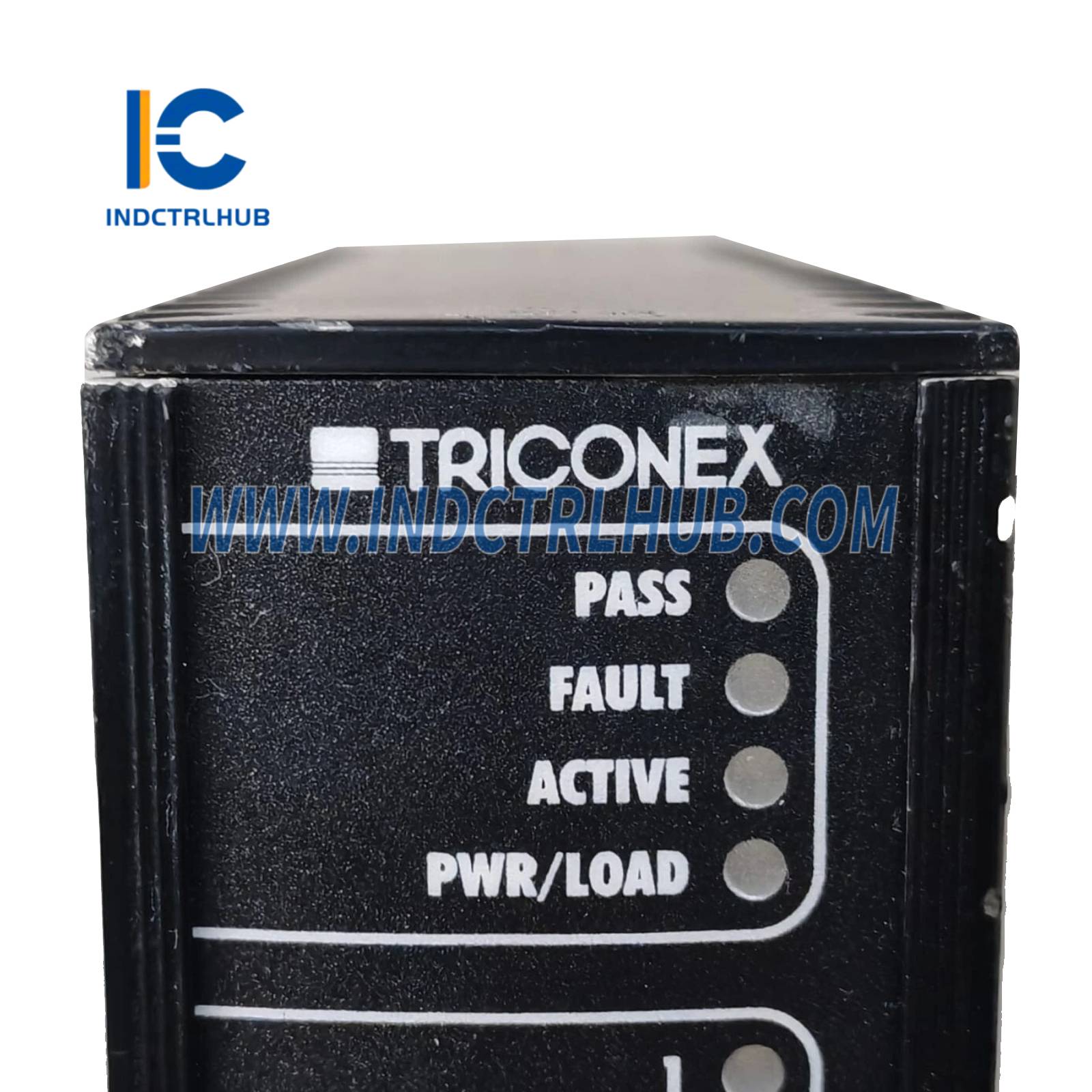

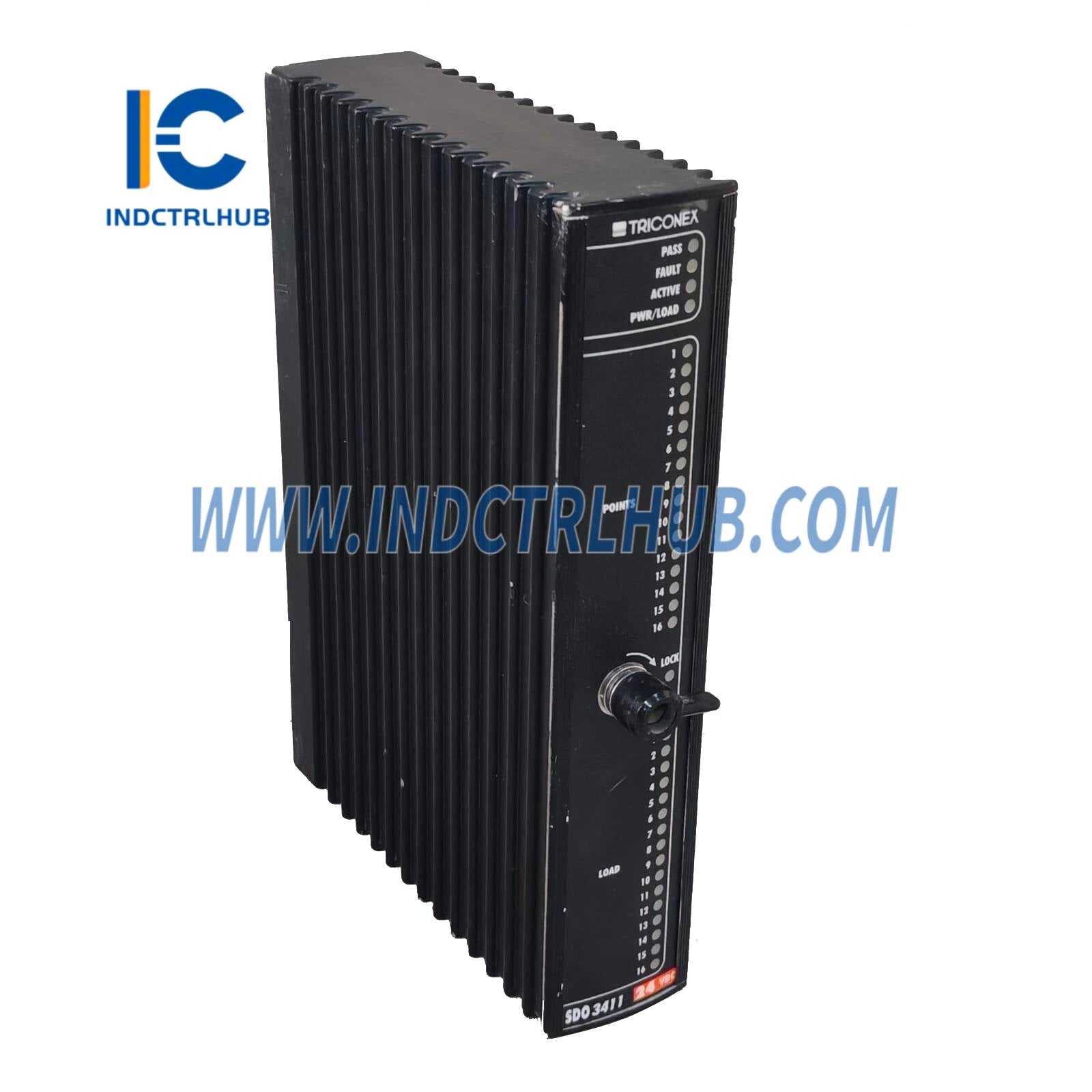

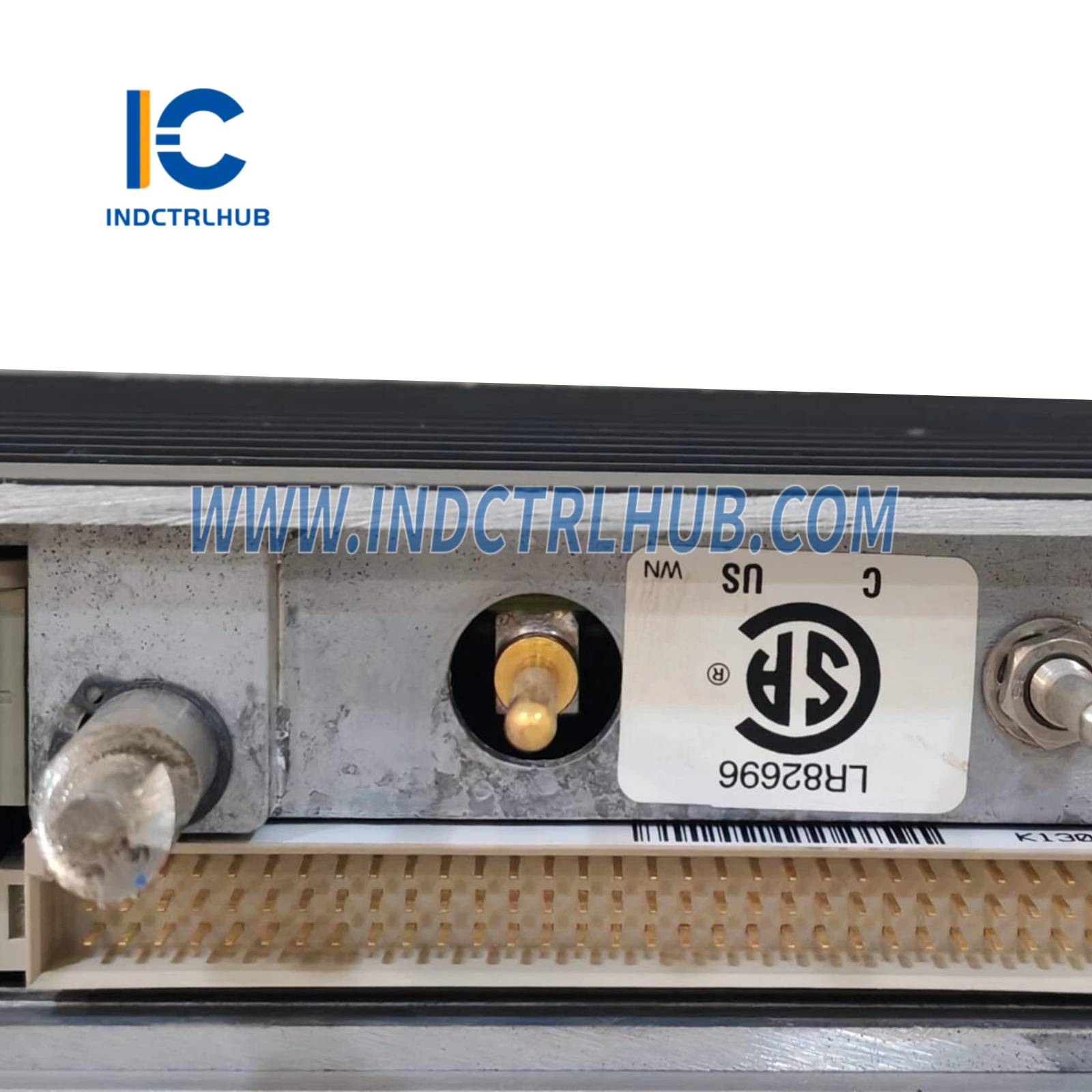

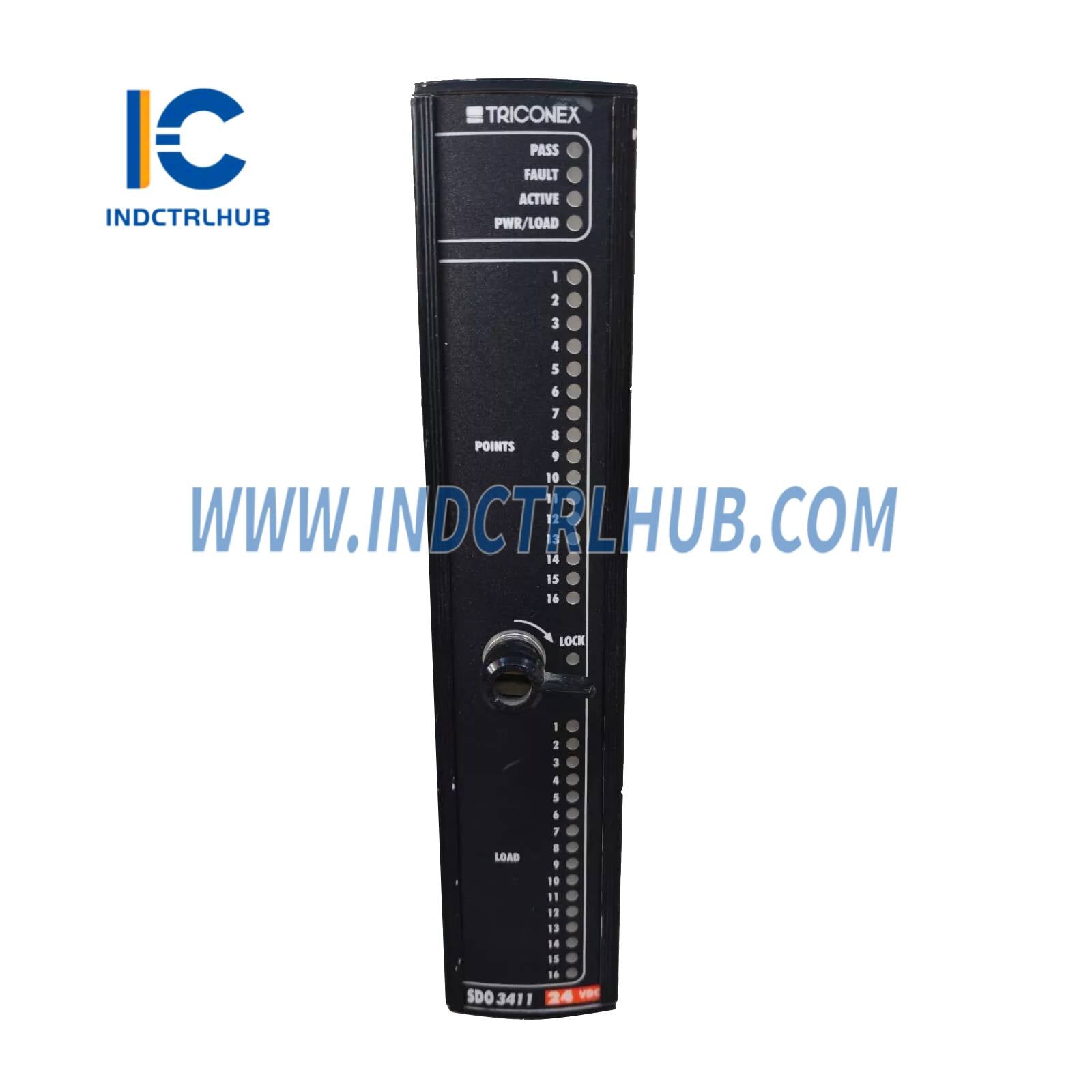

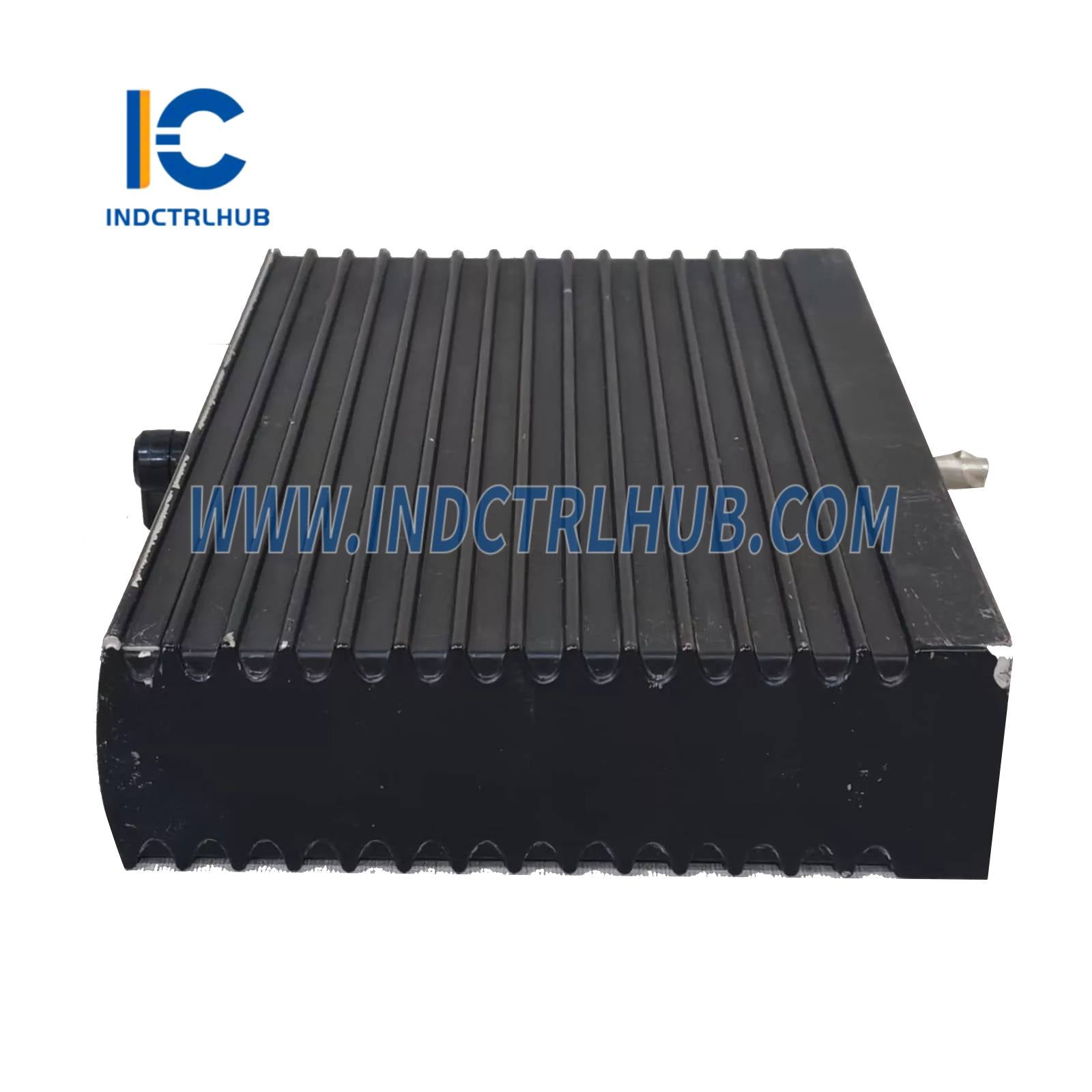

Triconex 3411 Digital Output Module
Triconex 3411 Digital Output Module
Manufacturer: Triconex
Product No.: 3411
Condition:1000 in stock
Product Type: Digital Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Overview
| Category | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model/Part Number | 3411 |
| Description | Digital Output Module for Triconex Trident safety systems, designed to provide supervised digital outputs for controlling process elements in safety-critical applications |
| Key Features | 16 output channels, 24 VDC, triple modular redundancy (TMR), supervised outputs, hot-swappable, SIL 3 certified, self-diagnostic capabilities |
Technical Specifications
| Specification | Details |
|---|---|
| Model | 3411 |
| Product Type | Digital Output Module |
| Series | Trident Safety System |
| Output Channels | 16 |
| Output Voltage | 24 VDC |
| Output Current | 0.7 A per channel, 5 A max per module |
| Isolation | Optically isolated, channel-to-channel and channel-to-backplane |
| Power Supply | 24 VDC (via chassis backplane) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Dimensions | Approx. 300 x 50 x 200 mm (11.8 x 2.0 x 7.9 in) |
| Weight | Approx. 1 kg (2.2 lbs) |
| Certifications | SIL 3 (IEC 61508), CE |
External Connection Options
| Connection Type | Details |
|---|---|
| Supported Connections | Terminal block via compatible baseplate (e.g., 2401), integrates with Trident chassis backplane |
Functional Features
| Feature | Details |
|---|---|
| Digital Output Control | Provides supervised outputs for controlling field devices with high reliability |
| Supervised Outputs | Monitors for faults (open/short circuits), generating alarms and disabling faulty channels |
| Redundancy | Supports TMR architecture for fault-tolerant operation |
| Hot-Swappable | Allows module replacement without system shutdown |
| Diagnostics | Self-diagnostic capabilities for output status and module health |
Model and Configuration
| Category | Details |
|---|---|
| Base Model | 3411 |
| Configuration | Standard, non-redundant module, compatible with 2401 baseplate |
