Product Description

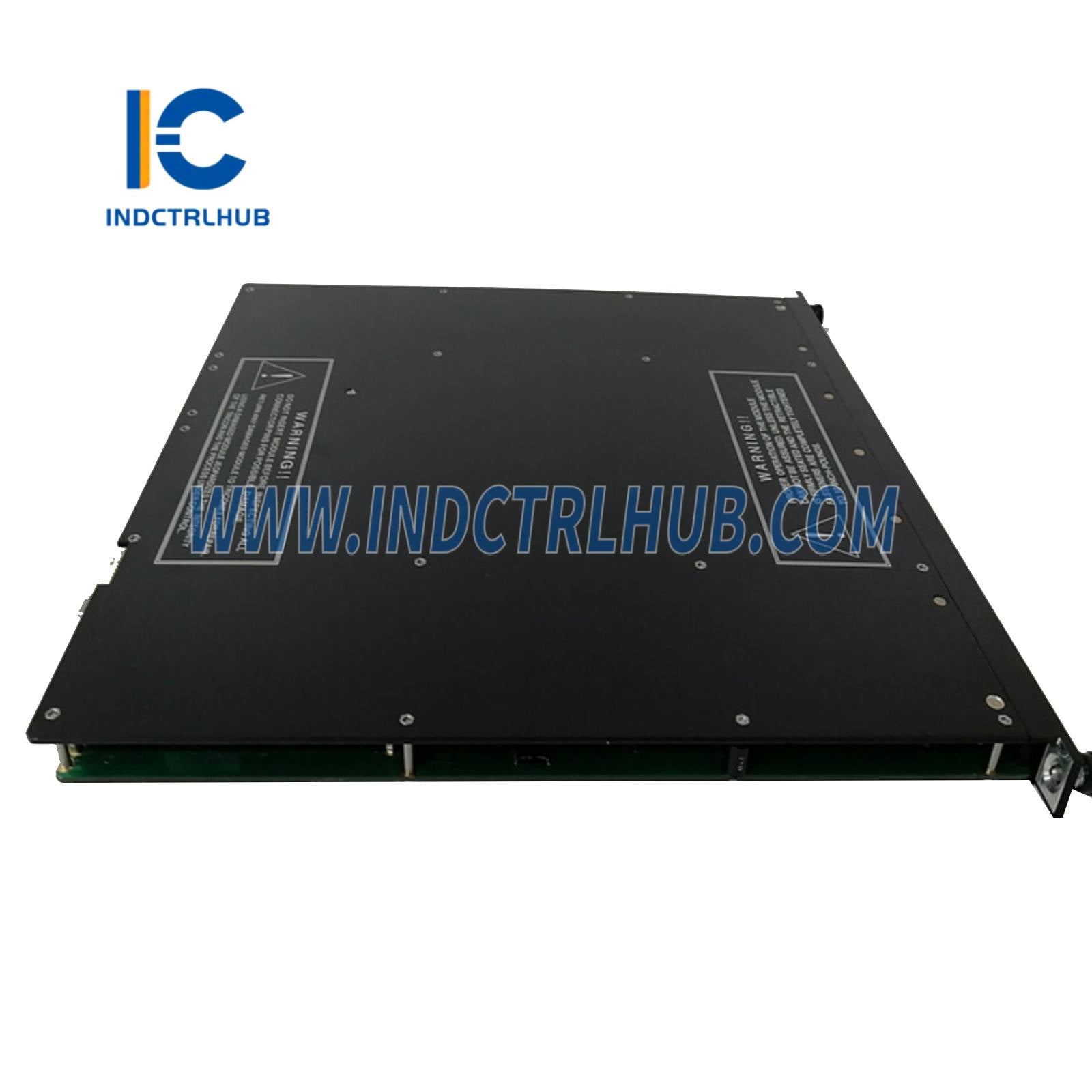

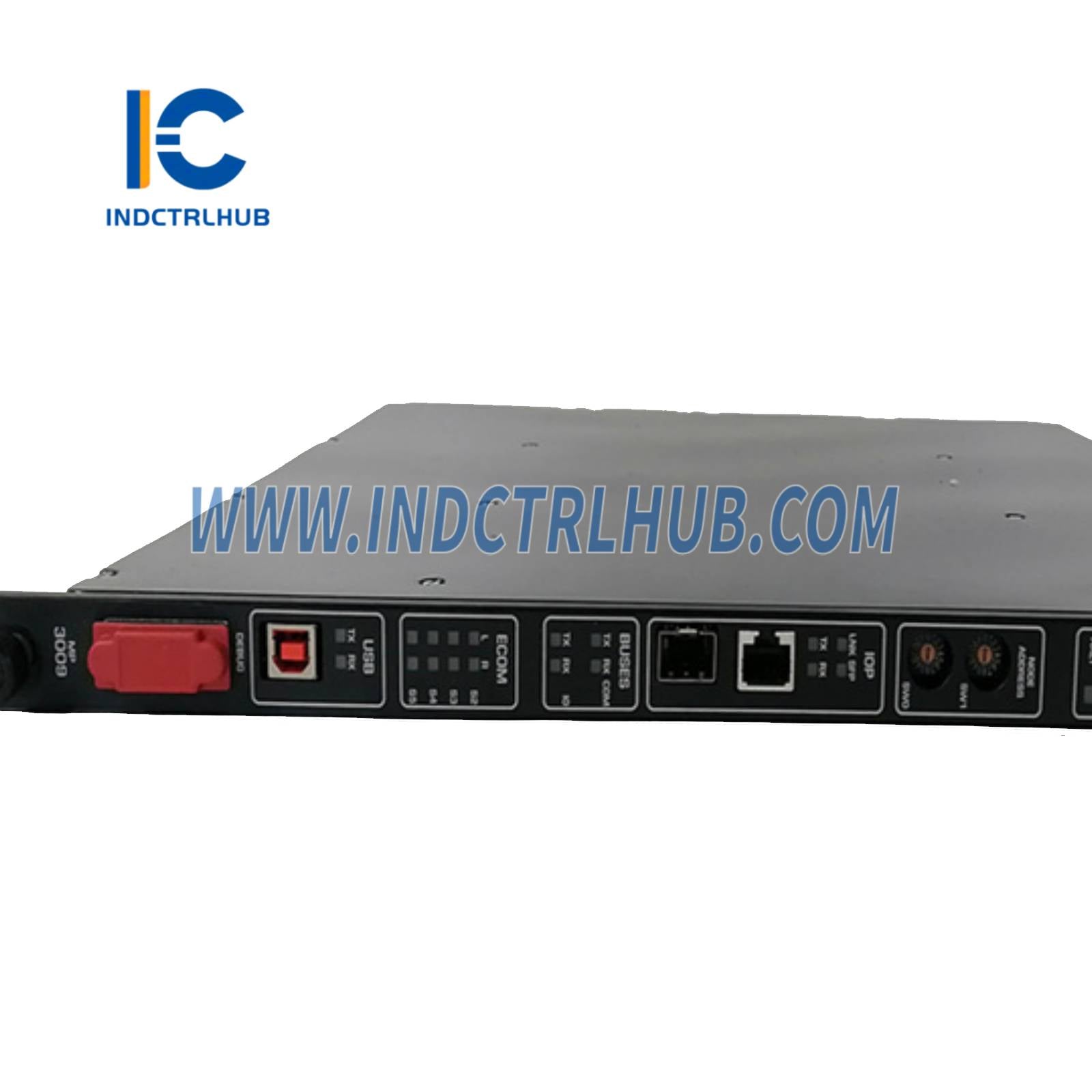

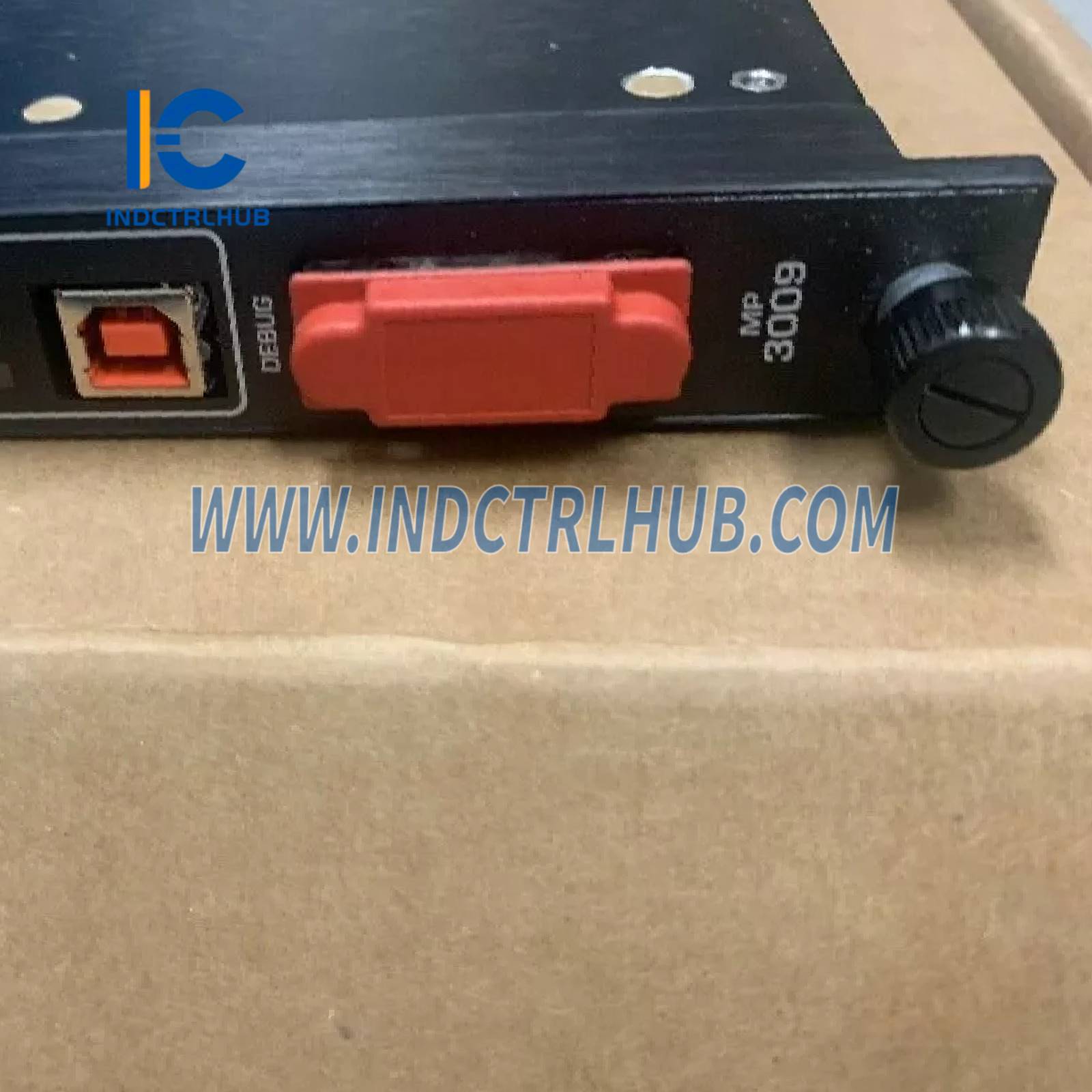

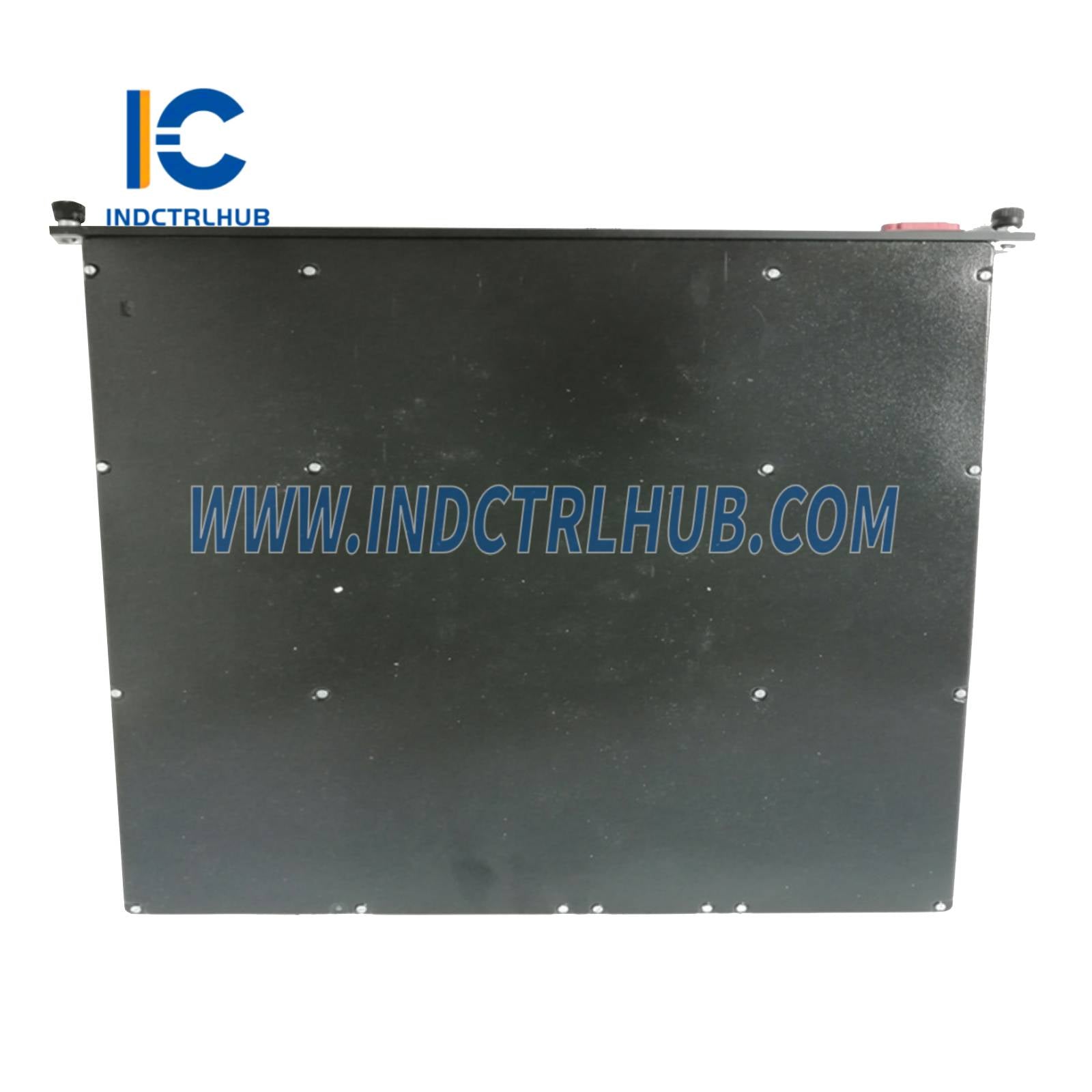

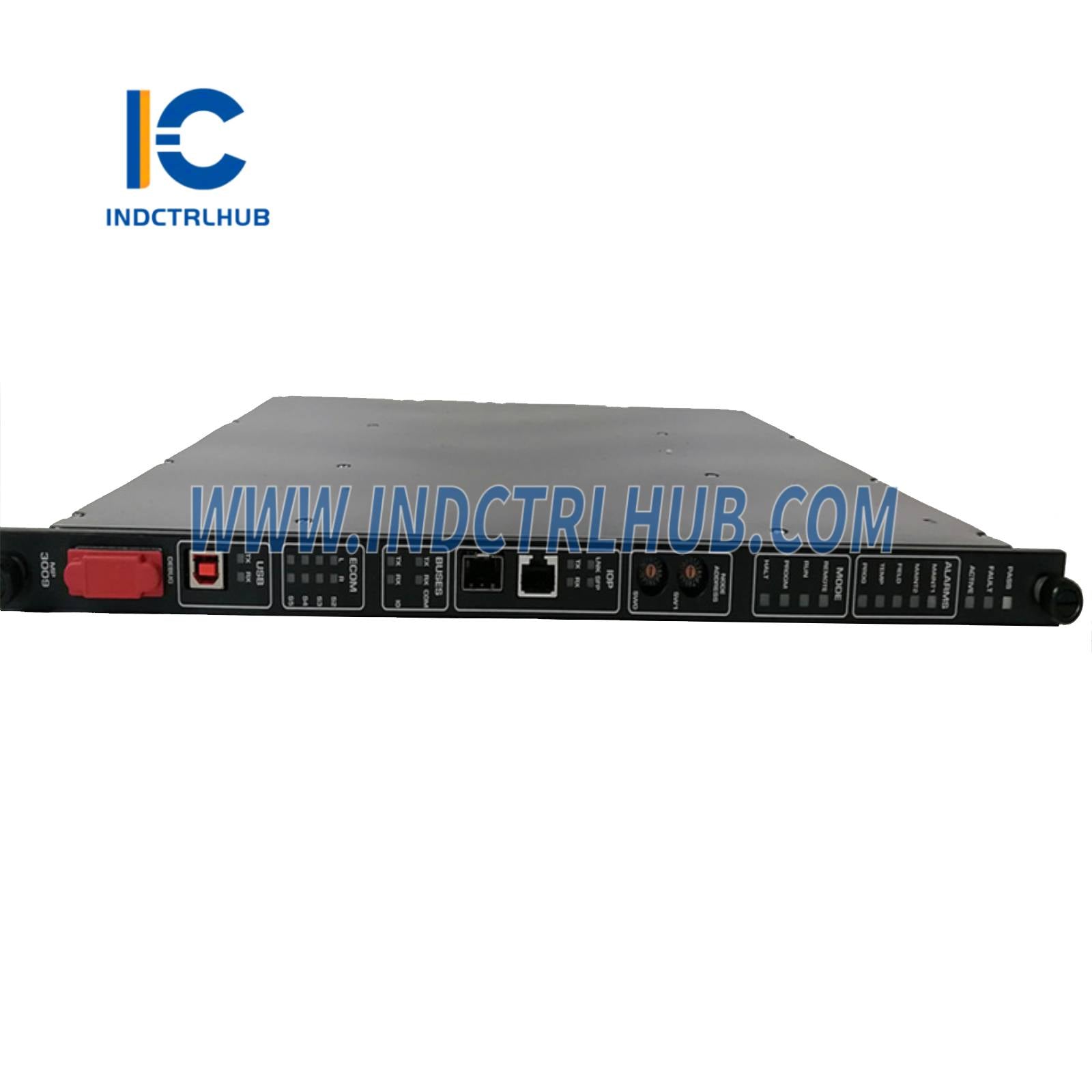

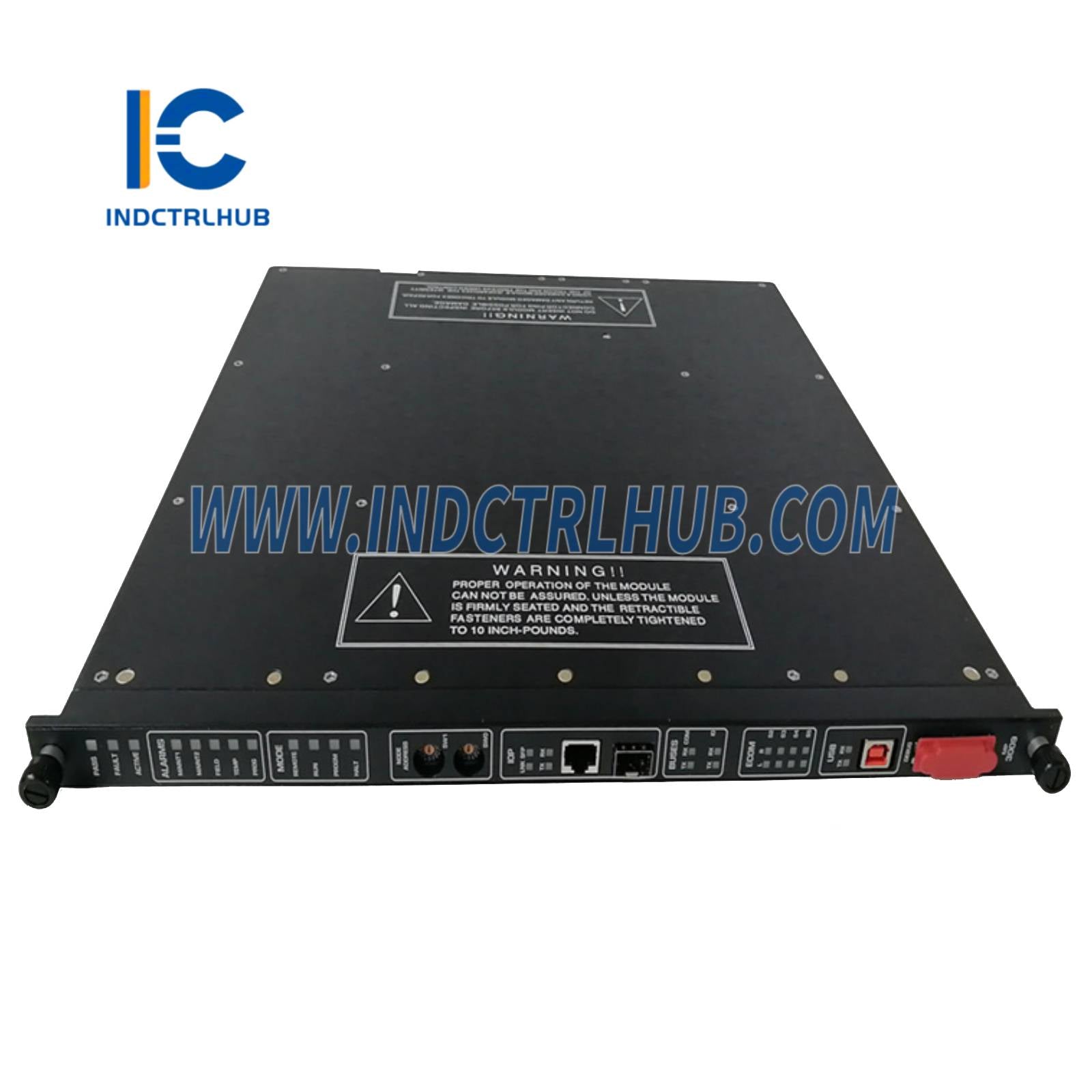

Triconex 3009 V11 Main Processor
Product Overview
- The Triconex 3009 V11 is a Main Processor (MP) module designed for the Triconex Safety Instrumented System (SIS), part of Schneider Electric’s EcoStruxure Tricon platform. It provides high-performance processing for safety-critical applications, supporting the Triple Modular Redundant (TMR) architecture to ensure fault tolerance and continuous operation. Used in industries like oil and gas, chemical, and power generation, the 3009 V11 meets Safety Integrity Level 3 (SIL3) requirements for applications such as emergency shutdown (ESD), burner management systems (BMS), and turbomachinery control (TMC).
Technical Specifications
- The 3009 V11 has the following specifications based on standard characteristics for this model:
| Specification | Details |
|---|---|
| Model/Part Number | 3009 V11 |
| Manufacturer | Triconex (Schneider Electric) |
| Description | Main Processor Module |
| Series | Tricon Safety System |
| Processor | 32-bit, high-performance |
| Memory | 16 MB SRAM, 6 MB Flash PROM |
| Communication Ports | 2 serial ports (RS-232/RS-485), 1 TriBus port |
| Communication Protocols | Modbus, TriStation 1131, Peer-to-Peer |
| TriBus Speed | 25 Mbps |
| Power Consumption | Approx. 15 W |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 5% to 95% non-condensing |
| Weight | Approx. 1.5 kg |
Additional Details
- The 3009 V11 includes the following additional information based on its standard use and documentation:
- Function: Executes control logic, diagnostics, and communication tasks for safety-critical applications. Operates in a TMR configuration with two other MPs to ensure fault tolerance, processing data for ESD, BMS, TMC, and fire and gas detection systems.
- Mounting: Installs in dedicated processor slots of Tricon chassis (e.g., 8110, 8400); mechanically keyed for correct placement and interfaces via the TriBus backplane.
- Compatibility: Compatible with Tricon v11 systems and later; supports I/O modules (e.g., 3503E, 3700A), communication modules (e.g., 4119A), and TriStation 1131 software for programming and diagnostics.
- Configuration: Configured using TriStation 1131 software; supports Structured Text, Function Block Diagram, and Ladder Logic per IEC 61131-3. Features hot-swappable capability for maintenance without system downtime.
- Certifications: Meets IEC 61508 SIL3, UL, CE, and Factory Mutual (FM) standards for Class I, Division 2 hazardous locations; complies with IEC 61131 environmental and EMC requirements.
